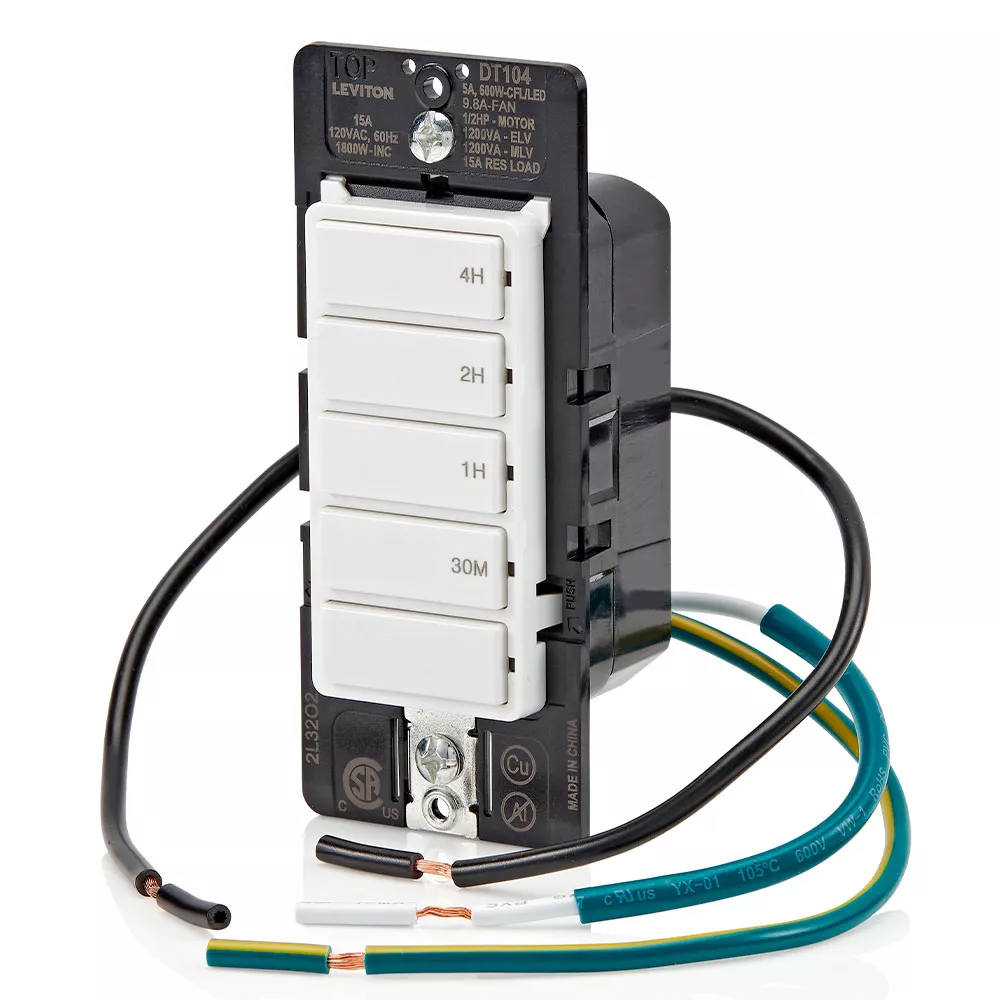

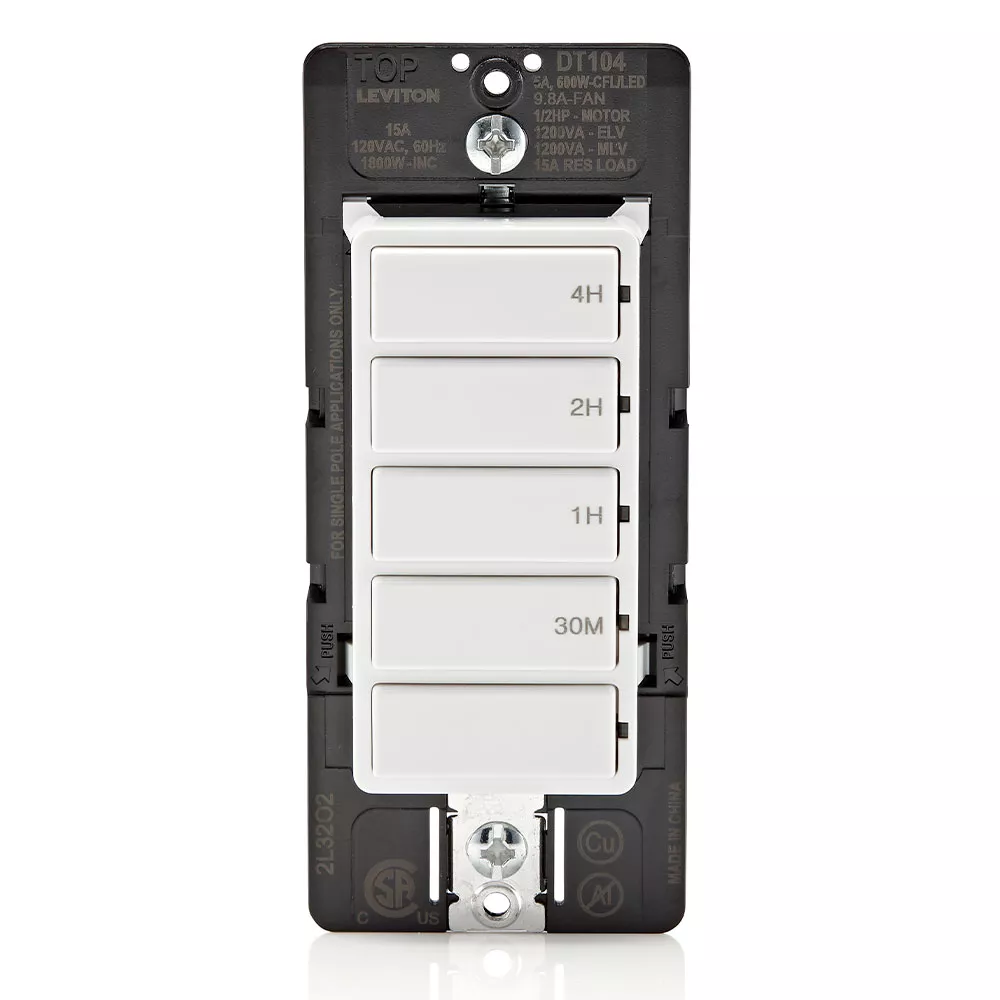

Decora In-Wall 4-Hour Countdown Timer Switch, 15A, ½ HP/9.8A Fan/Motor, Single Pole
DT104-1LW
The Decora 4-Hour Countdown Timer Switch has 5 buttons with 30-minute, 1-hour, 2-hour and 4-hour preset time options and a manual off button. Single Pole, 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, ½ HP/9.8A Fan/Motor, 15A Resistive. Can be installed with or without a neutral wire, wallplate sold separately - White
- CONVENIENT – replace your current wall switch with a countdown timer to automate fan/motor loads and lights. Four preset time buttons, press to turn on and automatically turns off when time expires
- EASY DIY INSTALL – slim depth for easier fit in wall box, interchangeable line and load wires to help prevent miswiring, and a Green Flex Sleeve that connects to a ground wire, or to a neutral wire when the sleeve is removed
- ENERGY SAVING – ensure lights and fans are not left on unintentionally
- PRACTICAL – for porch and landscape lighting, interior lights, ventilation fans, heat lamps, hot tubs, saunas, attic fans, and more
- STYLISH – easily change the color using DTKIT faceplates available in white, ivory, light almond, gray, black and brown
Product Information
Product Features
Amperage : 15 A
Brand : Decora
Color : White
Compatible Bulb Type : LED , CFL , Incandescent , Halogen , Magnetic Low Voltage , Electronic Low Voltage , Fluorescent , Fan , Motor
Device Type : Timer Switch
Faceplate Colors : White , Ivory , Light Almond , Gray , Black , Brown

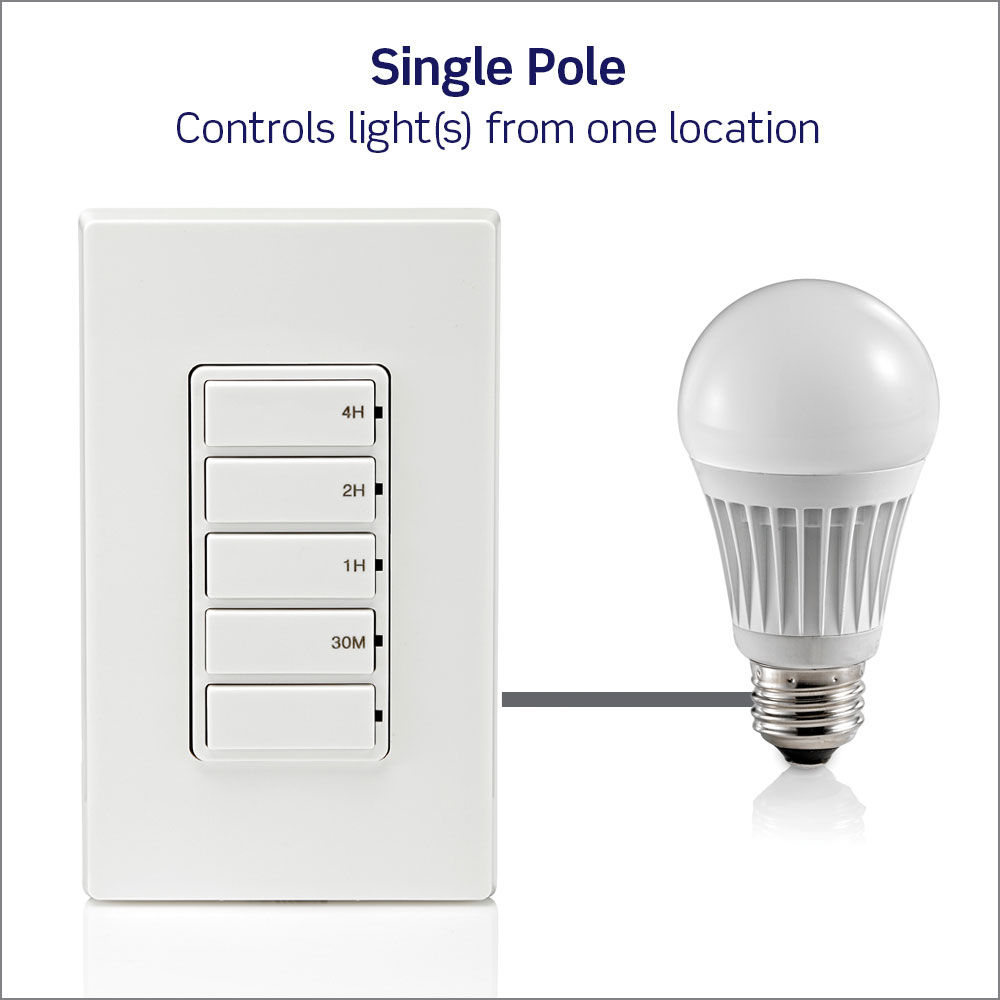

Function : Single-Pole (SP)
Grade : Residential
Grounding : Yes
Horsepower Rating : 1/2 HP
Mounting Type : In-Wall
Neutral Required : Optional
Optional Faceplates : DTKIT
Power Consumption : <1 Watt
Standards and Certifications : CSA , FCC , IC
Style : Push Button
Termination : Leads
Timer Options : 4-Hour (30M, 1H, 2H, 4H)
Timer Type : Countdown
Voltage : 120 VAC
Wallplate : Not Included
Warranty : 5-Year
Wattage Rating : 600W , 1800W , 1200VA

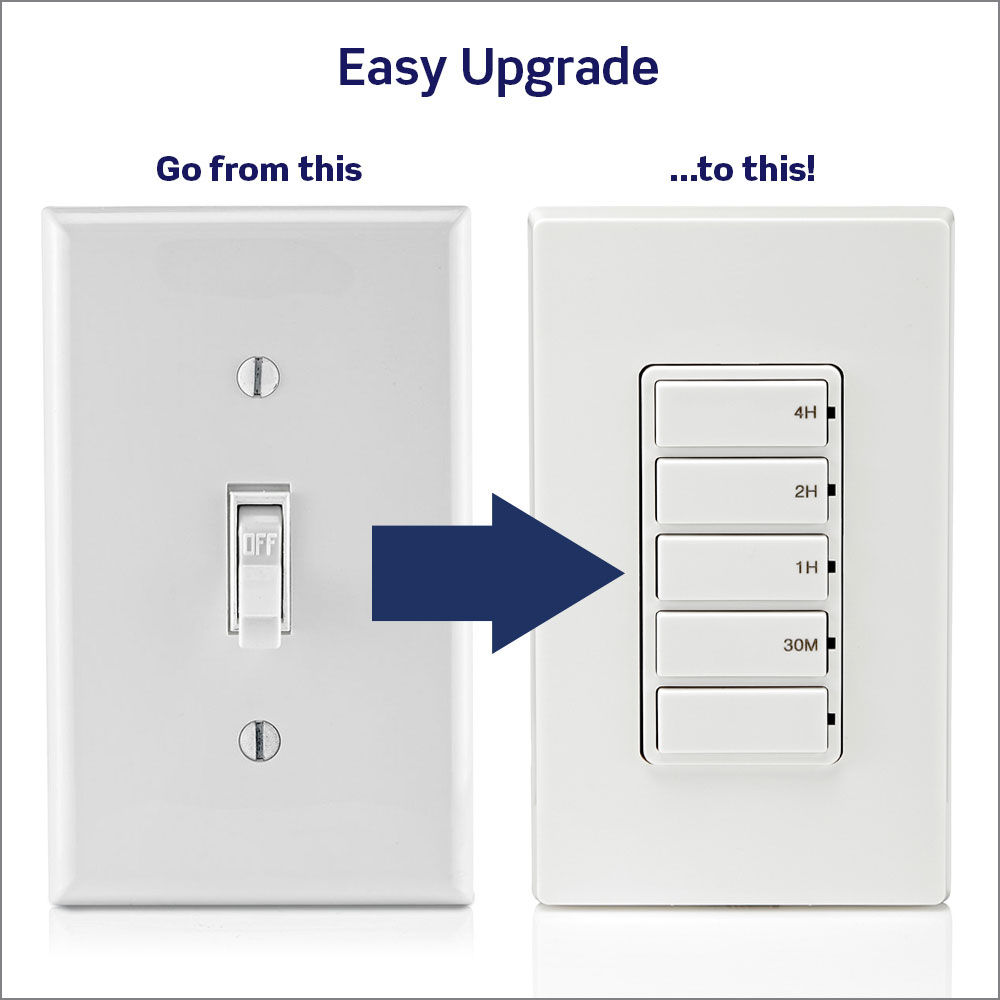

- Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally
- Four preset time option buttons 30 min, 1-2-4 hour with separate off button. Press time option to turn on and will automatically turn off when time expires
- 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage, 1200 VA Electronic Low Voltage, 1200 VA Fluorescent, ½ HP/9.8 Amp Fan/Motor, 15A Resistive

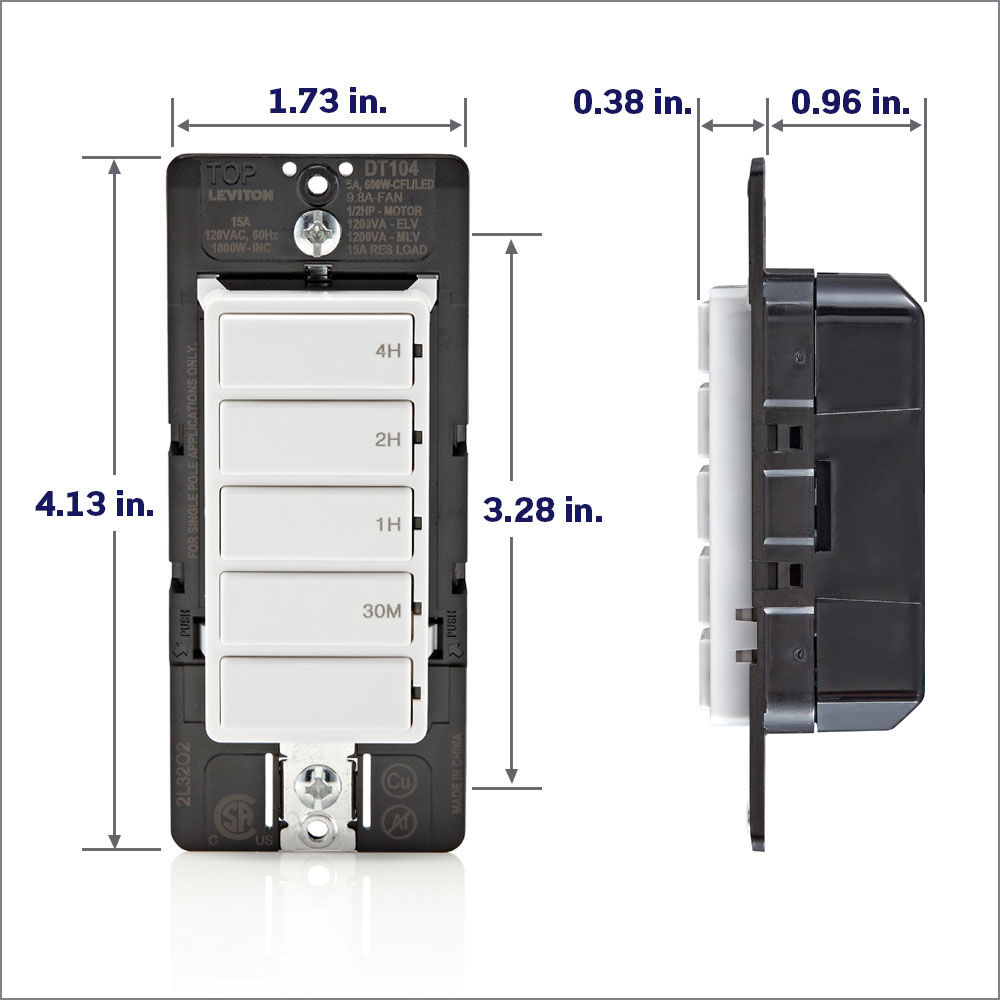

- Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws

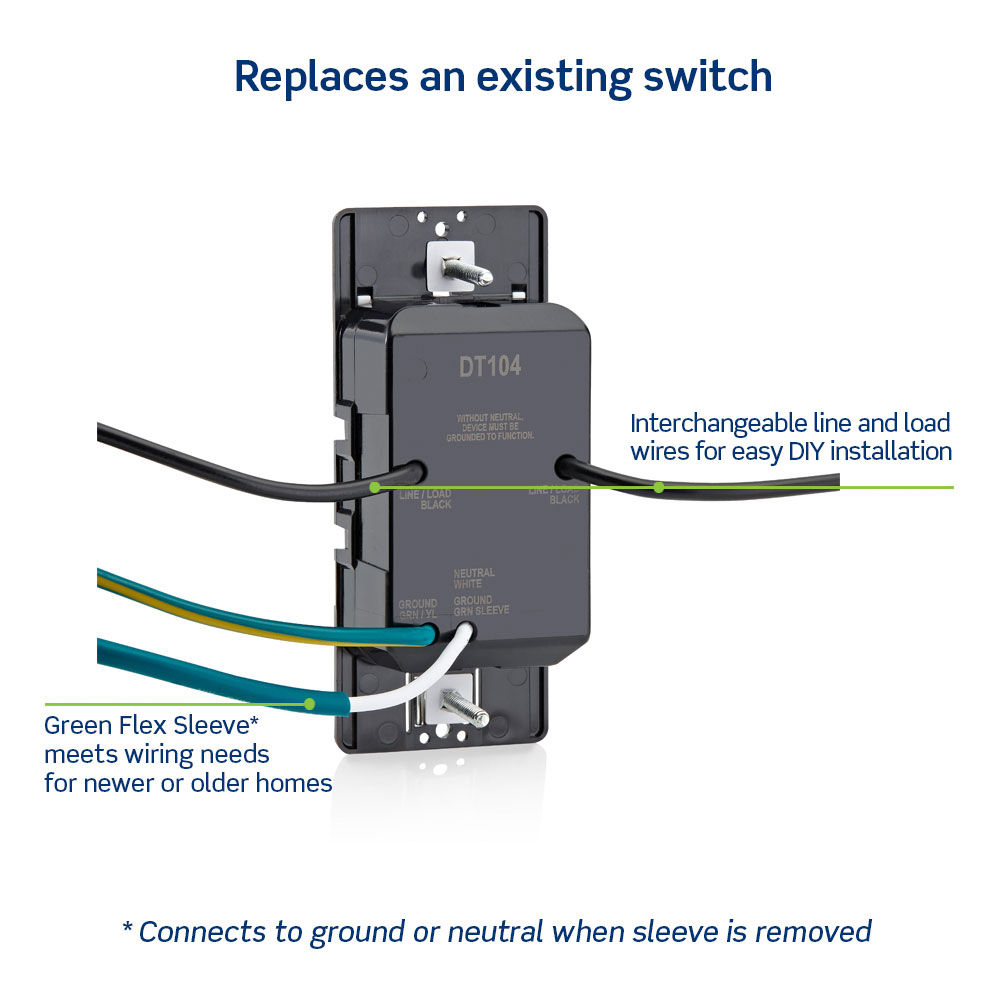

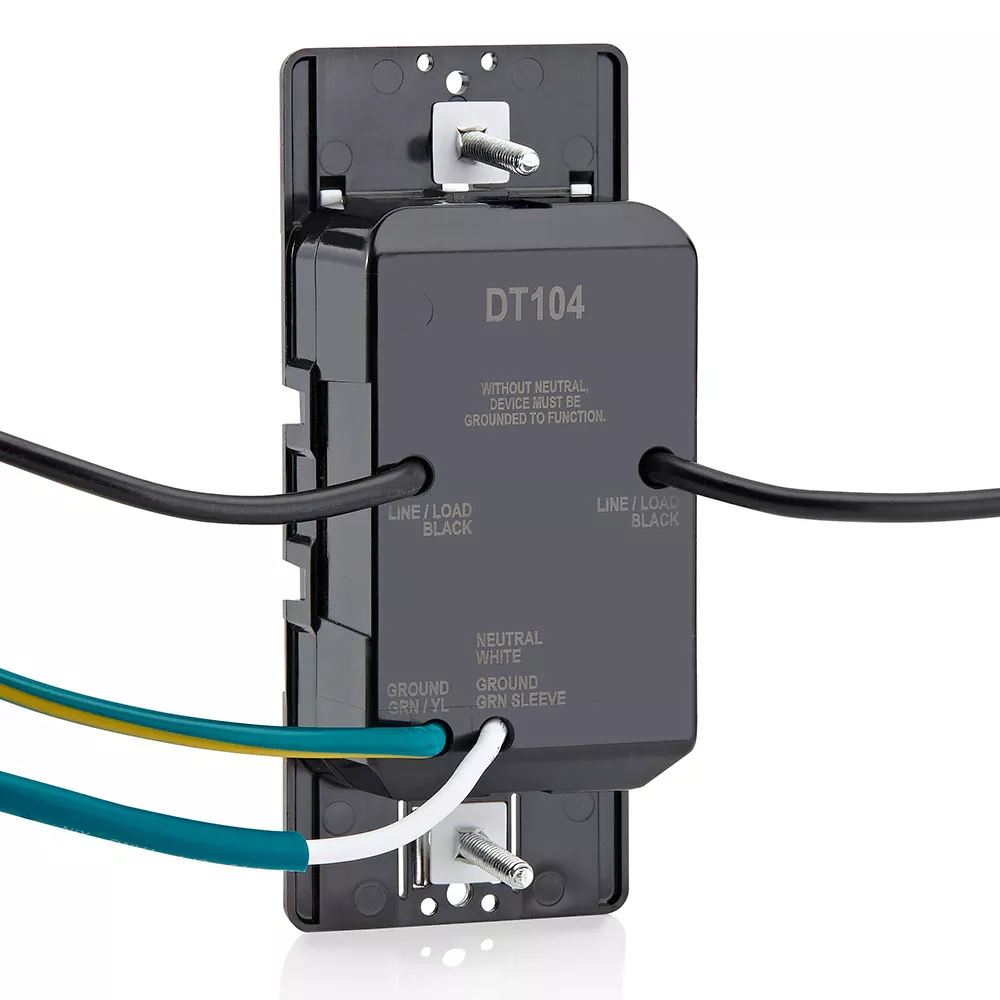

- Innovative Green Flex Sleeve wires to ground in homes with no neutral wiring or remove the sleeve and connect to a neutral wire if present in the wallbox. A ground wire is required for installation

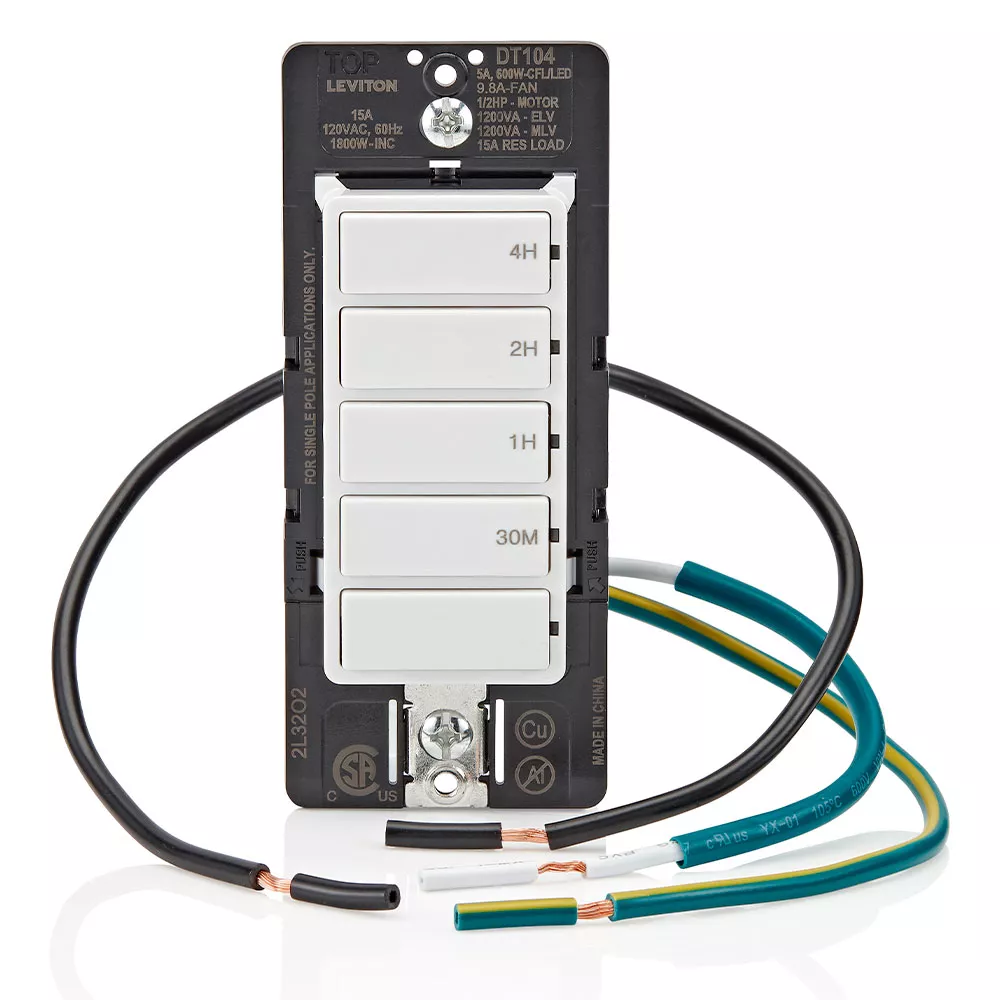

- DIY friendly with two black wires that can be interchanged between line and load to help prevent miswiring
- Zero Cross turn-on technology to extend the life of the switch

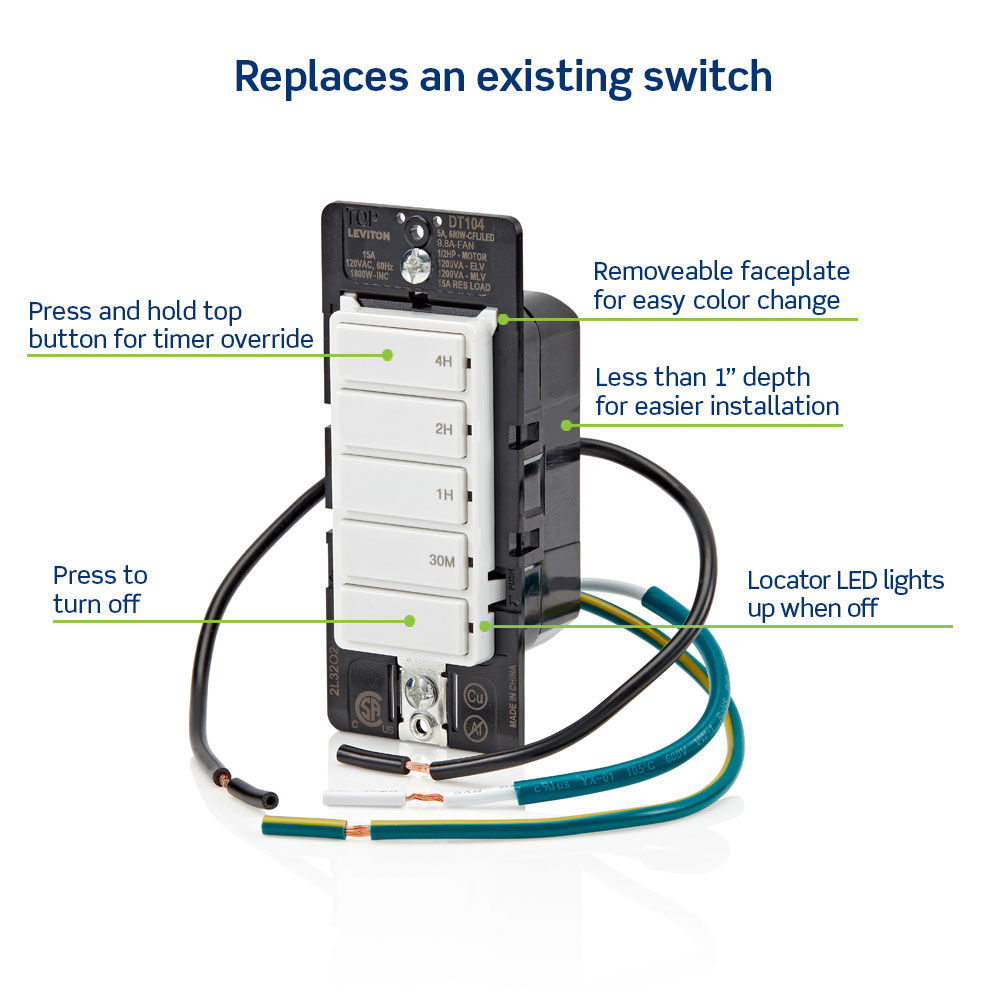

- Manual override keeps load on for 24 hours. Override can be disabled by pressing one of the timer option buttons or off button

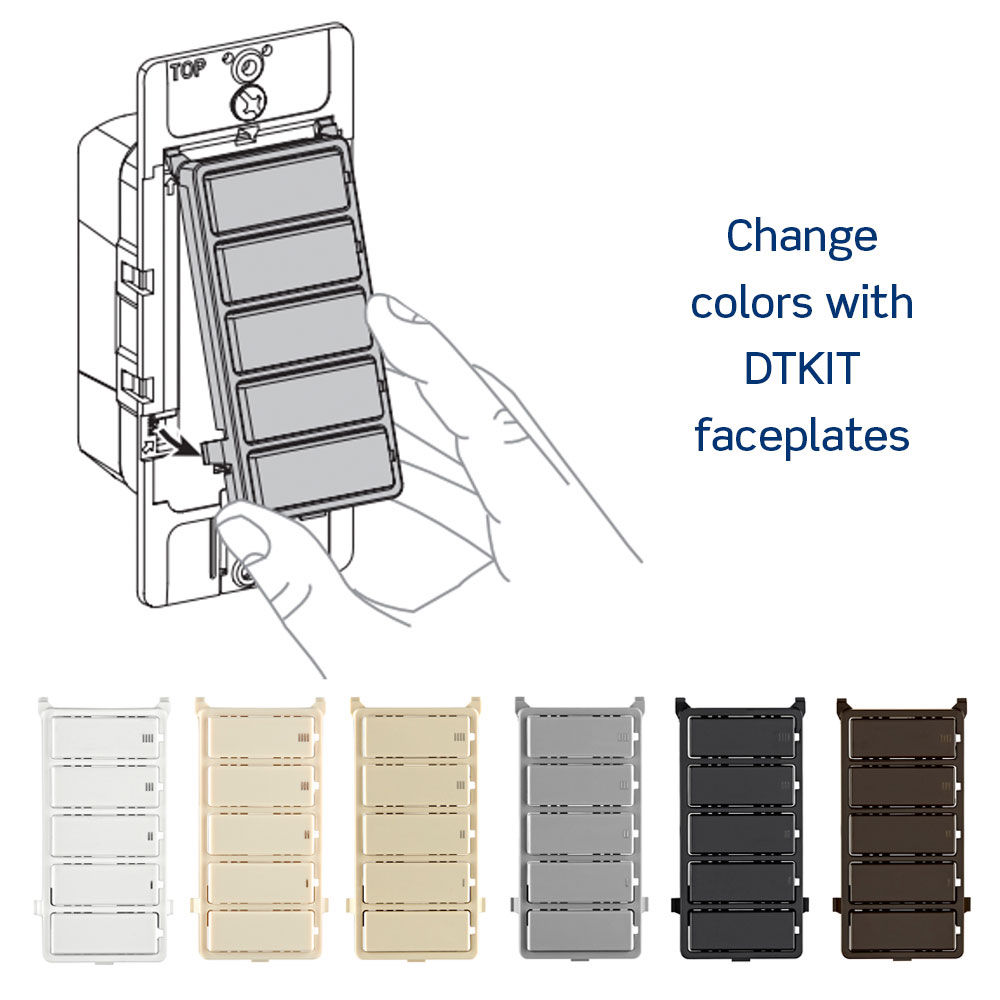

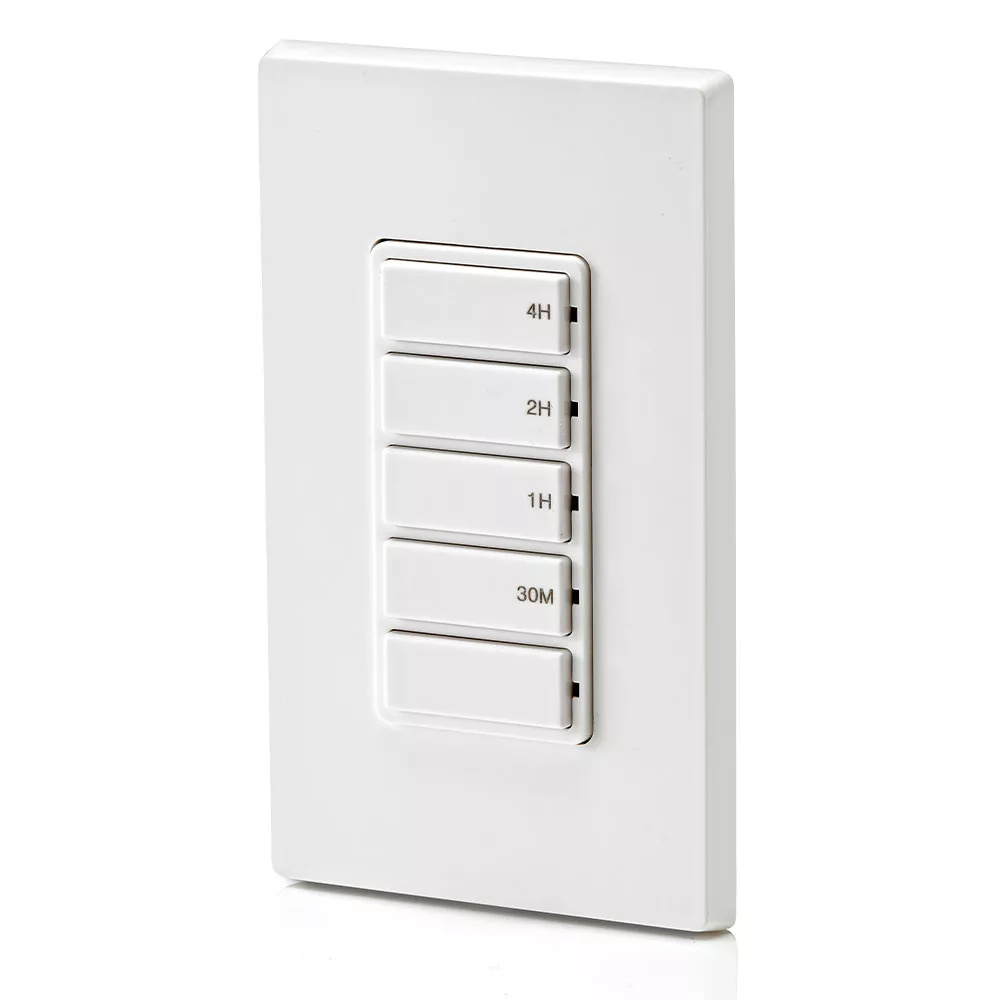

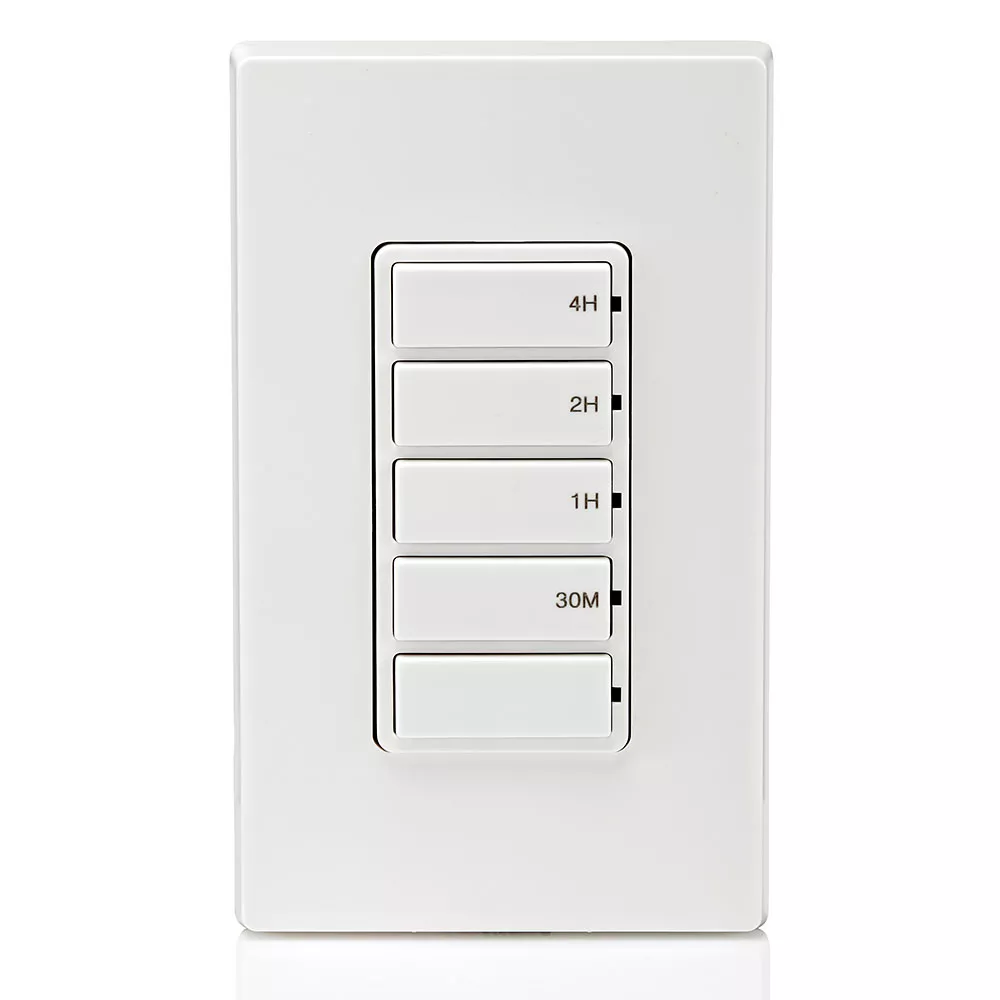

- Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
- Ideal to use for porch and landscape lighting, interior lights, ventilation fans, heat lamps, hot tubs, saunas, attic fans, and more
- Do not use to control lights if there is no other light source in the space
