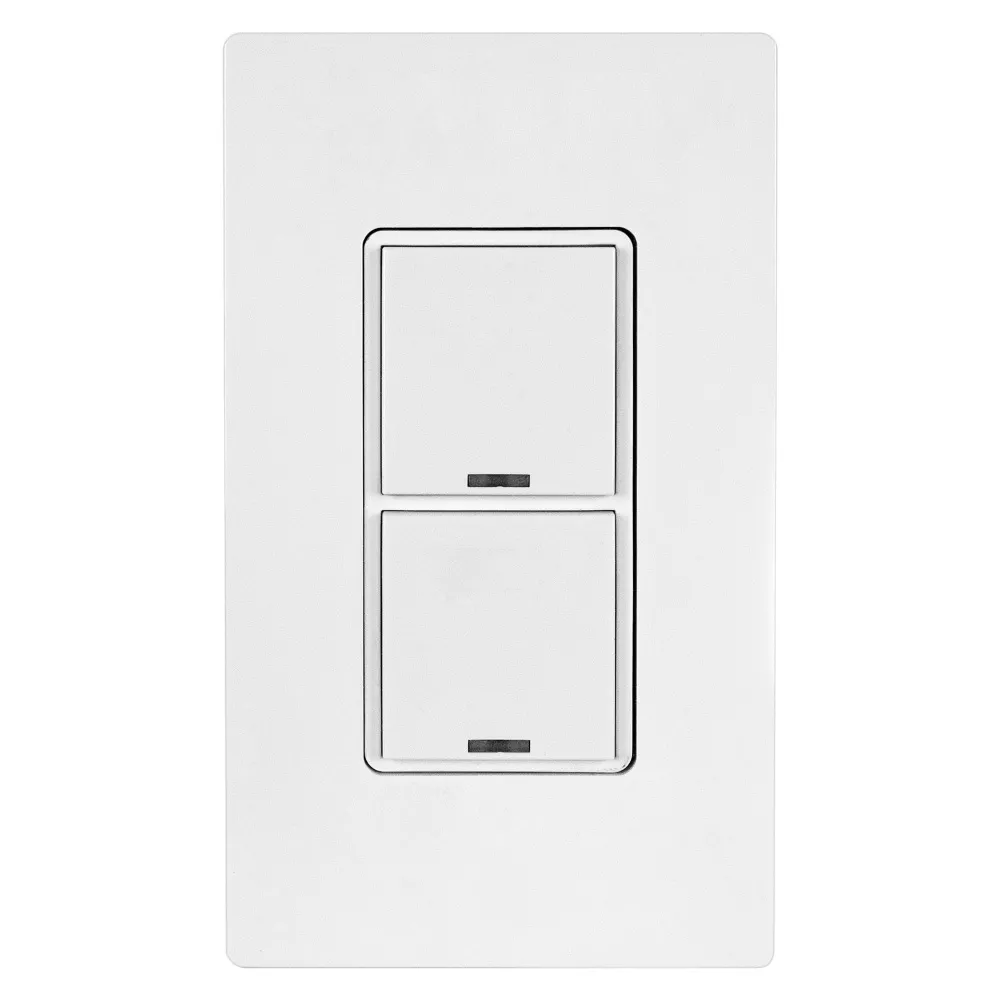

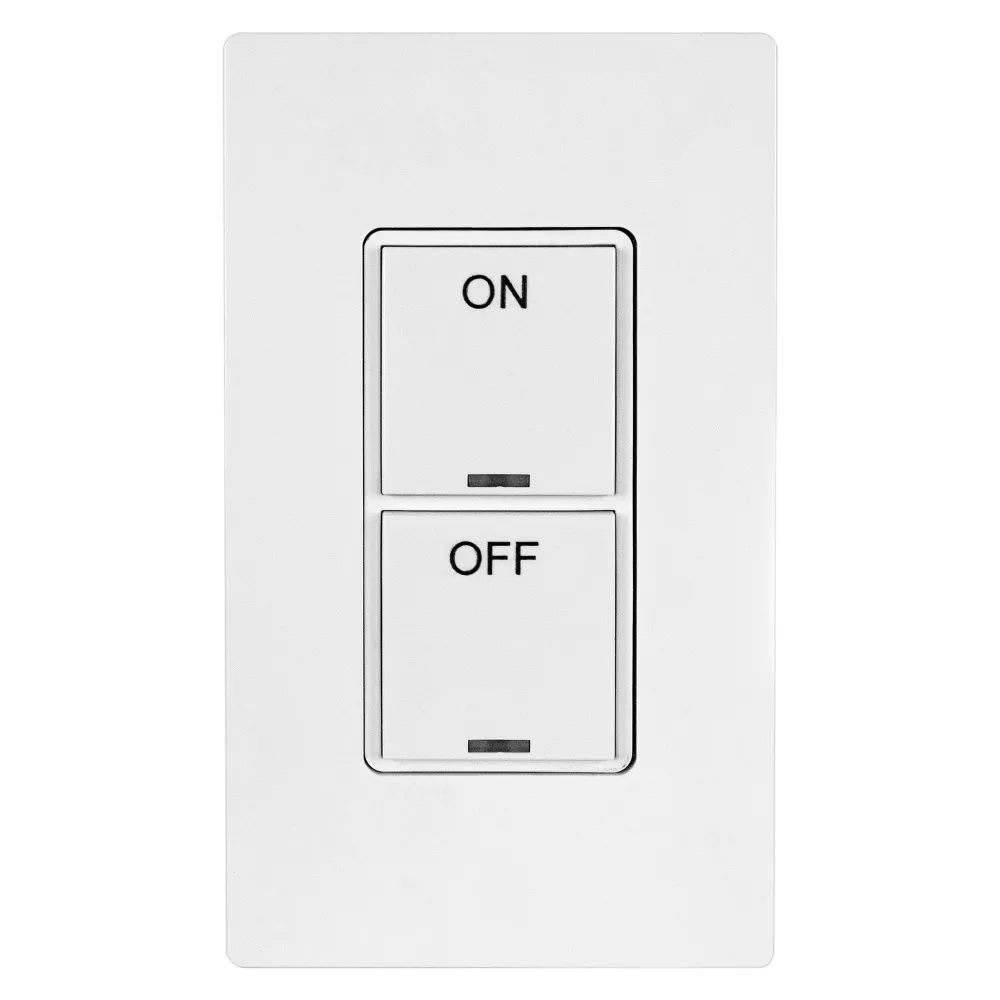

Keypad Room Controller, 2 Button, GreenMAX® DRC Wireless


GreenMAX DRC Wireless Room Controller, 2-Button

The GreenMAX® DRC Wireless Keypad Room Controllers are used as the brain of a system when Leviton Intellect™ or Lumina™ RF devices are intended to be used with a GreenMAX DRC Wireless networked control system. The Room Controllers combine both familiar push button control and energy management business logic with no extra wires. The GreenMAX DRC Room Controllers manage a room by coordinating activities of all devices within the space.

UPC Code: 07847794000 6
Country of Origin : Mexico

Product Information

  • Mechanical Specifications

    Mounting Type : Wall Mount

  • Product Features

    Product Line : DRC

    Product Type : Room Controller

    Protocol : Intellect/Wireless

  • Wireless interface for configuration, control, and status monitoring
    • Two operating modes: access point for standalone operation, and Wi-Fi client for connecting to building network
  • Use any Android or iOS for configuration using the greenmax_drc_app at Leviton.com/apps
  • Models include 1-, 2-, 4-, and 8-button configurations
  • Wireless mesh network for connection to GreenMAX DRC, Intellect, and Wireless devices
  • Acting as a room controller, these devices implement energy management business logic for the controlled space
  • Each button can be individually programmed for ON, OFF, ON/OFF, dimmed raise/lower, scene ON level, group raise/lower, and other customizable scenes and settings via the greenmax_drc_app

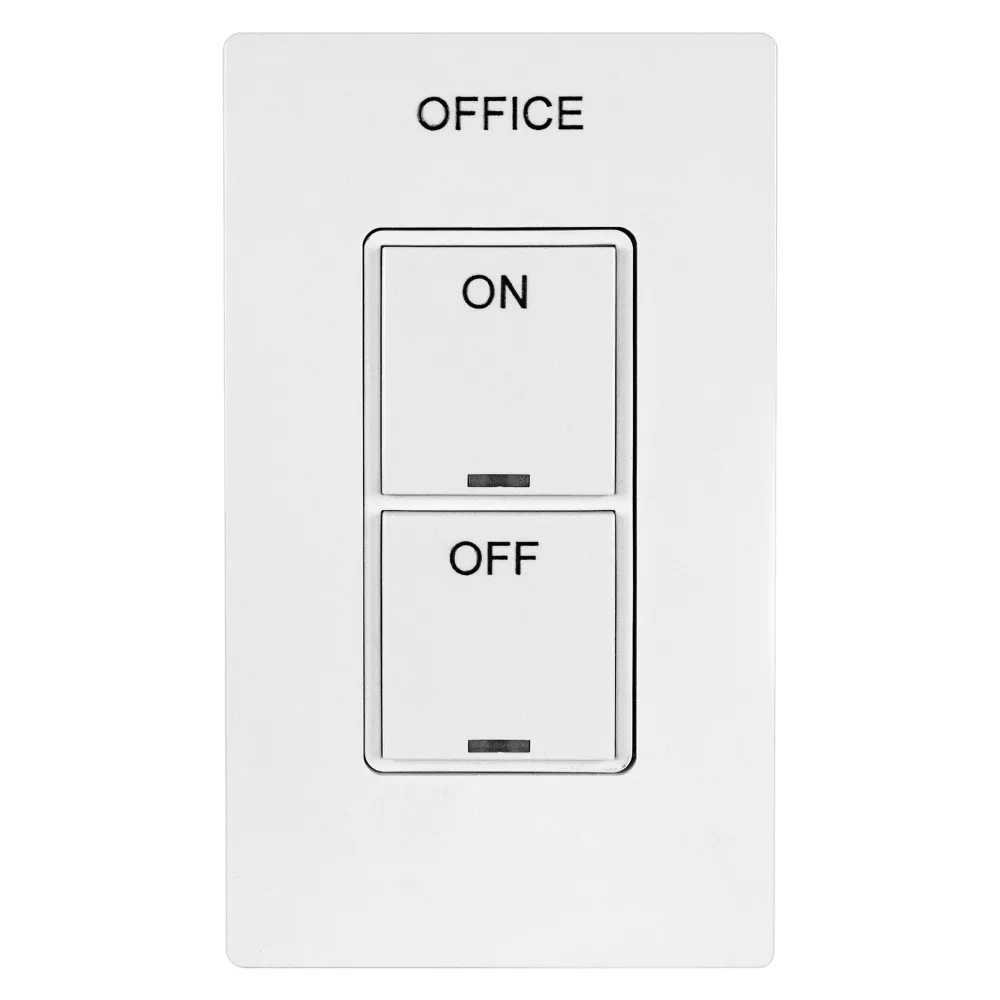

  • Custom engraved labeling available on switch buttons and screwless wall plates - 1, 2, 4 button: up to 8 characters per two lines of text
    • 8 button: up to 4 characters per one line of text
  • Status LED for each button

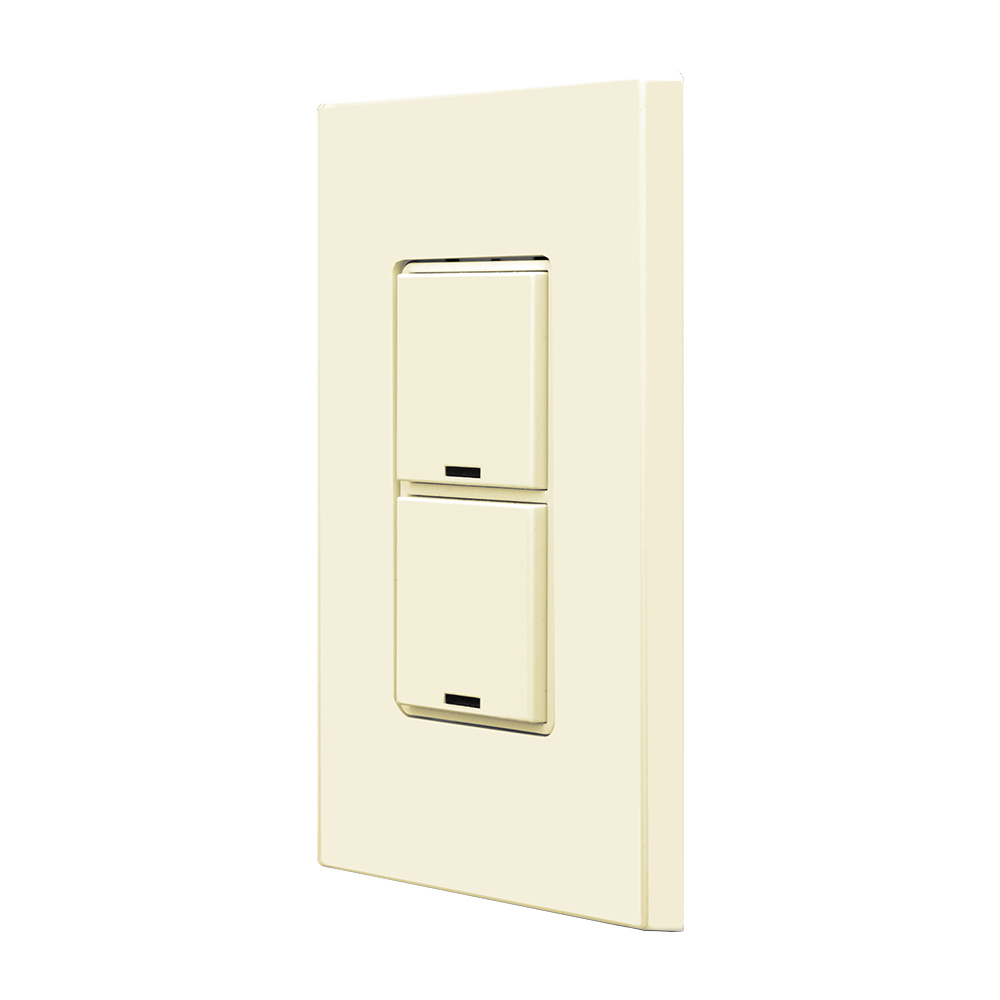

  • Available in White with Color Change Kits available for Ivory, Light Almond, Gray, Black, and Red
  • Mounts in a standard depth wall box. All switches can be installed in a multi-gang application. The multi-gang wallplate is sold separately.
  • Can be used to comply with IECC, ASHRAE 90.1 and 2019 Title 24, Part 6 occupancy/vacancy sensing, 0-10V dimming, daylight harvesting, partial-ON, partial-OFF, scheduling, demand response, and receptacle control requirements

  • N_A
