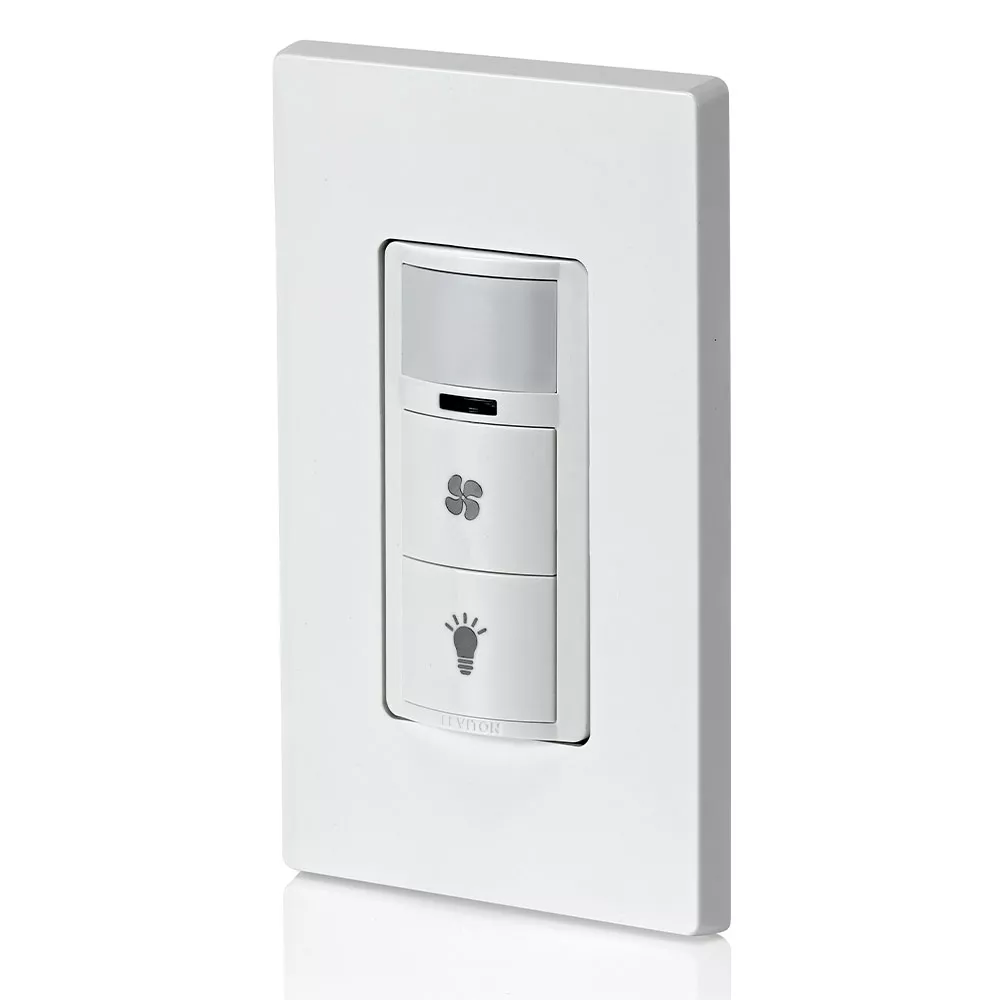

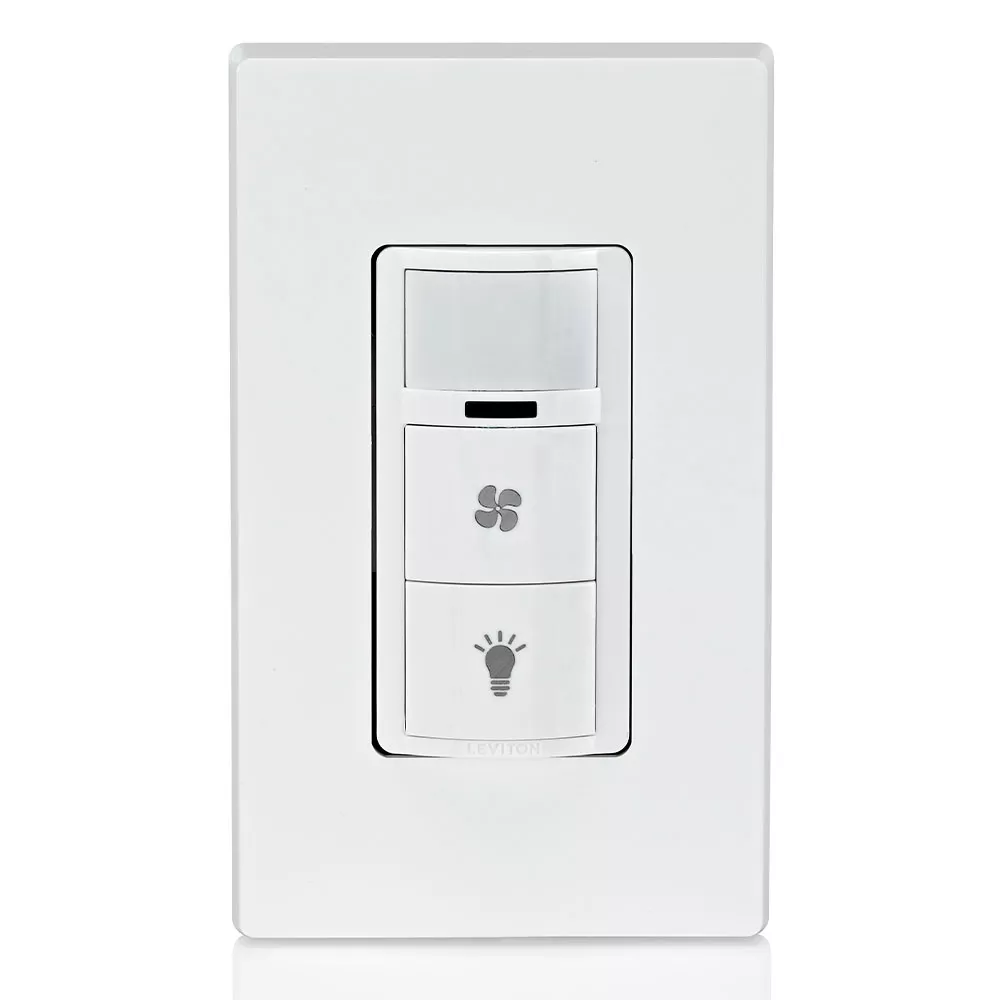

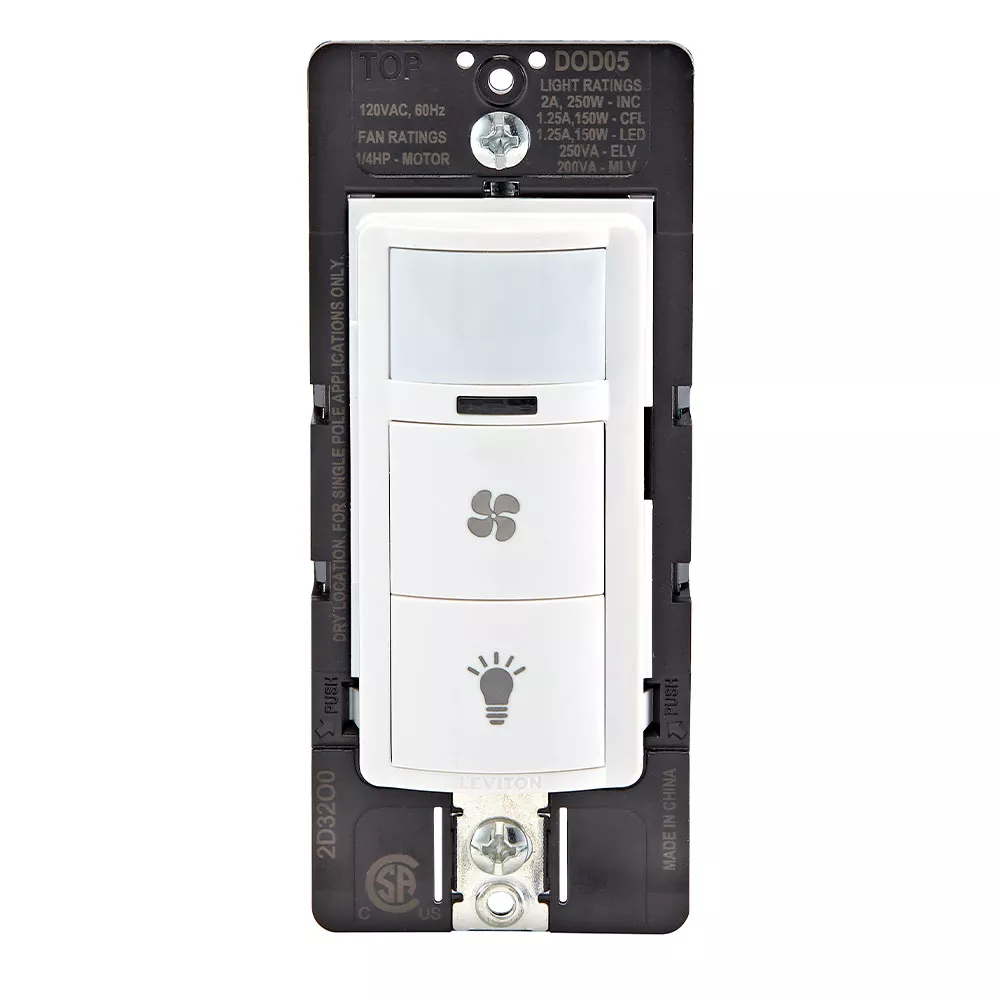

Decora In-Wall Combination Occupancy Sensor with Fan Switch, 1/4 HP, Residential Grade, Single Pole/Single Pole
DOD05-1LW
Decora Combination Occupancy Sensor with Fan Switch, single pole/single pole. Fan Load (Blue Wire): 1/4 HP Fan, 300W LED/CFL, 600W Incandescent/Halogen, 400VA MLV/ELV. Light Load (Red Wire): 150W LED/CFL, 250W Incandescent/Halogen, 200VA MLV, 250VA ELV, 2A Resistive. Can be installed with or without a neutral wire, wallplate sold separately. Can be used to comply with the requirements California Title 24, Part 6, Automatic-off Controls and IECC – White
- CONVENIENT – Sensor switch automatically turns light on and off based on motion. It can be set to vacancy (manual-on) switching. Fan switch can be manually turned on/off or set as countdown timer for 15, 30 or 45 minutes
- EASY TO INSTALL – Slim profile fits in most wallboxes
- FLEXIBLE – Can be installed with or without a neutral wire
- VERSATILE – Can replace a combination switch for separate control of lighting and fan
- PRACTICAL – Perfect for bathroom, basement, laundry room and spa
- STYLISH – Easily change the color using DHDKT faceplates available in white, ivory, light almond, gray, black and brown
Product Information
Product Features
Adjustment : Programmable
Auto-ON/Auto-OFF : Yes
Color : White
Coverage (Sq.Ft.) : 180°, 900 Sq. Ft
Dimensions : W 1.73" X D 0.95" X H 4.13"
Grade : Residential
LED Color : Green and Red
Load Rating : Fan Load (Blue Wire): 1/4 HP Fan, 300W LED/CFL, 600W Incandescent/Halogen, 400VA MLV/ELV. Light Load (Red Wire): 150W LED/CFL, 250W Incandescent/Halogen, 200VA MLV, 250VA ELV, 2A Resistive
Mounting Type : Wall Switch
Neutral : Optional
Power Consumption : <0.5 Watts
Sensor Technology : Passive Infrared
Sensor Type : Occupancy
Style Name : Decora
Switch : Relay
Switch Type : Single-Pole / Single Pole
Time Delay : 1M, 5M, 10M or 20M
Voltage : 120 VAC
Wallplate : Not Included
Warranty : 5-Year Limited

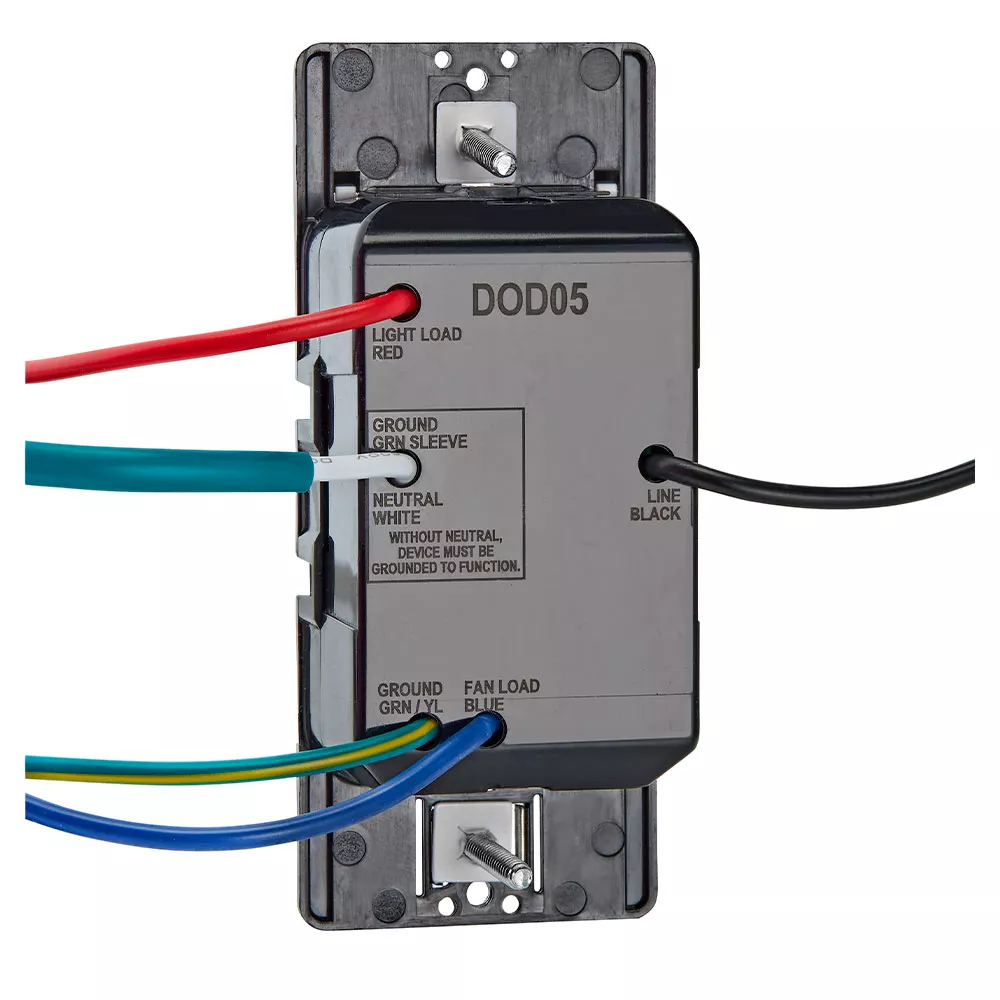

Wiring : Ground or Neutral Required
Standards and Certifications
California Title 24 : Yes
Standards and Certifications : CSA
- Ideal for Bathroom, basement, laundry room and home spa
- Two single pole switches, one motion sensor switch with light icon for auto ON/auto OFF and second switch with fan icon to control exhaust fans or other loads for manual ON/OFF control, or use as a countdown timer
- Low profile design blends in with walls for a discreet appearance
- For use in any home, new or old - can be connected to Neutral wire if Neutral is present in the wallbox; or to Earth ground if no Neutral wire is present in the wallbox
- Zero Cross turn-on technology extends the life of switching relays

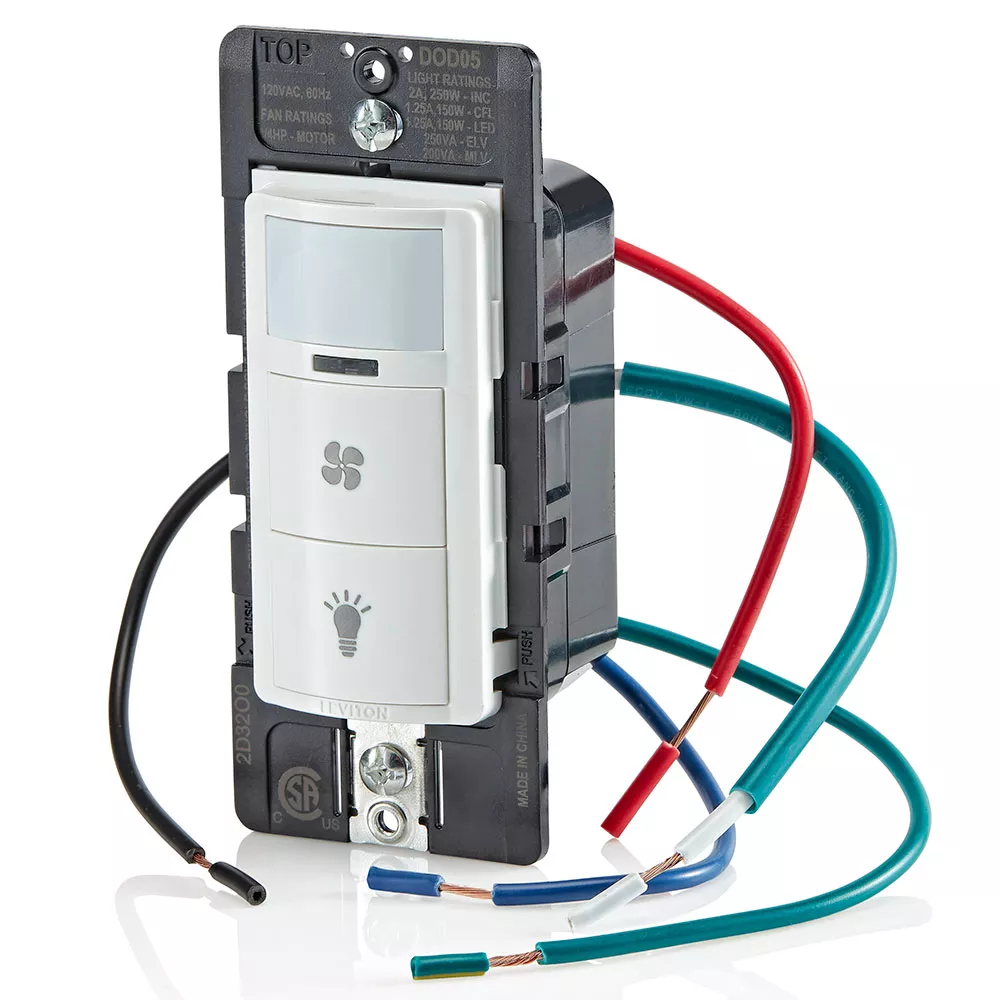

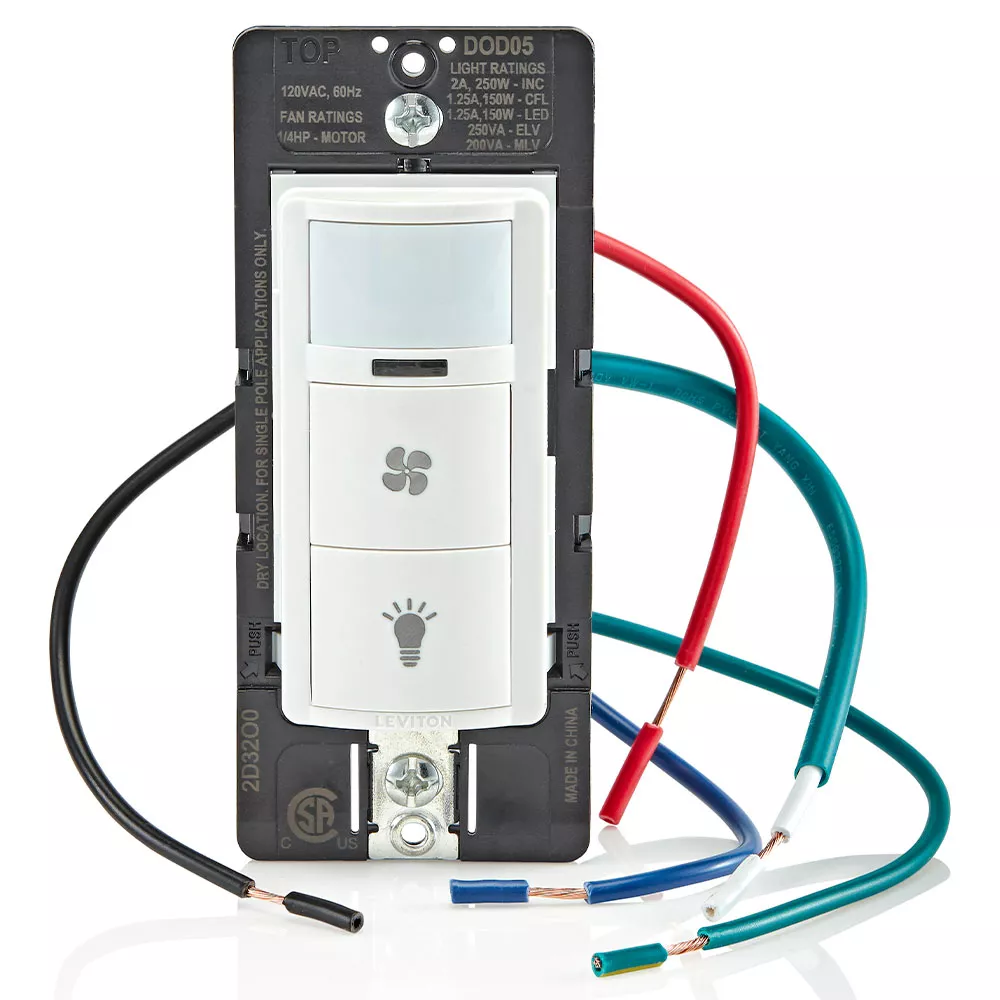

- Leaded terminals for easier installation
- Program settings without removing the wallplate or faceplate
- Can be used to comply with the requirements of California Title 24, Part 6, Automatic-off Controls and IECC
- Color change kits are available in Black, Brown, Gray, Ivory, Light Almond and White (DHDKT-00x)
- Five-Year Limited warranty
Sensor (Light Icon)
- Occupancy Sensor Mode default for Automatic ON/Automatic OFF operation. Can switch to Vacancy Mode for Manual ON/Automatic OFF
- Compatible with LED, CFL, Incandescent, Halogen, Magnetic Low Voltage and Electronic Low Voltage lighting loads
- Sensor provides 180° Field-of-View, 900 sq. ft. of coverage
- Ambient light override prevents sensor from switching the lights ON when there is ample natural sunlight
- Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
- Adjustable Sensitivity Range to fit various coverage areas
- Convenient push-button provides Manual OFF light switching at any time
- Advanced sensing enhances detection when the room is occupied and minimizes false triggers when unoccupied
- Test mode to help with sensor placement and setting adjustments
Second Switch (Fan Icon)
- Compatible with ¼ HP Motor loads, Incandescent, Halogen, LED, CFL, Incandescent, Halogen, Magnetic Low Voltage and Electronic Low Voltage
- Manual ON/OFF or set as a countdown timer for 15 minute, 30 minutes or 45 minutes
- MX295581
- US7924155
- MX315382
- CA2708330
- US8981299
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
