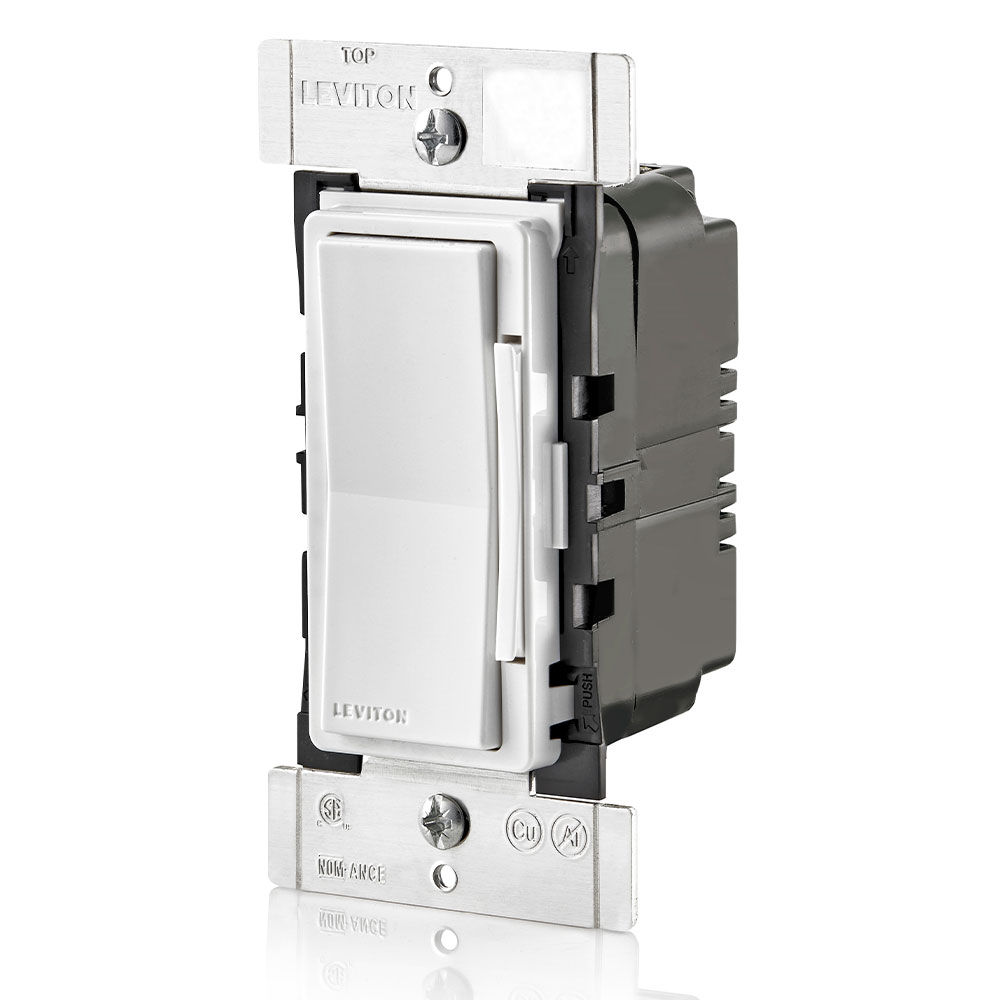

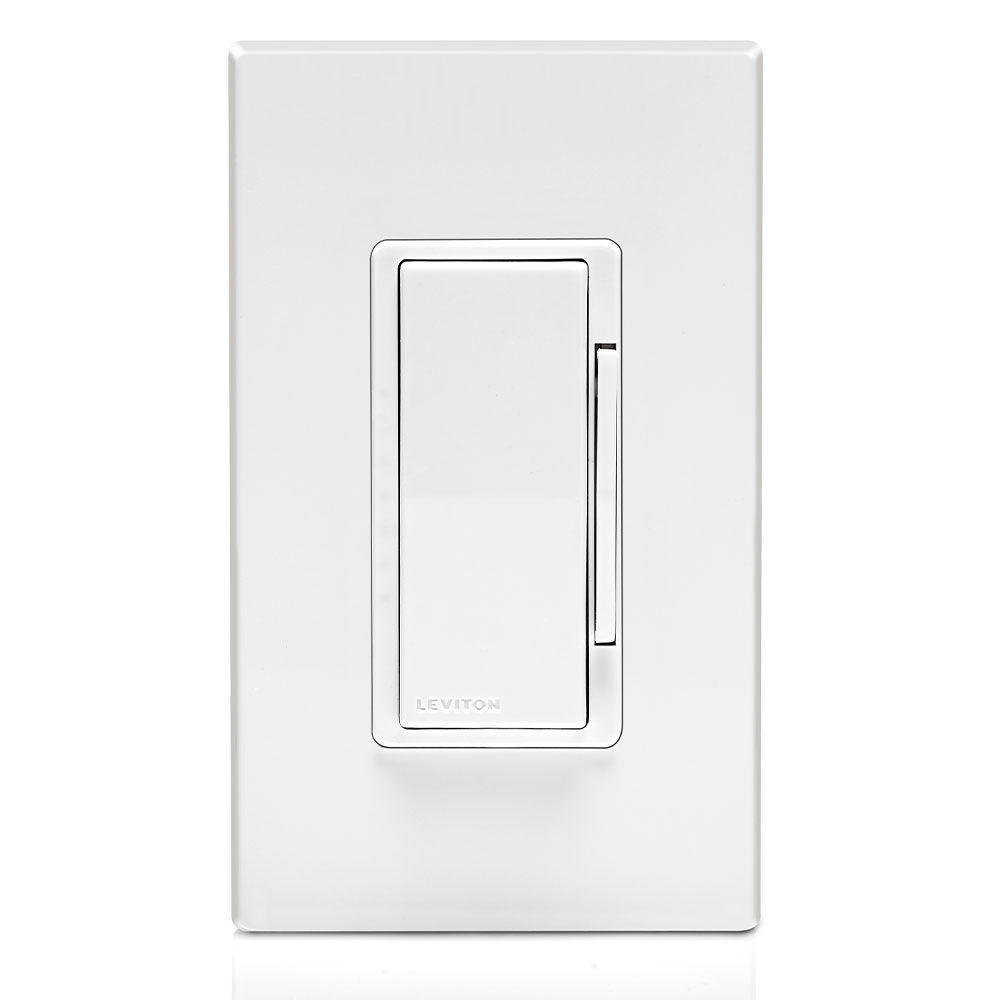

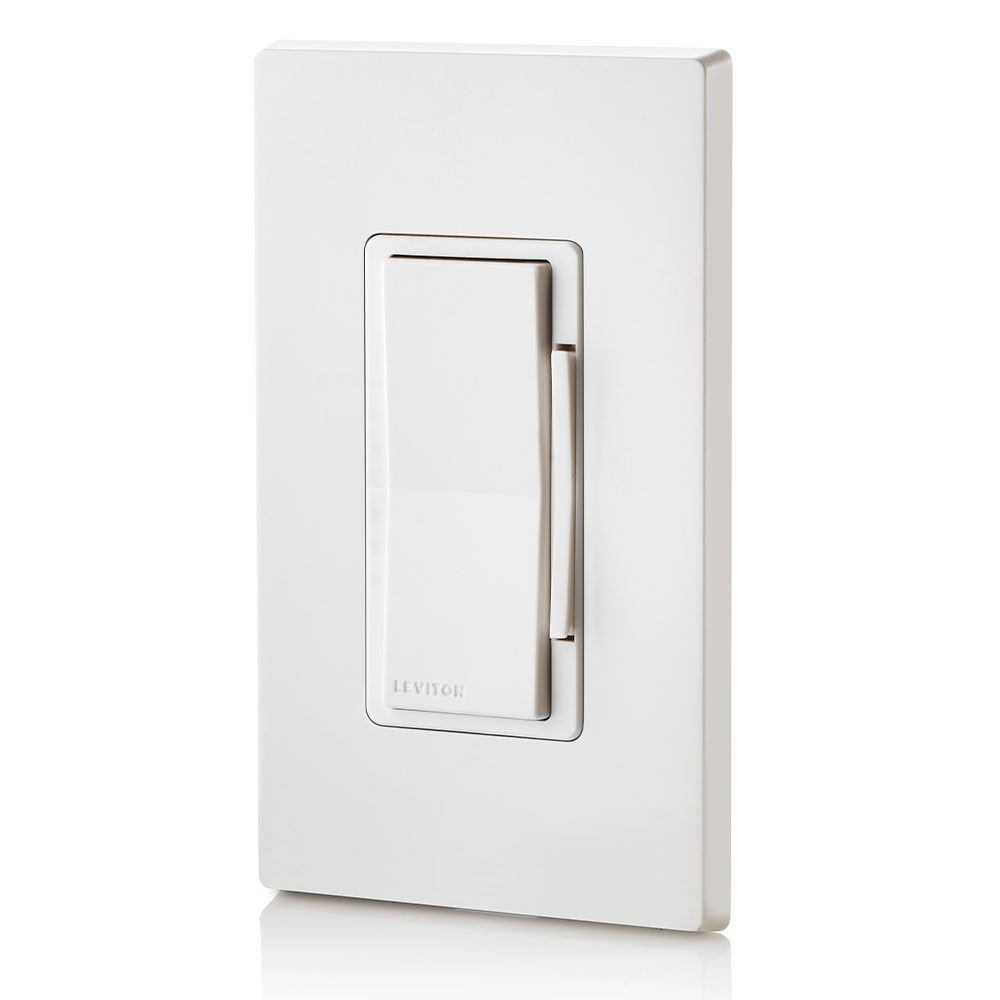

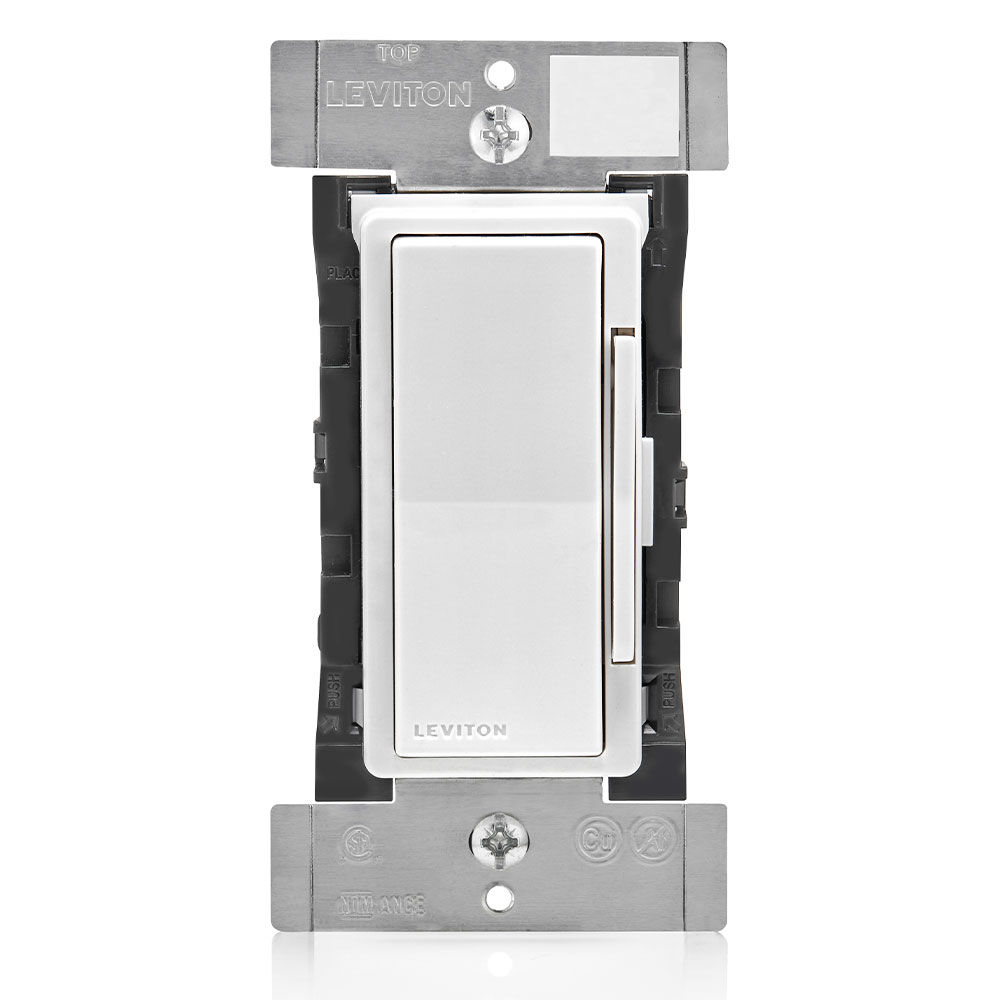

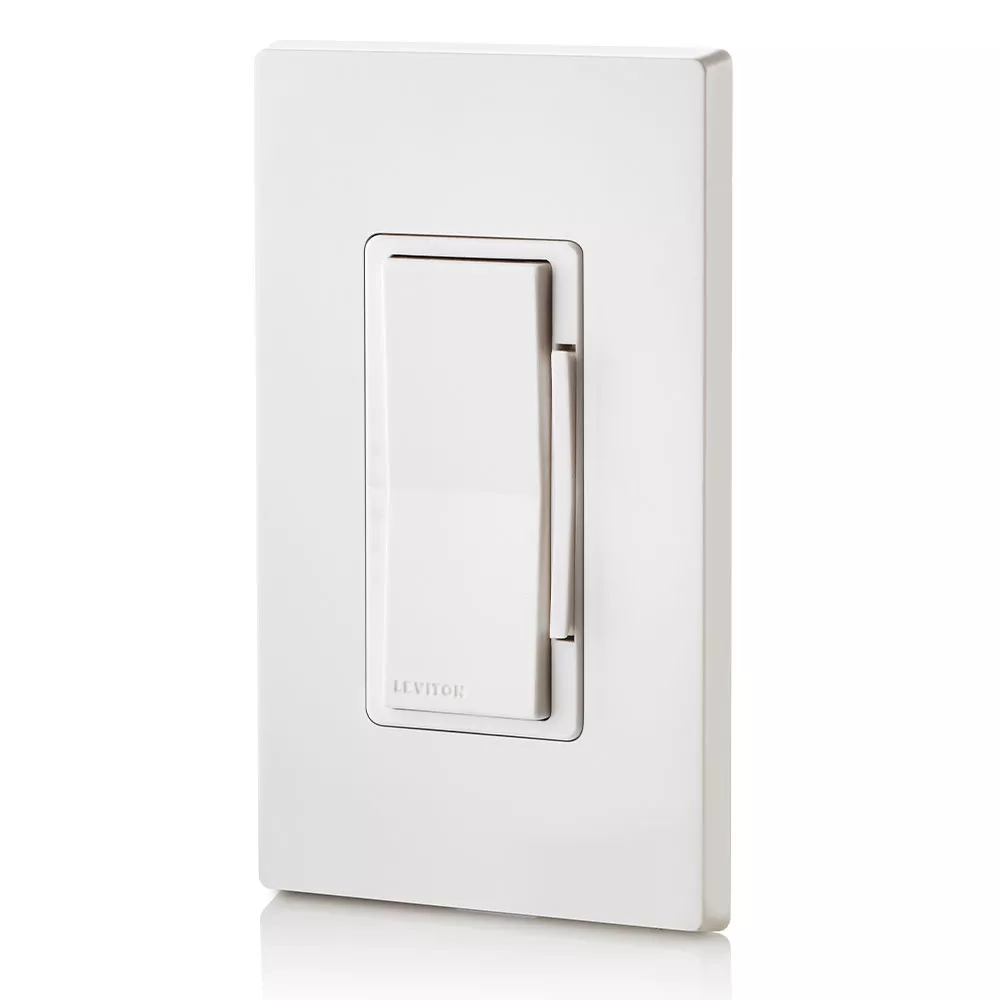

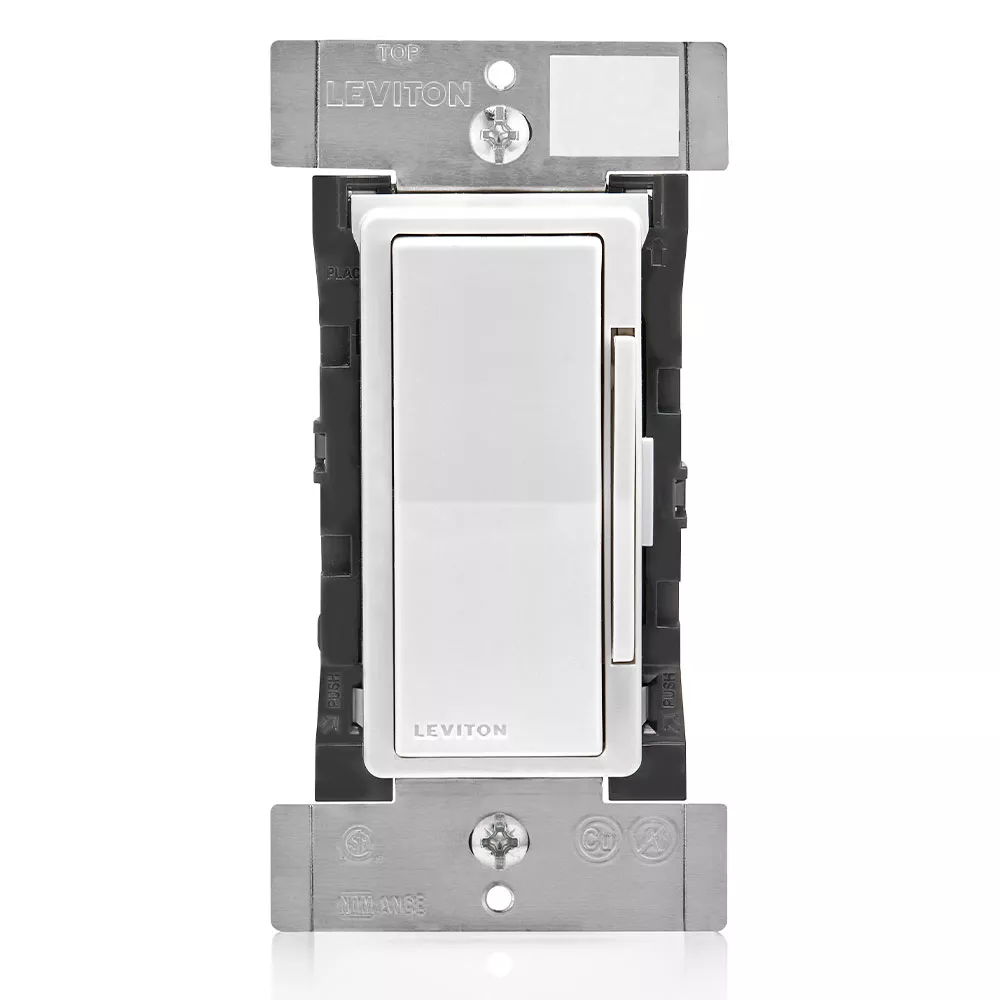

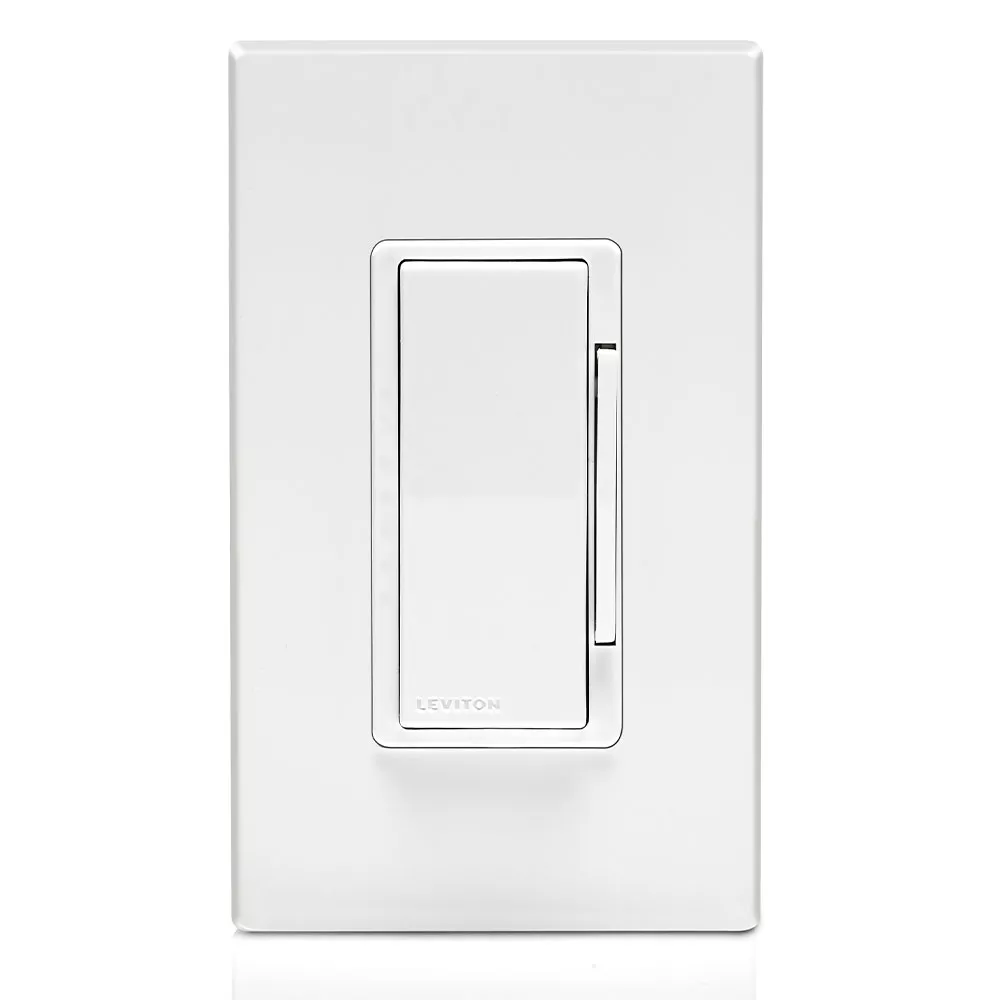

Decora Digital Dimmer Switch for Magnetic Low Voltage, Dimmable LED, Halogen and Incandescent Bulbs
DDM06-1LZ
Decora Digital Dimmer, 300W-120VAC dimmable LED/CFL 600W-120VAC incandescent/halogen and 600VA magnetic low voltage, neutral wire required, 60Hz, single pole or 3-way control when used with Decora Digital Remote - White, Ivory & Light Almond
- ADVANCED – Premium product and reasonable cost. Improved performance dimming LED bulbs; neutral wire required
- INNOVATIVE – Adjustment switch to modify the minimum light level in order to maximize the dimming range if flickering occurs at lower dimming levels
- FLEXIBLE – Can be used in a single-pole or multi-location applications (up to 4 additional locations) with Decora Digital Remote.
- CODE COMPLIANT – Meets latest NEC code for new construction
Product Information
Product Features
Action : Soft-On, Fade-Off. Rocker Switch for ON/OFF, Dimmer bar for lighting level control
California Title 24 : Yes
Color : White, Ivory, Light Almond
Light : LED Locator and Brightness Display
Load Rating : 300W LED and CFL, 600W Incandescent, 6000 VA MLV
Load Type : Incandescent, Dimmable LED, Dimmable CFL, MLV
NEMA SSL 7A : Yes
Ordering Notes : Included White, Ivory and Light Almond Color Kit
Preset : Slide bar preserves desired lighting level
Standards and Certifications : CSA, NOM, FCC
Style Name : Decora
Switch Type : Single-Pole, 3-Way or More Applications
Type : Dimmer
Voltage : 120 VAC
Wallplate : Order Separately
Warranty : 5-Year Limited
- Neutral wire required for installation
- Digital circuitry provides soft fade on and fade off appearance with ability to set fade rates
- Customize dimming range of LED lamps using the advanced programming feature
- Minimum trim adjustment to fine-tune performance of LED lamps at lower dimming levels
- Ability to modify the maximum light level for energy savings
- LED locator light and dimmer brightness display concealed in the face of the device for enhanced aesthetics (can be disabled)
- Single pole or multi-location control from up to 4 additional locations with the Decora Digital remote (sold separately)
- Preset light level option automatically turns lights on to set level
- Can be used to comply with 2019 California Title 24, Part 6 Indoor Lighting Switching Devices and Controls
- Comes packaged in white with ivory and light almond faceplates included
- MX321054
- US9974152
- US9398667
- US9767973
- US9329607
- US7683755
- US8664886
- US9681526
- US10062528
- CA2572204
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
