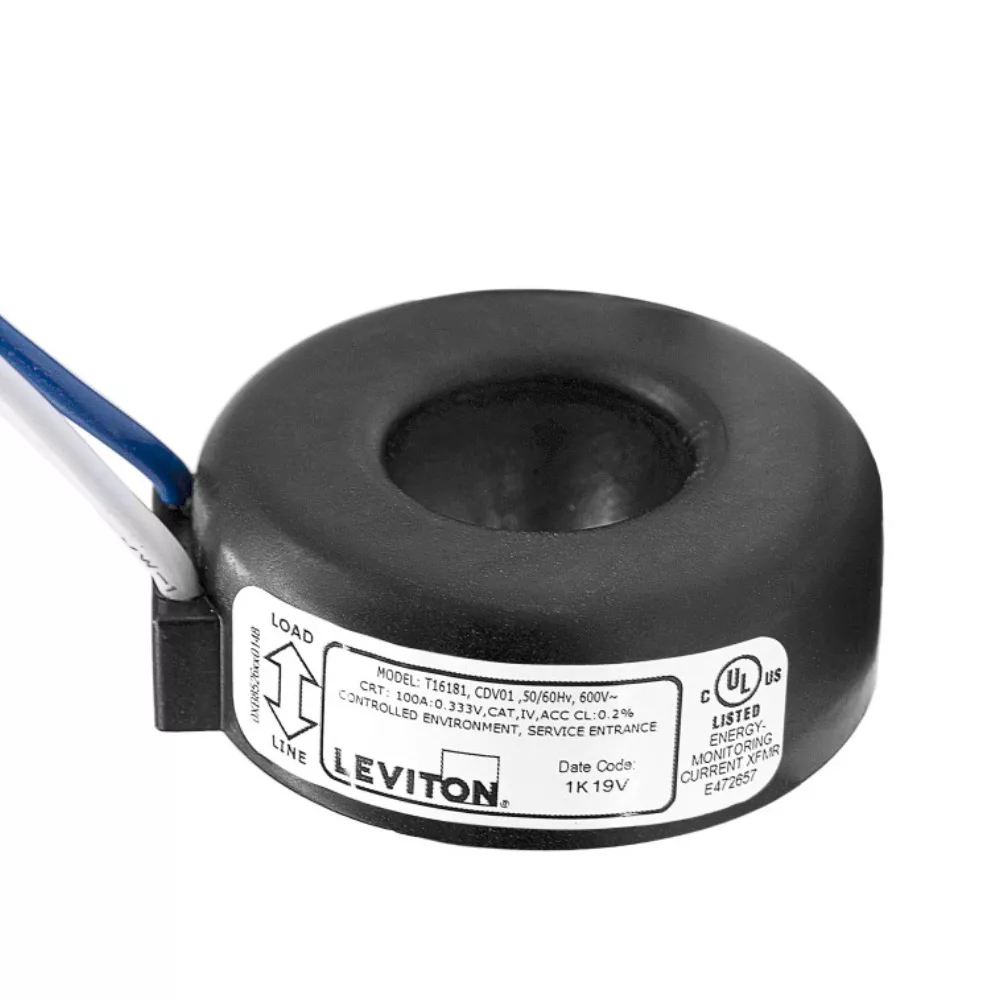

Current Transformer, Solid Core, 100A, 333mV, 0.72" Opening, 144” Leads, 0.2% Accuracy, For Submetering

CDV01-000-K17

DISCONTINUED

Discontinued Product. Current Transformer, 100A Solid Core, 333mV, 0.72inch (19mm) ID, 0.2% accuracy

Leviton 333mV Current Transformers (CTs) support the Series 4000 and Series 7000 meter lines of revenue-grade meters and help meet all measurement and verification-based opportunities, including smart metering and LEED rating achievement.

UPC Code: 078477322222

Country of Origin : Mexico

Product Information

Updated

Instruction Sheet - VerifEye | Solid Core Current Transformers | CDV01, CDV02 | EN, ES, FR

View

Updated

Electrical Specifications
Amperage : 100 A
Product Features
CT Size (inches) : 0.72"
CT Type : Solid Core
Product Line : CT: Series 4000, 4100, 7000, 7100

Leviton solid core CTs are cost effective and less susceptible to damage during installation. Solid core CTs slip over power lines to measure the electrical current flowing through the line. The CT “secondary” wires connect to the submeter facilitating power and energy calculations. They are compact and cost effective. Solid core CTs are accurate (0.2% maximum error). For installation, power must be de-energized and the circuit opened in order to slip the CT over the power line.
