Poke-Through Floor Box, 2-Gang, 5-Inch
PT500

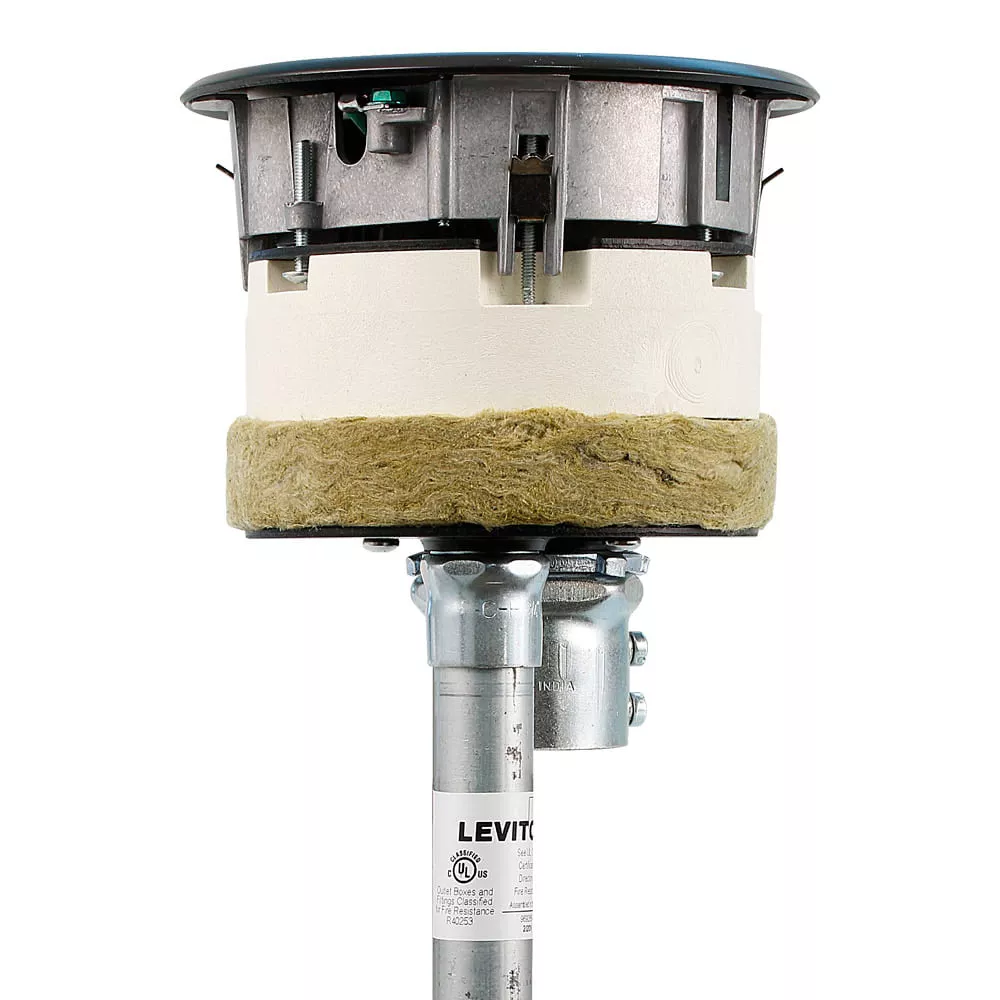

5" Diameter Poke-Through Device With Protective Cover. 2-Body Design, Adjustable Anchors, And Standard NPS Threaded Openings.
- Ease of Installation: Two-piece construction allows the device to self-level up to 4 degrees

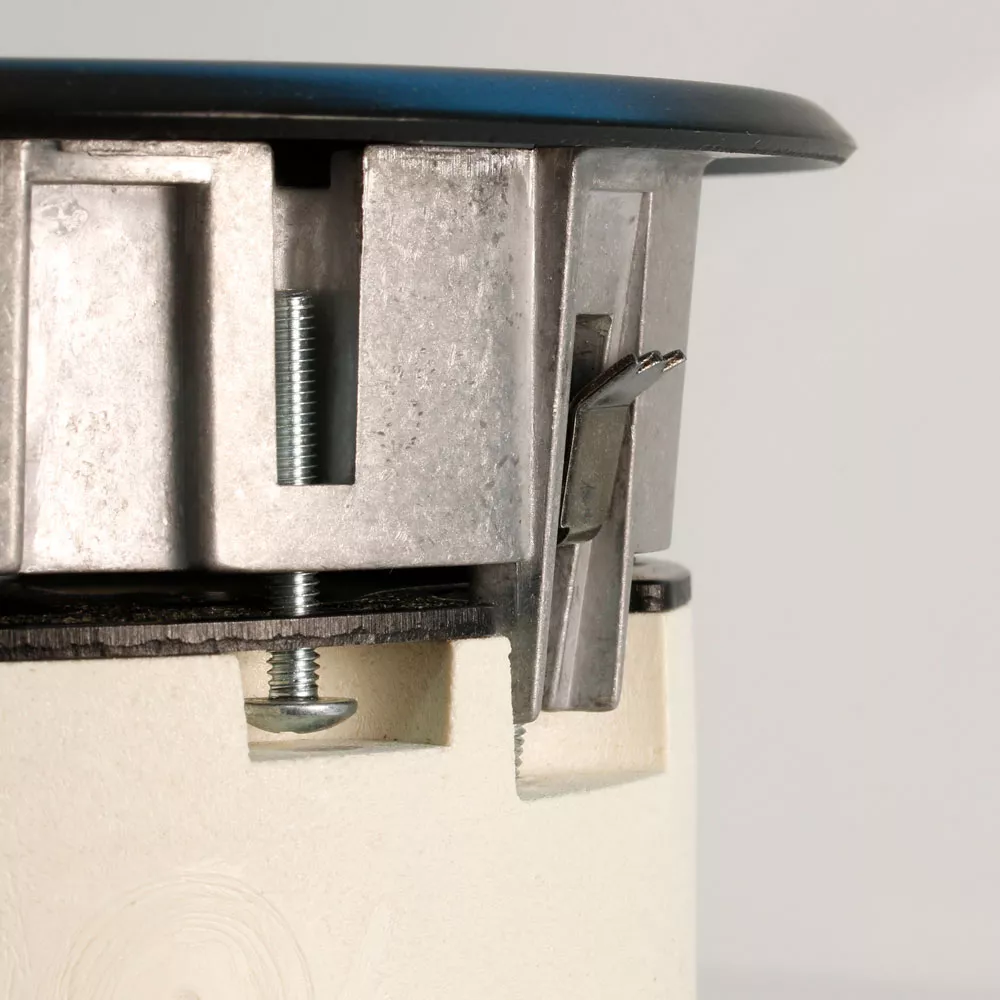

- Superior Performance: Adjustable hardened steel anchoring clips securely lock unit inside a cored hole, while allowing for easy removals for inspections, adjustments, repairs, etc.

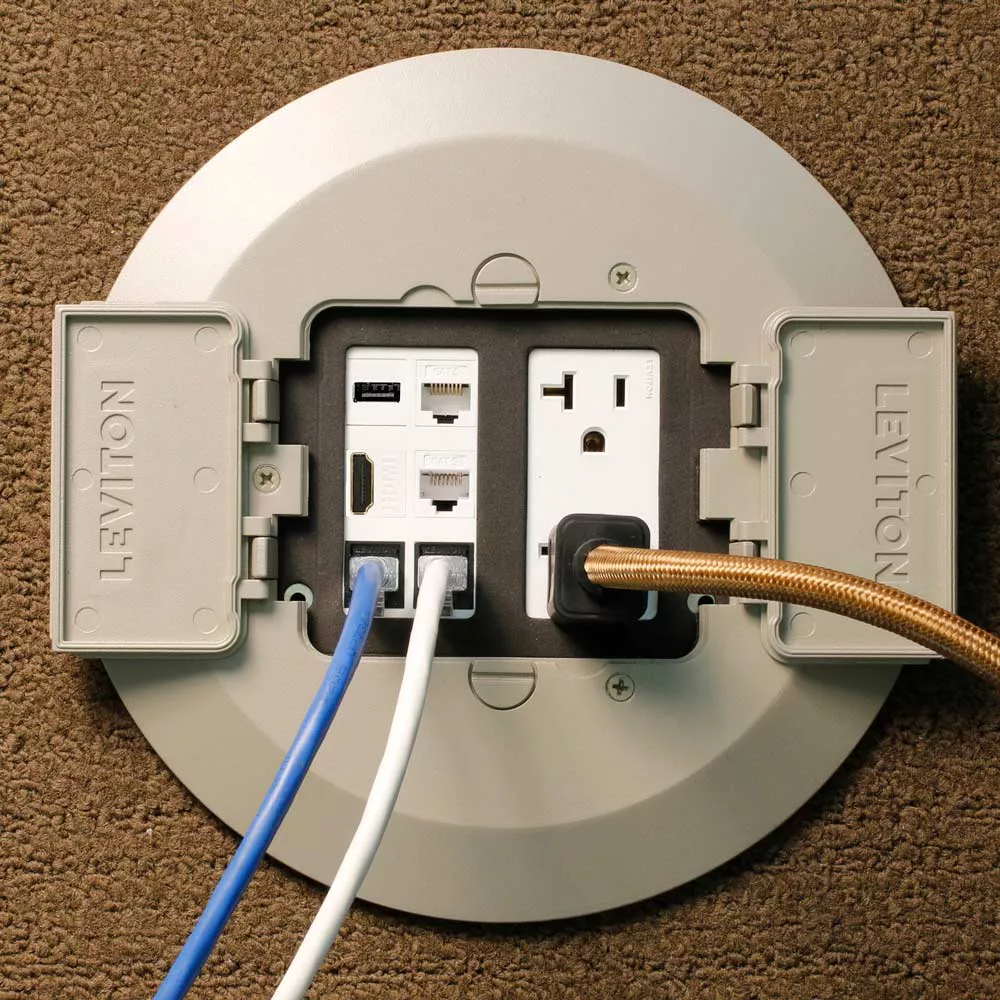

- Maximum Compatibility: Accommodates standard duplex receptacles or Decora™ single or duplex receptacles, as well as Lev-Lok and QuickPort® inserts. Multiple low voltage divider slots accommodate different receptacle sizes
*Protective cover included
*Poke-Through covers are sold separately from the PT500 system; All covers come with low voltage divider (except pre-wired versions)
Product Information
Environmental Specifications
Duration Of Fire Protection : Certified for Fire Resistance in 1, 1-1/2 & 2hr fire rated concrete floors
Operating Temperature : -40°C to 70°C
Material Specifications

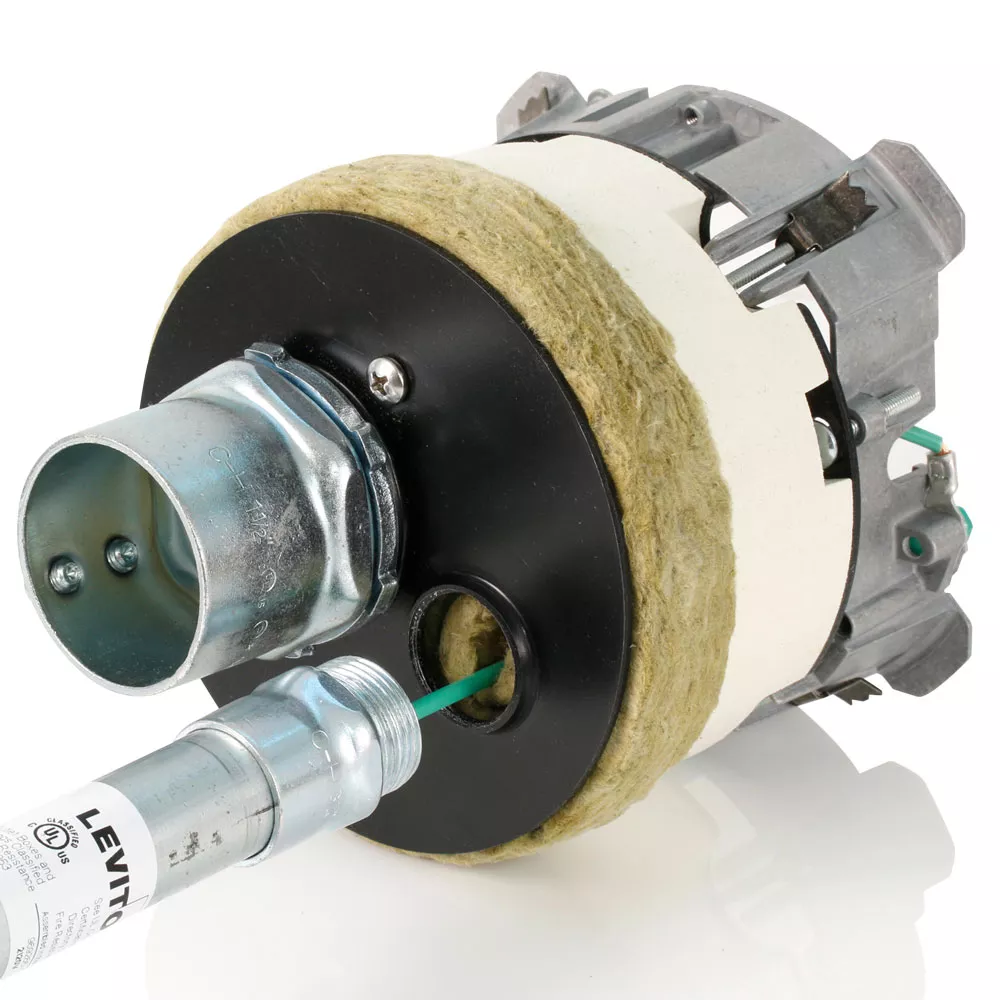

Feature : Intumescent Block,Insulation,EMT Pipe,Data & Conduit Connectors
Mounting Flange : Aluminium
Plate Material : Steel
Mechanical Specifications
Conduit Feeds : Power Feed 3/4” EMT Conduit, Data Feed 1 1/2” EMT Conduit Connector
Conduit Selection : 1 1/2” EMT Conduit for Data
Cubic Inch Capacity : 23.7cu. in.
EMT Pipe Size : 12"
Poke-Through Hole : 5” to 5 1/4” Hole
Product Features
Device Type : Poke-Through Floor Box System
Type : Poke-Through
Standards & Certifications
Applicable Standards : UL514A, UL263, CSA C22.2 No. 18.1, NOM ANCE
Certification/Listing : cULus
UL File No. : E92327, R40253
Warranty
Warranty : 2-Year Limited
