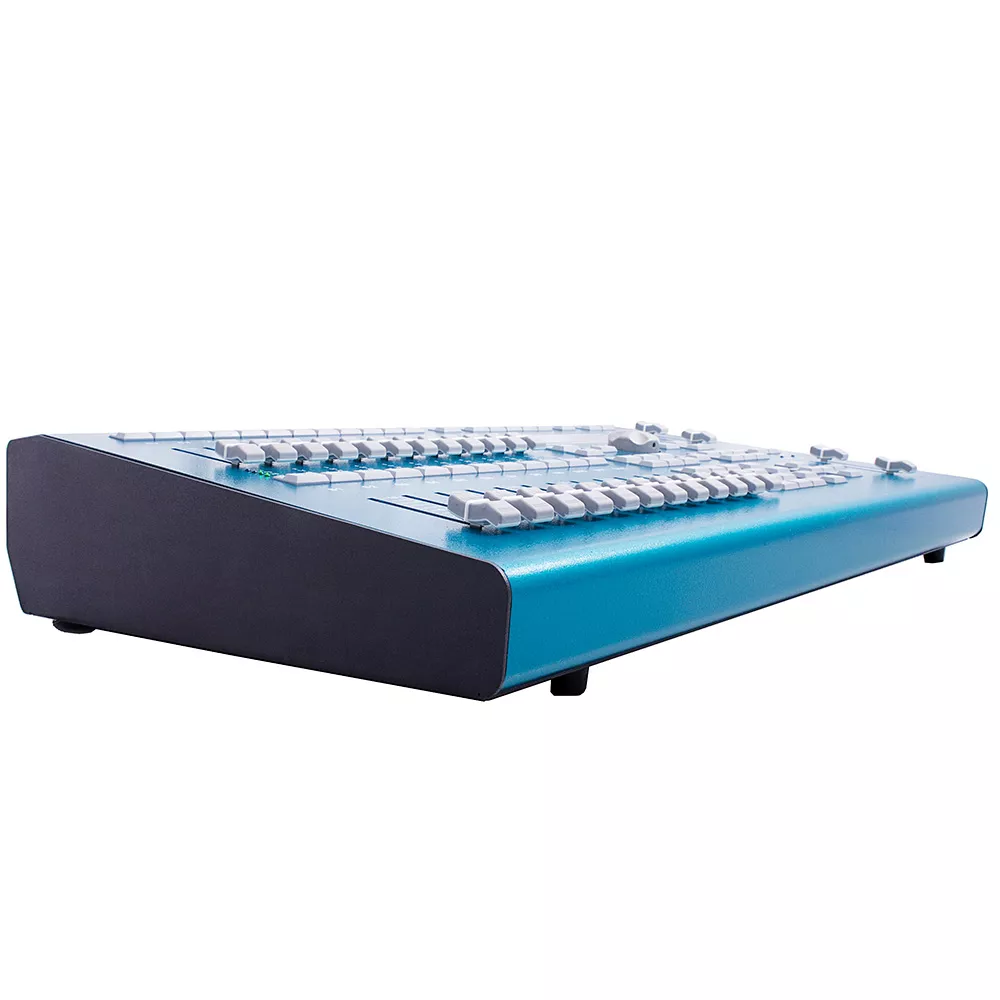

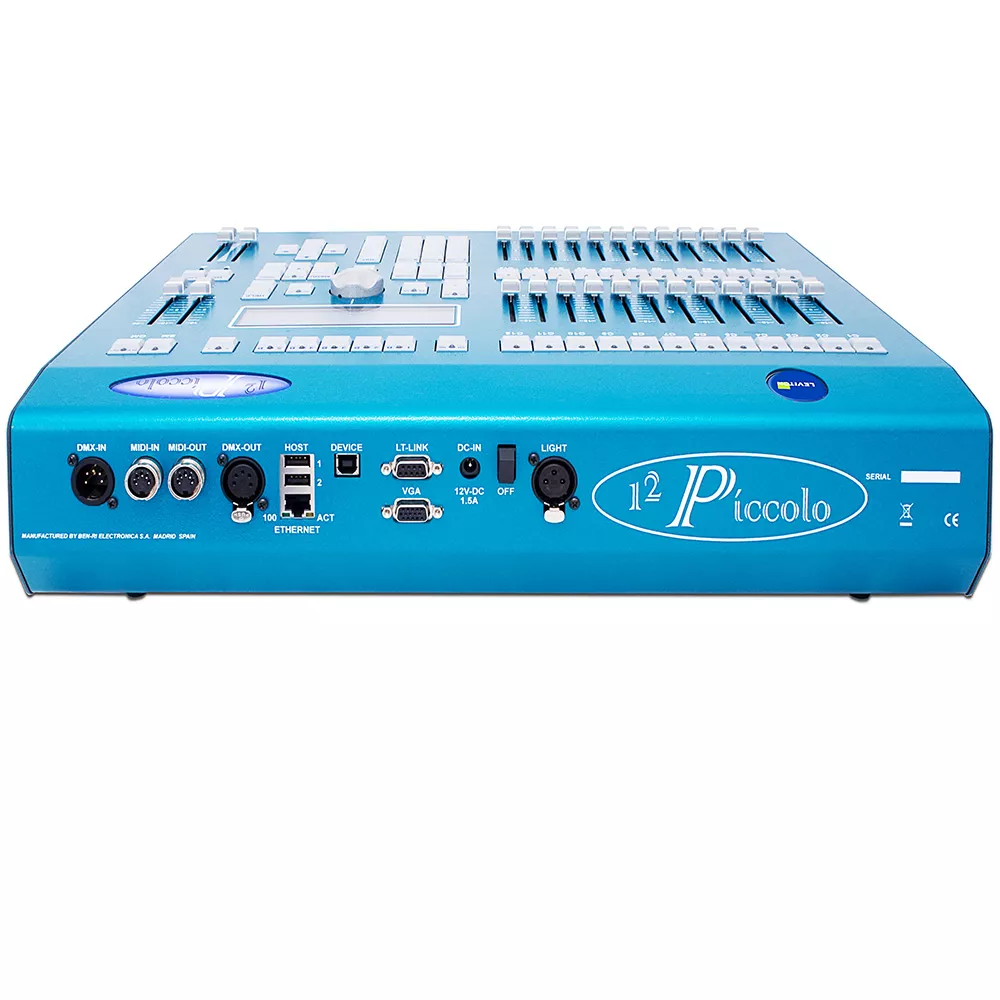

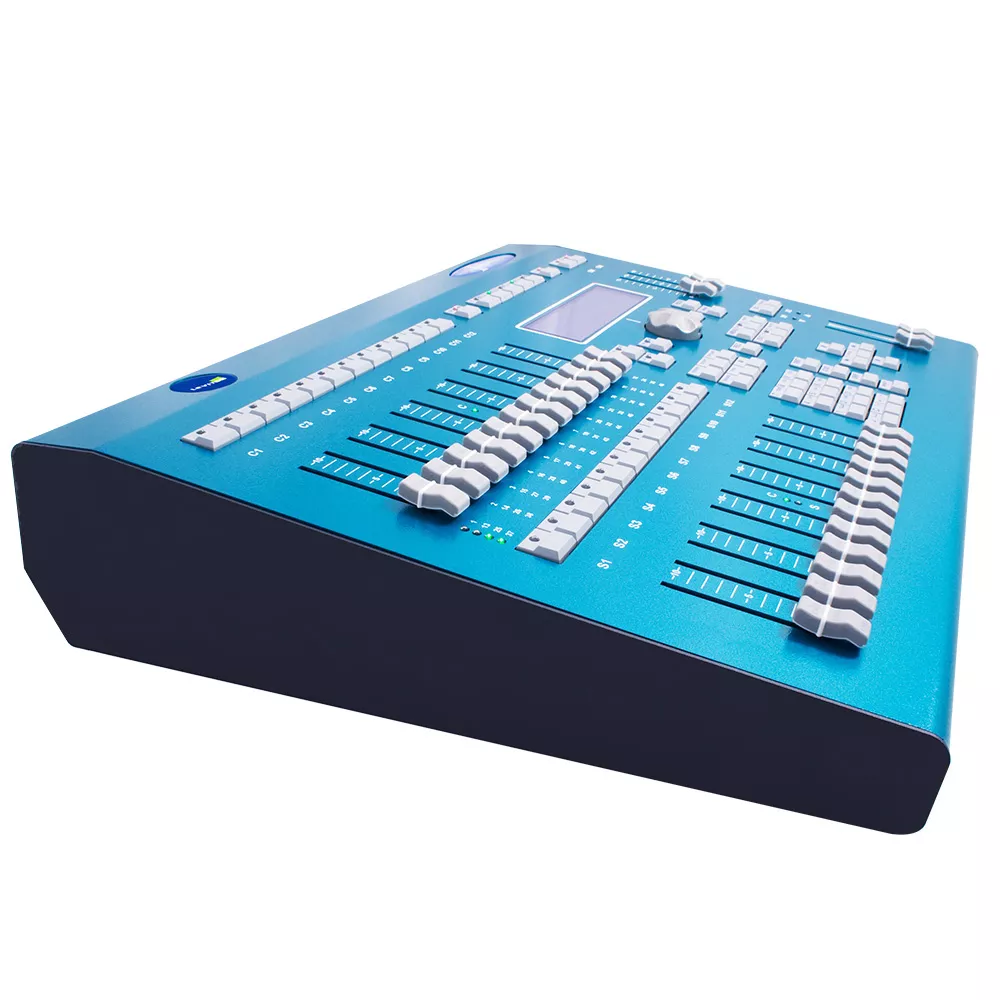

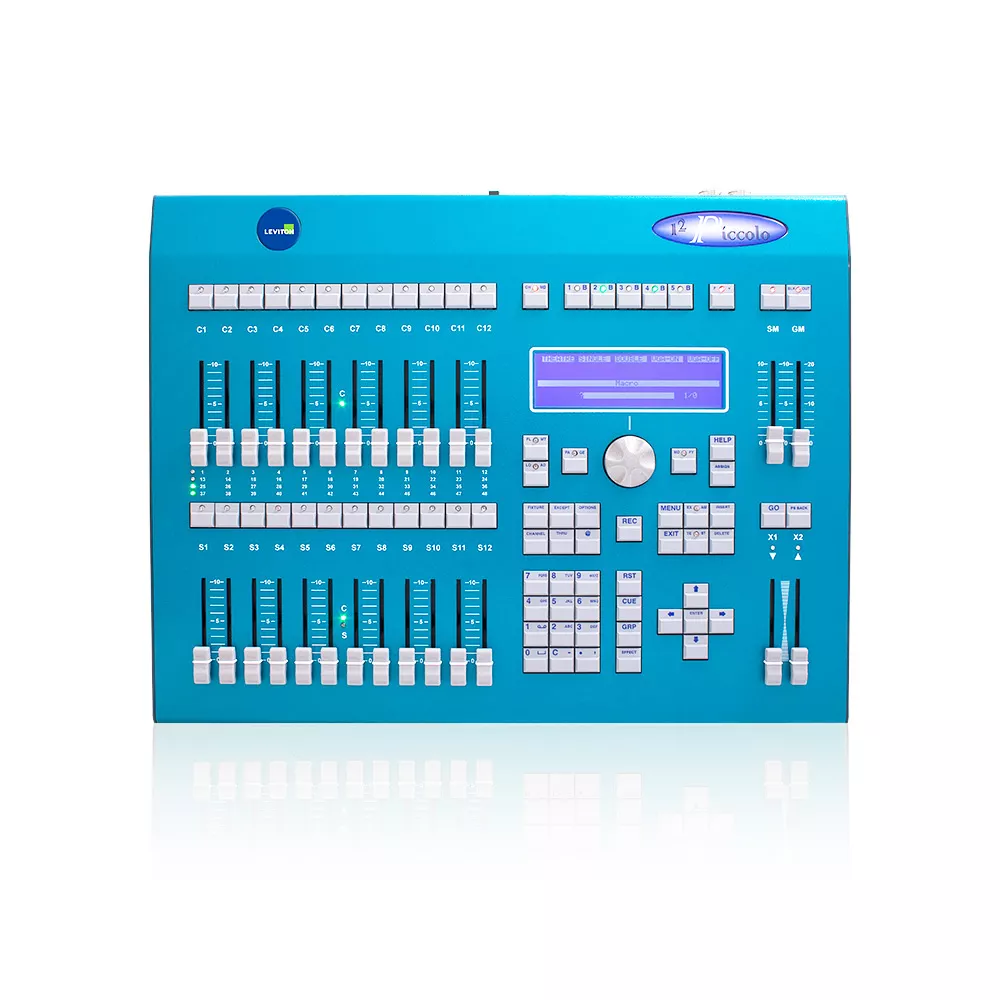

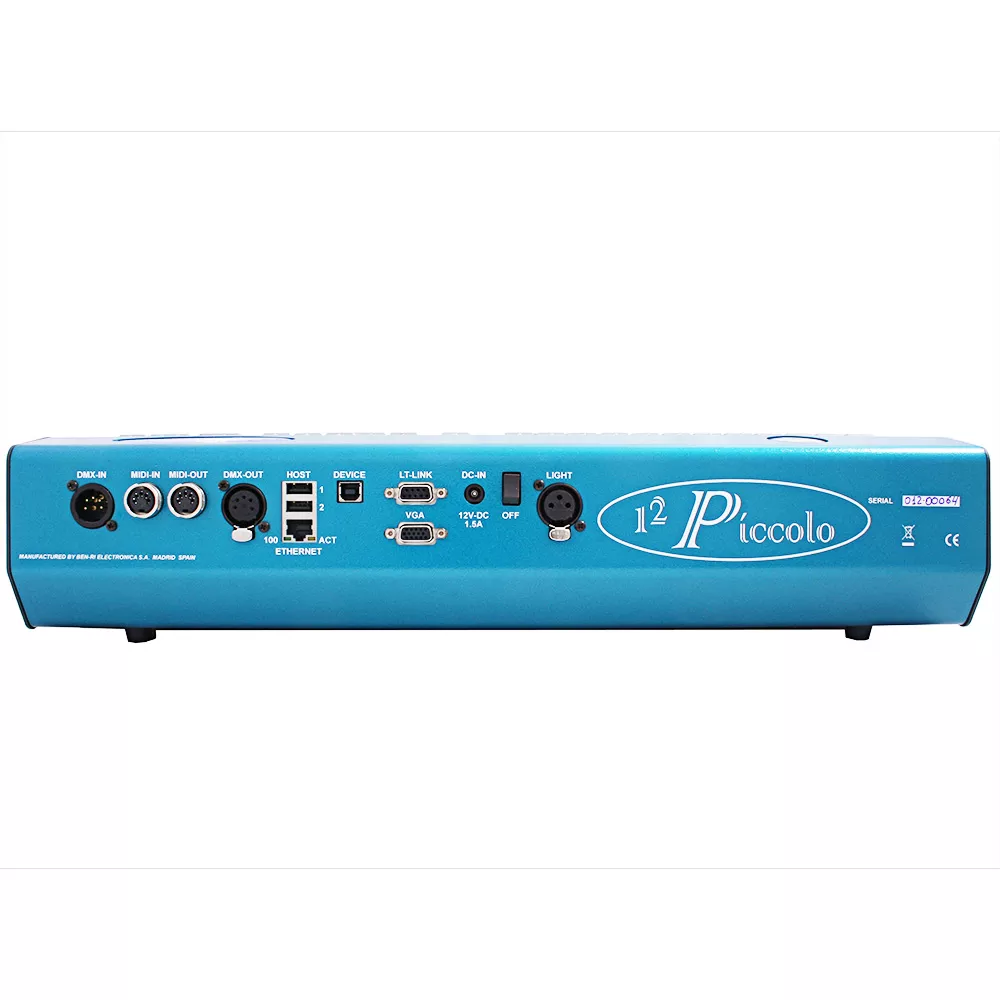

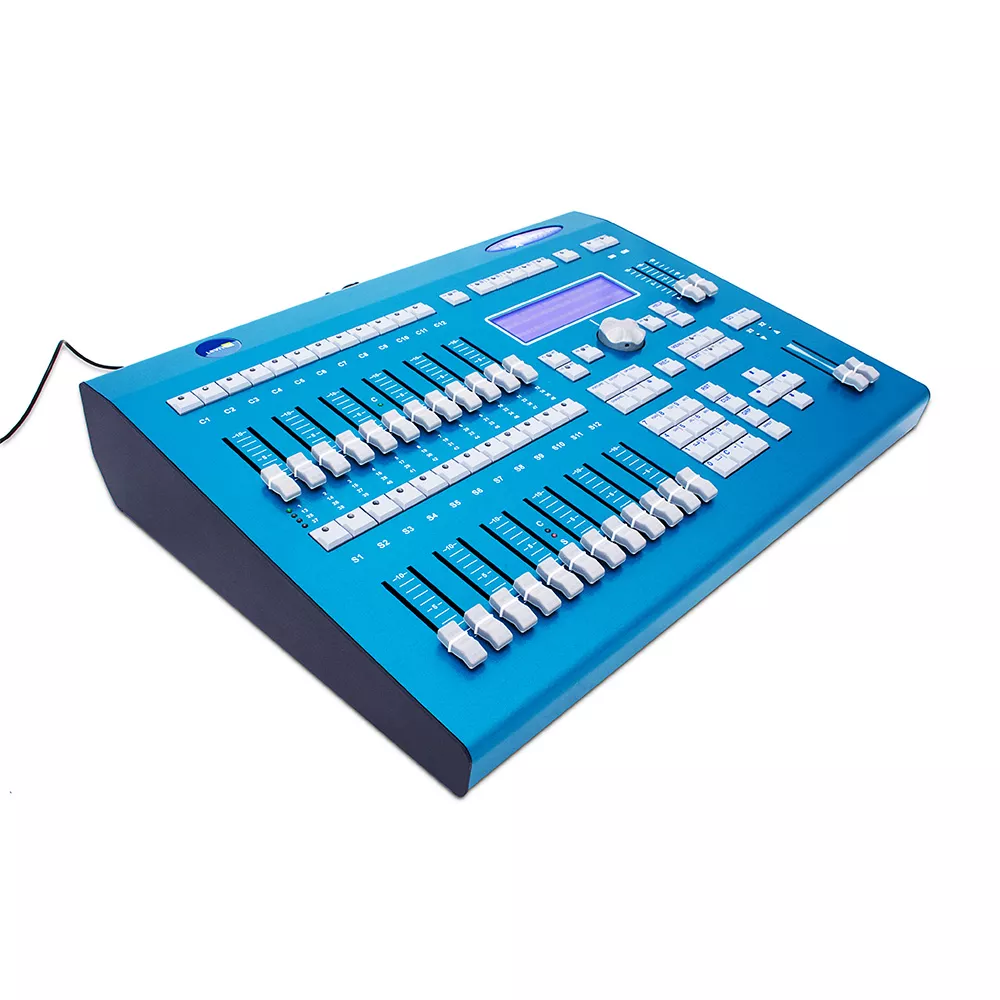

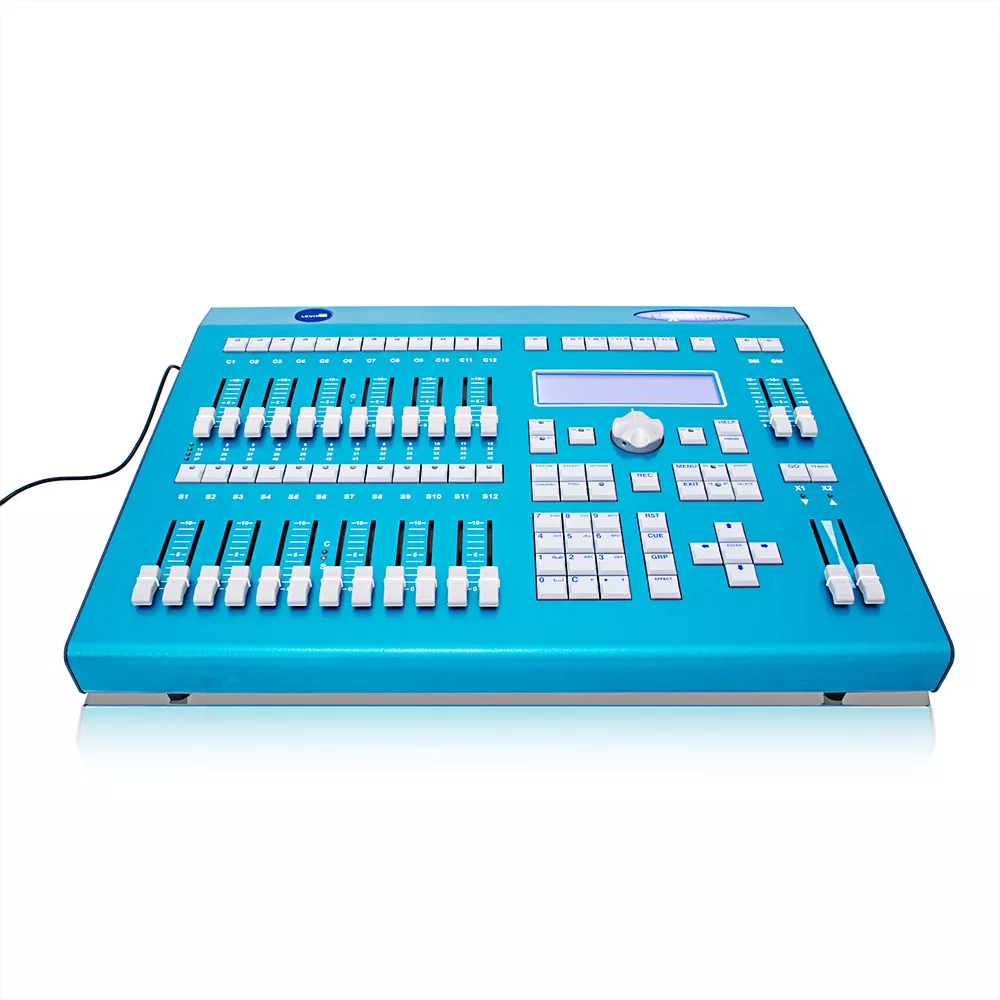

Piccolo Lighting Control Console, 12/48

PPIC0-12

DISCONTINUED

Piccolo 12/48 with support for 48 channels and 32 attributes. Power supply included Leviton’s Piccolo line of lighting controllers offer features and functionality not commonly found in a console of this size.

UPC Code: 078477445501

Country of Origin : Spain

Product Information

Updated

Electrical Specifications
Voltage : 12 VDC
Mechanical Specifications
Handles : 24
Output : DMX
Product Features
Audio Input : Yes
Automated Channels : 32
Circuits/Channels : 48
Control Style : DMX
Cues : 10,000 (0.0-999.9)
DMX Channels : 512
DMX Input : 1
MIDI : Yes
Memory Scene : 2
Monitor : Optional
Product Category : Controls
Product Line : Piccolo
Product Type : Lighting Console
Shape Generator : Yes
Submaster : 12
Submaster Pages : 10

Two Scene - traditional two-scene mode, autofader becomes cross fader
Single Scene - All faders are channel faders, autofader becomes cue list
Submaster "Theater Mode" - 1/2 faders are channel faders, the other 1/2 are dedicated submasters, autofader becomes cue list
32 Attribute channels for automated devices
Full access to all channels via faders
Match and Take control with audible or visual indication of match
Proportional to all 512 DMX channels

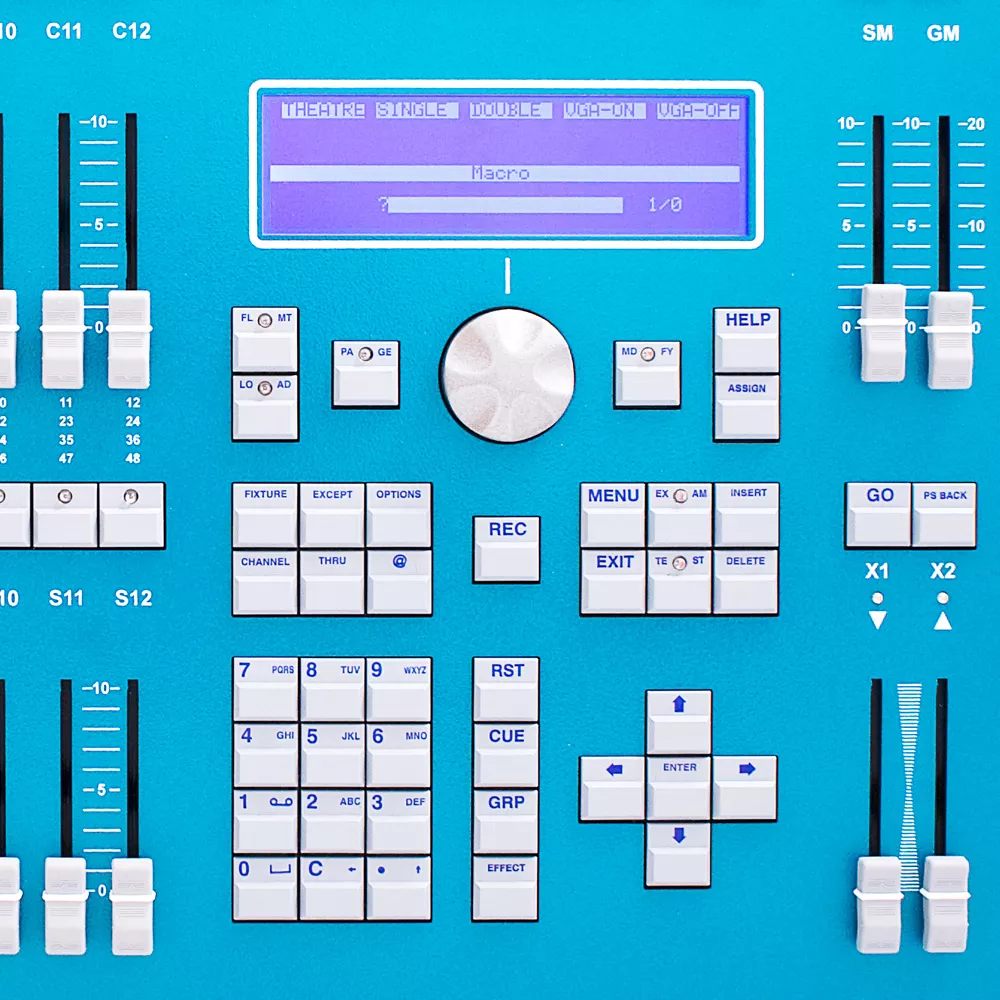

Channel Faders
Keypad
Display (240x64)
Attribute Encoder / Data Entry Wheel
Auto-fader with go, pause, back, and rate controls
Multi-Purpose Fader
Grand Master and Blackout Key
Channel Flash and Master Flash. Master Flash can be configured in different modes: GO, FLASH and SOLO
(see product documentation for more features)
