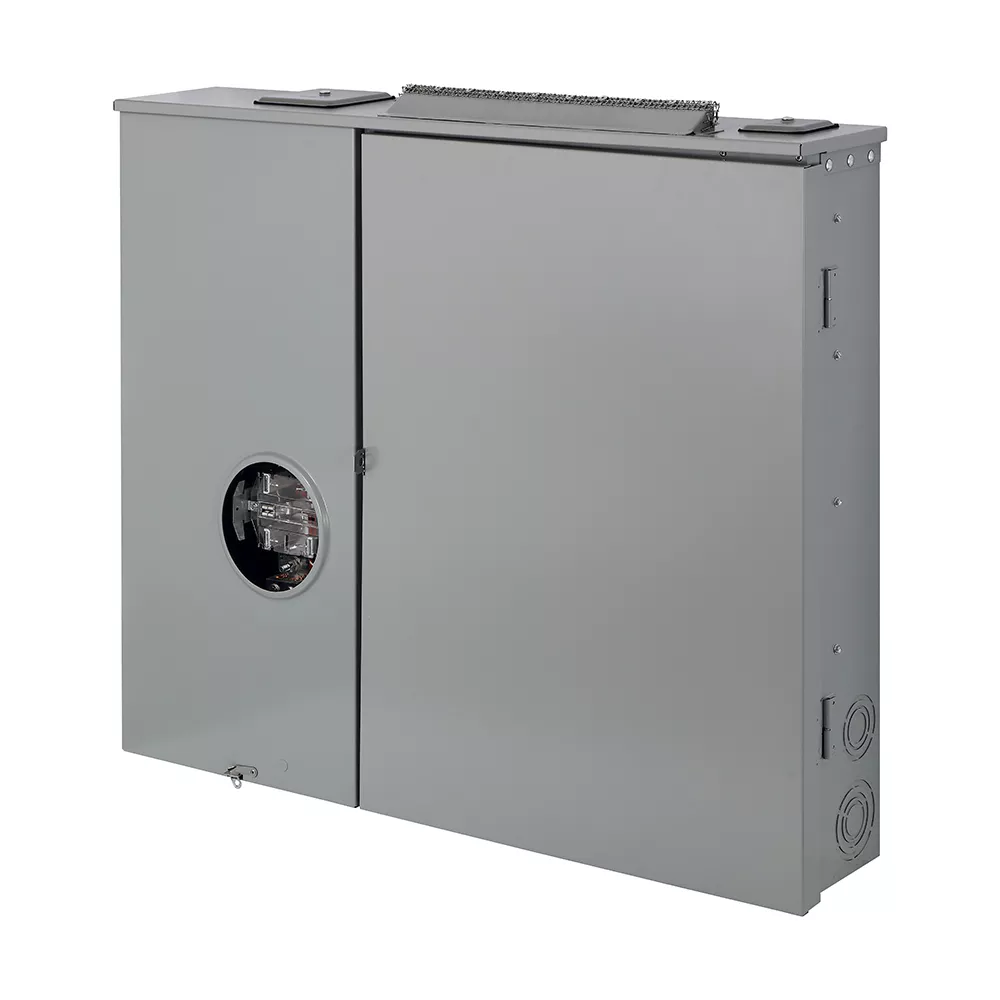

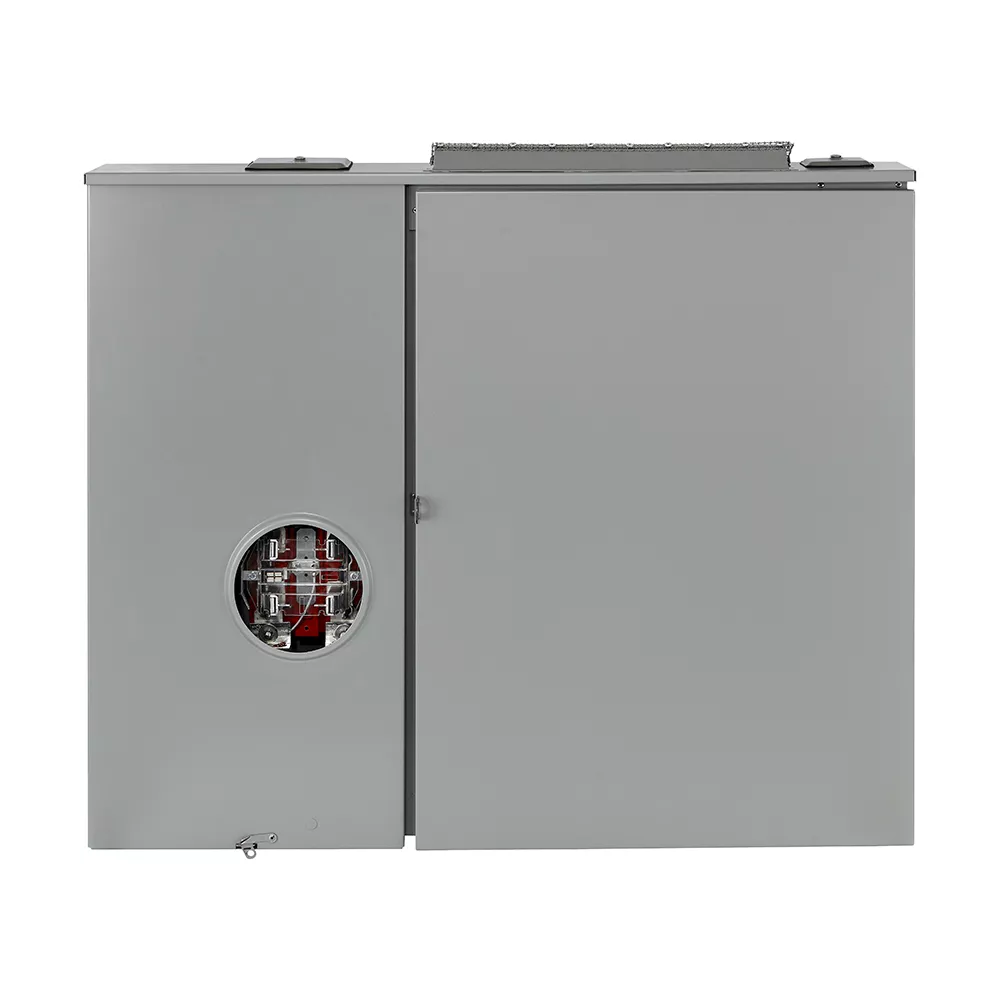

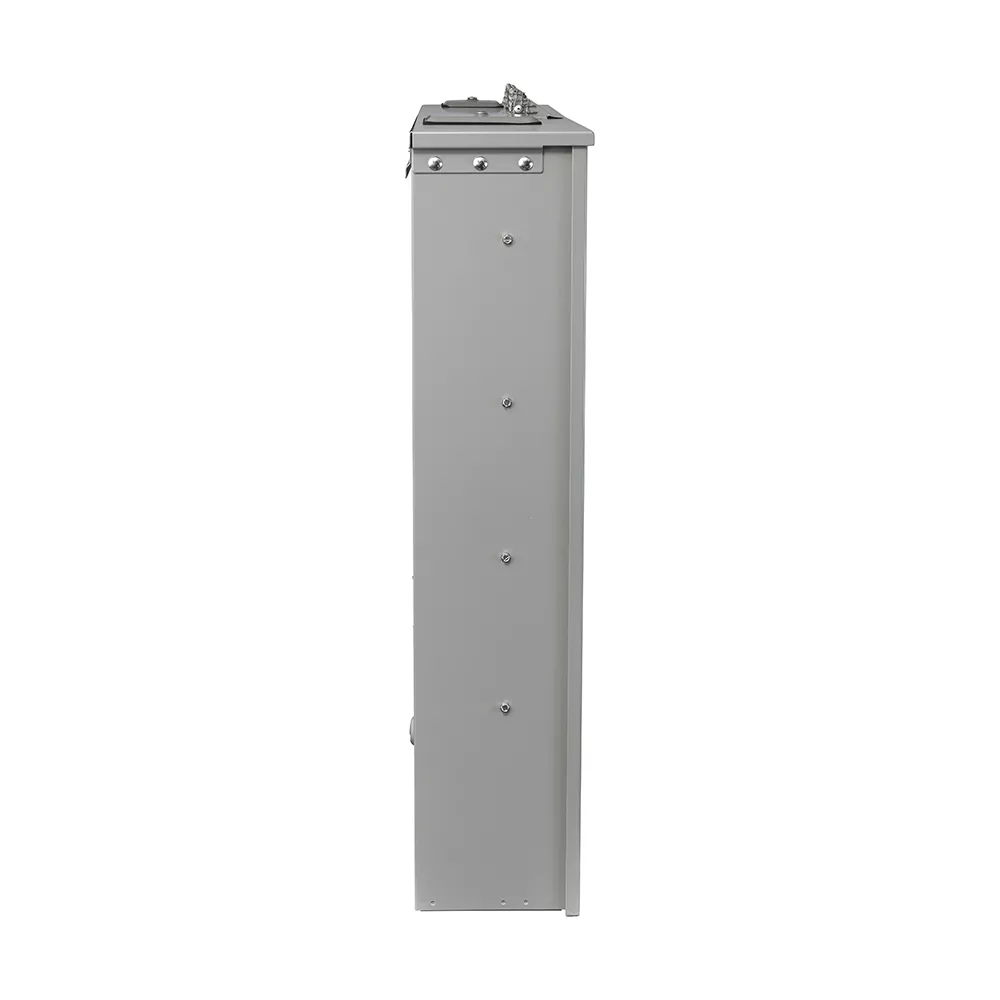

300A Outdoor Meter Main, 12 Spaces, Ringless with Class 320 Meter Socket, Lever Bypass, 5th Jaw Installed
LS130-S5D

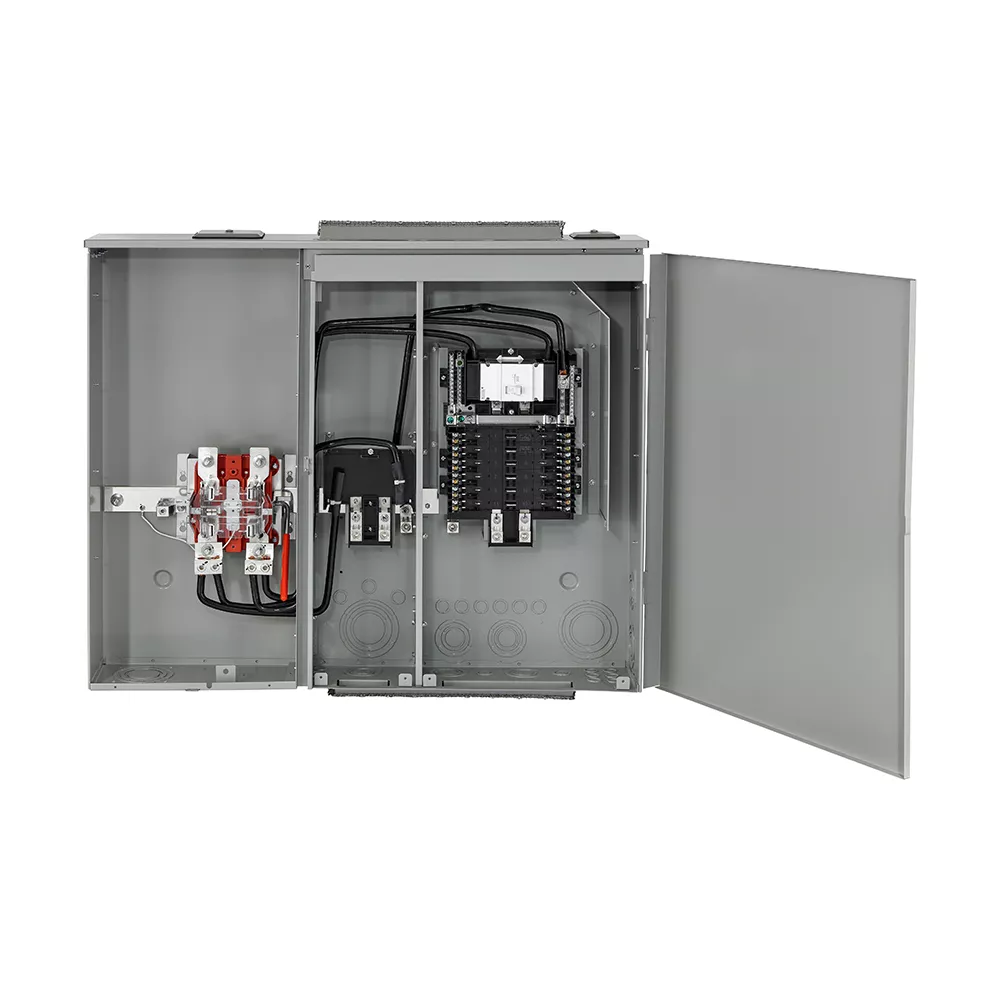

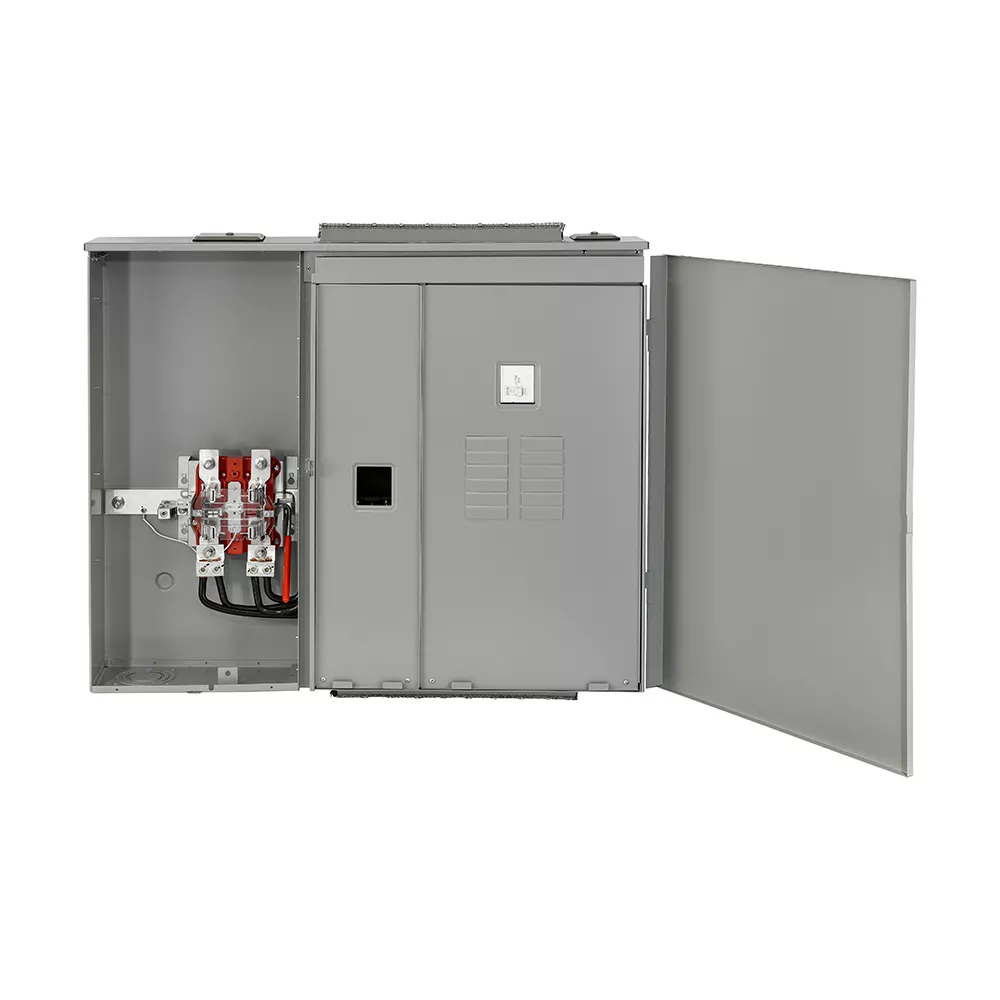

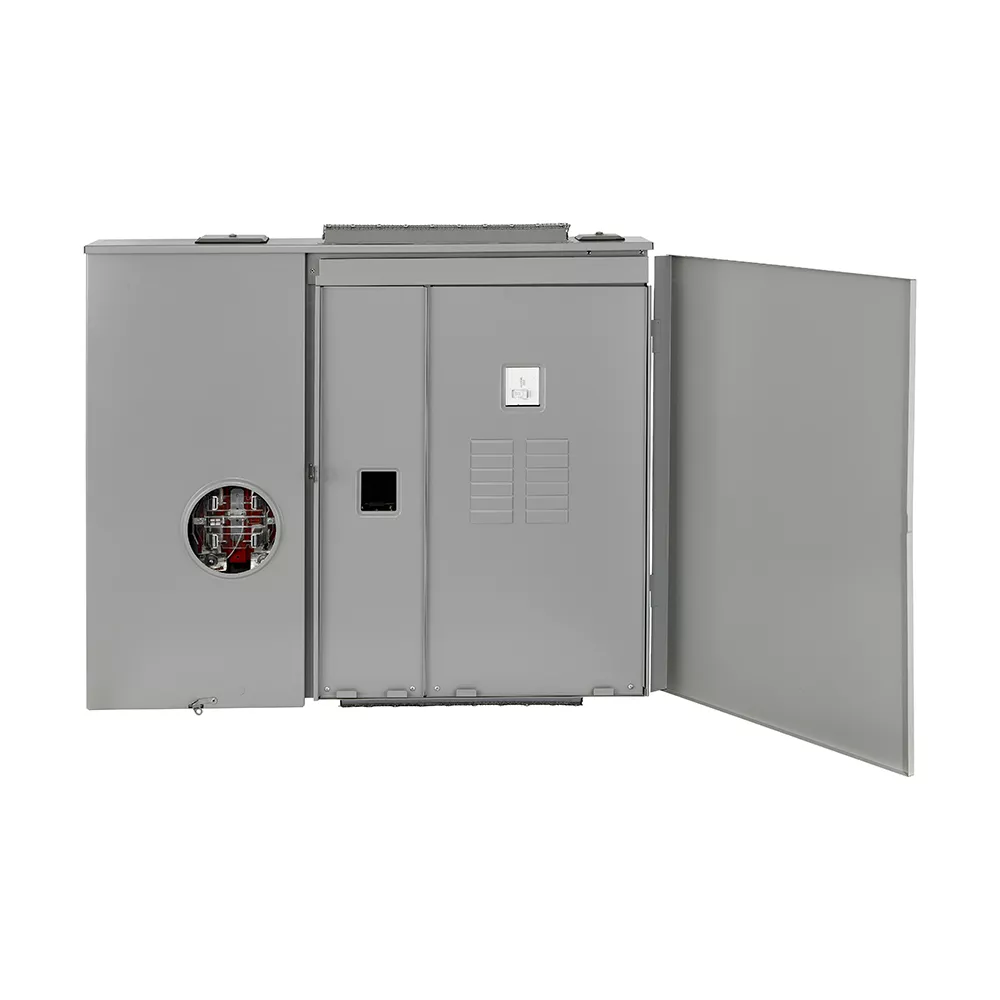

Outdoor Meter Main with 150A Main Circuit Breaker Factory Installed, 12 Spaces, NEMA 3R Rated. Includes Enclosure, Ringless Door, UG/OH Service Entrance with Distribution Section and Feed-Through Lugs *LS130-S5D comes with (1) 150A main breaker - secondary main breaker sold separately

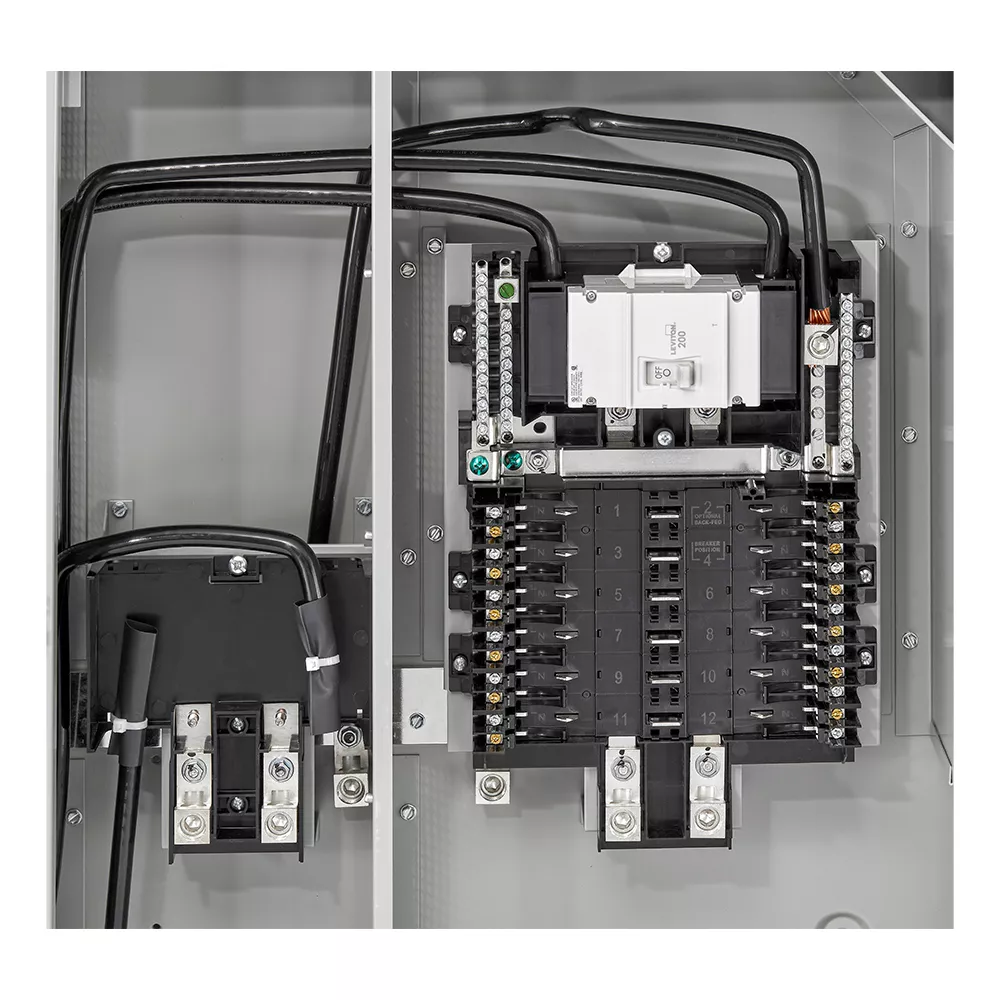

- EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- SUPERIOR CONDUCTIVITY – All Leviton Load Centers come standard equipped with tin plated copper bussing
- NEC 2020, Article 230.71 compliance
- MORE POWER - Perfect for large-scale residential applications, fully electrified homes, and future-proofing installations
- SOLAR READY – Features 225A rated bussing for maximum PV backfeed capabilities
Color: Gray
Product Information
Environmental Specifications
NEMA Enclosure Type : NEMA 3R
Mechanical Specifications
Busbar Material : Copper, Bright Tin-Plated
Busbar Rating : 225A
Color : Gray
Dimensions : 37.05” x 16.47” with cover and door installed
Ground Connection : 6AWG – 250 MCM
Material : Galvanized Steel, Gray Powder Coated
Supply Connection : 2AWG – 600 MCM
Weight : 125 lbs.
Meter Socket : Class 320
Electrical Specifications
Amperage : 300A / 300A
Short Circuit Current Rating : 22kA
Spaces / Circuits : 12
Type : Meter-Main
Voltage : 120/240 VAC
Standards & Certifications
UL50 : Yes
UL50E : Yes
UL67 : Yes
UL869A : Yes
Warranty
Warranty : 10-Year Limited
