Mechanical Specifcations

Product ID : Ratings marked on device

Terminal Accom. : #14-#10 AWG

Mechanical Specifications

Screw Terminal Torque : 14-18 in-lbs

Product Features

Pole : 1

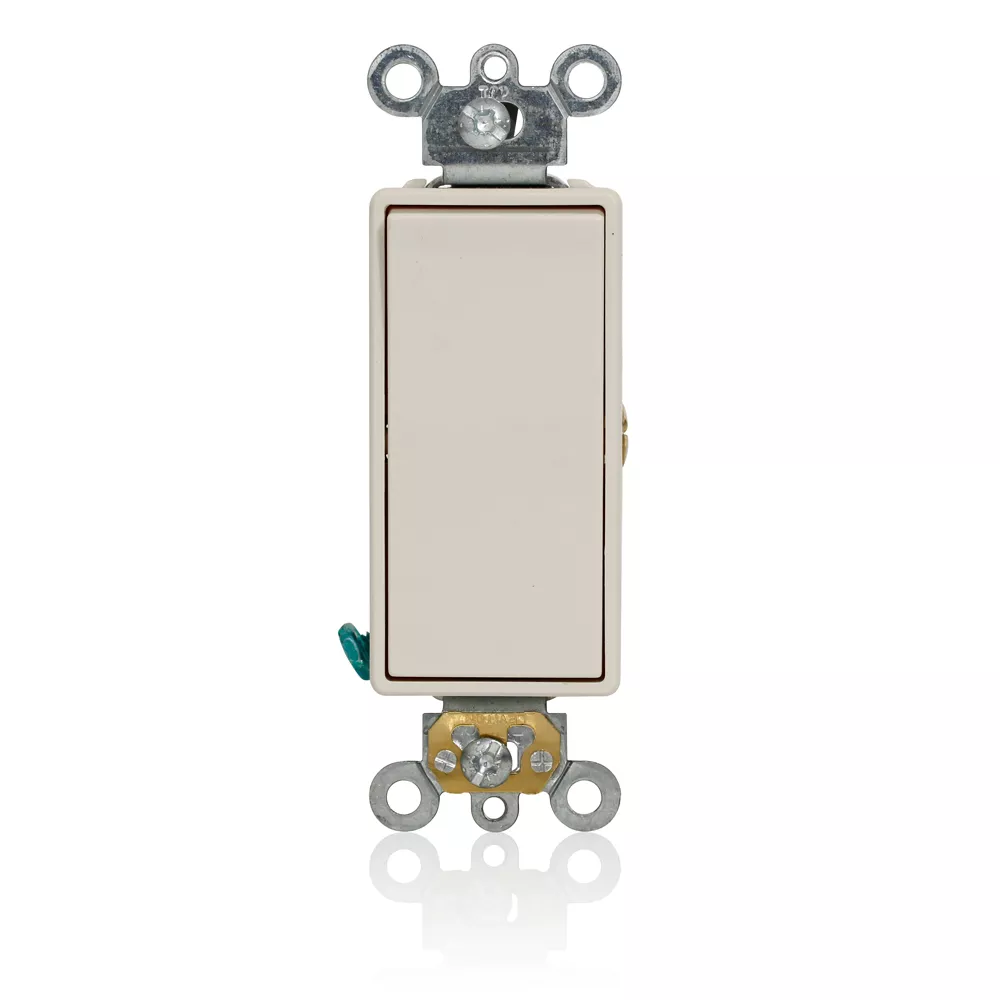

Type : Rocker Switch

Material Specifications

Actuator Material : Polycarbonate

Body Material : Polyester

Contact Material : Silver Alloy

Ground Clips : Brass

Grounding Screw : #8 Steel

Strap Material : .050" Galvanized Steel

Terminal Screws : #8 Brass

Termination : Back or Side Wire

Standards & Certifications

Brand : Decora Plus™

CSA C22.2 No. 111 : File #152105

Device Type : Rocker Switch

Grade : Commercial Specification Grade

Standards and Certifications : UL/CSA

UL Standard : UL20

Electrical Specifications

Amperage : 15 A

Endurance : 30,000 cycles minimum

Grounding : Self-Grounding Clip

Horsepower Rating : 1/2 hp @ 120 V, 2 hp @ 240 V

Overload UL20 Test : 100 cycles of overload at 4.8 times rated current

Temperature Rise : Max 30 °C at full rated current

Voltage : 120/277 VAC

Environmental Specifications

Flammability : Rated V-2 per UL 94

Warranty

Warranty : 10-Year Limited
