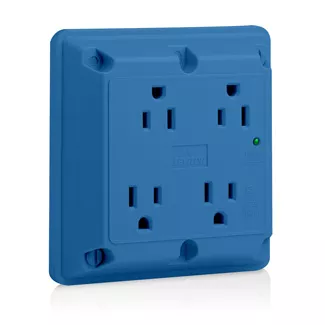

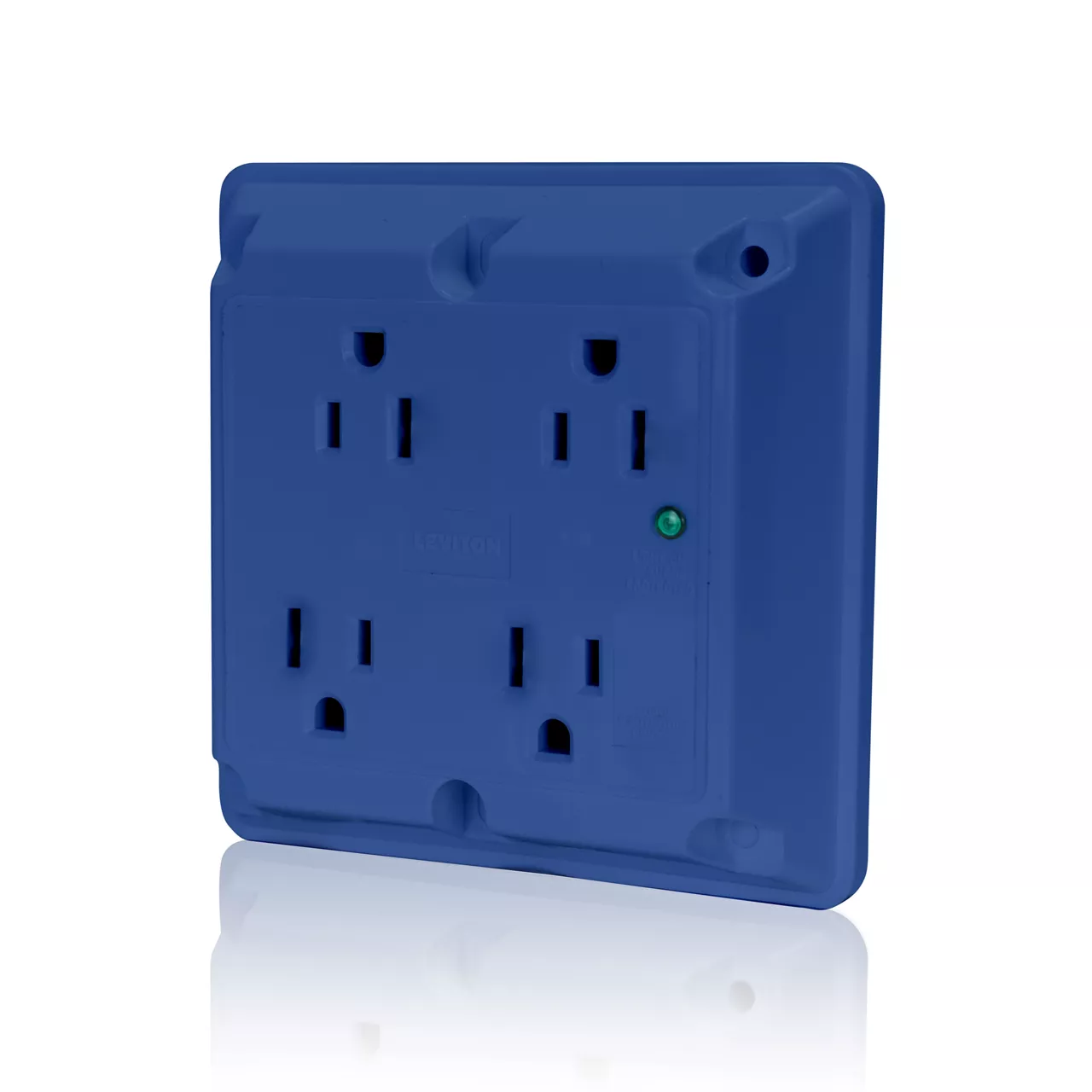

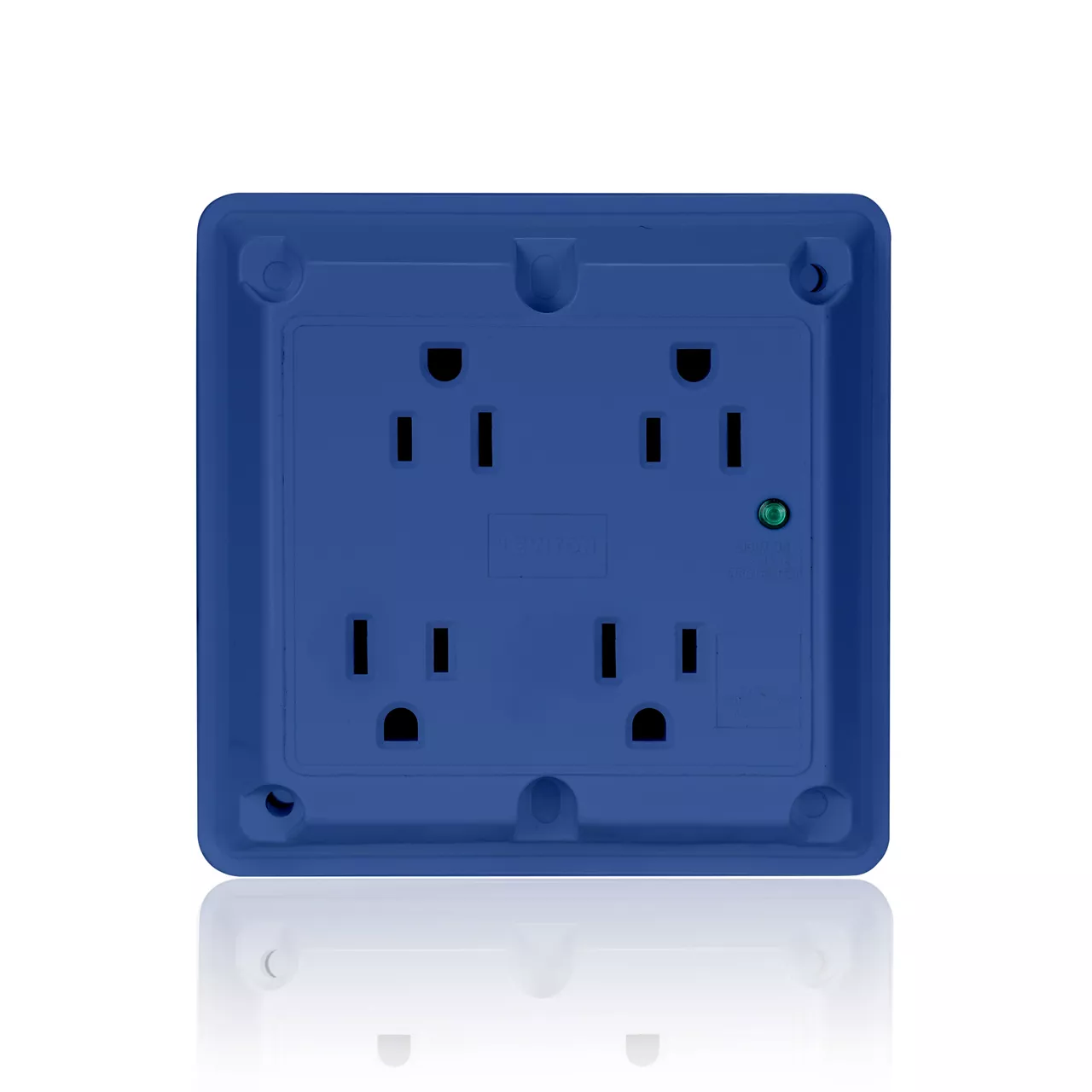

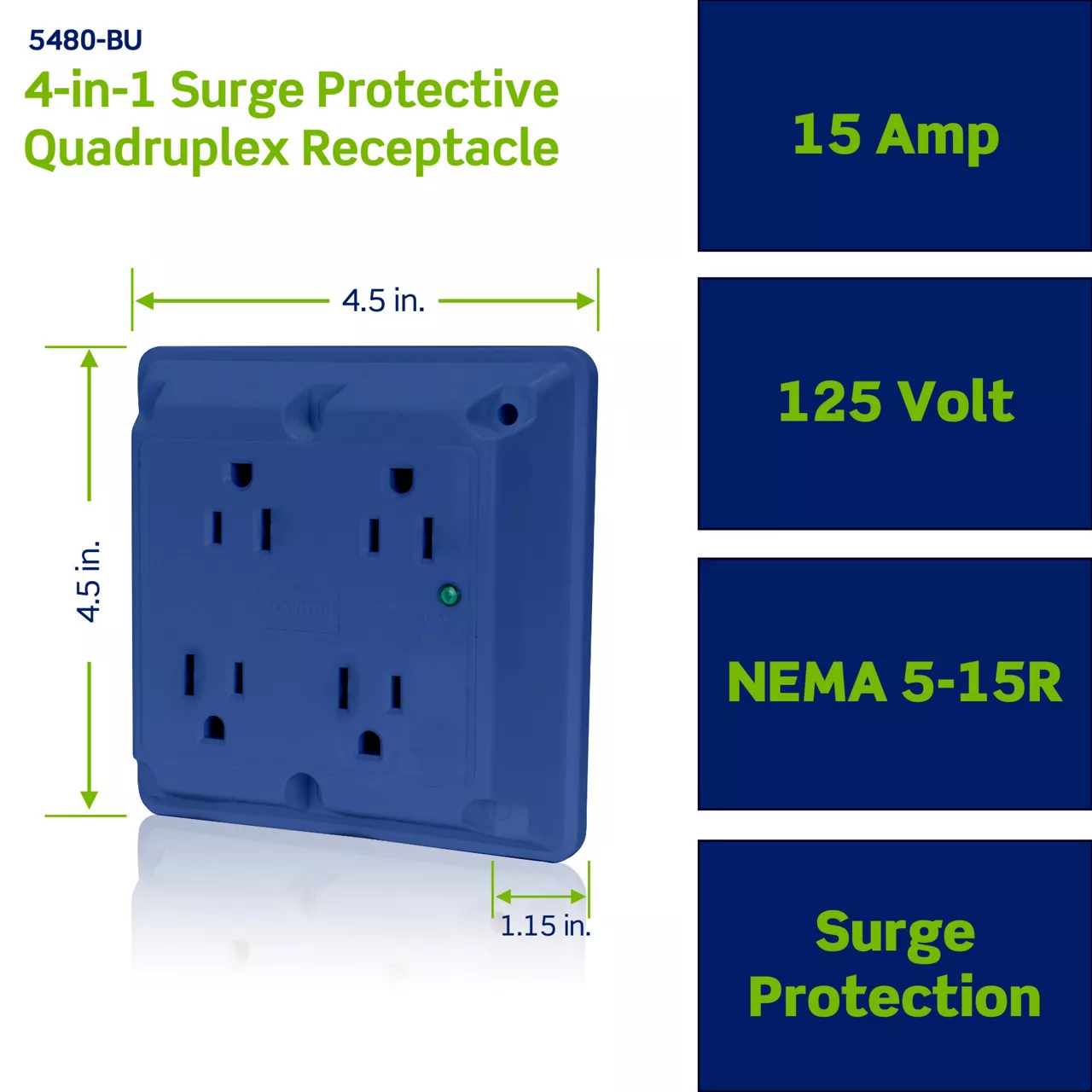

15 Amp, 4-in-1 Surge Protective Quadruplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade

5480-BU

4-in-1 Surge Protective Quadruplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Blue
  • Code Compliant - Allows you to increase the number of receptacles in your facility without having to pull new wires
  • Durable - Impact and chemical resistant nylon cover and base
  • Easy Installation - Termination anchor holes for easy conductor wiring
  • Reliable - 5-Year Limited Warranty

Color: Blue

UPC Code: 078477843536
Country of Origin : Mexico
NEMA 5-15R

Product Information

  • AC Horsepower Ratings

    At Rated Voltage : 1/2 HP

  • Electrical Specifications

    Amperage : 15 A

    Current Limiting : Full Rated Current

    Dielectric Voltage : Withstands 2000V per UL498

    Pole : 2

    Temperature Rise : Max 30C after 50 cycles OL at 150 percent rated current

    Voltage : 125 VAC

    Wire : 3

  • Environmental Specifications

    Flammability : Rated V-2 per UL 94

    Operating Temperature : -40°C to 60°C

  • Material Specifications

    Body Material : Nylon

    Face Material : Nylon

    Grounding Screw : Steel 8-32 w/ 12AWG Green 8 Inch Pigtail

    Line Contacts : Phosphor Bronze

    Terminal Screws : Brass 8-32

    Yoke : Zinc-Plated Steel

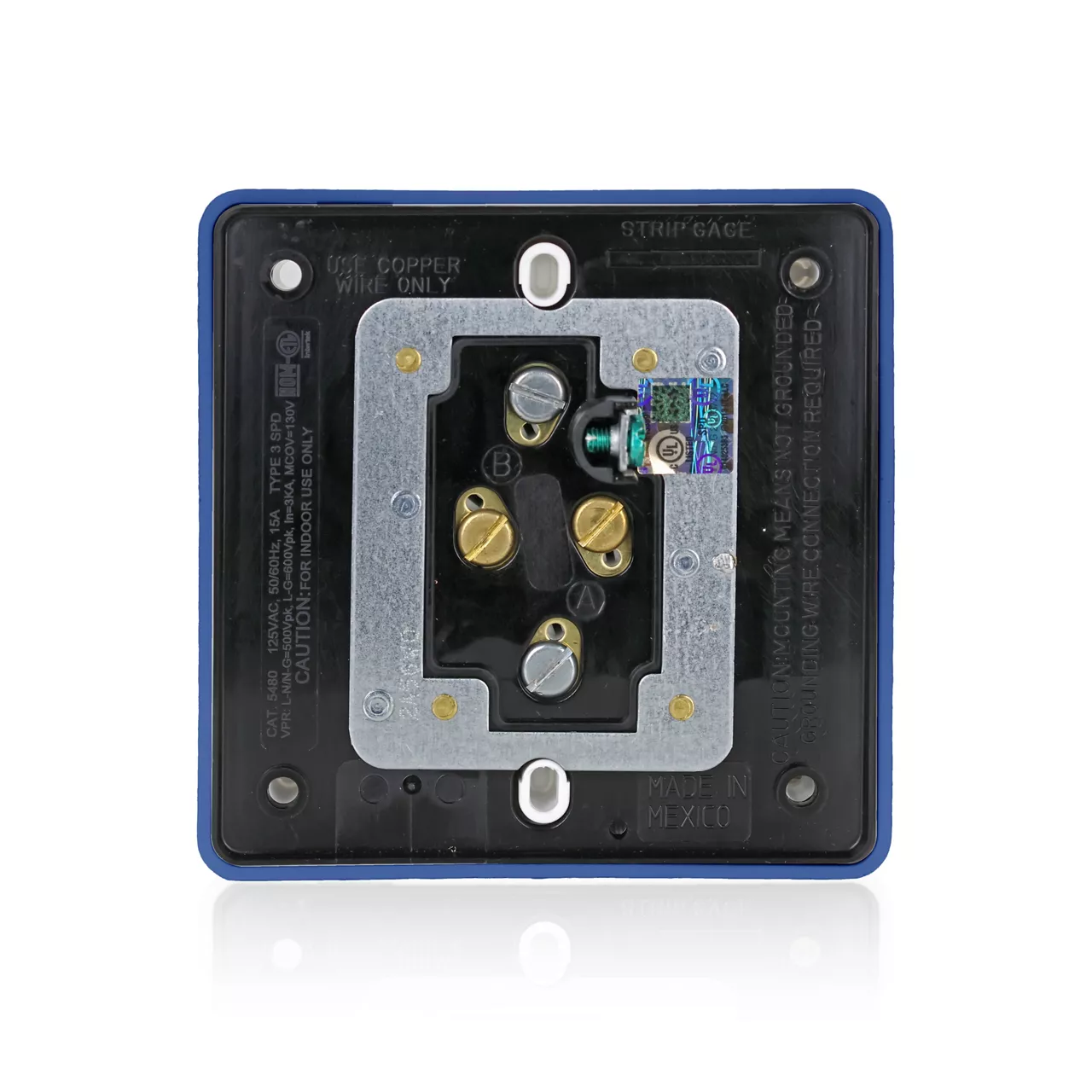

  • Mechanical Specifications

    Product ID : Ratings are permanently marked on device

    Screw Terminal Torque : 14-18 in-lbs

    Terminal Accom. : 14-10 AWG

    Terminal ID : Brass-Hot, Green-Ground, White-Neutral

    Termination : Back or Side Wire

  • Performance Data

    Diagnostics : Indicator Light

    Joules Rating : 720

    MCOV : 150V rms

    Max Surge Current L-N : 24kA

    Noise Rejection : -30dB at 500kHz-300MHz

    Nominal Discharge Current Rating : 3kA

    Short Circuit Current Rating : 5kA

    UL1449 Impulse 6kV/500A L-N : 330V

    VPR : L-N:500V, L-G:600V, N-G:500V

  • Product Features

    Amperage : 15 A

    Body Material : Nylon

    Brand : 4-in-1

    Color : Blue

    Device Type : Quadruplex Receptacle

    Diagnostics : Indicator Light

    Face Material : Nylon

    Feature : Surge

    Function : Surge Protective

    Grade : Commercial Specification Grade

    Grounding : Grounding

    Joules Rating : 720

    Max Surge Current L-N : 24kA

    NEMA : 5-15R

    Noise Rejection : -30dB at 500kHz-300MHz

    Pole : 2

    Standards and Certifications : UL/CSA

    Strap Material : Steel

    Termination : Back or Side Wire

    UL1449 Impulse 6kV/500A L-N : 330V

    Voltage : 125 VAC

    Warranty : 5-Year Limited

    Wire : 3

  • Standards and Certifications

    ANSI : C-73

    CSA C22.2 No. 42 : File 152105

    NEMA : WD-1 WD-6

    NOM : 057

    UL Fed Spec WC-596 : File E13399

    UL498 : File E13399
