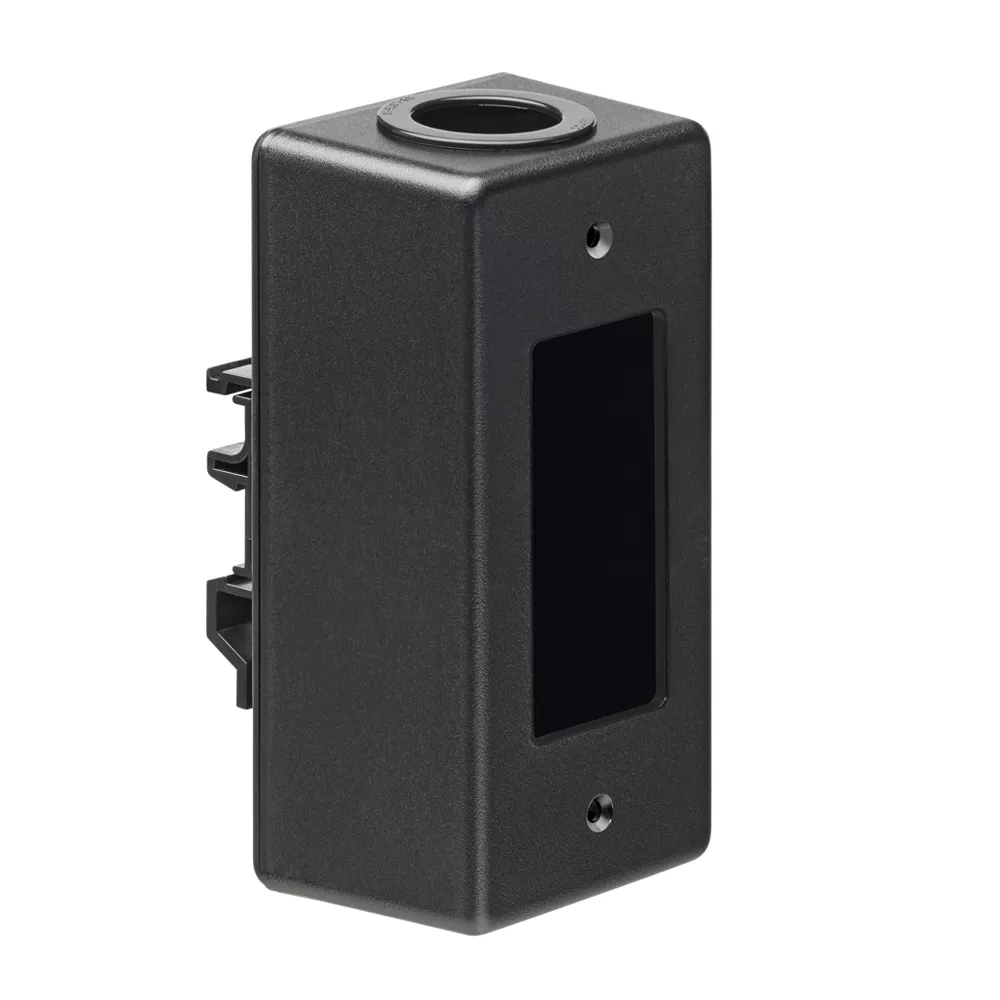

DIN Rail-Mount Box, Black


The compact DIN rail-mount box provides an ideal network patching solution for industrial automation and control panels. The box accepts a Leviton QUICKPORT Decora Insert, available with 1, 2, 3, 4, or 6 ports. The box allows for orientation of the 1-3/8 inch cable access port at the top or bottom, thereby increasing flexibility of cabling within a tight control enclosure. The box depth is suitable for Cat 5e or Cat 6 applications.

Color: Black

UPC Code: 078477707449
Country of Origin : Mexico
RoHS Link: Yes

Product Information

  • Accepts QUICKPORT Decora Insert (1-, 2-, 3-, 4-, and 6-port versions available: 4164x-00x)
  • 1-3/8 inch nominal cable access port accepts 1-inch trade conduit fittings — supplied with 1-inch bushing
  • Compatible with standard and low-profile 35 mm symmetrical DIN rails and 32 mm asymmetrical DIN rails
  • DIN rail adapter disconnect tab enables easy and quick installation and removal
