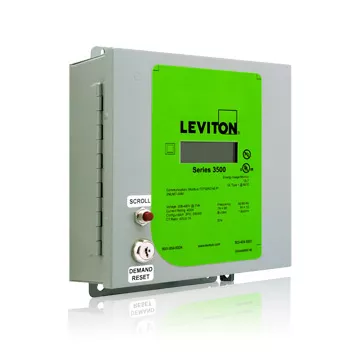

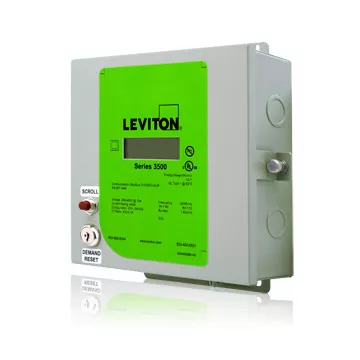

Submeter, Indoor, Multi-Function Universal Voltage, 400A, 3 Phase 3 Wire/4 Wire, Ethernet Communications, Electric Meter

3NUMT-4M

Modbus TCP/BACnet IP Submeter - Indoor Series 3500 Multi-Function Universal Voltage (208-480VAC) 3 PHASE 3W/4W 400A. SUBMETER ONLY.

Provides highly accurate, multi-functional smart-metering solutions for seamless integration into advanced building control management systems. The Series 3300 & 3500 submeters feature advanced communication protocols to enable tracking, monitoring and verification of real-time energy use and easy building management system integration. Series 3300 communicates via Modbus RTU or BACnet MS/TP over RS-485 and Ethernet enabled Series 3500 features Modbus TCP/IP and BACnet IP. Both meters deliver universal voltage performance, offer standard isolated pulse outputs, and easily integrate with building management systems. These multi-function meters are ideal for typical 3-phase, 3-wire (Delta) and 3-phase, 4-wire (WYE) circuit applications. Both models feature time of use (TOU) readings and a user-friendly LCD display which provides quick, easy visualization of power status and signal strength as well as kVA, kVAR, PF and per-phase voltage measurements. Their seamless integration with Leviton’s Energy Manager and BillSuite software, as well as utility company gas, steam and water meters provides a comprehensive system for implementing facility-wide energy management and cost reduction programs.

Where to Buy

Add to Project List

Product Support

UPC Code: 078477630662

Country of Origin : United States

Product Information

Updated

Product Specification and Data Sheet

View

Updated

Electrical Specifications
Amperage : 400 A
Voltage : Universal Bi-Directional 3-phase 3W/4W
Product Features
CTs Included : No Meter Only
Communication : Pulse Output, Ethernet, ModBus TCP/IP, BACnet IP
Enclosure : Indoor (NEMA 1)
Meter Configuration : Single Meter
Product Line : Series 3500
Product Type : Electric Submeter

Series 3500: Enabled by Ethernet, uses Modbus TCP/IP and BACnet IP
Isolated pulse output
Integrates easily with building management systems
Highly accurate 0.5% accuracy class
Delivers universal voltage performance
208/480V 2PH 2W, 120/208V 2PH 3W, 240/480V 3PH 3W, 120/208V, 277/480V 3PH 4W, 240/480V 3PH 4W DELTA
100-5000 Amps
Outputs kWh, Demand - Instant & Peak, Per Phase & Total kWh, kW, kVAR, VAR, AMPS Interval Data
Certified to all applicable standards of ANSI C12.1
Utilizes split and solid core current transformers (CTs) that are certified to all revenue grade accuracy standards
Up to three sets of CTs per phase can be paralleled per meter
