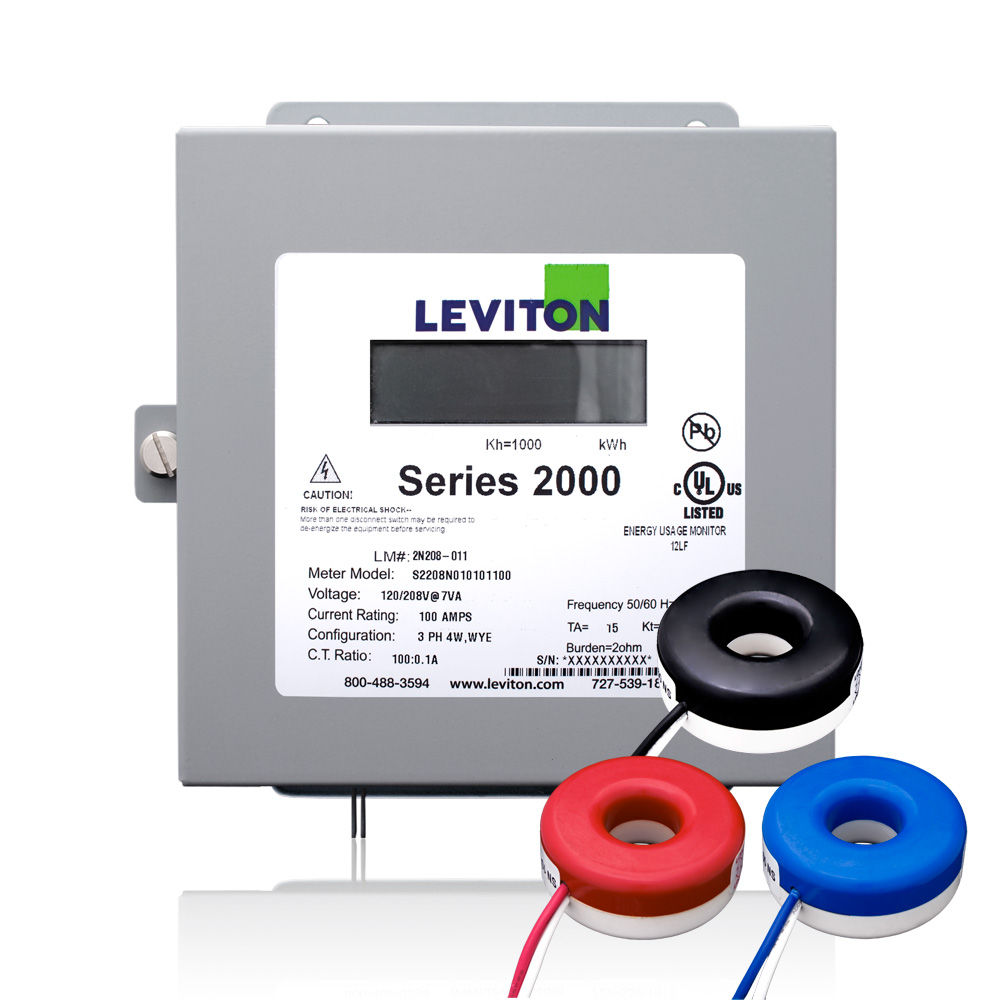

Submeter, Indoor, 208V, 3 Phase 4 Wire, Max 100A, 3 Solid Core Current Transformers, Electric Meter Kit

2K208-1SW

Series 2000 208V 3P/4W 100A Indoor Kit w/3 Solid Core Current Transformers (CT)

The Leviton VerifEye™ Series 2000 line of revenue-grade meters meets all measurement and verification-based opportunities including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, Series 2000 meters are easy to specify and install for new construction and retrofits.

Do you have a question about submetering?

Where to Buy

Add to Project List

Product Support

UPC Code: 078477597750

Country of Origin : United States

Product Information

Updated

Product Specification and Data Sheet

View

Updated

Electrical Specifications
Amperage : 100 A
Voltage : 120/208 VAC 3PH 4W
Product Features
CTs Included : 3 Solid Core CTs
Communication : Pulse Output
Enclosure : Indoor (NEMA 1)
Meter Configuration : Single Meter
Product Line : Series 2000 Kit
Type
Product Type : Submeter and Current Transformer(s)

Measures kWh and demand (optional)
Conform to all applicable standards of ANSI C12.1
Equipped with an Isolated Pulse Output channel
Utilizes revenue grade 0.5% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
Enclosure options include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
Interfaces with numerous communication systems – Hardwired Automatic Meter Reading (AMR) or wireless AMR
Large LCD display shows kWh and optional peak and instantaneous kW with demand reset
Load Indicator LED verifies meter functionality
Reverse Phase Indicator LED illuminates if the meter is improperly installed
CT Lead length maximum: 48”
UL/cUL Listed Energy Usage Monitor pre CCN FTR7
Five year warranty
