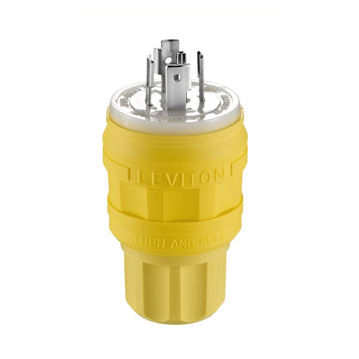

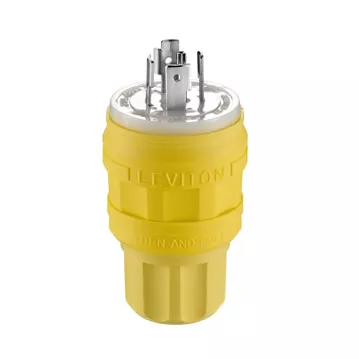

Wetguard Watertight Locking Plug

26W83

20 Amp, 347/600 Volt 3PY, NEMA L23-20P, 4P, 5W, Locking Plug, Industrial Grade, Grounding, Wetguard - YELLOW

  • BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
  • WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
  • UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
  • HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
  • THE BRAND YOU TRUST- Backed by a lifetime warranty
UPC Code: 078477968574
Country of Origin : Mexico
RoHS Compliant: Yes – Click Here

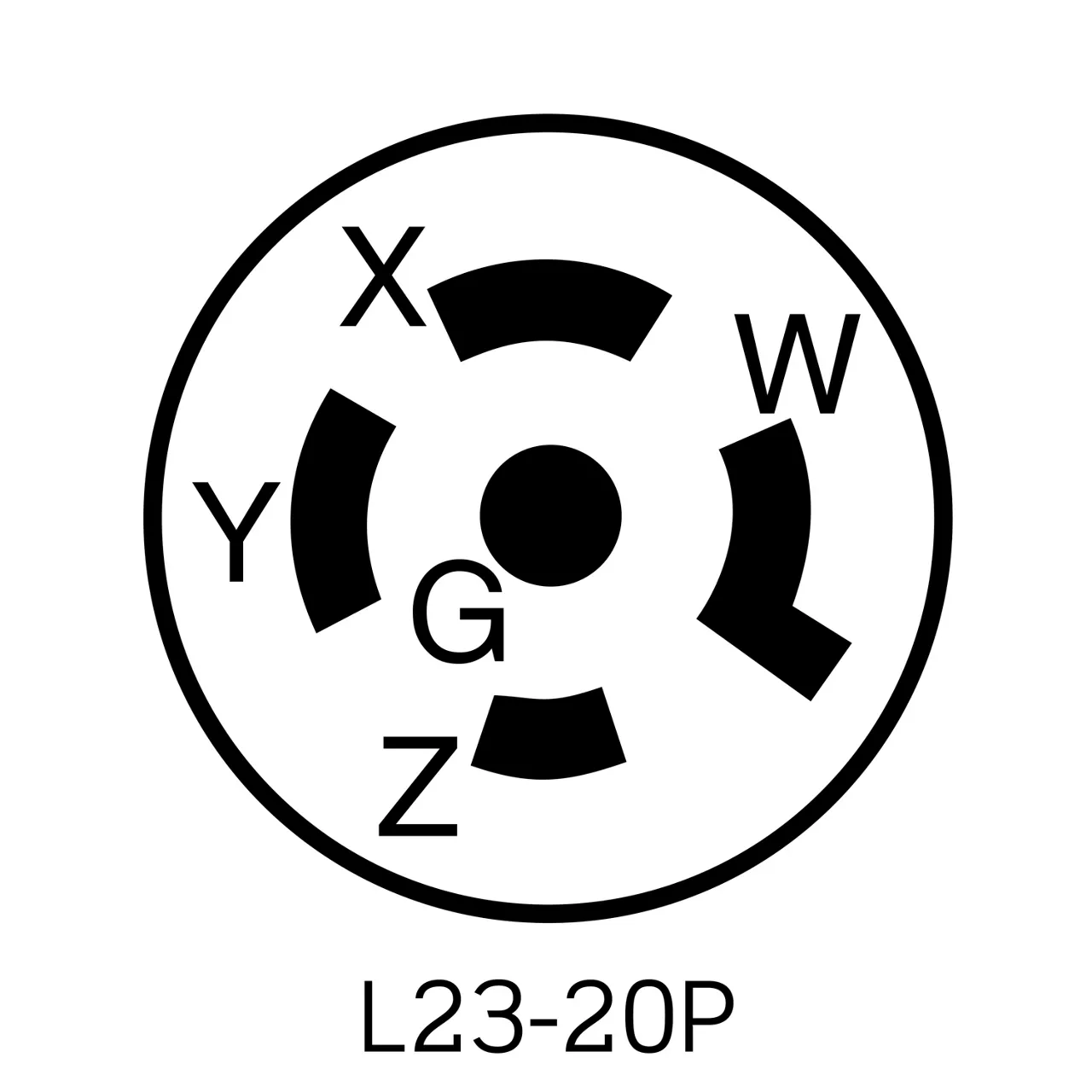

NEMA L23-20P

Product Information

  • Electrical Specifications

    Phase : 3-Phase WYE

  • Environmental Specifications

    Environment : Wet

    IP Rating : IP66, IP67, IP69K

  • Product Features

    Amperage : 20 A

    Assembly Screws : Stainless Steel 300

    Blades/Contacts : Nickel-Plated Brass

    Body Material : EPTR Rubber

    Brand : Wetguard

    Color : Yellow

    Cord Range : .375 - .875

    Device Type : Locking Plug

    Grounding : Grounding

    NEMA : L23-20P

    Pole : 4

    Standards and Certifications : UL/CSA

    Voltage : 347/600 VAC

    Warranty : Limited Lifetime Warranty Warranty

    Wire : 5

    Wire Gauge : 18-10 AWG
