Female Plug, 2/0 - 4/0 AWG, Single Set Screw Termination
18D32-UY

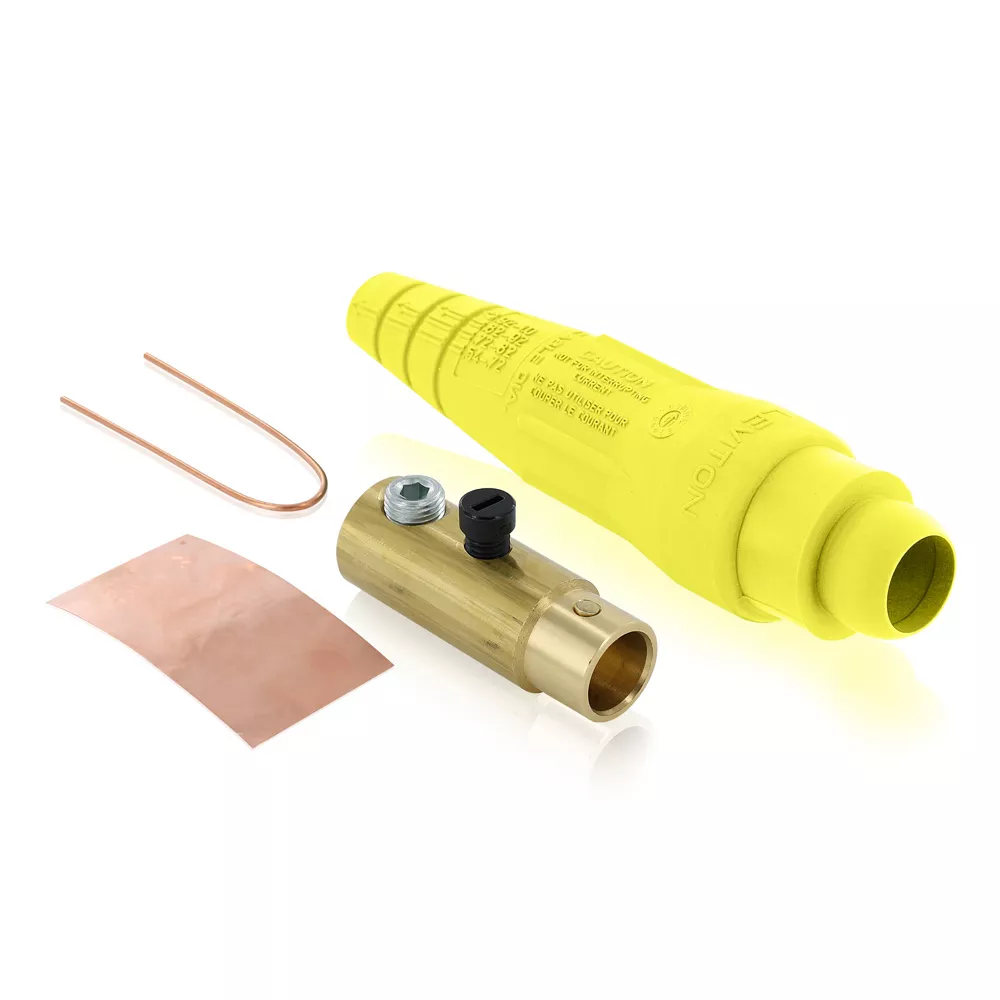

18 Series Plug, Female, 400 Amp Max, 600 Volt, Single Set Screw Termination, 2/0-4/0 Cable Range, Yellow
Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
- NEMA 3R rated for outdoor use when mated
- UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
- Color-coding provides fast and easy phase identification
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Color: Yellow
Product Information
Electrical Specifications
Max. Amperage : 400 Amp
Max. Voltage : 600 Volt
Material Specifications
Contact Material : Brass
Sleeve Material : Santroprene TPV
Strain Relief : Copper Wire
Mechanical Specifications
Cable Range : 2/0-4/0 AWG
Connection Type : Single Set Screw
Gender : Female
Product Features
Color : Yellow
Contact Cat. No. : 18D32-C
Insulator Cat. No. : 18SDF-14E
Max. Amperage : 400 Amp
Standards and Certifications
CSA Certified : File 152105
UL Listed : File E-13399
