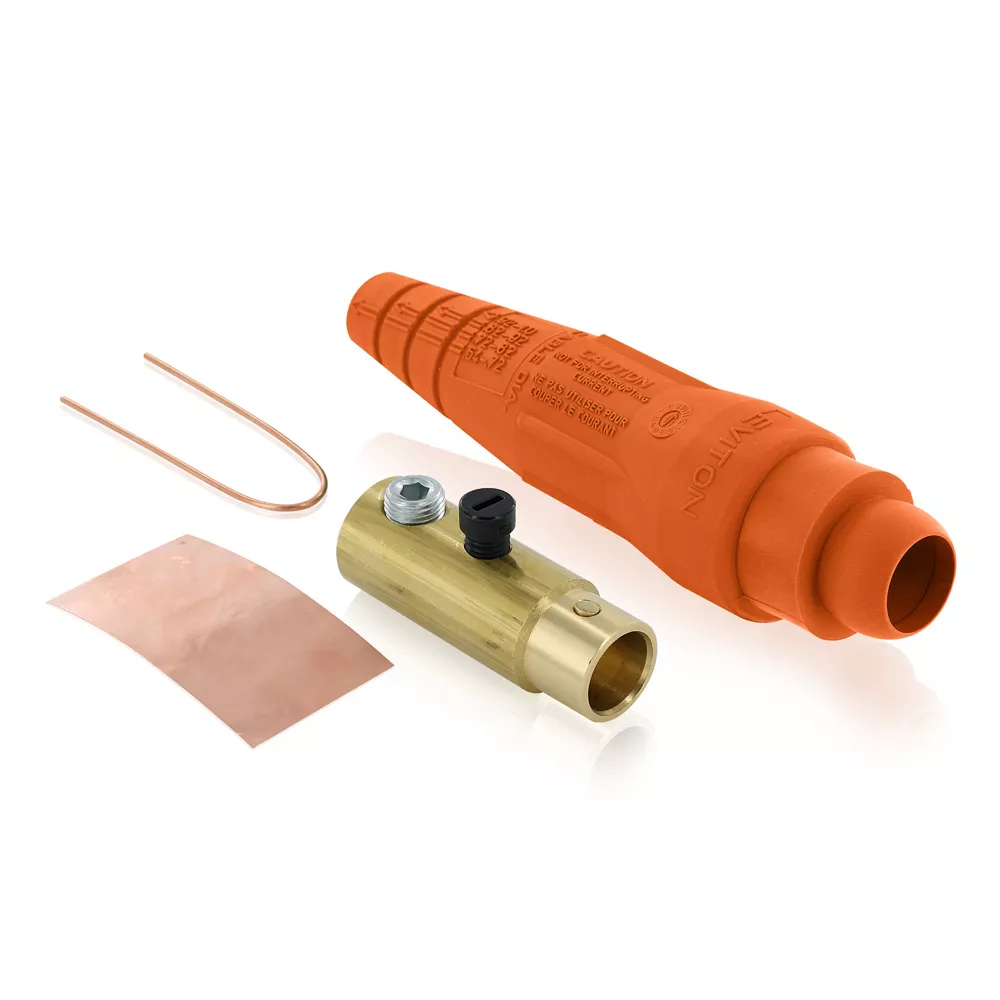

Female Plug, 2/0 - 4/0 AWG, Single Set Screw Termination

18D32-UO

18 Series Plug, Female, 400 Amp Max, 600 Volt, Single Set Screw Termination, 2/0-4/0 Cable Range, Orange

Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.

  • NEMA 3R rated for outdoor use when mated
  • UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
  • Color-coding provides fast and easy phase identification
  • Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications

Color: Orange

UPC Code: 078477825815
Country of Origin : Mexico
RoHS Compliant: Yes – Click Here

Product Information

  • Product Features

    Color : Orange

    Contact Cat. No. : 18D32-C

    Insulator Cat. No. : 18SDF-14E

    Max. Amperage : 400 Amp

  • Standards and Certifications

    CSA Certified : File 152105

    UL Listed : File E-13399

  • Mechanical Specifications

    Cable Range : 1/0-4/0 AWG

    Connection Type : Single Set Screw

    Gender : Female

  • Electrical Specifications

    Max. Amperage : 400 Amp

    Max. Voltage : 600 Volt

  • Material Specifications

    Contact Material : Brass

    Sleeve Material : Santroprene TPV

    Strain Relief : Copper Wire
