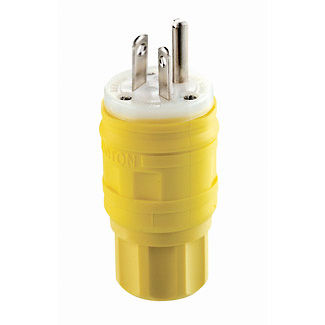

Wetguard Watertight Straight Blade Plug

14W15

15 Amp, 347 Volt, NEMA 24-15P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Wetguard - YELLOW

  • BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
  • WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
  • UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
  • HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
  • THE BRAND YOU TRUST- Backed by a lifetime warranty
UPC Code: 078477065105
Country of Origin : Mexico
RoHS Compliant: Yes – Click Here
NEMA 24-15R

Product Information

  • Product Features

    Amperage : 15 A

    Assembly Screws : Stainless Steel 300

    Blades/Contacts : Nickel-Plated Brass

    Body Material : EPTR Rubber

    Brand : Wetguard

    Color : Yellow

    Cord Range : .375 - .655

    Device Type : Straight Blade Plug

    Grounding : Grounding

    NEMA : 24-15R

    Pole : 2

    Standards and Certifications : UL/CSA

    Voltage : 347 VAC

    Warranty : Limited Lifetime Warranty

    Wire : 3

    Wire Gauge : 18-10 AWG

  • Environmental Specifications

    Environment : Wet

    IP Rating : IP66, IP67, IP69K

  • Corrosion resistant, watertight, and dust tight connector – NEMA Type 3, 3S, 4, 4X, 6, & 6P
  • Meets IP66 and IP67 standards when mated with a Wetguard connector or inserted in to a corrosion resistant receptacle with a Wetguard flip lid. Plug caps are available to protect the plug when not used
  • Corrosion resistant, nickel-plated brass blades and terminal screws plus non-magnetic stainless steel face module screws
  • Amperage, voltage, and NEMA configuration are molded into the face module making identification and replacement faster and easier
  • Interlocking tongue and groove construction between face module and housing prevents moisture and debris from passing around the face module during use
  • Santoprene EPTR housing, grommet, and closure cap resist water, most acids, alkalies, grease, oil, and solvents. EPTR offers enhanced UV stability and resists fungal growth
  • Innovative strain relief and cord sealing system features a deep fluted compression nut, strain relief washer, and EPTR grommet for most reliable seal
  • Available in high visibility yellow
