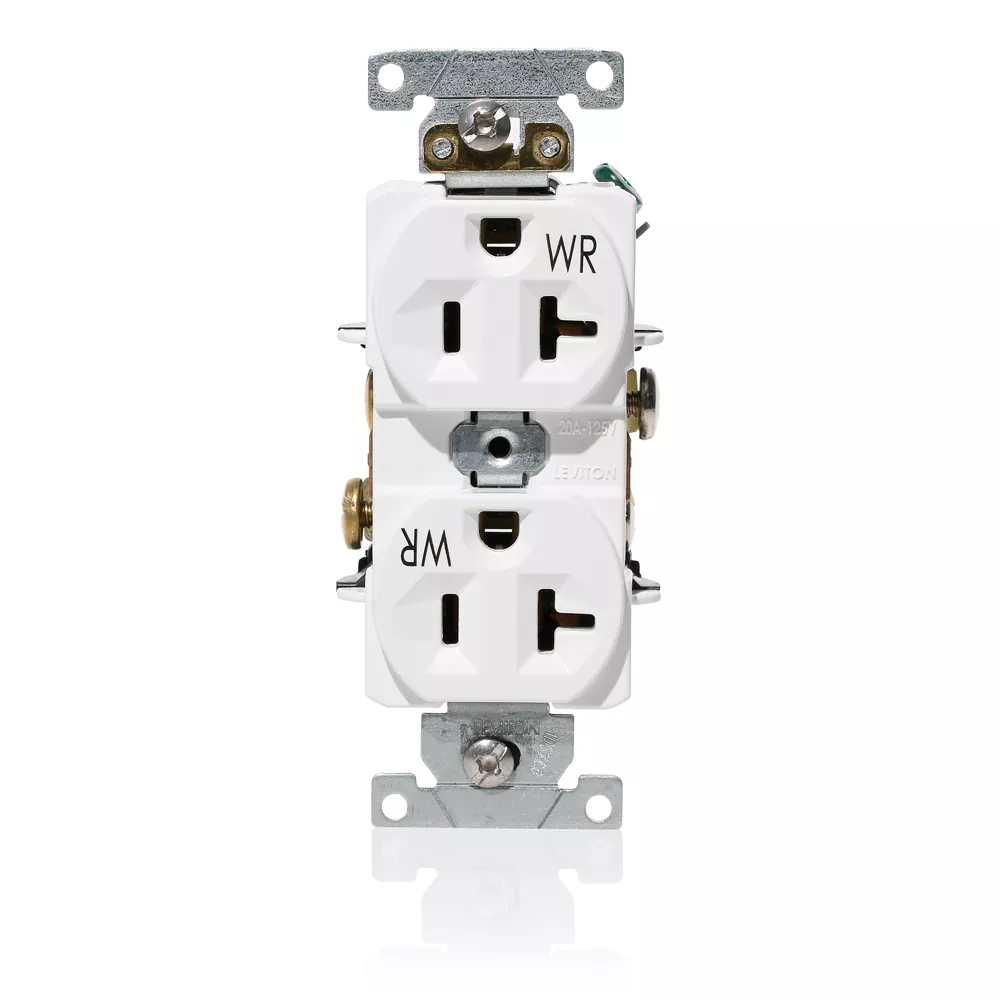

20 Amp, 125 Volt, Duplex Receptacle Outlet, Heavy-Duty Industrial Grade
WBR20-W
Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Color: White
Product Information
AC Horsepower Ratings
Amperage : 20 A
At Rated Voltage : 1 HP
Current Limiting : Full Rated Current
Dielectric Voltage : Withstands 2000V per UL498
Grounding : Self-Grounding
Pole : 2
Temperature Rise : Max 30C after 100 cycles OL at 150 percent rated current
Voltage : 125 VAC
Wire : 3
Electrical Specifications
Amperage : 20 A
Current Limiting : Full Rated Current
Dielectric Voltage : Withstands 2000V per UL498
Flammability : Rated V-2 per UL 94
Grounding : Self-Grounding
Operating Temperature : -40°C to 60°C
Pole : 2
Temperature Rise : Max 30C after 100 cycles OL at 150 percent rated current
Voltage : 125 VAC
Wire : 3
Environmental Specifications
Body Material : Nylon
Color : White
Face Material : UV Resistant Thermoplastic
Flammability : Rated V-2 per UL 94
Ground Clips : Brass-Plated
Grounding Screw : Brass 8-32
Line Contacts : Brass Triple-Wipe .031 Thick
Operating Temperature : -40°C to 60°C
Strap Material : Nickel-Plated Brass
Terminal Screws : Brass 10-32
Material Specifications
Body Material : Nylon
Color : White
Face Material : UV Resistant Thermoplastic
Ground Clips : Brass-Plated
Grounding Screw : Brass 8-32
Line Contacts : Brass Triple-Wipe .031 Thick
Product ID : Ratings permanently marked on device
Strap Material : Nickel-Plated Brass
Terminal Accom. : 14-10 AWG
Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws : Brass 10-32
Termination : Back or Side Wire
Mechanical Specifications
Color : White
NEMA : 5-20R
Product ID : Ratings permanently marked on device
Screw Terminal Torque : 14-18 in-lbs
Terminal Accom. : 14-10 AWG
Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral
Termination : Back or Side Wire
Product Features
ANSI : C-73
CSA C22.2 No. 42 : File 152105
NEMA : 5-20R
NOM : 057
UL 498 : File E13399
Warranty : 2-Year Limited
Standards and Certifications
ANSI : C-73
CSA C22.2 No. 42 : File 152105
NOM : 057
UL 498 : File E13399
Warranty : 2-Year Limited
Warranty
At Rated Voltage : 1 HP
Warranty : 10-Year Limited
