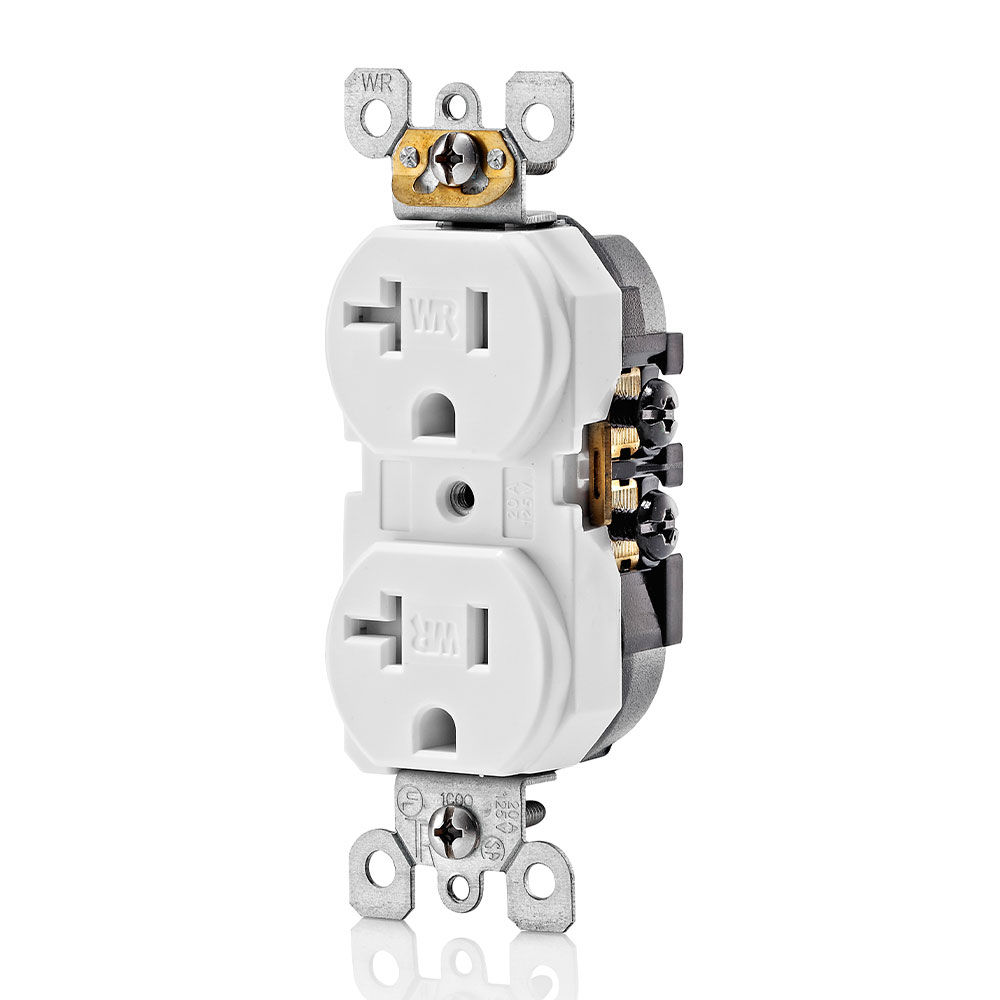

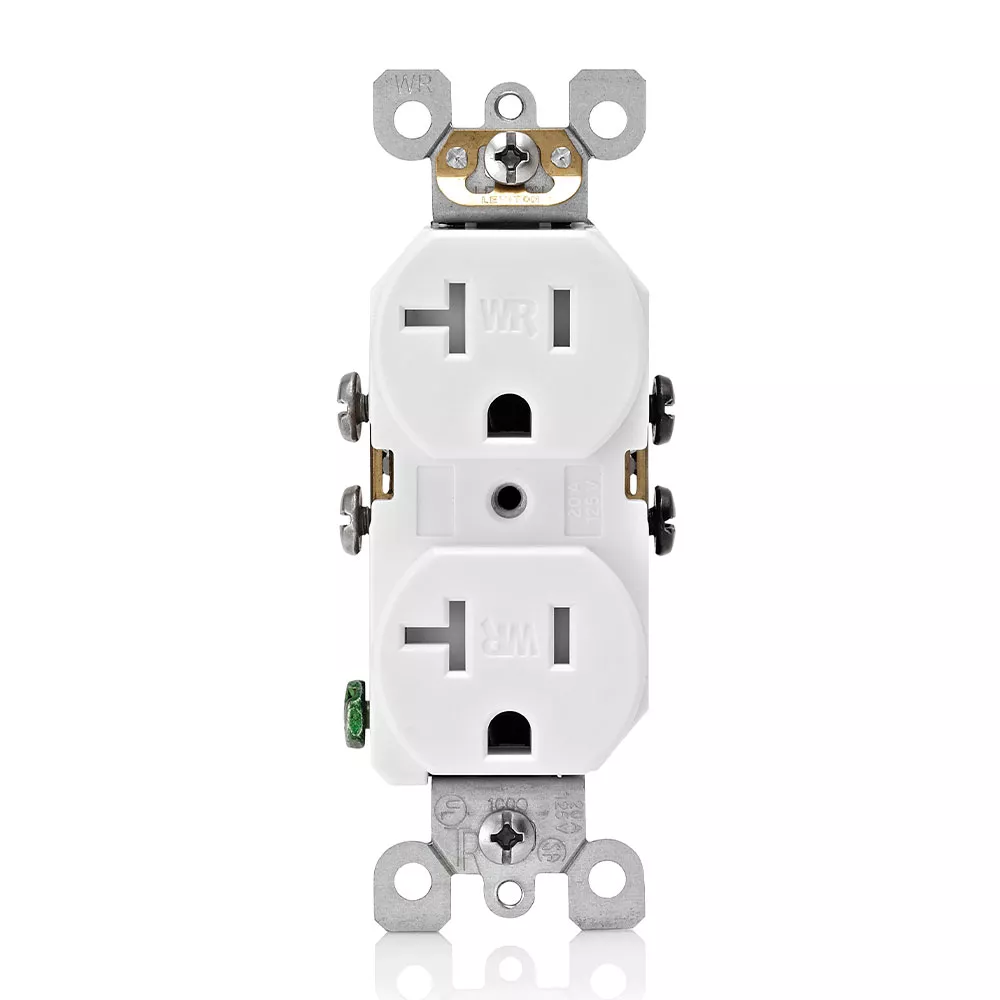

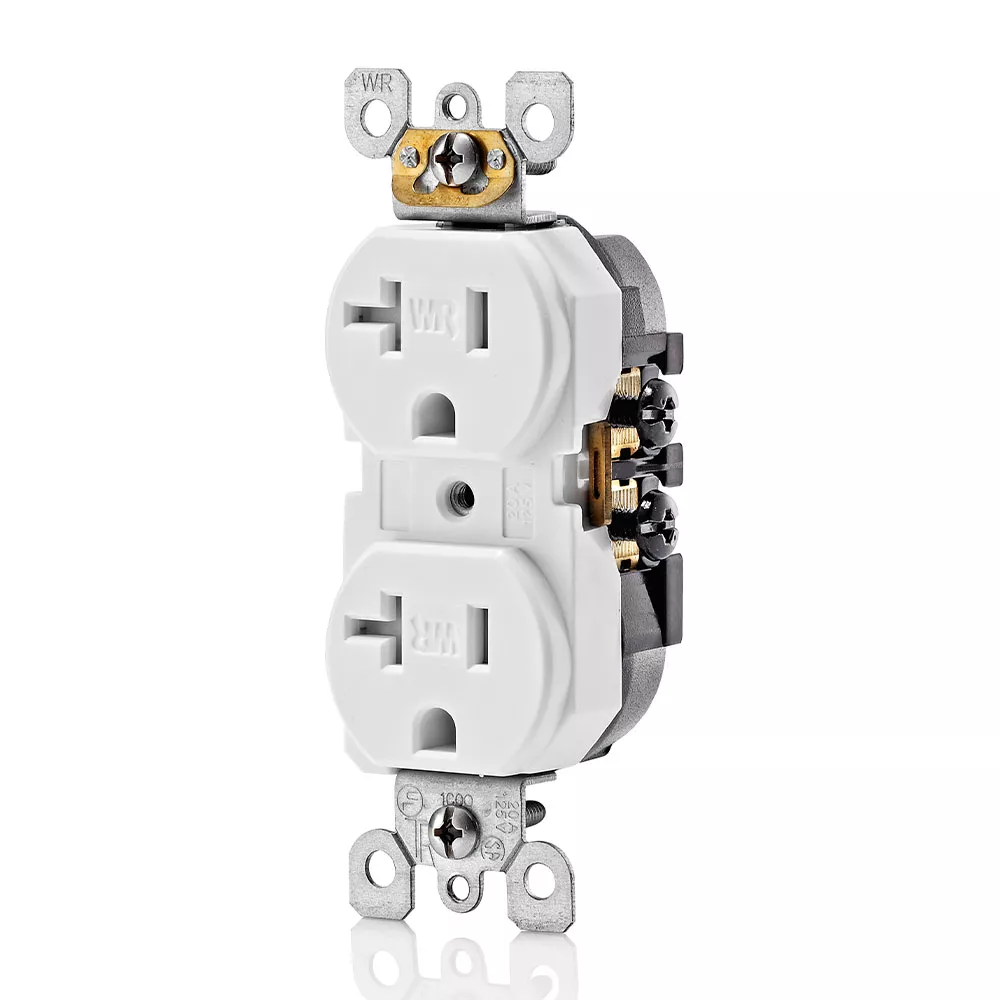

20 Amp Weather & Tamper-Resistant Duplex Outlet

W5820-T0W

Weather and Tamper-Resistant, 20 Amp, 125 Volt, 5-20R, 2 Pole, 3 Wire, Straight Blade, Duplex Receptacle, Grounding, Quickwire Push-In & Side, UL/CSA, 2 Year Limited Warranty, NEC compliant – White

  • WEATHER-RESISTANT – UV stabilized thermoplastic construction to withstand the rigors of exposure to the elements
  • SAFE – Tamper-resistant protects from foreign objects being inserted into outlet
  • EASY – Quick wire push-in and side wiring for easy installation
  • OUTDOOR USE – Must be installed in weatherproof enclosure with approved caulk and gaskets
  • CONVENIENT – WR symbol on face and TR symbol on strap assures they meet the latest NEC requirements

Color: White

UPC Code: 078477506707
Country of Origin : China
NEMA 5-20R

Product Information

  • Product Features

    Amperage : 20 A

    Color : White

    Device Type : Duplex Receptacle

    Feature : Weather and Tamper-Resistant

    Wire : 3

  • Electrical Specifications

    Amperage : 20 A

    Grounding : Grounding

    Pole : 2

    Wire : 3

  • Mechanical Specifications

    Termination : Quickwire Push-In & Side

    Torque Range : 14 - 18 in.-lbs

  • Standards & Certifications

    CSA : C22.2 No. 42: File 152105; Class 6233-01

    NEMA : 5-20R

    NOM : NOM Certified

    UL 498 : File E13399

  • US8242362

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
