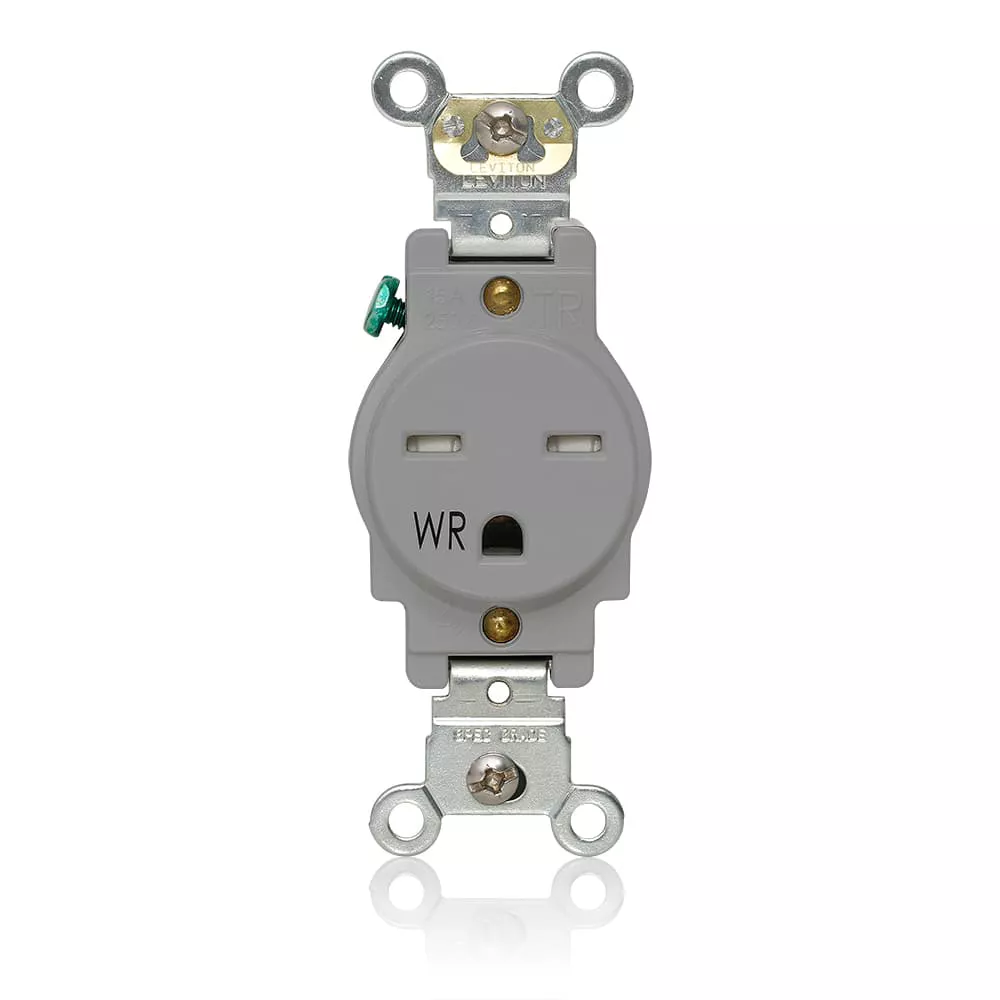

Weather- and Tamper-Resistant Single Receptacle, 15 Amp 250 Volt, Gray

W5661-TGY

Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Weather- and Tamper-Resistant, Smooth Face, 15 Amp, 250 Volt, Back and Side Wire, NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding - Gray

Leviton’s 250 Volt Tamper-Resistant Receptacles are the industry’s first and only solution to the revisions of the NEC Article 406.12!

These weather-resistant single receptacles also provide compliance for Article 406.9 of the NEC for wet and damp locations and include added protection against corrosion, UV degradation and cold impact damage.

  • Accommodates back and side wiring
  • Nickel-plated steel strap maximizes corrosion resistance
  • Brass-self grounding clip is permanently staked on for secure and reliable performance
  • Common applications: education facilities, commercial buildings, health care facilities, hospitality, and multiple dwelling units (MDUs)
UPC Code: 078477650035
Country of Origin : Mexico

Product Information

  • Mechanical Specifications

    Screw Terminal Torque : 14-18 in-lbs

  • CA3060123
  • US10559909

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
