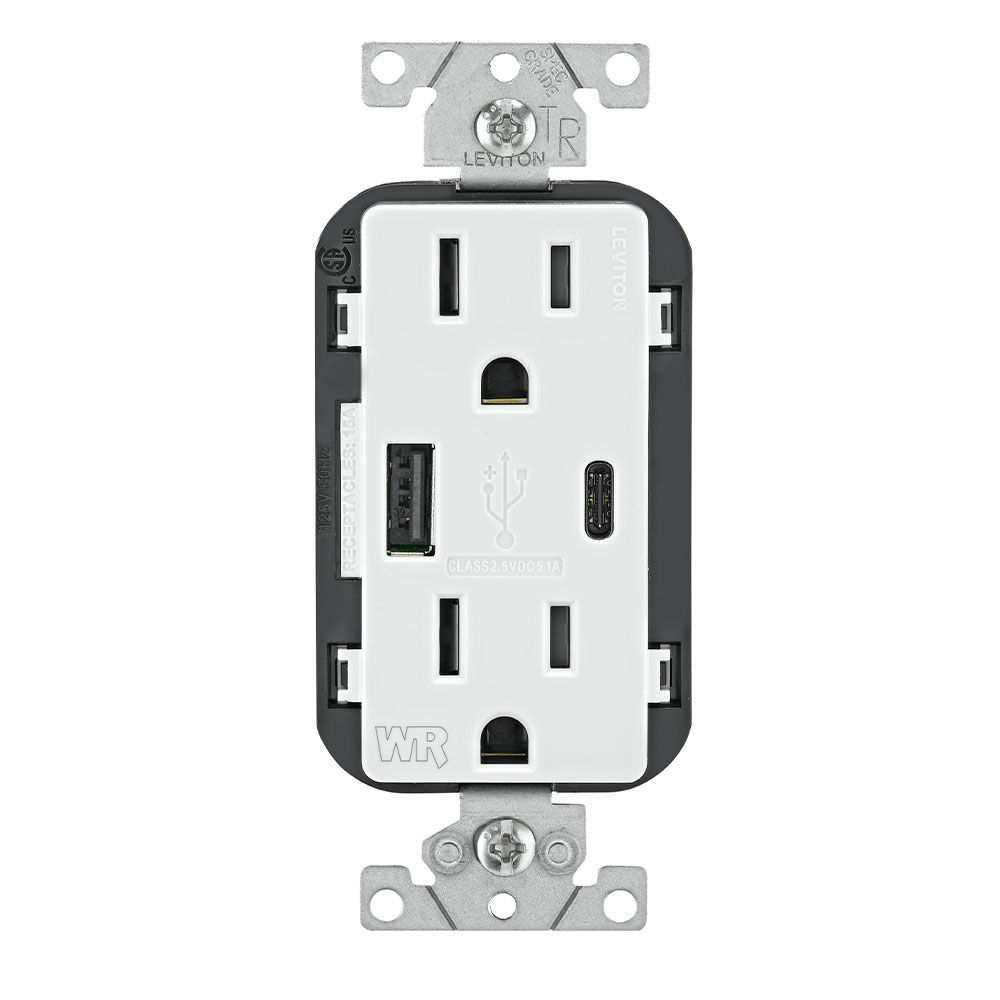

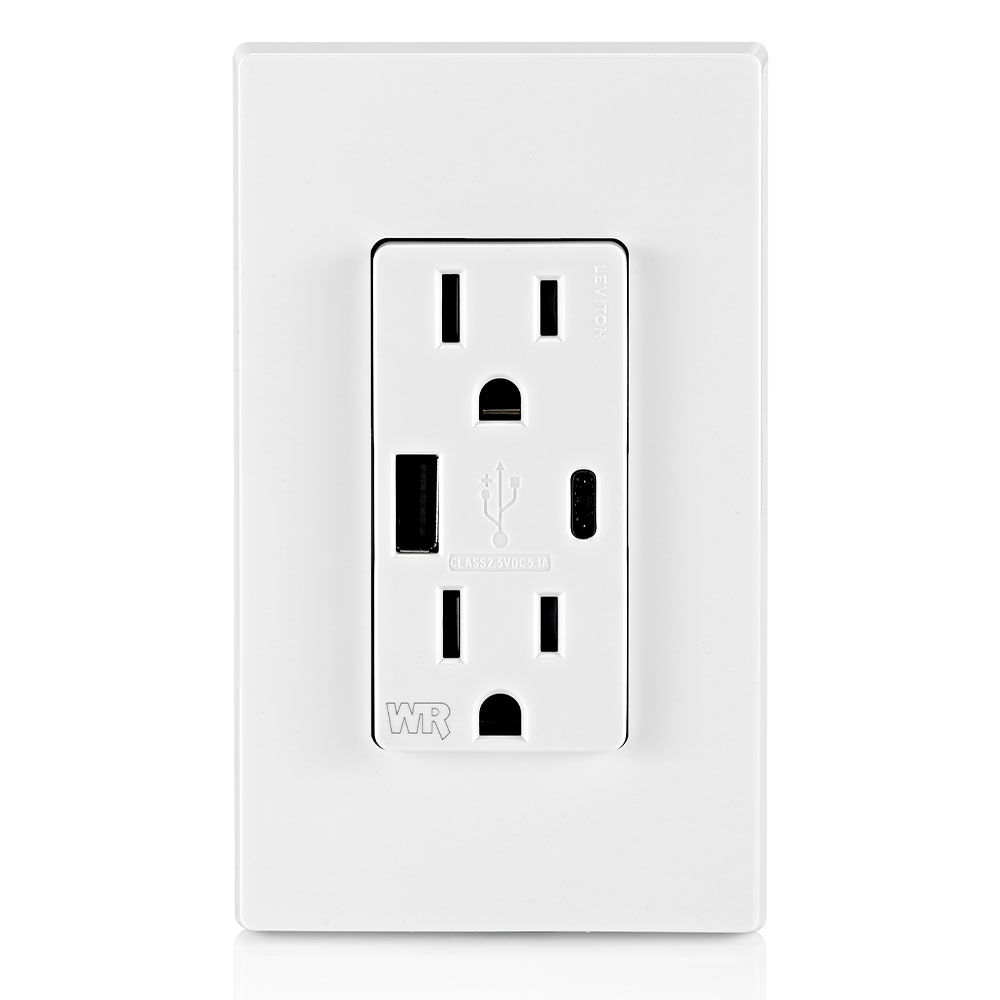

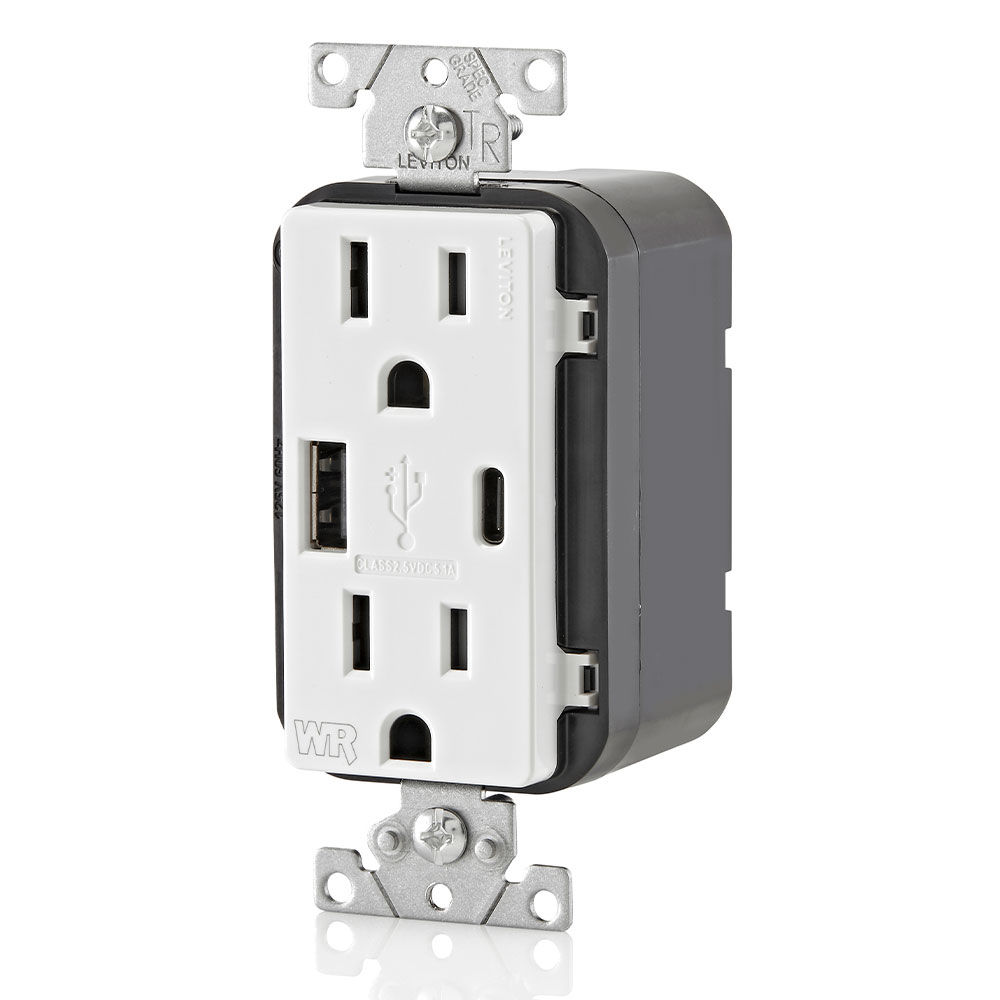

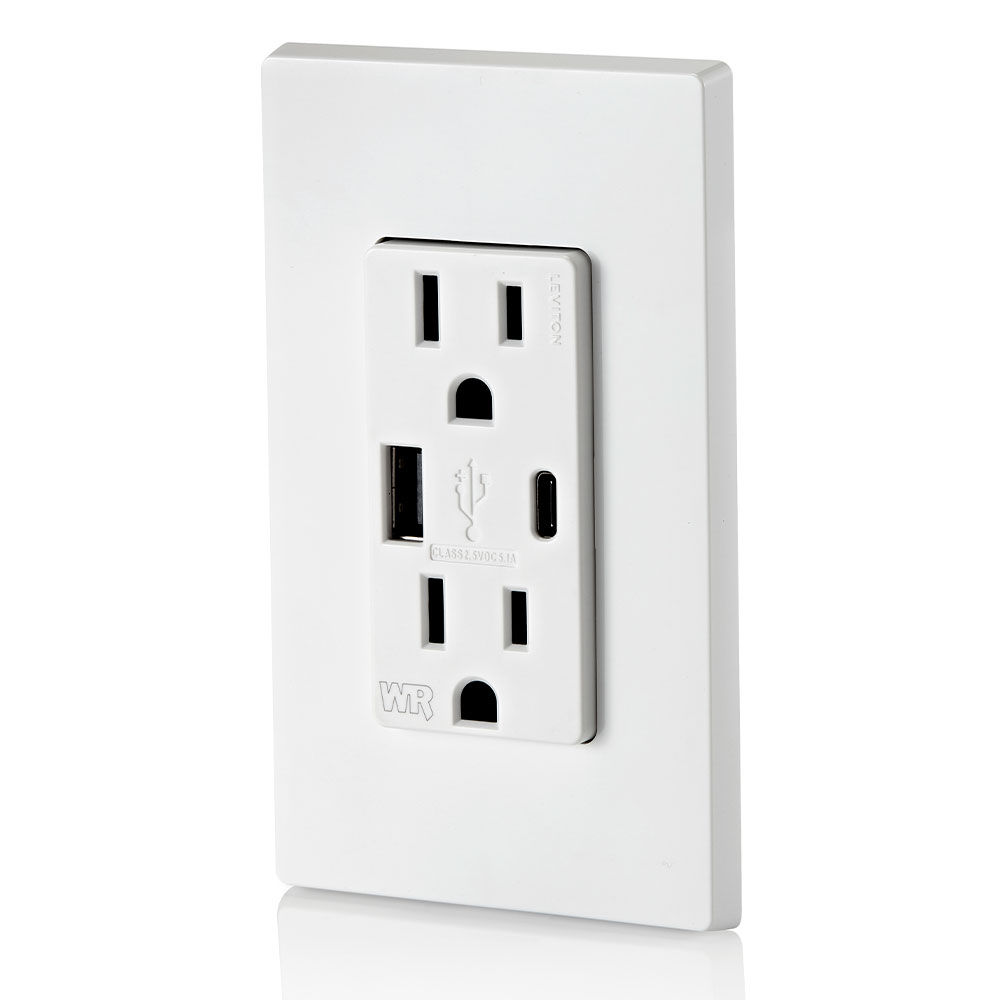

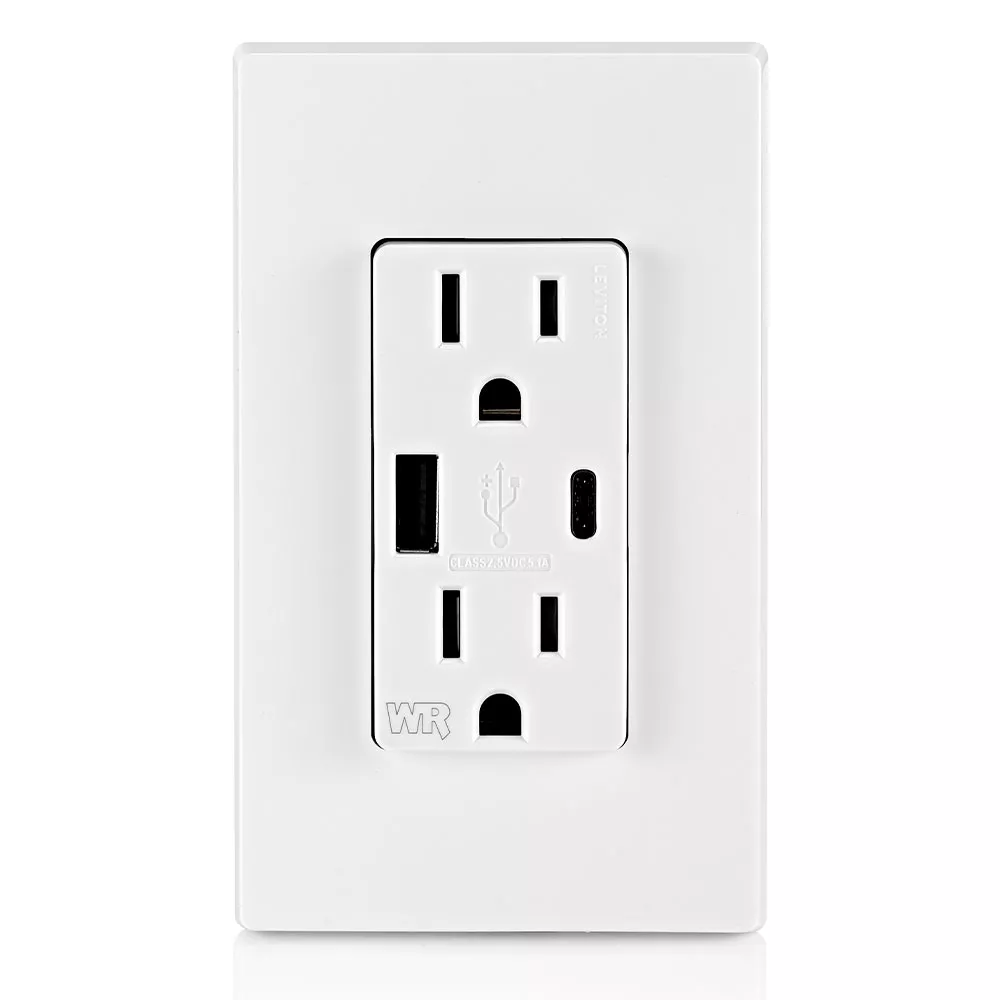

Decora® Weather Resistant 25W USB Outlet, Type A / C Charging Ports, 15A Receptacle - White
W5633-W

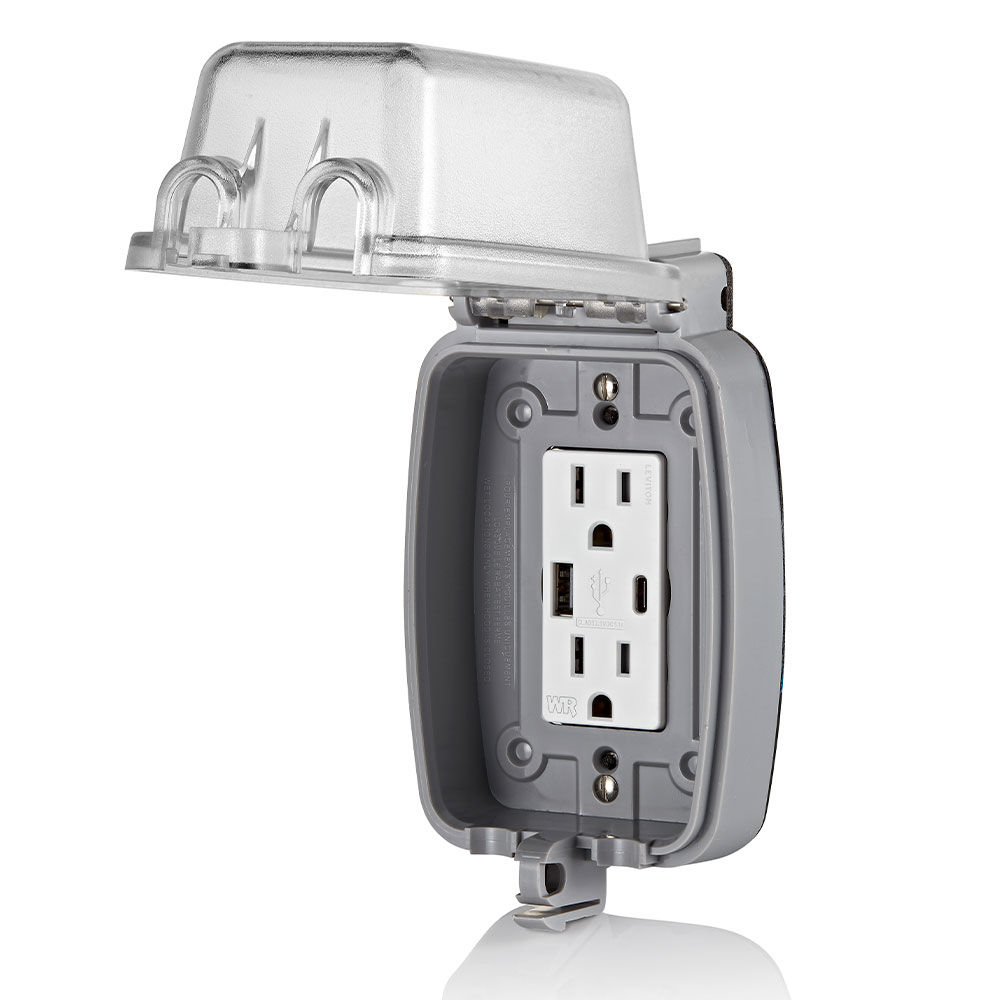

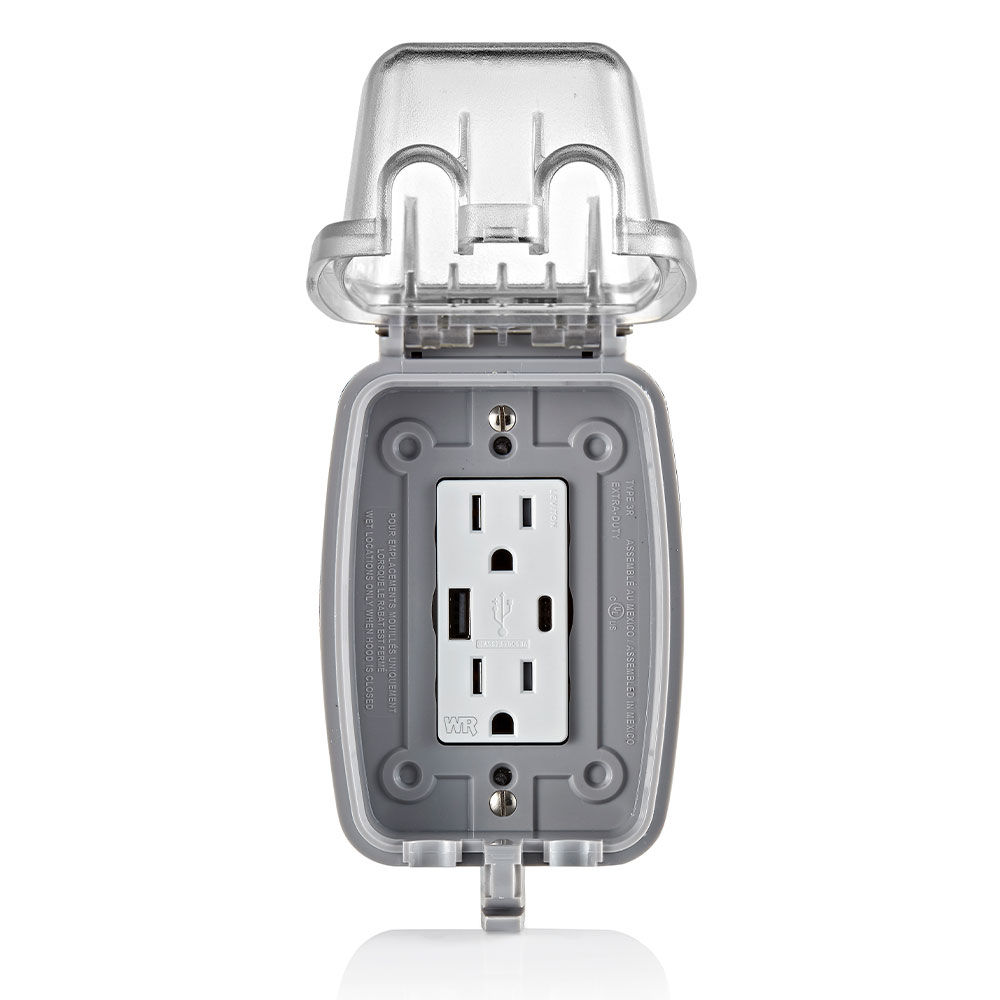

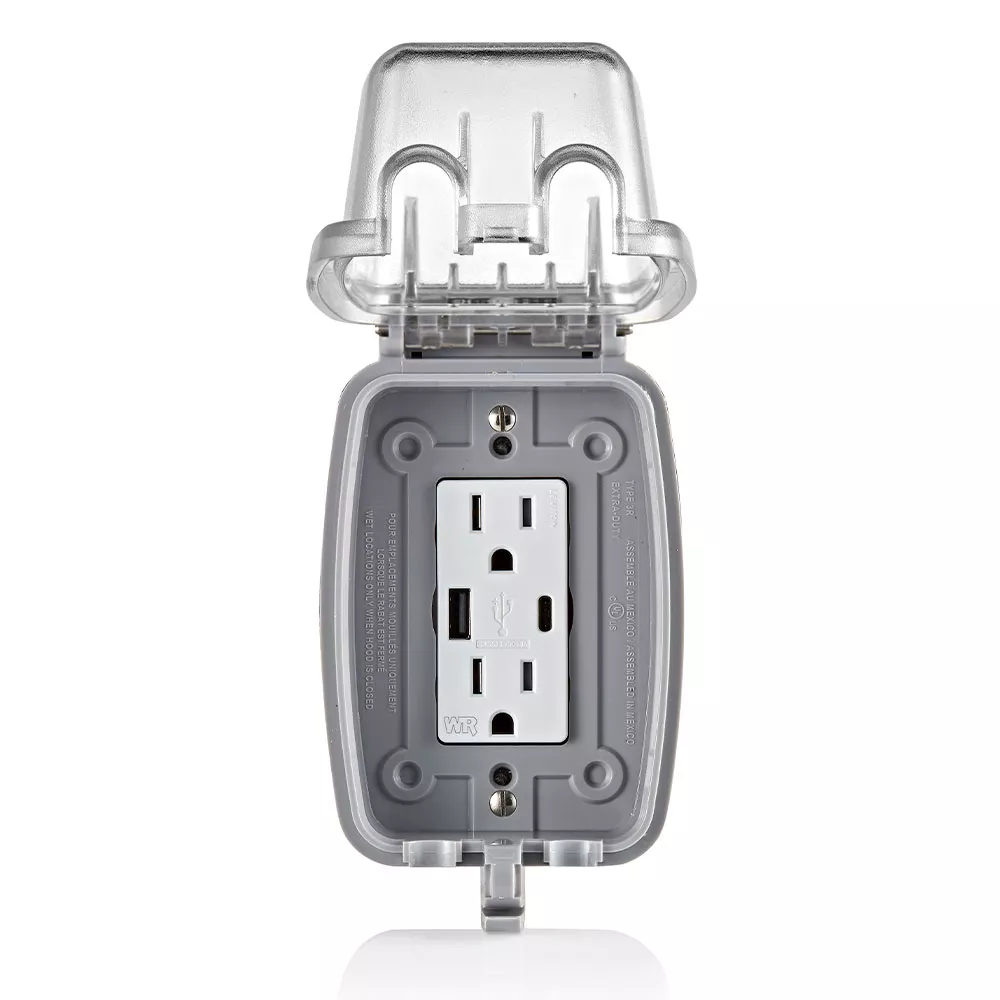

- WEATHER-RESISTANT – Protect your devices while charging outdoors, must be installed in weatherproof enclosure with approved caulk and gaskets (not included)
- SMART – Built-in smart chip recognizes the individual device’s charging requirements to optimize the charge
- POWERFUL – Two high-powered charging ports deliver a combined total of 5.1A charging current and 25+ watts of power
- CONVENIENT – No more searching for charging adapters! Charge electronics while leaving the outlets free for additional power needs
- INNOVATIVE – USB-C provides faster charging and is the new standard port on many phones, tablets and laptops
Color: White
Instruction Sheet
Documents
Technical Information
-
General Information
UPC : 78477602096
Electrical Specifications
Amperage : 15 A
Dielectric Voltage : 1250 VAC
Grounding : Grounding
Horsepower Rating : ½ hp
Pole(s) : 2
Power Supply Input and Frequency : 125V, 60Hz
Temperature Rise : Max 30°C
Voltage : 125 VAC
Wire(s) : 3
Environmental Specifications
Flammability Rating : V-0
Operating Temperature : Maximum Continuous 40°C, Minimum -10°C (w/o impact)
Material Specifications
Body Material : Thermoplastic
Face Material : Thermoplastic
Line Contacts : Brass
Mounting Strap : Galvanized Steel
TR Shutter : Thermoplastic
Mechanical Specifications
Product ID : Ratings are marked on device
Screw Terminal Torque : 14-18 lbs.

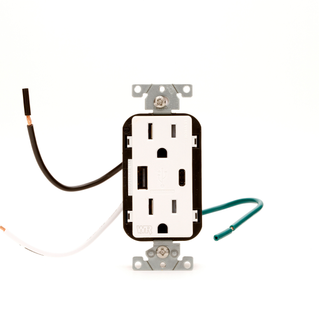

Termination : Back and Side Wire
Wire Accomodation : #14-#12 AWG Copper Solid or Stranded, #12-#10 AWG Copper Clad
Product Features
Brand : Decora
Color : White
Feature(s) : Tamper Resistant, Weather Resistant
Grade : Residential/Commercial Specification Grade
NEMA Configuration : 5-15R
Product Type : USB Receptacle Outlet
USB Power Delivery : No
USB Type : Type A / C
USB Wattage : 25 W
Standards and Certifications
Applicable Standards & Certifications : FCC Part 15 Class B, cCSAus Listed, NOM, UL 1310, UL 498, UL 1310
NEMA : WD-1 and WD-6
Warranty
Warranty : 1-Year Limited
Features & Benefits
- Provides ideal weatherproof solutions for outdoor residential and commercial areas, all while meeting the National Electrical Code® (NEC®) requirements and industry standards
- Smart chip recognizes and optimizes the charging requirements of individual devices
- Type-C Port can charge maximum 3 Amps @ 5V. Type A Port can charge maximum 2.1 Amps @ 5V
- USB Ports tested to meet the industry requirement to withstand over 10,000 insertions
Patents
- MX338817
- US7820909
- US7868719
- US7355117
- US8242362
- CA2621644
- CA2677283
- US9368982
- US9496726
- CA2857863
- CA2624409
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
