Cat 7A 22 AWG S/FTP Cable, LSHF/LSZH, EuroClass Dca, Blue, 3280 ft (1000 m), Reel

UM12-DCA-1000BU

Leviton Category 7A S/FTP cables exceed Category 7A performance standards.  They are specified to 1000MHz and rated to 1200MHz and are suitable for use in all Class FA structured wiring cable systems.  The applications supported include 10 Gigabit Ethernet, Gigabit Ethernet, Power over Ethernet, and broadband video transmissions at frequencies up to 1000MHz.

Color: Blue

Country of Origin : United Kingdom

Product Information

  • Product Features

    Category Rating : Cat 7A

    Color : Blue

    Construction : S/FTP

    Flame Rating : Euroclass - Dca,LSHF/LSZH

    Length : 3280 ft (1000 m)

    Packaging : Reel

  • 22 AWG solid annealed copper wire
  • Gas injection foamed polyolefin core insulation – offering superior signal speed

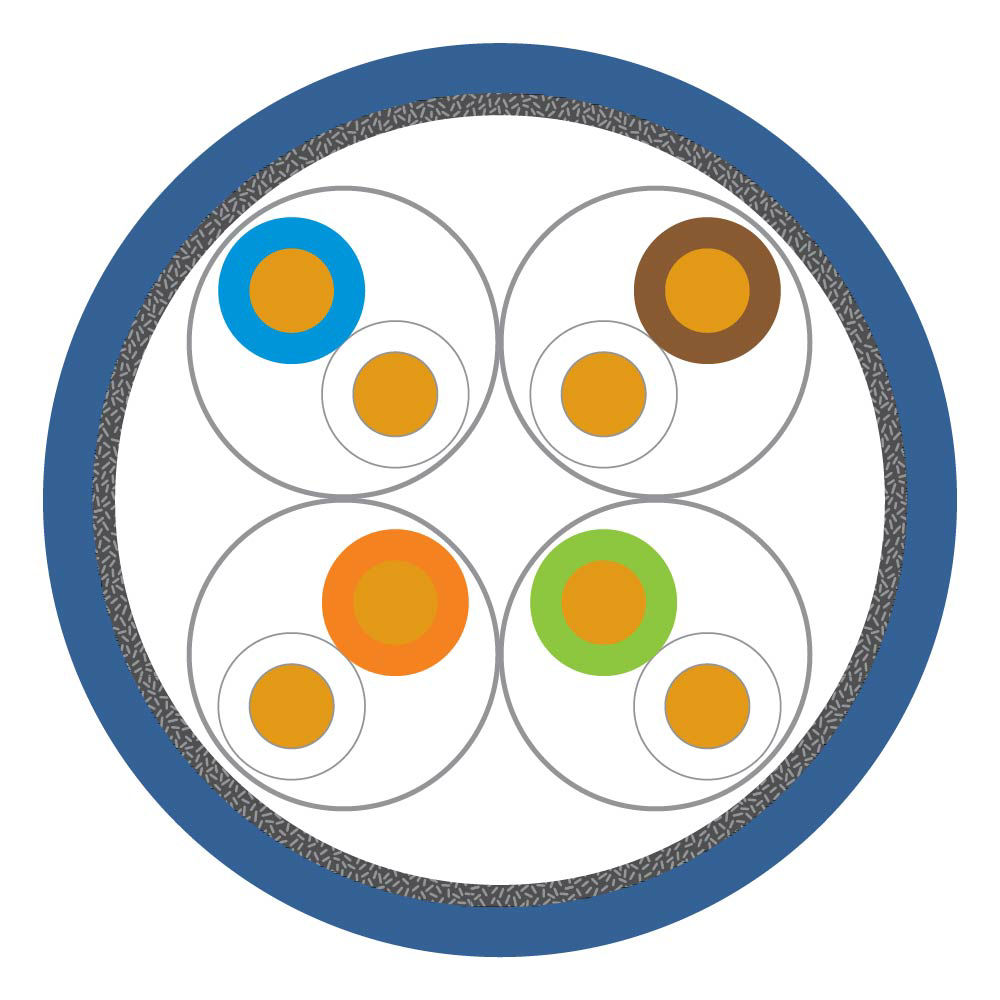

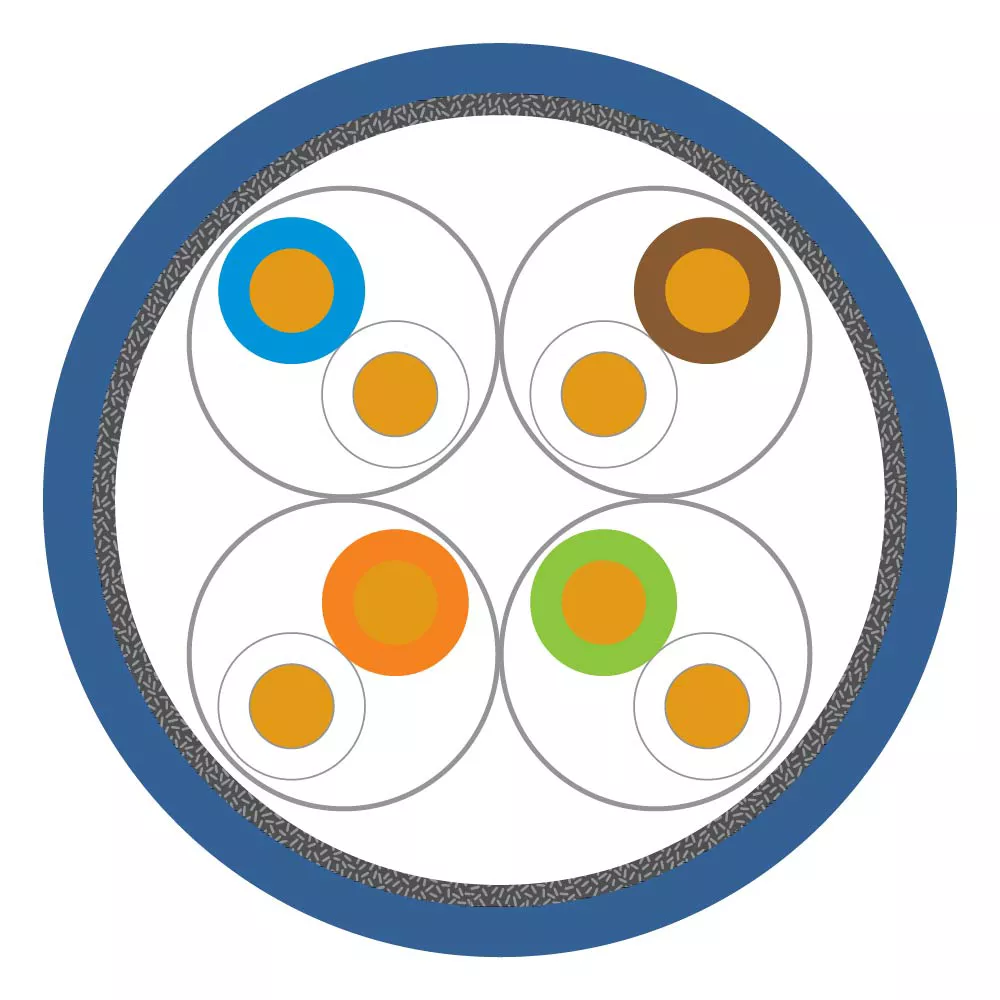

  • 4 twisted pairs individually screened and cabled together – providing EMI immunity
  • Pairs color coded in accordance with EN 50288-1
  • Overall braided screen – for improved shielding efficiency, increased mechanical robustness and heat dissipation
  • Blue† HFFR-LS* jacket enables the cable to meet the requirements of the Construction Products Regulation (CPR) EuroClass Dca
  • Designed to support all Class FA protocols including 10GBASE-T
  • Included in the Leviton Limited 25-Year System Warranty when used in conjunction with Leviton copper connectivity. System warranties are available for qualified projects installed by certified contractors

*  Halogen Free Flame Retardant – Low Smoke

† Also available in a range of non-standard colors
