Cat 7 23 AWG S/FTP Cable, LSHF/LSZH, EuroClass B2ca, Orange, 1640 ft (500 m), Reel

UM10-B2CA-500OR

Leviton Category 7 S/FTP cables exceed Category 7 performance standards. They are specified to 600MHz and rated to 1000MHz and are suitable for use in all Class F structured wiring cable systems. The applications supported include 10 Gigabit Ethernet, Gigabit Ethernet, Power over Ethernet, and broadband video transmissions at frequencies up to 600MHz.

Color: Orange

Country of Origin : United Kingdom

Product Information

  • Product Features

    Category Rating : Cat 7

    Color : Orange

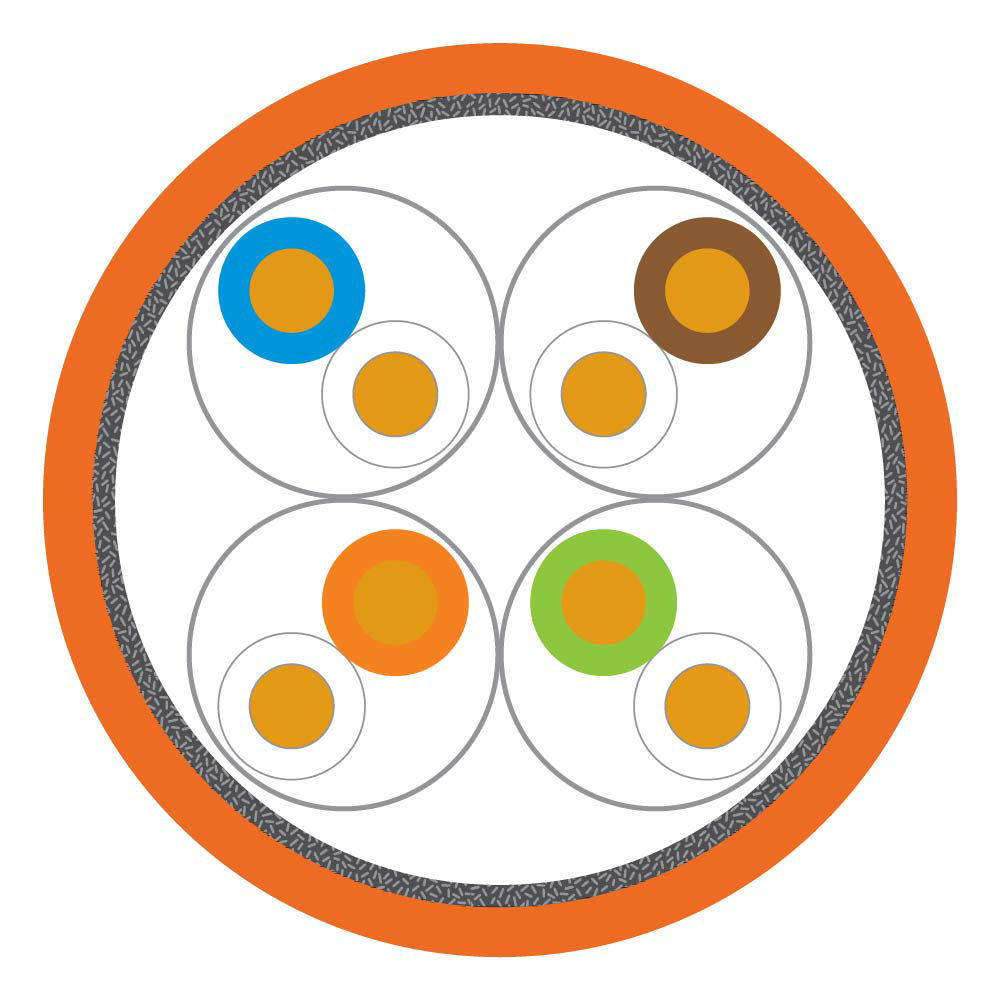

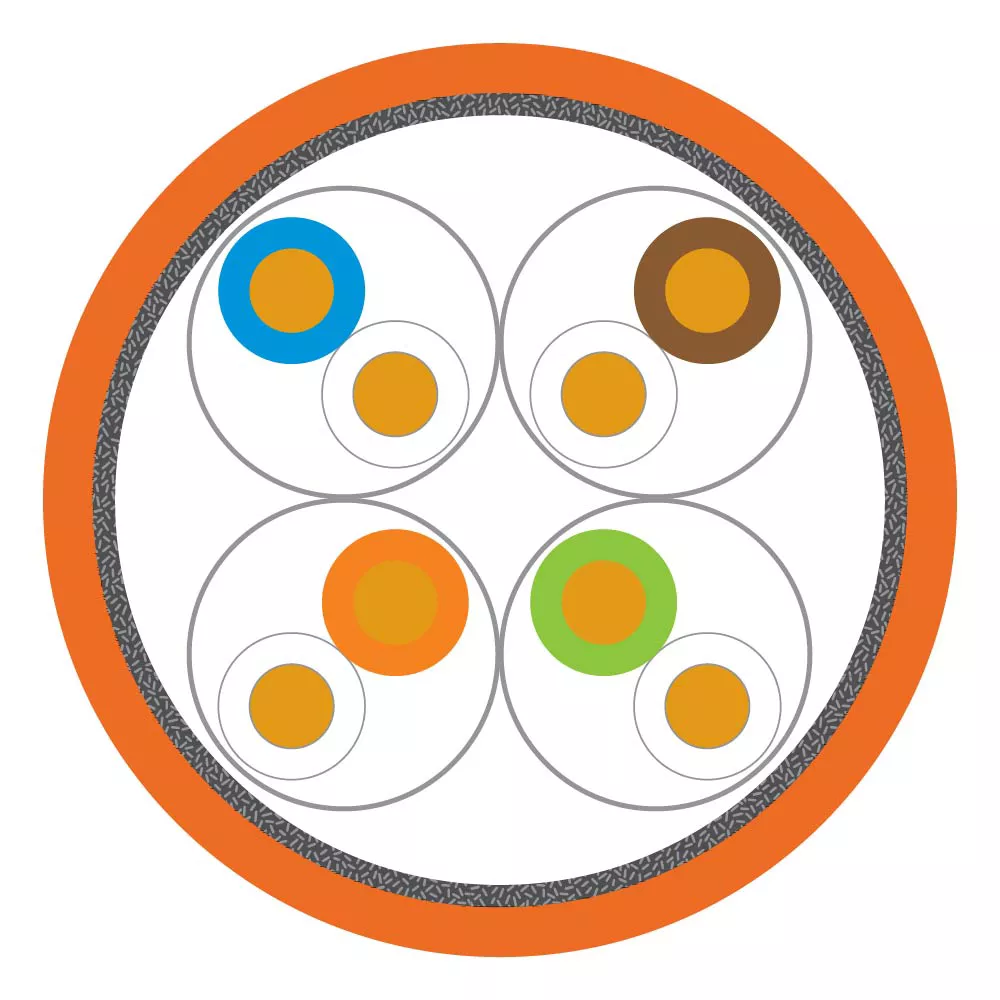

    Construction : S/FTP

    Flame Rating : Euroclass - B2ca,LSHF/LSZH,IEC 60332-3

    Length : 1640 ft (500 m)

    Packaging : Reel

  • 23 AWG solid annealed copper wire
  • 4 twisted pairs individually screened and cabled together – providing EMI immunity
  • Overall braided screen – for improved shielding efficiency, increased mechanical robustness and heat dissipation
  • Designed to support all Class F protocols including 10GBASE-T
  • Enhanced HFFR-LS* material enables the cable to meet the requirements of the Construction Products Regulation (CPR) EuroClass B2ca
  • Orange† jacket to identify EuroClass level B2ca
  • Included in the Leviton Limited 25-Year System Warranty when used in conjunction with Leviton copper connectivity. System warranties are available for qualified projects installed by certified contractors

*  Halogen Free Flame Retardant – Low Smoke

† Also available in a range of non-standard colors
