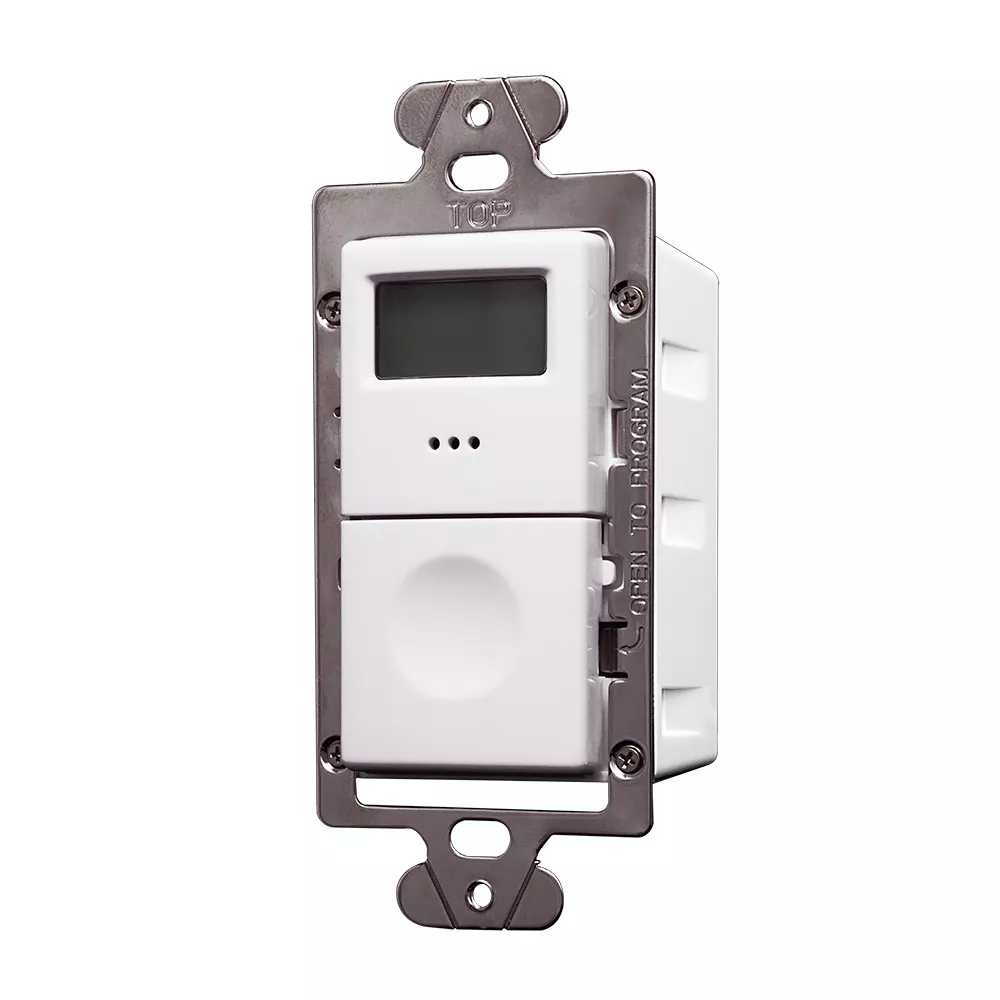

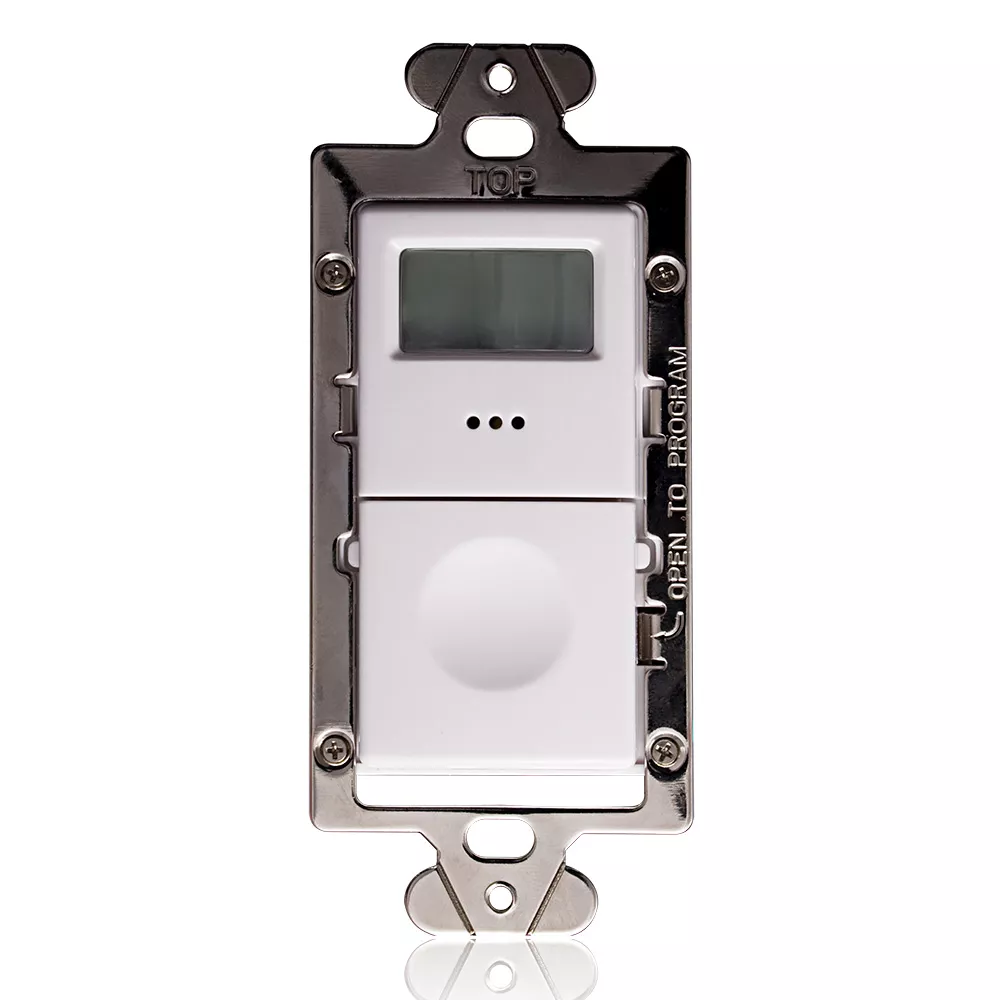

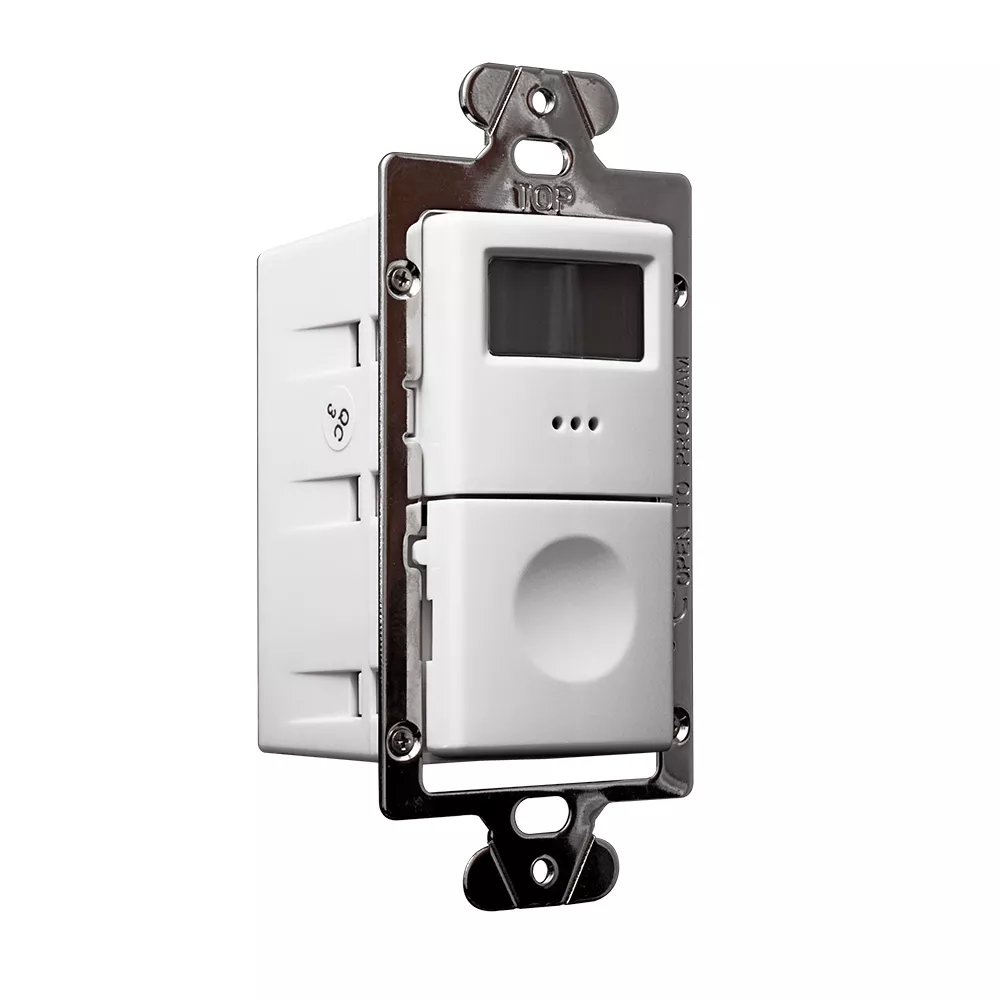

Timer Switch, Digital, Programmable, 120-277V, White
TS300-DW
Digital Programmable Wallbox Timer, 2 hour & 4 hour presets, Control Incandescent and fluorescent lighting and motor loads, visual and audible turnoff warning, 3Way and Multiple Way Switching, no Neutral Required, Dip Switch feature control, 120/230/277VAC, 50/60HZ. Title 24 and IECC and ASHRAE 90.1 Compliant. UL and cUL Listed. Color: White
The Leviton Programmable Digital Timer (TS300) provides energy saving control of indoor incandescent and fluorescent lighting as well as motor loads such as fans and circulating pumps. The TS300 features two presets to meet energy code compliance: two hour timing for California Title 24 and four hour timing for ASHRAE 90.1 requirements.
Do you have a question about an occupancy sensor or vacancy sensor?
Color: White
Product Information
Electrical Specifications
Frequency : 50/60Hz
Load Rating : 120VAC: 15A Resistive - 10A Ballast - 1200W LED lamp driver - 8A Tungsten - 1/4 HP Motor - 360VA Pilot duty 277VAC: 15A Resistive - 10A Ballast
Neutral Wire Connection : Not Required
Voltage : 120/277 VAC
Environmental Specifications
Relative Humidity : 0% to 95% non-condensing
Mechanical Specifications
Construction : High-impact, injection-molded plastic
Mounting Type : Wall Switch
Size : Height 4.2" (106.68mm), Width 1.8" (45.72mm), Depth 1.65" (41.91mm)
Switch Type : 3-Way, Multi-Way
Product Features
Application : Restrooms, Storage rooms, Supply closets, Janitorial spaces, Small office
Color : White
Grade : Commercial
Mounting : Wall Switch
Product Line : TS300
Sensor Type : Timer
Standards and Certifications
Listings : Can be used to comply with ASHRAE 90.1 and Title 24, Part 6 countdown timer switch requirements, IECC, UL and cUL listed
Type
Product Type : Programmable Timer
Warranty
Warranty : 5-Year Limited
- Zero arc point switching
- Wallplate locks access to dip switches for tamper resistance
- Backlit LED
- Optional audible blink warning
- No minimum load requirement
- Adjustable time delay and sensitivity
- Walk test indicator
- Dual 120/277 VAC operation
- Meets energy code requirements for ASHRAE Standard 90.1, California Title 24 and IECC, UL and cUL listed
