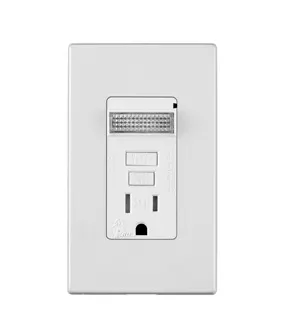

15 Amp SmartlockPro® GFCI Combination Receptacle/Outlet, Tamper-Resistant

T7591-PT

DISCONTINUED
15A-125V , Tamper-Resistant, SmartlockPro Combination GFCI .Single outlet with sensor controlled Guidelight, monochromatic, subplate assembled onto strap, Decora plus screwless wallplate included – Light Almond With Leviton's extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, a switch and pilot light, three rocker switches — even a single pole switch and a SmartlockPro GFCI outlet.
UPC Code: 07847747455
Country of Origin : China
NEMA 5-15R

Product Information

  • AC Horsepower Ratings

    At Rated Voltage : 1 HP

    Short Circuit Current Rating : up to 10KA

    Temperature Rise : 80ºC max at full rated current after 50 cyc OL at 150% rated current for both AC and DC per UL498

  • Electrical Specifications

    Flammability : Rated V-2 per UL 94

    Operating Temperature : -35°C to 65°C

    Short Circuit Current Rating : up to 10KA

    Temperature Rise : 80ºC max at full rated current after 50 cyc OL at 150% rated current for both AC and DC per UL498

  • Environmental Specifications

    Body Material : Polycarbonate

    Clamp Nuts : Steel

    Face Material : Nylon

    Flammability : Rated V-2 per UL 94

    Grounding Screw : Brass 8-32

    Operating Temperature : -35°C to 65°C

    Terminal Screws : Brass 8-32

    Yoke : Zinc-Plated Steel

  • Material Specifications

    Body Material : Polycarbonate

    Clamp Nuts : Steel

    Face Material : Nylon

    Grounding Screw : Brass 8-32

    Product ID : Ratings are permanently marked on device

    Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

    Terminal Screws : Brass 8-32

    Yoke : Zinc-Plated Steel

  • Mechanical Specifications

    Diagnostics : w/ Indicator Light

    Product ID : Ratings are permanently marked on device

    Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

    Trip Level : 5mA plus or minus 1mA

  • Performance Data

    Amperage : 15 A

    Body Material : Polycarbonate

    Color : Light Almond

    Diagnostics : w/ Indicator Light

    Face Material : Nylon

    Feature : Tamper-Resistant

    Grade : Residential

    Grounding : GFCI Ground Fault

    NEMA : 5-15R

    Pole : 2

    Standards and Certifications : UL/CSA

    Strap Material : Steel

    Termination : Back & Side

    Trip Level : 5mA plus or minus 1mA

    Voltage : 125 VAC

    Warranty : 2-Year Limited

    Wire : 3

  • Product Features

    Amperage : 15 A

    At Rated Voltage : 1 HP

    Color : Light Almond

    Feature : Tamper-Resistant

    Grade : Residential

    Grounding : GFCI Ground Fault

    NEMA : 5-15R

    Pole : 2

    Standards and Certifications : UL/CSA

    Strap Material : Steel

    Termination : Back & Side

    Type : Combination with Light

    Voltage : 125 VAC

    Warranty : 2-Year Limited

    Wire : 3

  • Standards and Certifications

    ANSI : C-73

    CSA C22.2 No. 42 : File LR-57811

    NEMA : WD-1 & WD-6

    NOM : 057

    UL 498 : File E-48380

    UL 943 : Class A (GFCI)
