Electrical Specifications

Amperage : 15 A

Current Limiting : Full Rated Current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Self-Grounding

Pole : 2

Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current

Voltage : 125 VAC

Wire : 3

Environmental Specifications

Operating Temperature : -40°C to 60°C

Material Specifications

Body Material : Polycarbonate

Clamp Nuts : Zinc-Plated Steel

Face Material : Nylon

Ground Clips : Brass-Plated Steel

Grounding Screw : Brass-Plated Steel

Line Contacts : Brass Triple-Wipe

Shutter Mechanism : Delrin® Acetal

Terminal Screws : Brass-Plated Steel

Yoke : Zinc-Plated Steel

Mechanical Specifications

Product ID : Ratings are permanently marked on device

Screw Terminal Torque : 14-18 in-lbs

Terminal Accom. : 14-10 AWG

Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

Termination : Back or Side Wire

Torque Range : 14-16 inch pounds

Performance Data

Diagnostics : Indicator Light

Joules Rating : 720

MCOV : 150V rms

Maximum Surge Current, Per Mode (Per Phase) : 27kA (L-N:18kA, L-G:9kA)

Noise Rejection : -30dB at 500kHz-30MHz

Nominal Discharge Current Rating : 3kA

Short Circuit Current Rating : 5kA

VPR : L-N: 600V, L-G: 700V, N-G: 600V

Product Features

Brand : Decora Plus

Color : Ivory

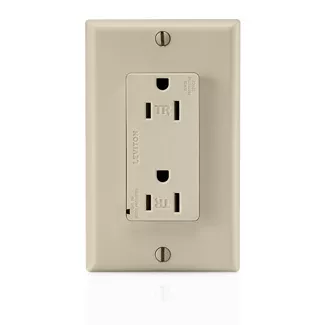

Device Type : Duplex Receptacle Outlet

Feature : Tamper-Resistant

Function : Surge Protective

Grade : Commercial Specification Grade

NEMA : 5-15R

Standards and Certifications

ANSI : C-73

Agency Certifications : UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3

NEMA : WD-6

NOM : 057

Warranty

Warranty : 5-Year Limited
