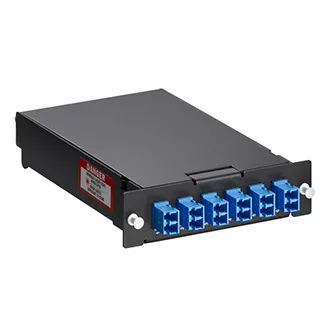

SDX Pigtail Fusion Metal Splice Module pre-loaded with duplex LC adapters (Blue) and 12-fiber OS2 LC/UPC individual pigtails. Includes 40mm splice sleeves. Works with all SDX Enclosures.

SPLCS-12L

UPC Code: 078477648902
Country of Origin : Please Contact Customer Service
RoHS Compliant: Yes – Click Here

Product Information

  • Module integrates fiber adapter bulkhead (12 or 24 fibers) and splice holders, eliminating the need of splice trays
  • Offered in single-mode (OS2) UPC & APC and laser optimized multimode (OM3) fiber types
  • Other fiber types available as special orders
  • Individual compartments provide slack storage and bend radius guides for respective backbone cable, 900 μm tight buffer pigtails, and fusion-spliced fibers
  • 12-fiber, color-coded 900 μm tight buffer pigtails are 1 meter and pre-loaded in module per specific configuration
  • Modular design allows for ease of maintenance of individual spliced fiber and allows for scaling up without impacting existing fibers
  • Accessory kit consists of 40 mm heat shrink style splice sleeves, tie wraps, and braided mesh sleeve
