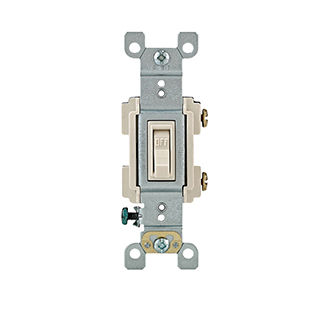

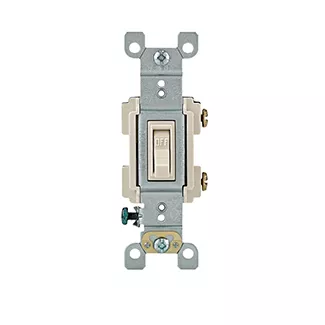

15 Amp Toggle Switch, Grounding Clip, Light Almond

RS115-TCP

Switch Framed Toggle, Single Pole, Quiet Switch, 15A-120V AC, Residential Grade, Quickwire and Side-Wired, Terminal Clamps, Grounding Clip, Ground Screw, Color: Light Almond

Tried-and-true toggle designs, Leviton Residential Grade AC Quiet Switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Leviton's traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.

Color: Light Almond

UPC Code: 078477466230
Country of Origin : United States

Product Information

  • AC Horsepower Ratings

    HP Rating : 1/2HP-120V

  • Electrical Specifications

    Amperage : 15 A

    Max. Amperage : 12 Amp

    Voltage : 120 VAC

  • Material Specifications

    Actuator Material : Thermoplastic

    Body Material : Thermoplastic

  • Product Features

    Amperage : 15 A

    Color : Light Almond

    Feature : Framed

    Grounding : Grounding

    Pole : 1

    Strap Material : Steel

    Terminal Accom. : Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only

    Termination : Quickwire Push-In & Side

    Type : Toggle Switch

    Voltage : 120 VAC

    Warranty : 2-Year Limited

  • Standards and Certifications

    Standards and Certifications : UL/CSA

  • Warranty

    Warranty : 2-Year Limited

  • The Leviton 15 Amp Single-Pole Quiet Switch controls lights from 1 location.
  • Ideal for heavily-used areas like homes, offices, schools and commercial buildings, the switch features Quickwire push-in wiring and side wiring for fast installation.
  • The included housing and screws provide durability.
  • Controls light(s) from one location
  • Robust housing and screws for increased durability
  • Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
  • Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
  • Self-grounding when installed in a properly grounded metal wall box
