R24BD-224

DISCONTINUED

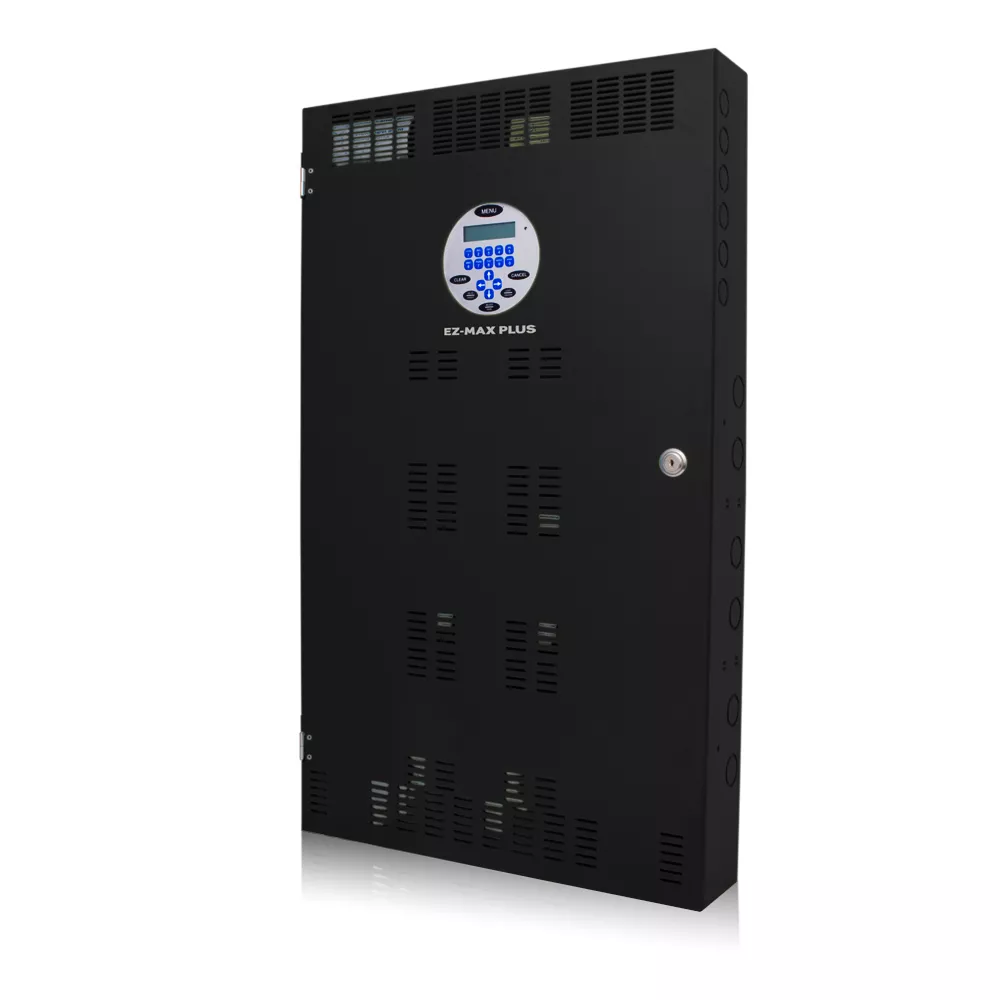

Discontinued Product, EZ-MAX Plus (24) relay cabinet, (24) 2 pole normally o 120v/277v/347v control input.

Instruction Sheet
Add to Project List
Country of Origin : Mexico

Instruction Sheet

Documents

Technical Information

  • General Information

    UPC : 078477463840

  • Electrical Specifications

    Voltage : 120/277/347 VAC

    Voltage Type : Line Voltage

  • Mechanical Specifications

    Mounting Type : Flush or Surface Mount

  • Product Features

    Circuits/Channels : 24

    Product Line : EZ-MAX Plus

    Product Type : Relay Panel

    Protocol : Luma-Net
