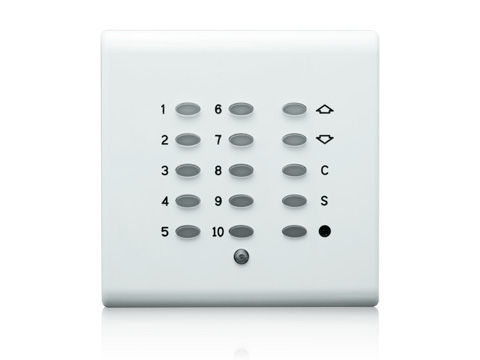

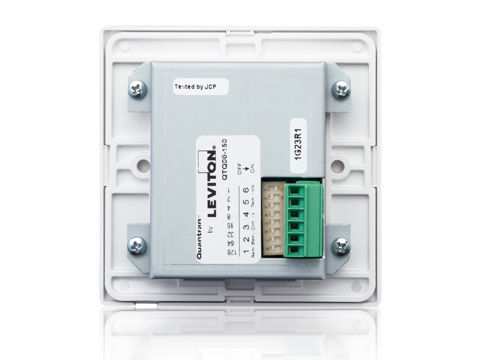

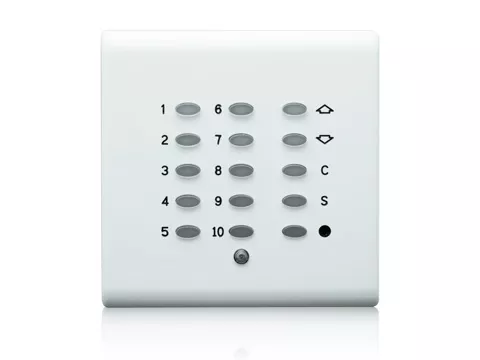

QS-Net 15 Button Control Station

QTQ00-150

QS-Net Control Station, 15 Button, face plate sold separately

QS-Net control stations are a flexible, easy to configure, control interface to Quantran QS-Net & Luma-Net load control devices. Offered in a variety of button configurations and finishes a device is available to fit every lighting control need.

UPC Code: 078477654071
Country of Origin : United States

Product Information

  • Product Features

    Product Line : Quantran

    Product Type : QS-Net Control Station

    Protocol : QS-Net

  • Interchangeable clip on face plates in various finishes, sold separately
  • Distributed processing provides enhanced reliability
  • Station retains programming information for a minimum of 10 years without power
  • Built-in IR receiver for use with D42IR Remotes
  • Stations with raise/lower feature enable channel & scene light level adjustment without changing programmed preset levels
  • Engraved or screened plate with black fill
  • Programmable from the station or through PC-based offline editing program
  • Address up to 2,048 dimmer channels
  • Station can store up to 255 unique lighting control programs (pages)
  • Each station contains its own microprocessor, re-programmable flash memory for storage of operating program, and additional nonvolatile memory for storage of lighting control programming data
  • Capable of becoming a slave to any other identical station
  • Buttons can operate in preset, toggle, or press/release modes
  • Faceplates available in; Gloss White, Polished Brass, Satin Brass, Polished Stainless Steel and Satin Stainless Steel
  • Flush mount in to a single gang 3x3 back box (Button Stations)
  • Capable of receiving a contact closure that locks the station, triggers a preset or both
