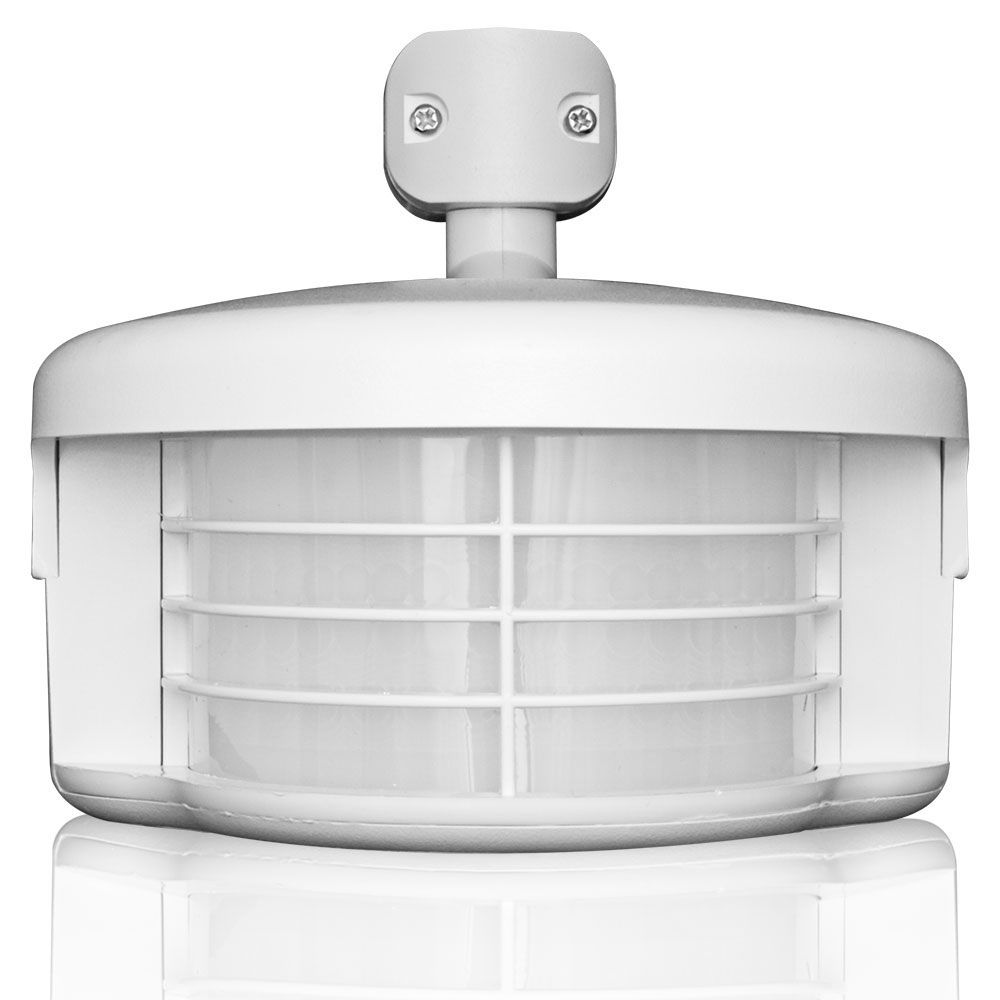

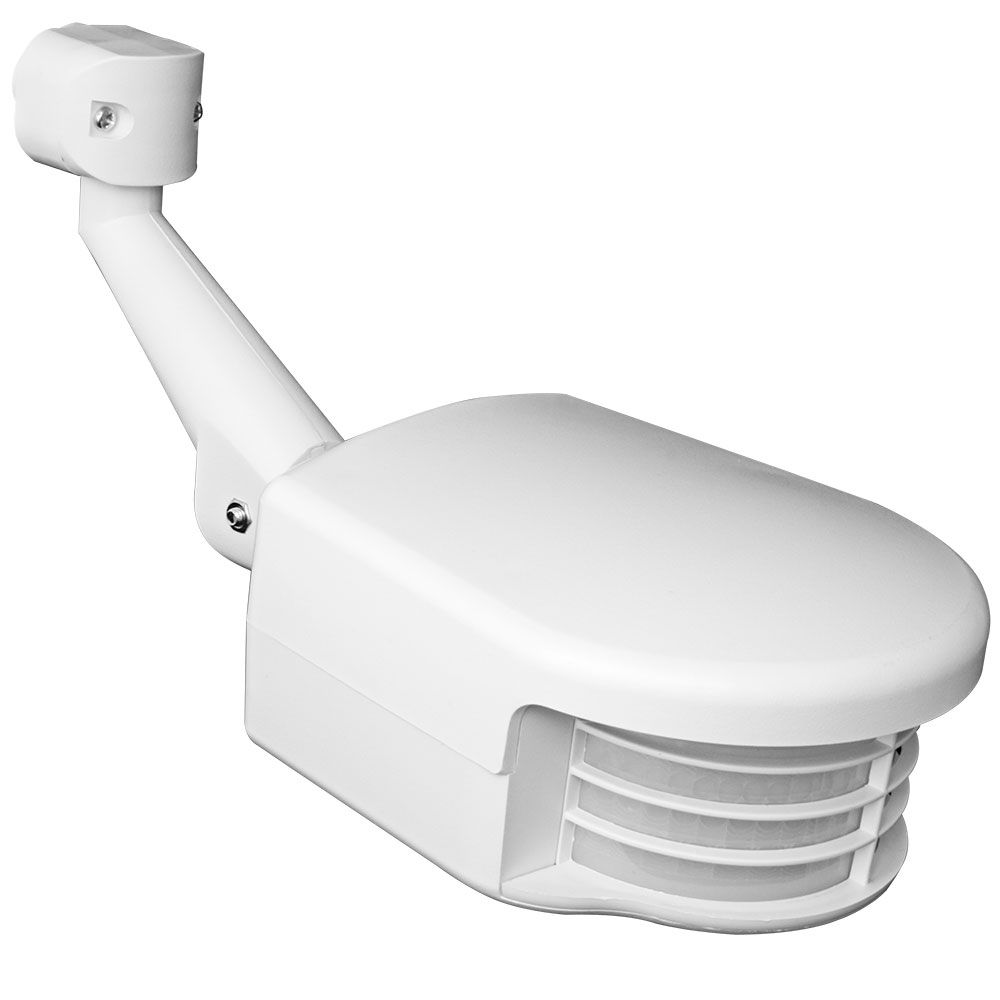

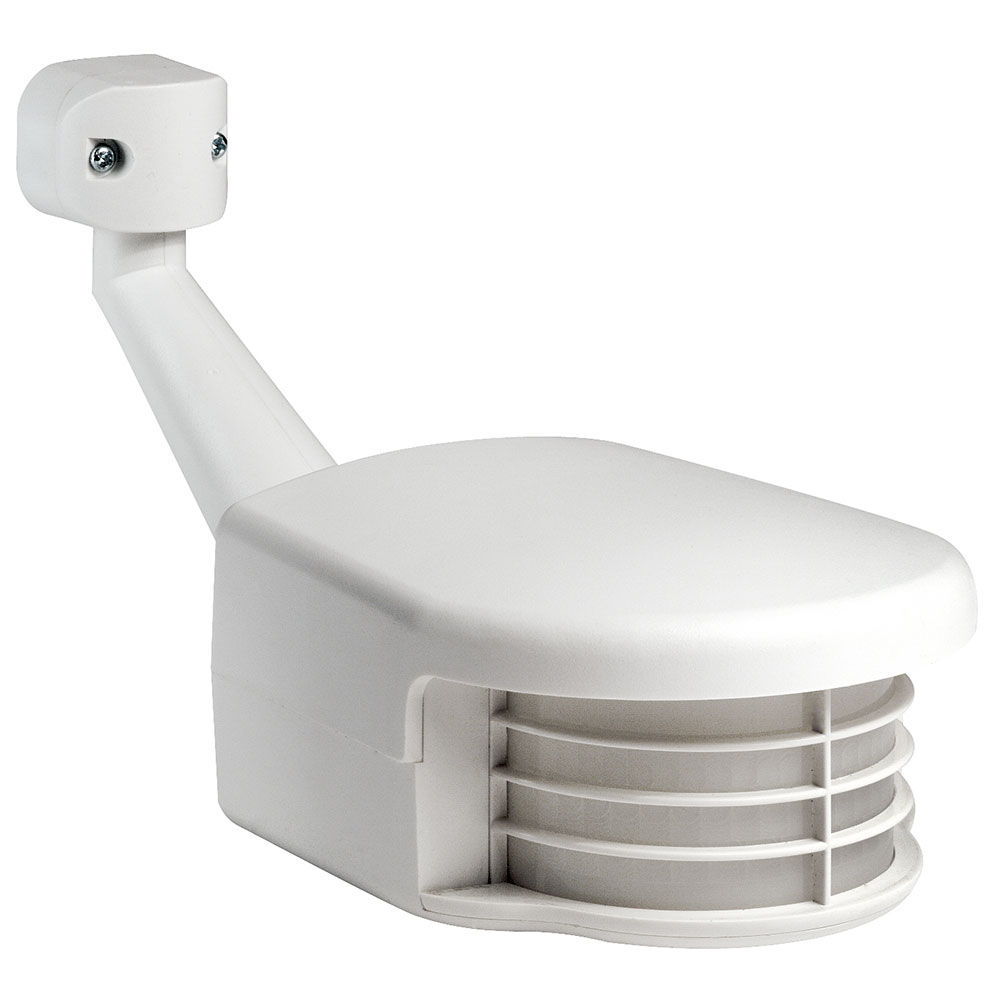

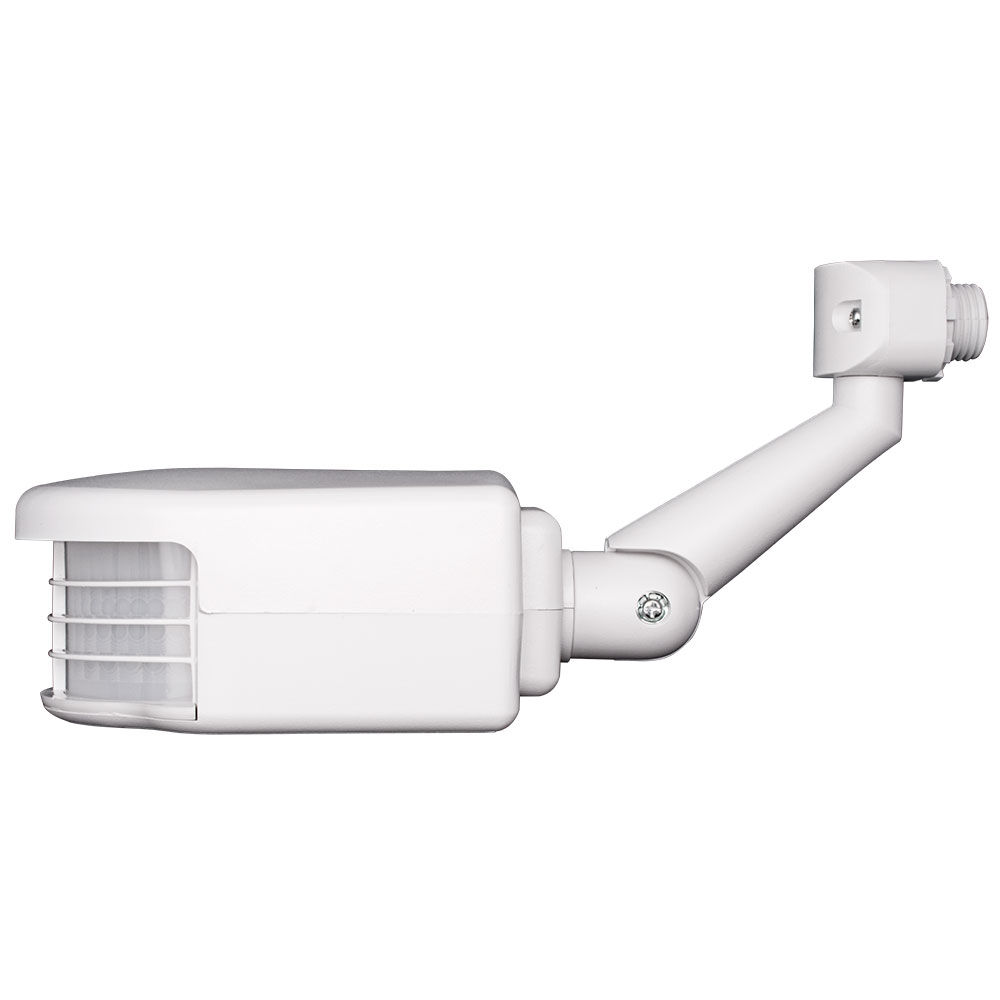

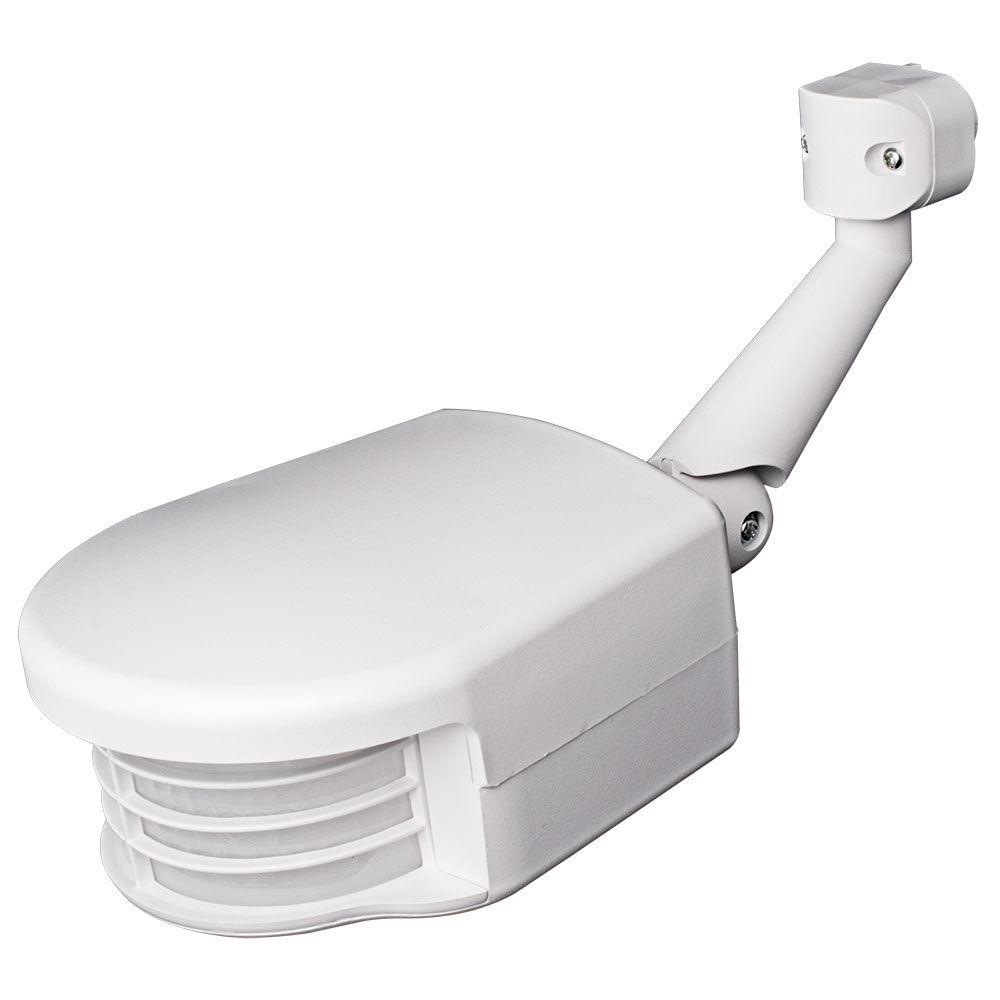

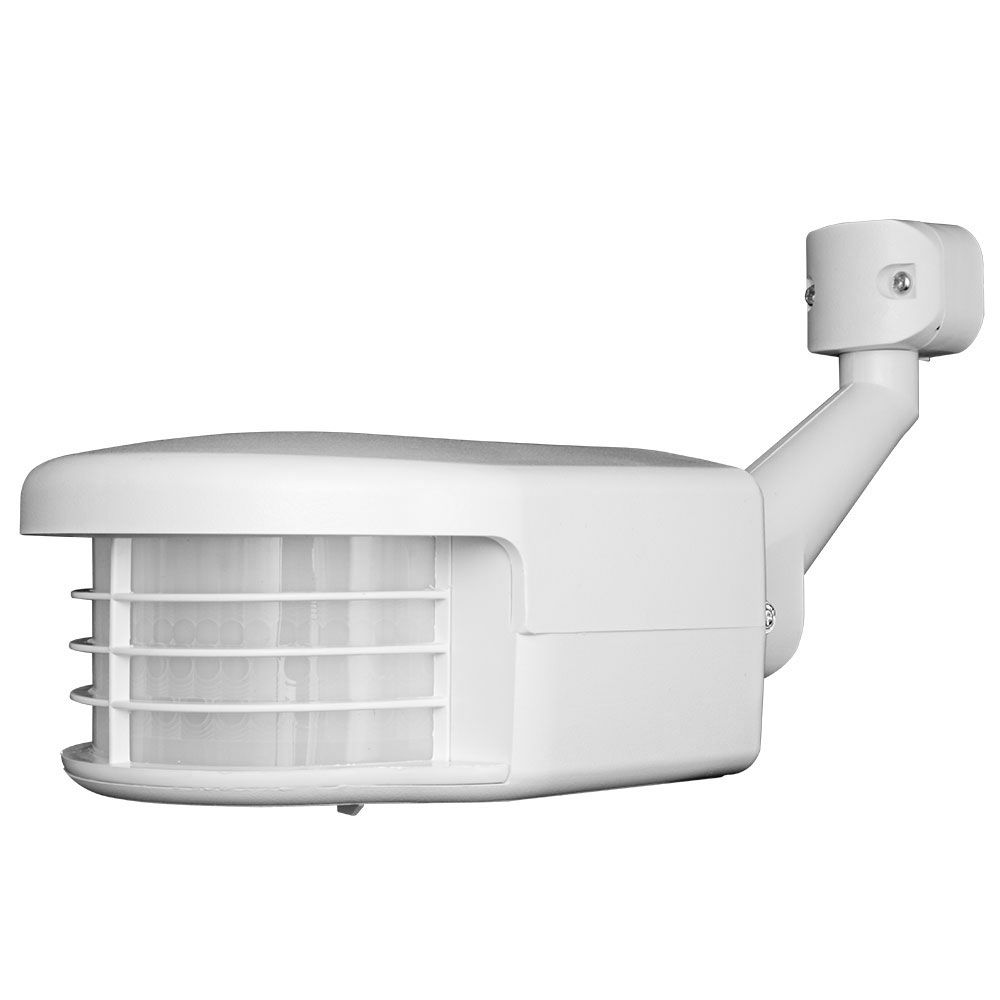

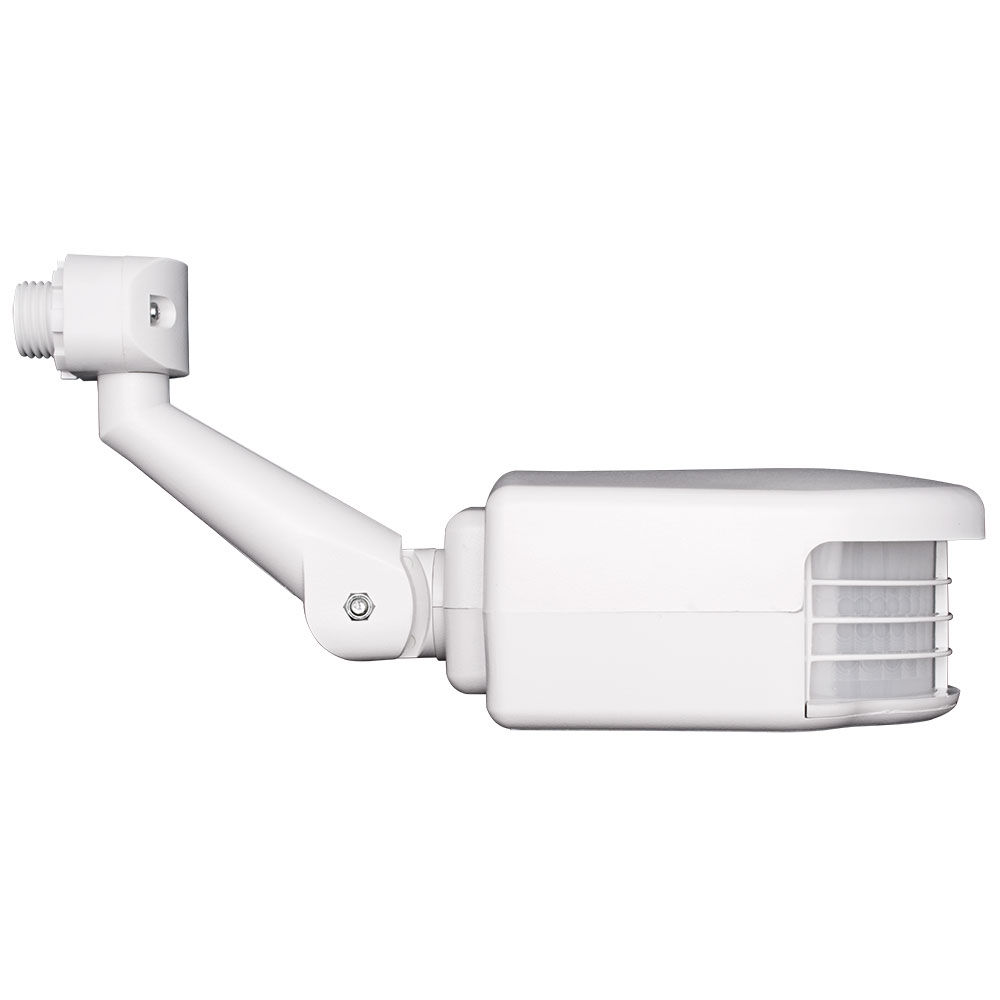

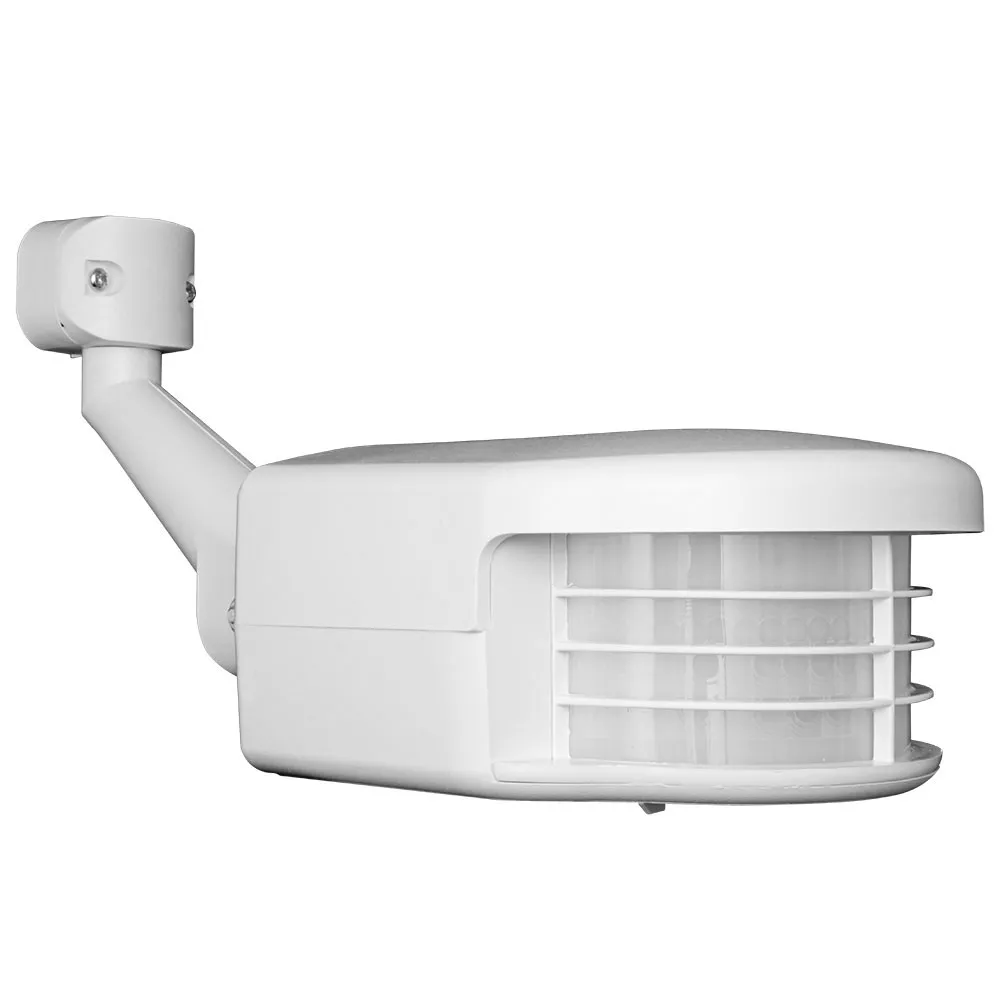

Outdoor PIR Motion Sensor, 120V, White

PS110-10W

DISCONTINUED

1000W, 120 Volt AC 60Hz, PIR, 110 Degree, 2500 Sq. Ft. Coverage, Outdoor Occupancy Sensor lighting control, Commercial Grade - White, Title 24 Compliant, ASHRAE 90.1 Compliant

Leviton offers many products that will help lower electrical costs and add convenience to everyday living. Passive Infrared (PIR) outdoor motion sensors provide outstanding value in security lighting, convenience, safety and energy savings for a wide range of commercial and residential applications. Easy to install and adjust, they automatically turn on lights in response to the slightest motion.

Color: White

UPC Code: 078477046043
Country of Origin : China

Product Information

  • Standards and Certifications

    Listings : UL Listed and CSA certified (excludes PS200-70), UL 773 Enclosure Rating, meets ASHRAE Standard 90.1 requirements

    Title 24 Compliant : Yes

  • Warranty

    Warranty : 5-Year Limited

  • Performance Specifications

    Coverage (Sq.Ft.) : 2500

    Pattern : 110°

  • Environmental Specifications

    Operating Temperature : -14° to 130°F (-10° to 55°C)

    Relative Humidity : 20% to 90% non-condensing

    Storage Temperature Range : 0° to 131°F (-17° to 55°C)

  • Product Features

    Application : Parking areas,Storage facilities,Warehouses,Loading docks,Marinas,Garages,Walkways,Campus grounds,Meat lockers,Walk-in refrigerators/freezers,Outbuildings

    Color : White

    Grade : Commercial

    Photo Cell : Ambient Override ON

    Product Line : PS110

    Protection : Surge Protected

    Sensor Technology : Passive Infrared (PIR)

    Sensor Type : Motion / Occupancy

    Time Delay : 20s-15m

  • Type

    Product Type : Outdoor Motion Sensor

  • Mechanical Specifications

    Neutral Wire Connection : Required

  • Electrical Specifications

    Frequency : 50/60Hz

    Neutral Wire Connection : Required

    Power Consumption : 120V - 1.5W; 230V - 1.5W (PS110); 277V - 2.0W (PS110)

    Voltage : 120 VAC
