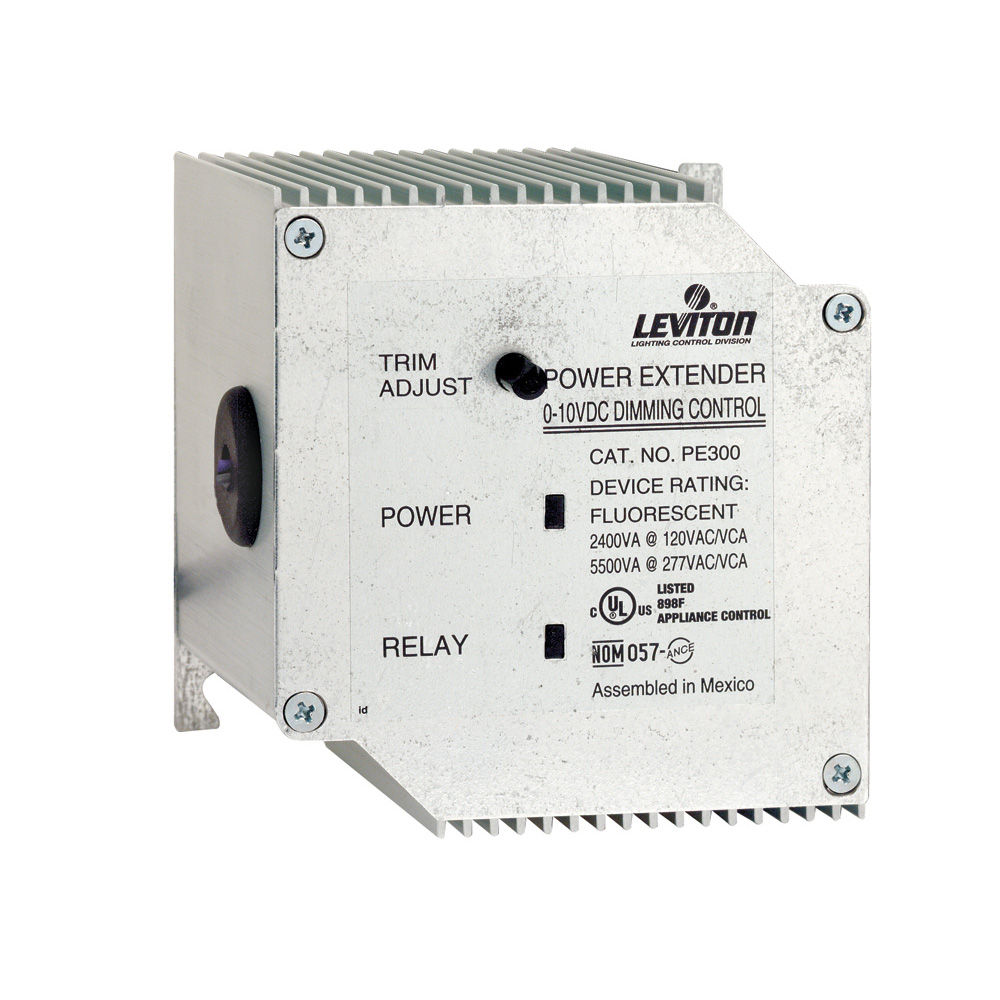

Power Extender, 0-10VDC Ballast Only

PE300-D0W

Power Extender 0-10VDC Ballast Only, 20A 2400VA 120VAC, 5500VA 277VAC at 108 Volt AC to 305 Volt AC 60Hz, 0-10VDC Ballast Control

The Leviton PE300 Power Extender allows a dimming zone’s power handling capacity to be extended to full control of a 20A circuit. The PE300 will drive 0-10VDC dimmable fluorescent ballasts such as Advance Mark VII 0-10V, OSRAM Sylvania Quicktronic Helios, or equivalent ballasts.
UPC Code: 078477091906
Country of Origin : Mexico

Product Information

  • Product Features

    Color : Silver

    Control Input : 120 Volt 50/60Hz

    Device Type : Power Extender

    Load Output : 0-10VDC Ballast Control

    Load Rating : 20A 2400VA 120VAC, 5500VA 277VAC

    Load Type : 0-10 VAC Advance Mark VII or equivalent fluorescent

    Notes : If dimmer has a Neutral wire it must be connected.

    Product Category : System or Network

    Product Line : Power Extenders

    Product Type : Power Extender

    Standards and Certifications : UL/CSA

    Voltage : 108-305 VAC

    Warranty : 2-Year Limited

  • Electrical Specifications

    Amperage : 20 A

    Load Type : 0-10 VAC Advance Mark VII or equivalent fluorescent

    Voltage : 108-305 VAC

    Wattage Per Channel : 2400
