Type 1 Surge Protective Device, 120/240 VAC, Split Phase

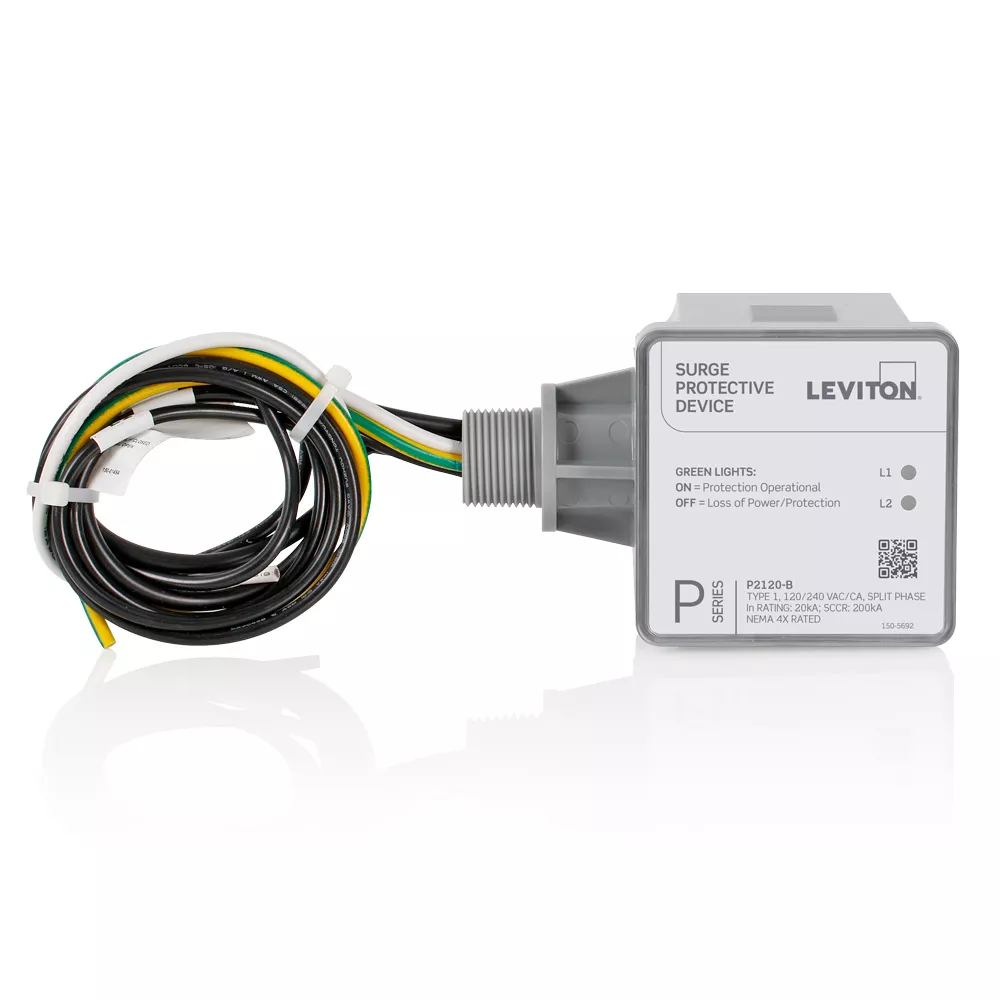

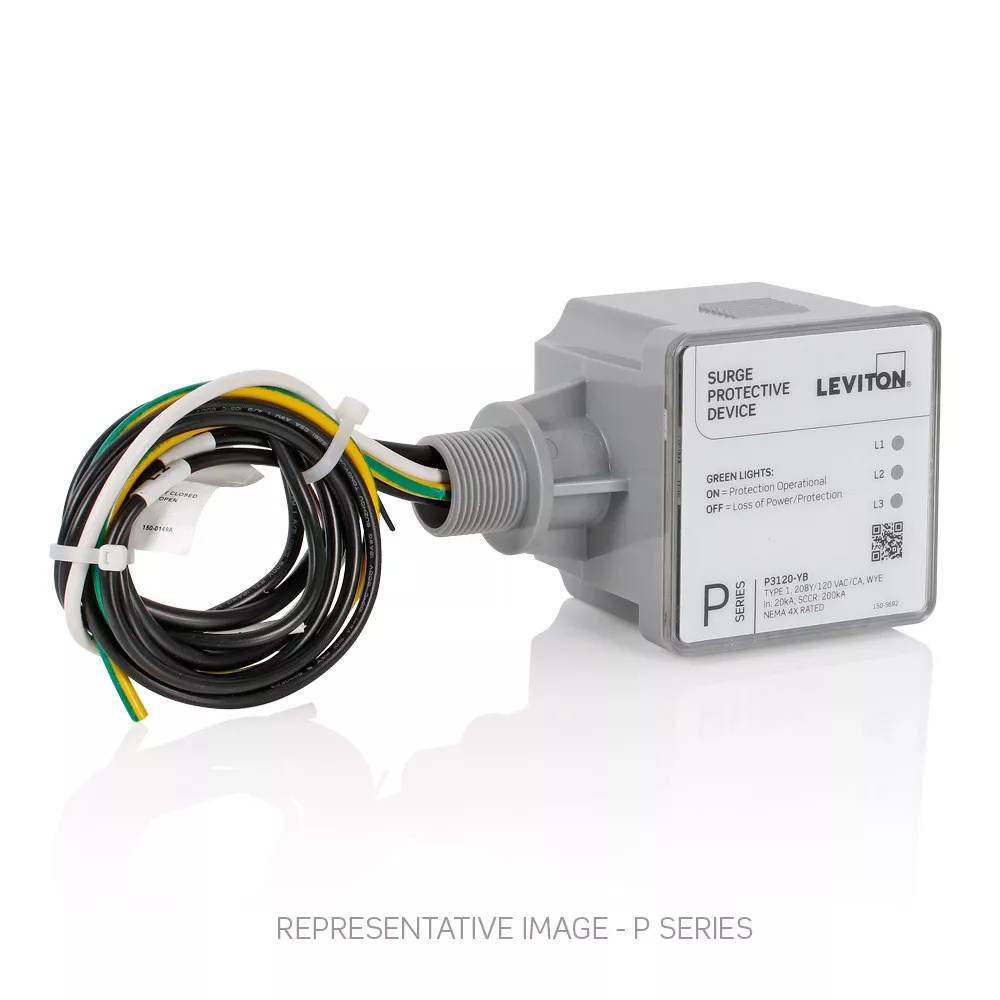

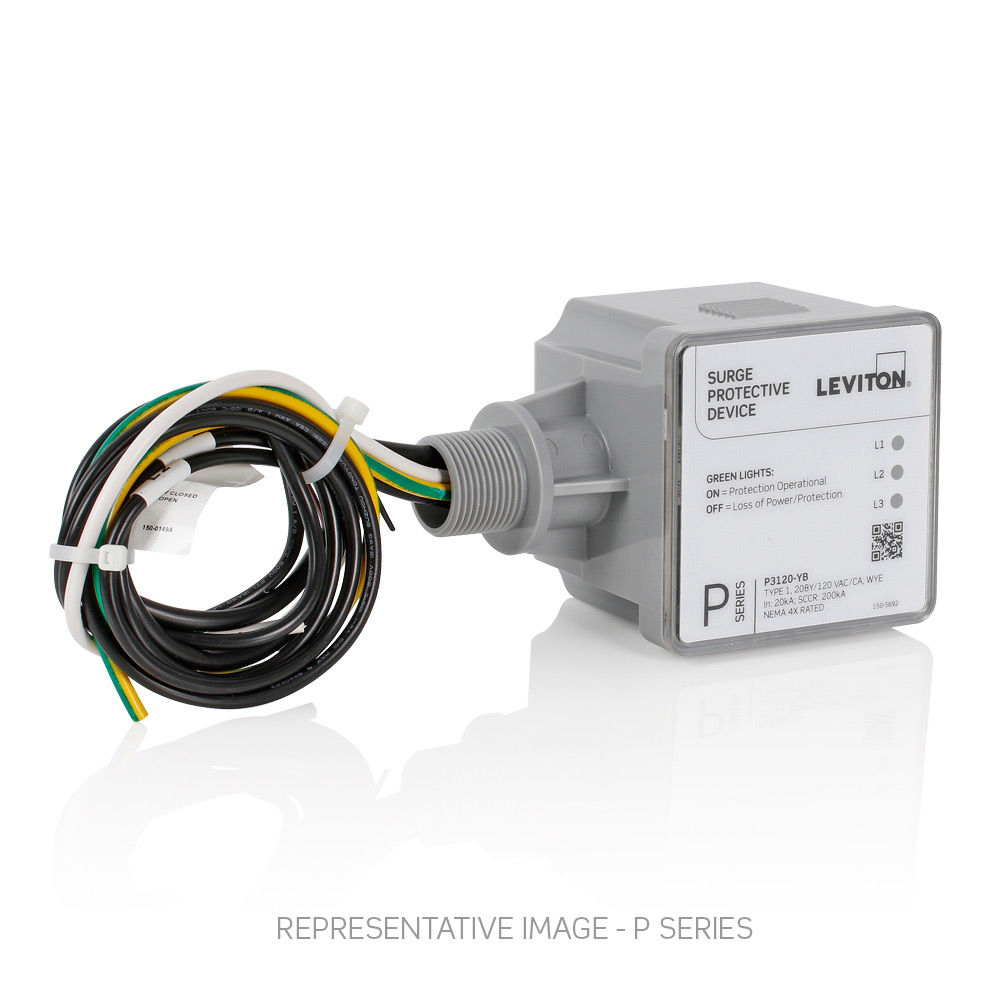

P Series Type 1 Surge Panel, 120/240 VAC, Split Phase, Max Surge Current Rating of 25kA per Mode/50kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (ln) Rating, NEMA 4X Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 700, L-G: 1200, N-G: 600, Maximum Continuous Operating Voltage (MCOV): 180, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed

  • Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment
  • Designed for RESIDENTIAL AND LIGHT COMMERCIAL APPLICATIONS, the P Series provides protection in single, split or three phase configurations
  • Code Compliant – in 2020, Article 230.67 of the National Electrical Code® (NEC) updates required all services supplying dwelling units to be provided with a surge protective device (SPD), as an integral part of equipment or located immediately adjacent. The SPD must be a Type 1 or Type 2 SPD. The 2023 code expanded the requirements to dormitory units, guest rooms and guest suites of hotels and motels, and areas of nursing homes and limited-care facilities used exclusively as patient sleeping rooms
UPC Code: 07847758302

Product Information

  • Standards, Certifications & Compliance

    ANSI/IEEE : C-62.41.1-2002, C-62.41.2-2002 C-62.45-2002

    CSA : CSA C22.2 No. 269.1-17, 2017-02

    California Prop 65 : Compliant

    National Electric Code (NEC) : 285

    Reach : Compliant

    RoHS : Compliant

    UL : 1449 5th Edition: 2021, cULus

  • Warranty

    Warranty : 5-Year Limited

  • Performance Data

    Nominal Discharge Current Rating : 20kA

    Protection Modes : Reduced Mode of Protection (L-N, N-G)

    Remote Monitoring : Form C Dry Contacts, 240V, 2A

    VPR L-G : 1200V

    VPR L-L : 1200V

    VPR L-N : 700V

    VPR N-G : 600V

  • Electrical Specifications

    Connection Type : #12 AWG

    Frequency : 50/60Hz

    MCOV : 180V

    Recommended Circuit Breaker Rating : 20A

    Short Circuit Current Rating : 200kA

    Surge Technology : Thermally Protected MOVs

    Type : 1

    Voltage Configuration : 120/240 VAC/CA Split Phase

  • Enclosure

    Color : Gray

    Connector : 3/4" NPT Side Mount Nipple

    Dimensions : 5.02" x 2.93" x 3.25"

    Enclosure Material : Polycarbonate

    Mount : Surface

    NEMA Rating : NEMA 4X

  • Environmental Specifications

    Humidity Range : 0 to 95% Non-Condensing

    Storage Temperature : -49°F to 140°F (-45°C to 60°C)

  • Product Features

    Disconnect Switch : No

    Filtering : No

    Replaceable Modules : No

    Series : P Series

    Surge Counter : No

  • N_A

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
