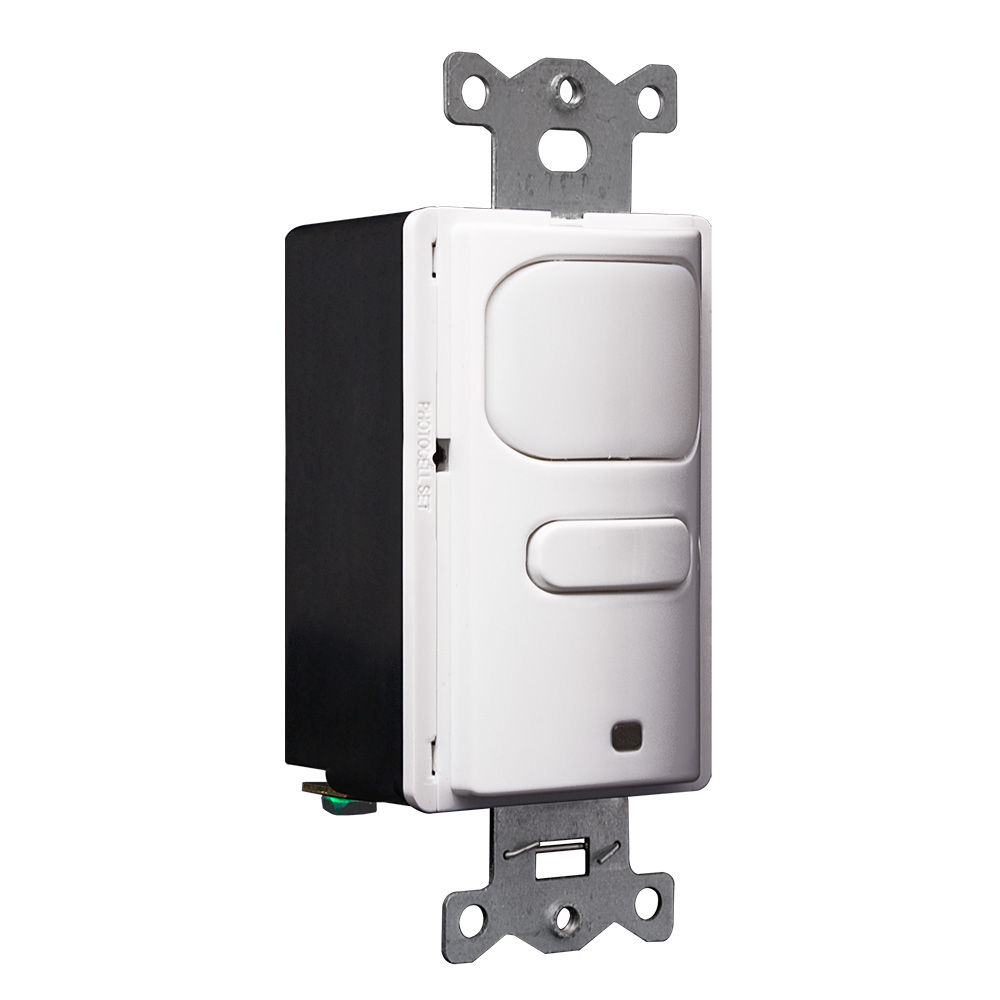

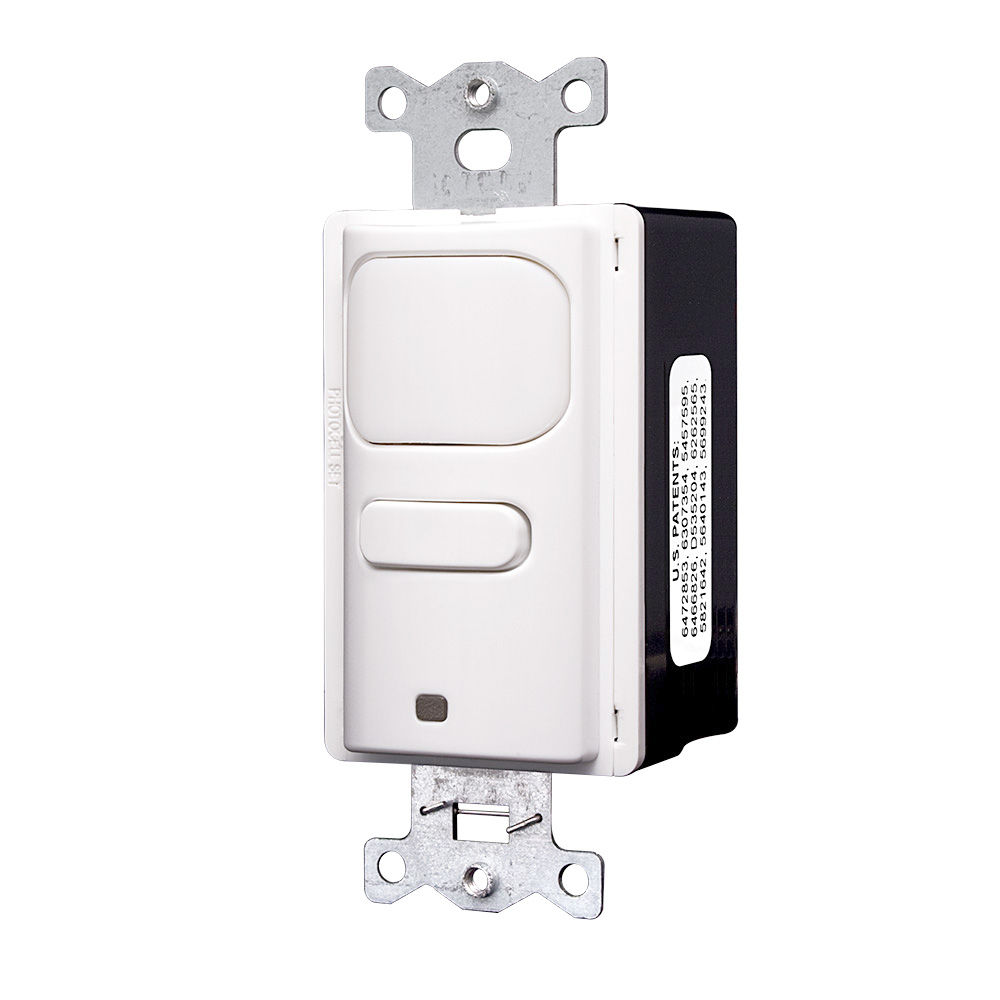

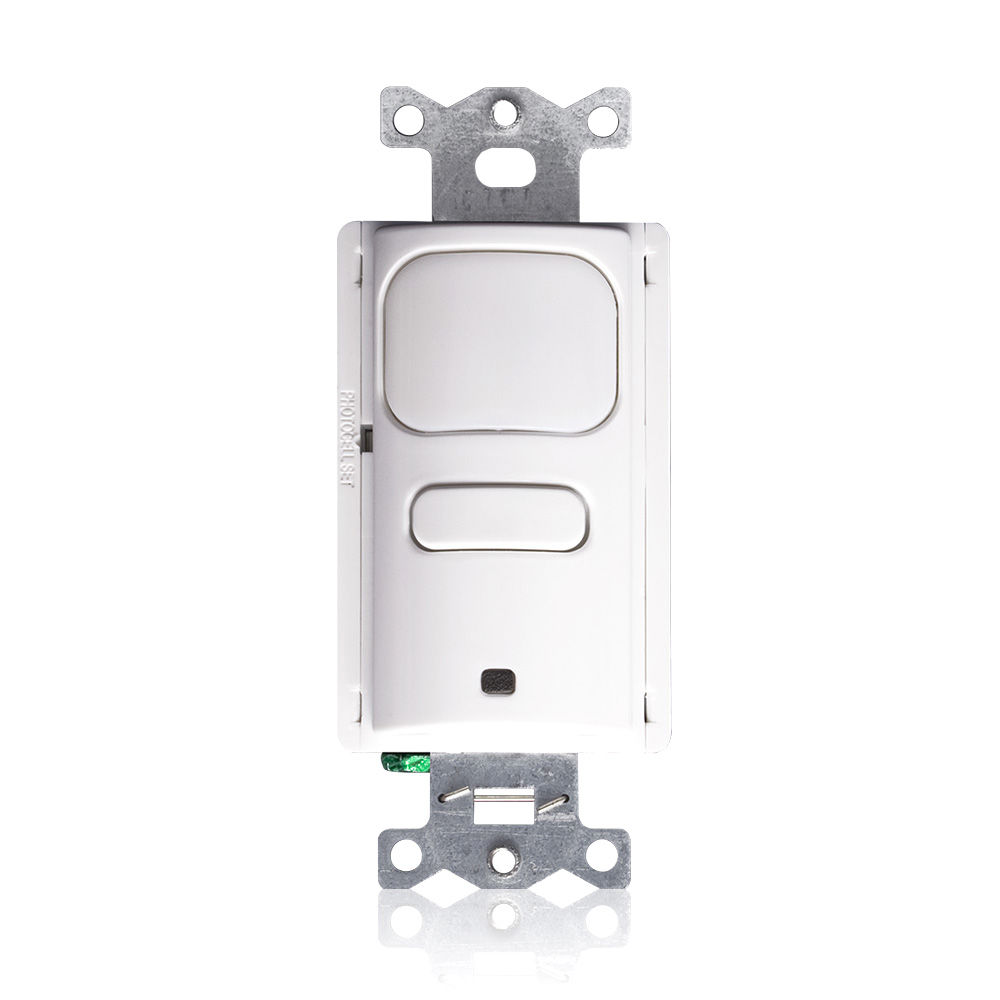

PIR 24V Wall Switch Sensor, White
OSS24-I0W
24V Passive Infrared (PIR) Wall Switch Sensor lighting control. Occupancy (auto-on) and Vacancy (manual-on) operating modes, 1 relay mode for single-level switching, 1,000 square-foot, 180 degree coverage. 24VDC, no minimum load requirement, zero arc point switching. Title 24 and IECC and ASHRAE 90.1 Compliant. UL and cUL Listed. Color: White
The Leviton Passive Infrared (PIR) Indoor Wall Switch Sensor uses passive infrared detection technology to monitor a room and automatically switches lights ON and OFF. The OSS24 uses a built-in photocell for automatic daylight harvesting and smart software to analyze the controlled area and make digital adjustments to sensitivity and timer settings.
Color: White
Product Information
Electrical Specifications
Load Rating : 500mA @24VDC
Neutral Wire Connection : Not Required
Voltage : 24 VDC
Environmental Specifications
Operating Temperature : 0° to 40°C (32° to 104°F)
Relative Humidity : 0% to 95% non-condensing, indoor only
Mechanical Specifications
Construction : High-impact, injection-molded plastic, impact resistant lens
Mounting Type : Wall Switch
Size : Height 4.2" (106.68mm), Width 1.8" (45.42mm), Depth 1.75" (44.45mm)
Switch Type : Single-Pole
Performance Specifications
Coverage (Sq.Ft.) : 1000.0
Foot Candle Level : 10 - 500FC (107.63 - 5381.96 LUX)
Pattern : 180°
Product Features
Application : Lobbies,Small Offices,Small Meeting Rooms,Restrooms
Color : White
Grade : Commercial
Mounting : Wall Switch
Product Line : OSS24
Sensor Technology : Passive Infrared (PIR)
Sensor Type : Occupancy
Standards and Certifications
Listings : Can be used to comply with ASHRAE 90.1 and Title 24, Part 6 occupancy sensing requirements, IECC, UL and cUL listed
Type
Product Type : Occupancy Sensor
Warranty
Warranty : 5-Year Limited
- Meets energy code requirements for ASHRAE 90.1 and California Title 24, IECC, UL and cUL listed
- Self-adaptive technology—no manual adjustment required
- Occupancy (auto-ON) and vacancy (manual-ON) modes
- False detection timer: PIR sensitivity scans for movements and shuts lights OFF after a set amount of time preventing false triggers
- 180° field-of-view provides approximately 1,000 square feet of coverage
- Adjustable time delays
- The OSS24 provides a maintenance free, install-and-forget operation with selectable operating modes
- Five-year limited warranty
