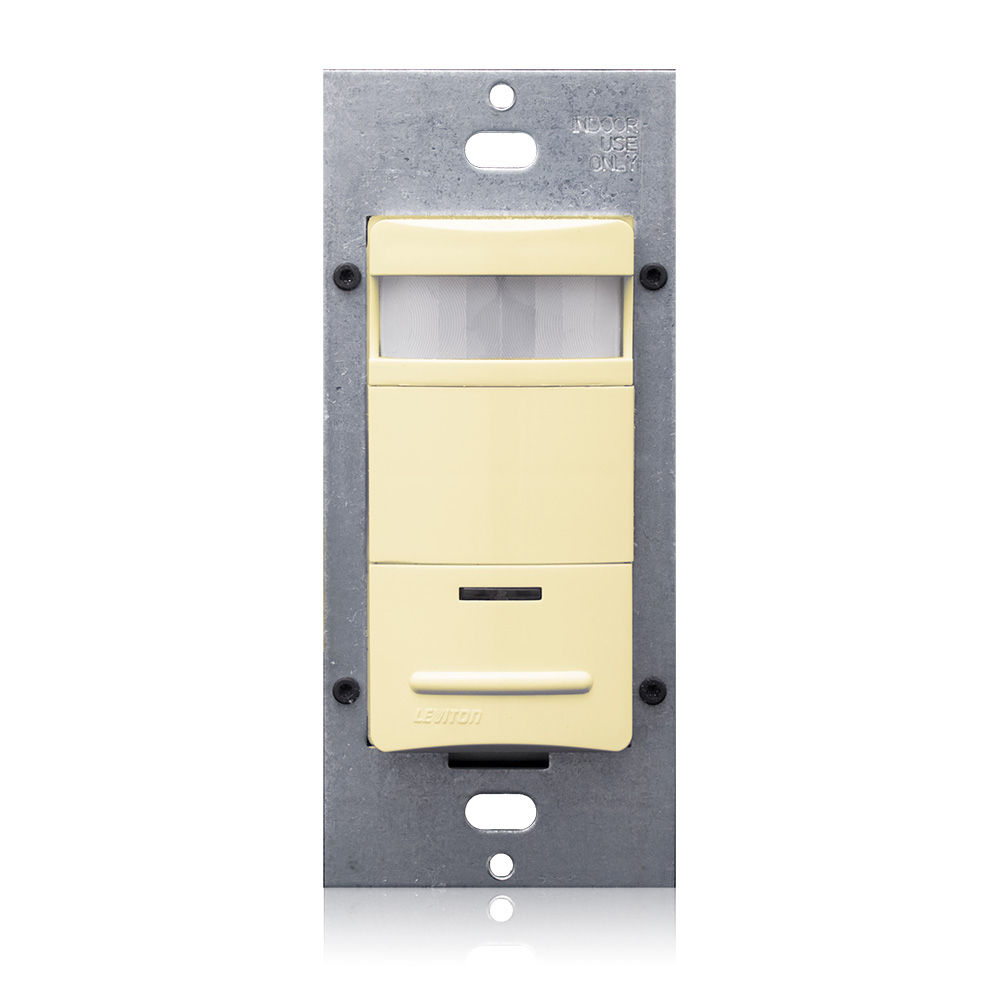

Vacancy Sensor with LED NightLight, PIR, Wall Switch, 2100SF, 120-277V, Ivory, Decora®

OSS10-IDI

DISCONTINUED
Product Line: OSS10, Technology: Passive Infrared, Switch Type: Single-Pole, LED NightLight, Device Type: Occupancy Sensor, Coverage (Sq.Ft.): 1200 Sq. Ft., Pattern: 180°, Voltage: 120/277 Volt AC 60Hz, Color: Ivory, Neutral Wire Connection: Required, Warranty: 5-Year Limited OSS10 is perfect for use in hospitality and health care facilities with night light feature to guide to manual-ON. The adjustable time delay settings of 30 seconds to 30 minutes will automatically turn lights OFF.

Do you have a question about an
occupancy sensor or vacancy sensor?

Contact us to learn more.

Country of Origin : Please Contact Customer Service

Product Information

  • Manual On Only (30min max Time Delay).
  • Exclusive dual PIR design provides unmatched range and small motion detection.
  • Manual-ON/Auto-OFF operation
  • Convenient push-button provides manual ON/OFF light switching at any time
  • LED NightLight offers "Guide Light" functionality
  • Adjustable NightLight illumination
  • Setting for continuous or dimmed NightLight
  • Proprietary segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive "small motion" area where even the slight body movements will be detected
  • Horizontal field-of-view may be adjusted between 180 and 32 32 degrees of arc by using internal blinders located on either side of the lens
  • One unit can be used for either 120V or 277V lighting compatible with both electronic and magnetic ballasts
  • Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts
  • Fits in a standard wallbox and replaces single-pole wall switch; ground and neutral connection required. Gangable with other units
  • CEC 24 Compliant Vacancy Sensor wall switch with NightLight
