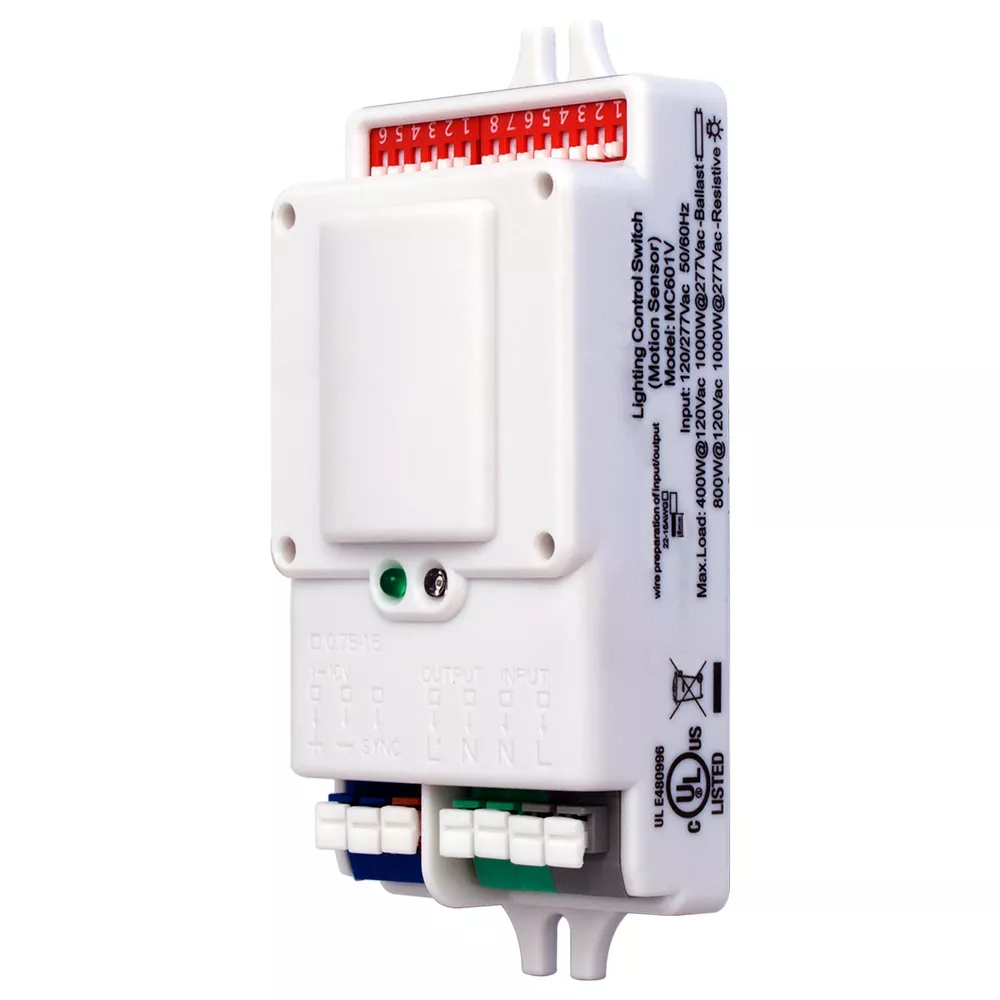

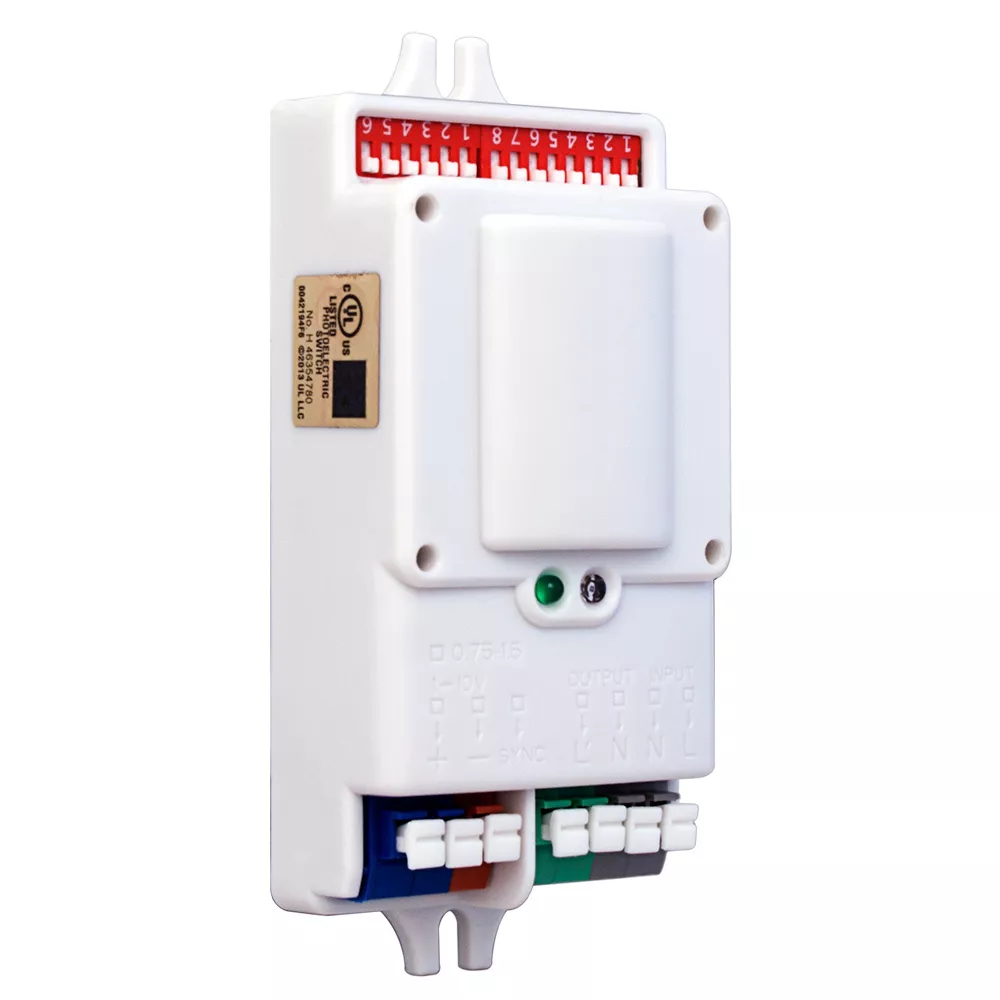

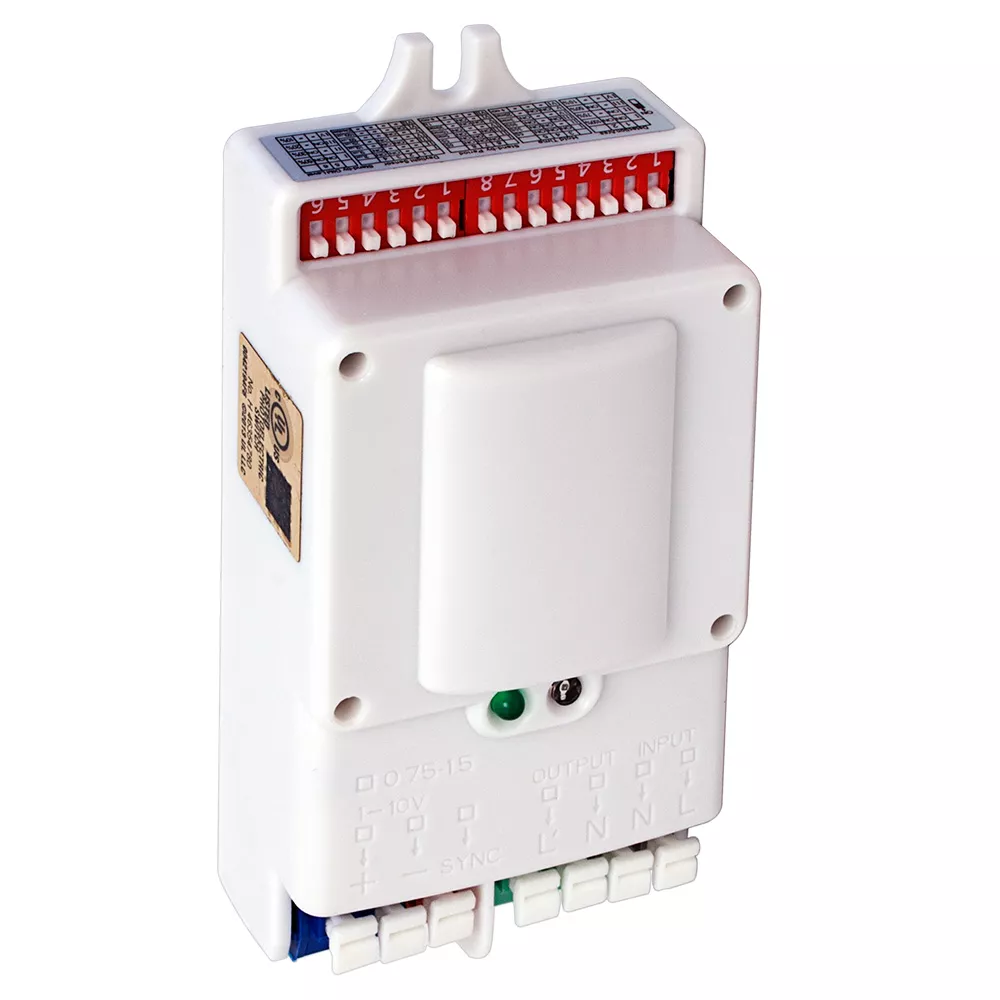

Occupancy Sensor, Microwave, Surface Mount, 120-277V, 0-10V Dimming, 1664SF, White


High Frequency Microwave Occupancy Sensor lighting control with 0-10V Dimming, 5.8GHz +/- 75MHz ISM Wave Band, 360 degree detection, 3-30 feet range adjustable. 5s-30m adjustable, Built-in adjustable daylight sensor, Green LED, Terminal Connectors, 120-277VAC, 50/60Hz, Power Consumption <1W, White.

The Leviton 0-10V Dimming High Frequency Occupancy Sensor uses a high frequency sensor to detect motion and provide automatic switching or dimming when used in combination with 0-10V LED drivers or ballasts.

Color: White

UPC Code: 078477904022
Country of Origin : China
RoHS Compliant: Yes – Click Here

Product Information

  • Mechanical Specifications

    IP Rating : IP20

    Mounting Type : Surface Mount or Base Mount

    Size : Height 3.68" (93.5mm), Width 1.77" (45mm), Depth 1.12" (28.5mm)

  • Warranty

    Warranty : 5-Year Limited

  • Type

    Product Type : Occupancy Sensor

  • Electrical Specifications

    Frequency : 50/60Hz

    Load Rating : 120V @ 400W; 220-240V @ 800W; 277V@ 1000W

    Neutral Wire Connection : Required

    Power Consumption : ≤0.5W (standby) - <1W (operation)

    Voltage : 120-277 VAC

  • Performance Specifications

    Coverage (Sq.Ft.) : 1664.0

    Foot Candle Level : .18FC (2lux)/0.46FC (5lux)/.9250FC (10lux)/2.32FC (25lux)/4.64FC(50lux)/9.29FC (100lux)/disable

    Pattern : Wall: 150° Ceiling: 360°

    Switch Type : Single-Pole

  • Product Features

    Application : Walls or fixtures including wall sconces and wall packs,Cafeterias,Open office cubicles,Warehouses,Conference rooms,Any space used by a multi-tech sensor

    Color : White

    Grade : Commercial

    Mounting : Surface Mount or Base Mount

    Mounting Height (Ft.) : Up to 40 FT

    Product Line : OSM3D

    Sensor Technology : Microwave

    Sensor Type : Occupancy

  • Environmental Specifications

    Relative Humidity : 20% to 90% non-condensing

  • Automatic switching or dimming
  • Built-in daylight sensor
  • Designed to detect movement behind lowdensity fixture materials or behind objects made of plastic or glass
  • The sensor’s compact size allows it to easily fit in most luminaires
  • LED lighting compatible

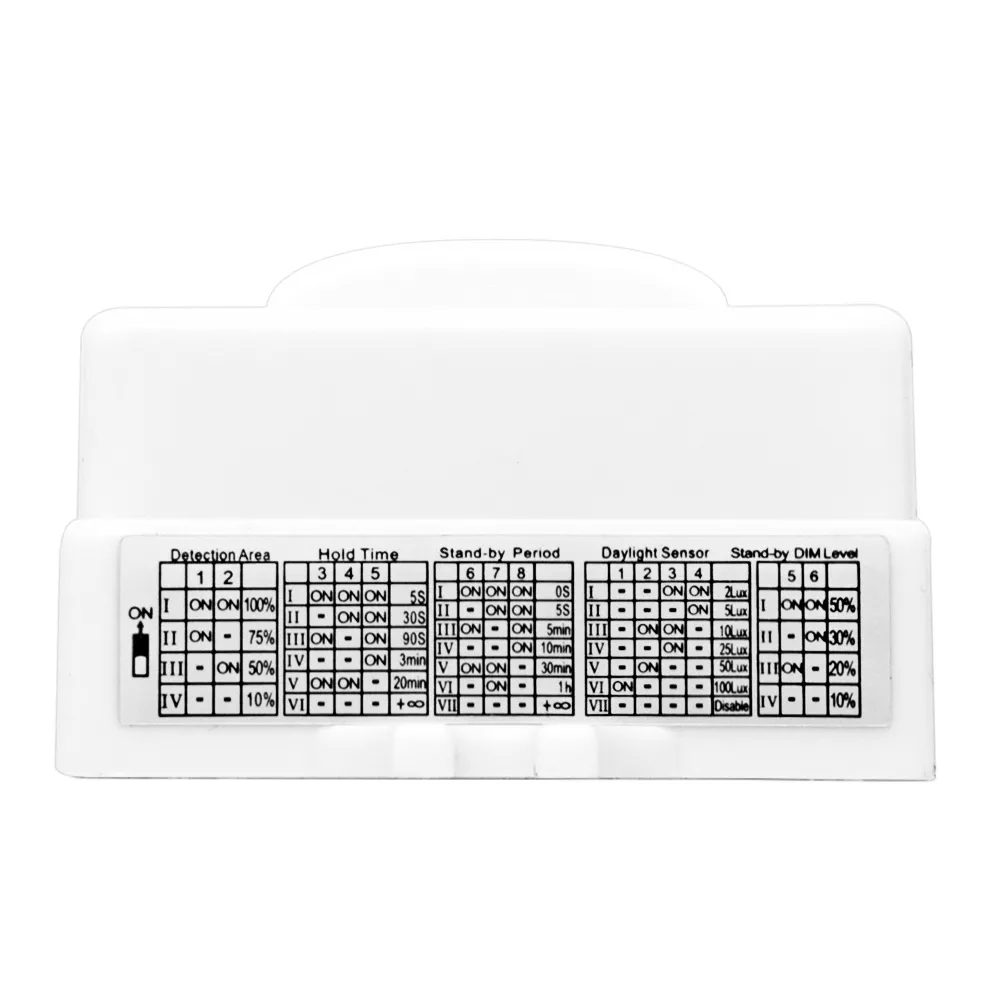

  • Detection area, time delay and daylight threshold can be set via sensor DIP switch
  • Wide detection area—range up to 52 feet
  • Mounting height up to 49 feet
  • Hold times range from 5 seconds to infinity
  • 150° wall detection, 360° ceiling detection
  • 5.8 GHz high frequency microwave

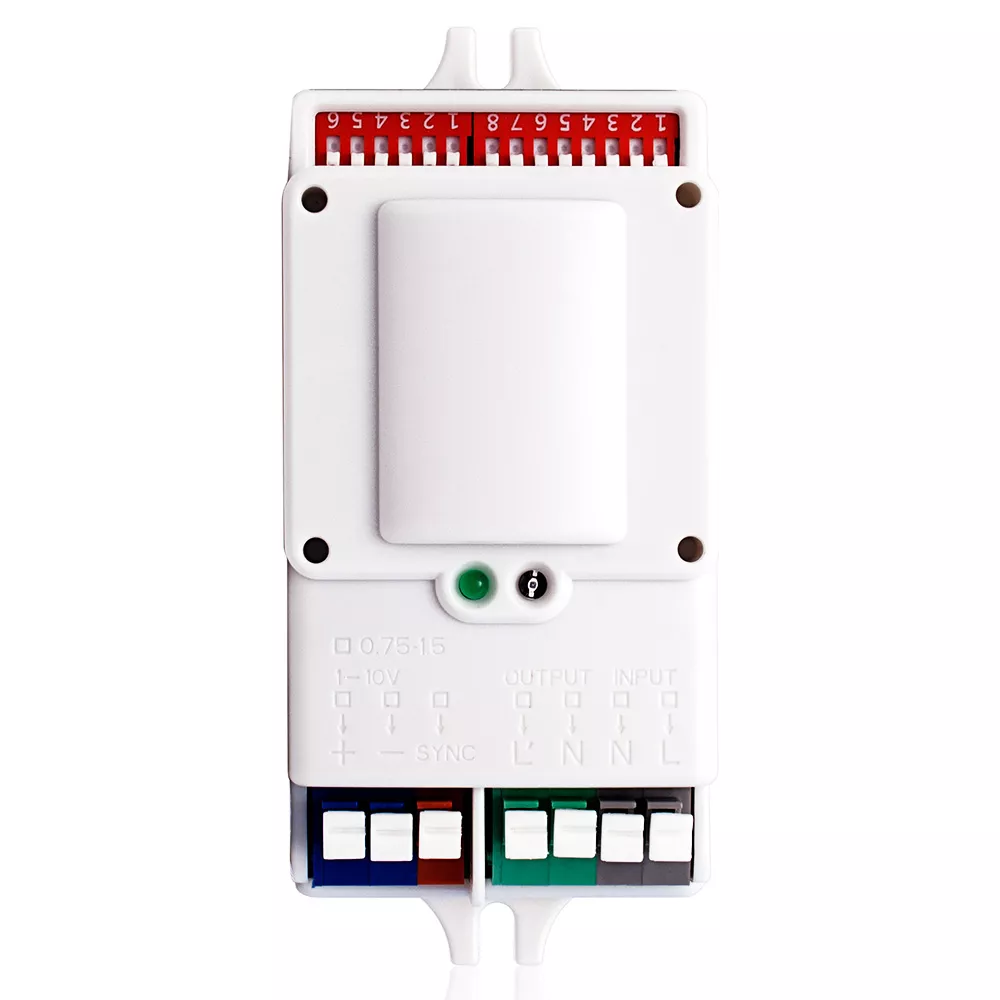

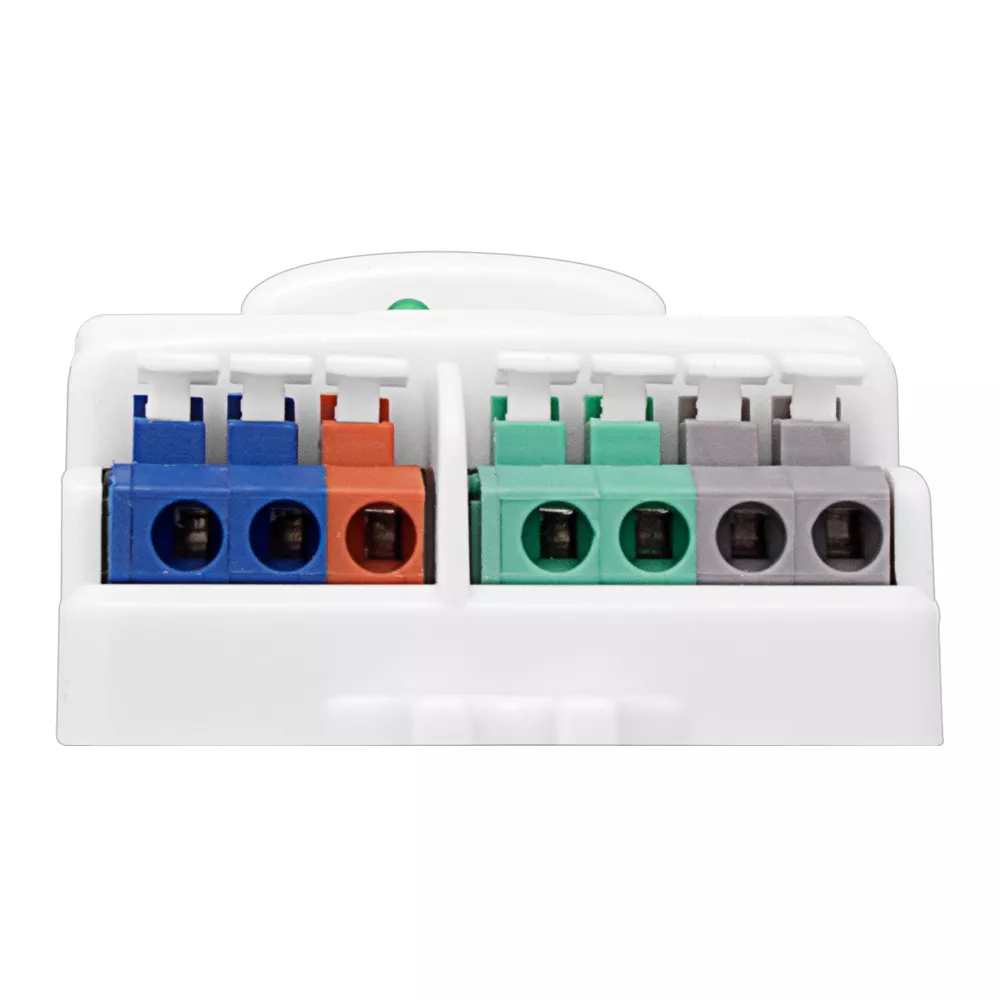

  • Press-in terminal for easy wiring
  • Surface or base mounting—can be hidden from view
