Fixture Mount PIR Sensor Head

OSF10-IUW

DISCONTINUED

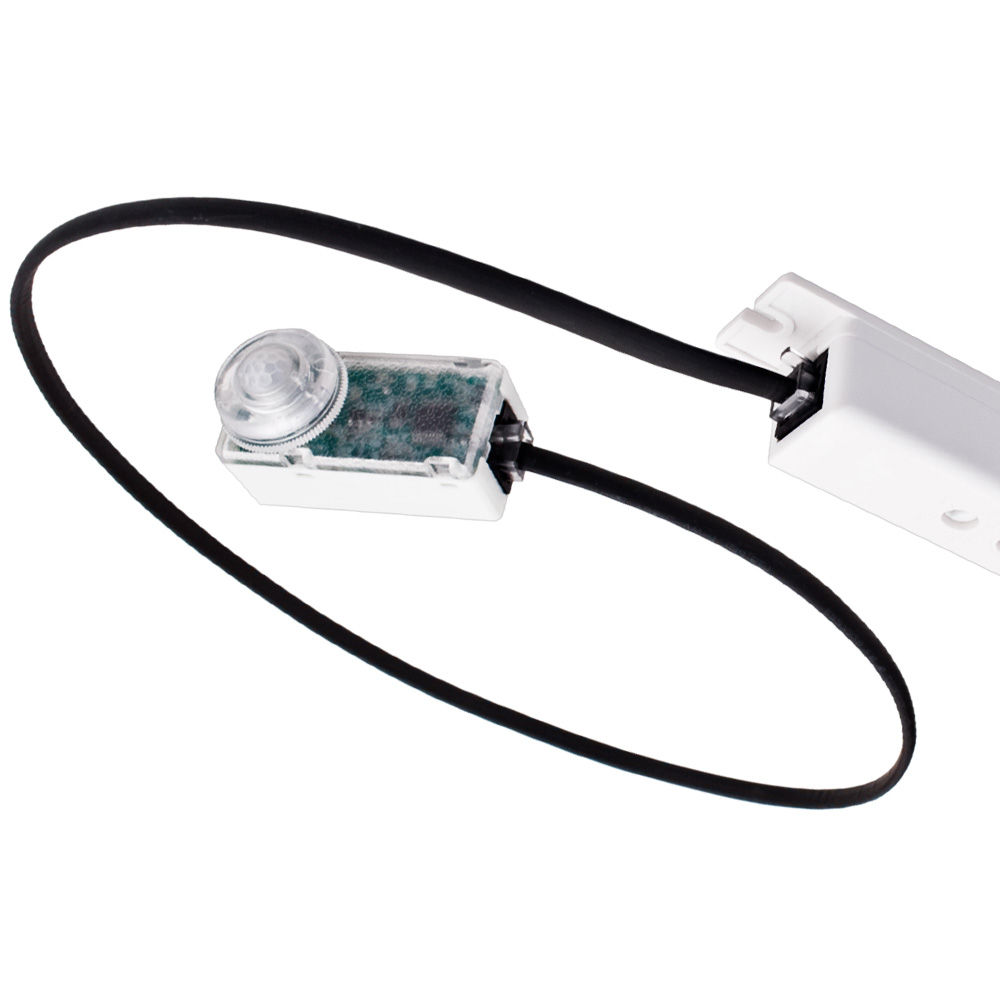

Fixture Mount PIR Sensor Head, Title 24 Compliant, ASHRAE 90.1 Compliant Leviton’s OSF10, Integral Power Pack and Sensor Head, is designed to be mounted directly into a luminaire with an integrated ambient Hold-OFF adjustable photocell for daylighting. The wiring and housing of the power pack is installed adjacent to the ballast and hidden from view behind the reflector cover. Only the PIR detector dome lens and locking ring are visible on the exterior of the fixture.
The OSF10’s self-contained occupancy sensing technology offers energy savings in linear and task lighting applications. Long 36” leads make the OSF10 easy to install. With no additional wiring needed, labor, time and material costs are reduced. Once installed, only the PIR detector and ring are visible, making it aesthetically pleasing, reducing the number of devices visible in small spaces.
UPC Code: 07847752901
Country of Origin : China

Product Information

  • Electrical Specifications

    Frequency : 50/60Hz

    Load Rating : Fluorescent Ballasts: 800VA @ 120VAC 1200VA @ 277VAC - Incandescent: 800W @ 120V - Motor: 1/6 HP Load @ 120V

    Power Consumption : < 1/2 W

    Title 24 Compliant : Yes

    Voltage : 120-277 VAC

    Wiring : Line-Black, Load-Red, Neutral-White

  • Environmental Specifications

    Operating Temperature : 32° to 131°F (0° to 55°C)

    Relative Humidity : 20% to 95% non-condensing

    Storage Temperature Range : 68° to 185°F (20° to 85°C)

  • Mechanical Specifications

    Mounting Type : Fixture Mount

    Size : Height 1.00" (25.4mm), Length 2.3" (58.4mm), Width 1.4" (35.6mm)

  • Performance Specifications

    Coverage (Sq.Ft.) : 10.0

    Foot Candle Level : 0-120 FC

  • Product Features

    Application : Small offices,Cubicles,Task lighting,Cabinet lighting,Small bathroom lighting

    Color : White

    Grade : Commercial

    Mounting : Fixture Mount

    Mounting Height (Ft.) : 8 FT

    Product Line : OSF10

    Sensor Technology : Passive Infrared (PIR)

    Sensor Type : Occupancy

  • Standards and Certifications

    Listings : UL/CUL Listed, CEC Title 24 Compliant

  • Type

    Product Type : Occupancy Sensor

  • Warranty

    Warranty : 5-Year Limited

• Separate PIR Sensor Head: low voltage connection from the power pack to the PIR head is rated for Class 2 wiring - beneficial when the PIR head is to be located outside of the fixture
• Passive Infrared Technology (PIR): industry proven technology for detecting motion within a space utilizing Fresnel lens
• Fresnel Lens Technology: specialized lens design for coverage pattern; when used with PIR, this creates a field-of-view for detecting minor and major motion
• H.I.S. (High Inrush Stability) Technology: zero-crossing technology extends relay life; robust mechanical latching relay for assured operation and durability
• Field Configurable: no power is required for setting the time delay or light level, reducing labor and callbacks
• Time Delay: timing between the last motion detected and when the lights turn OFF; this can be adjusted 30 seconds to 30 minutes
• Ambient Light Override: utilizes an internal light sensor for measuring room light level and when activated will hold light OFF for increased energy savings
• Ample Wire Leads: long 36” wire leads reduce wiring time by eliminating the need to splice more wire
• LED: a red LED is provided for visual confirmation when motion is detected
