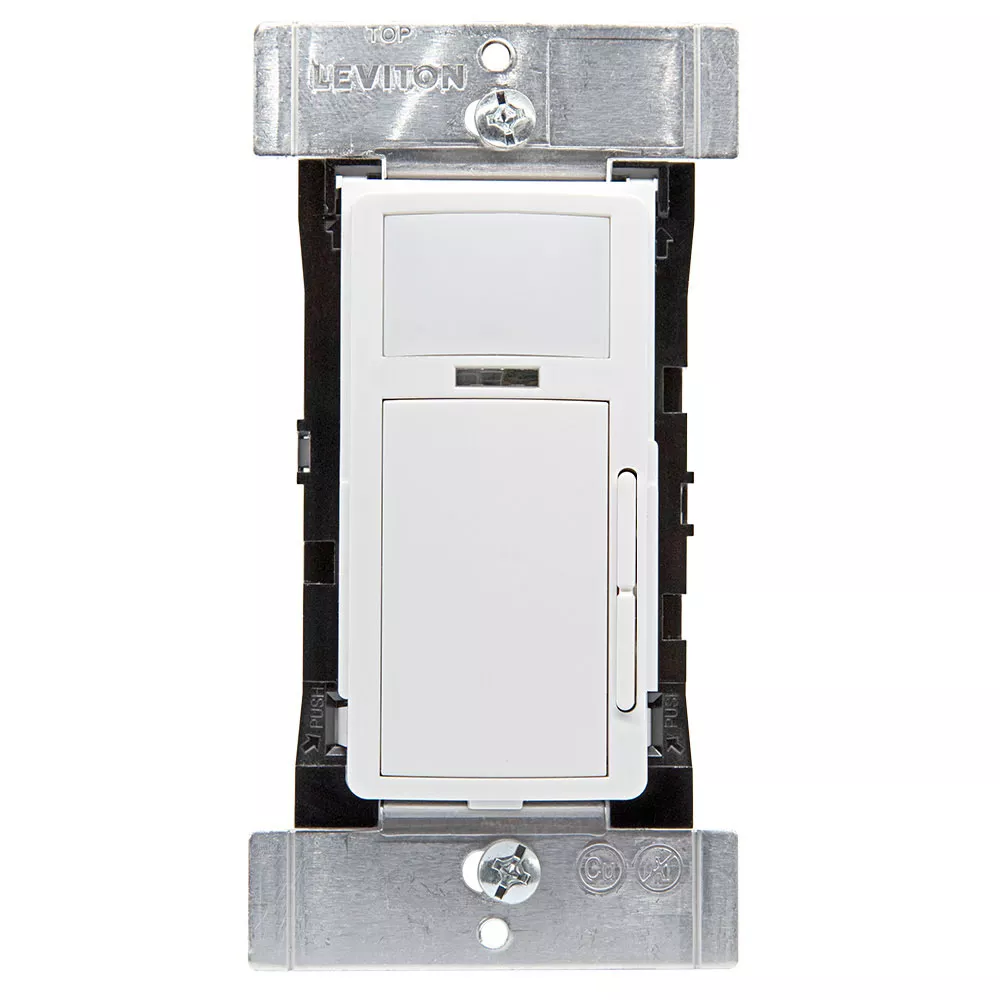

Smart Sensor, PIR, Wallbox, 24V Dimming, Occupancy Sensor/Vacancy Sensor, App configurable, 12-24VDC, Commercial Grade, White

ODD24-IDW

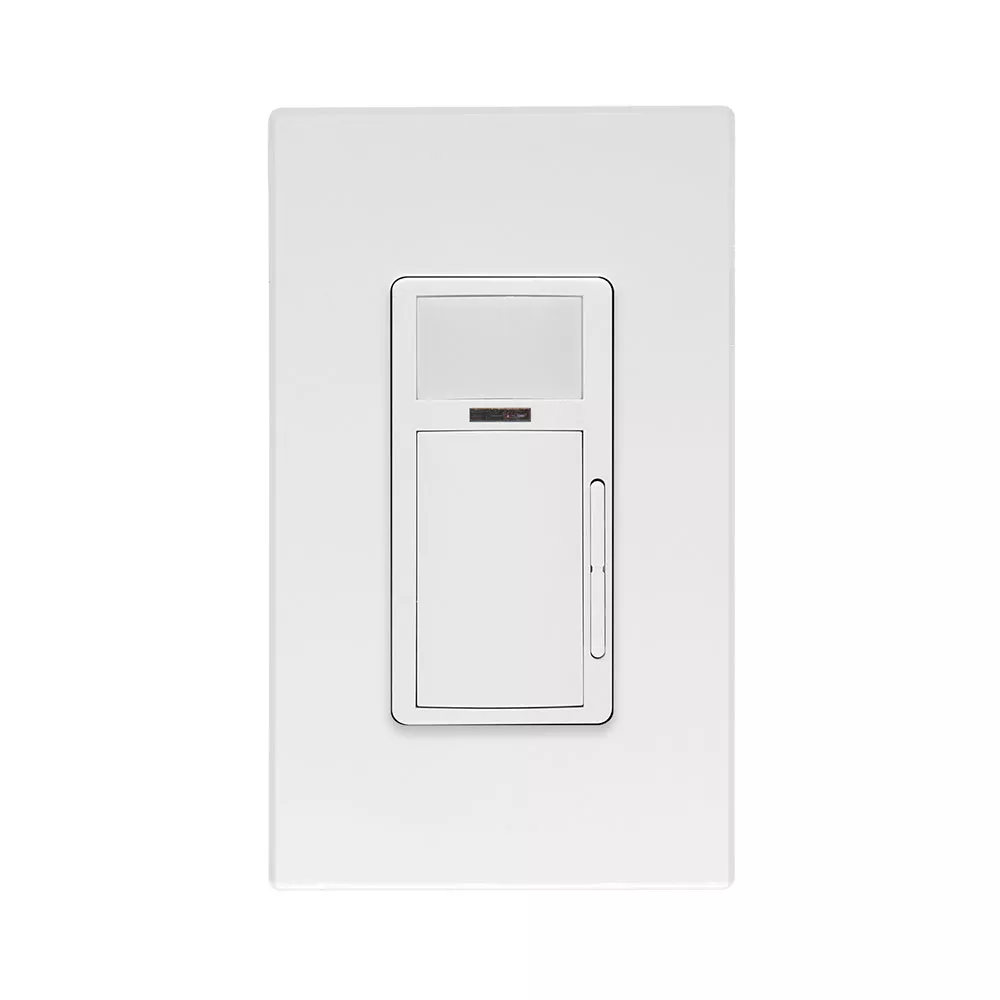

Smart Sensor, PIR, Wallbox, 24V Dimming, 12-24V input Sensor, App configurable, Commercial Grade, Color: White. Wall plate sold separately.

The Leviton 24V Dimming Smart Sensor (ODD24-IDW) is designed for use with an OPP20 or OSA20 Power Pack or other Leviton (24V) low voltage sources. Lighting levels can be adjusted using the dimming bar next to the switch and uses Passive Infrared (PIR) detection technology to monitor a room for occupancy using a segmented, tamper resistant lens. When a person passes in or out of a sensor zone the sensor detects motion and switches the lights ON. The lights will remain ON as long as long as an occupant moves through the sensor zones and after the timeout expires. The ODD24-IDW features a vacancy mode for Manual-ON/Auto-OFF operation, ideal for installations where manual-ON switching is required for energy code applications. Configuration of ODD24-IDW is made using the Leviton Smart Sensor App from a smartphone or other Bluetooth® enabled Android or iOS device. Simple configuration can also be applied using pushbutton setup for several common pre-configured options. The ODD24-IDW integrates a photocell for daylighting which can be programmed using the Leviton Smart Sensor App. Ideal for non-residential and commercial spaces up to 1,100 SF including offices, meeting rooms, and lobbies.

Do you have a question about an
occupancy sensor or vacancy sensor?

Contact us to learn more.

Color: White

UPC Code: 078477425633
Country of Origin : China

Product Information

  • Electrical Specifications

    Input Current : 24V: 0.02A - 120-277V: N/A

    Neutral Wire Connection : Not Required

    Voltage : 12-24 VDC

  • Warranty

    Warranty : 5-Year Limited

  • Mechanical Specifications

    IP Rating : IP10

    Mounting Type : Wall Switch

    Size : Height 4.13" (104.9mm), Width 2.12" (53.95mm), Depth 1.86" (47.25mm), Install Depth 1.42" (36.22mm)

    Switch Type : Single-Pole

  • Standards and Certifications

    Listings : IECC, UL and cUL listed, FCC, ICC

    Testing and Code Compliance : Can be used to comply with ASHRAE 90.1, IECC and Title 24, Part 6 occupancy/vacancy sensing, dimming, and manual-ON/auto-OFF requirements

  • Type

    Product Type : Smart Sensor with Dimming

  • Product Features

    Application : Small Offices,Lobbies,Small Meeting Rooms

    Color : White

    Feature : App configurable

    Grade : Commercial

    Mounting : Wall Switch

    Product Line : ODD24

    Sensor Technology : Passive Infrared (PIR)

    Sensor Type : Occupancy / Vacancy

  • Performance Specifications

    Coverage (Sq.Ft.) : 1100.0

    Pattern : 180°

  • Environmental Specifications

    Operating Temperature : 0°C to 40°C

    Storage Temperature Range : -40° to 185°F (-40° to 85°C)

  • Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy/vacancy sensing and dimming requirements
  • Fits in a standard wallbox and gangable with other units
    • ODD24-IDW is designed for use with a power pack (OPP20 or OSA20) or other Leviton low voltage (24V) source
  • 180° field-of-view provides approximately 1,100 square feet of coverage
  • Maximum sensing distance in front of the sensor is 30-40 feet and 15-20 feet on either side
  • Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth enabled Android or iOS device: Set operating mode to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF
  • Adjust the sensitivity of the sensor to increase or decrease coverage area
    • Adjust timeouts
    • Activate the nightlight and select nightlight colors
    • Add daylighting hold-off and select target daylighting hold-off levels
    • Set a security code to lock configuration settings
  • Configure dimming options such as Partial-0N, Partial-OFF, and Partial-OFF timeouts
  • Out-of-the-box configuration default mode: Auto-ON/auto-OFF with 10-minute time out
  • Sensitivity set to 75%
  • Nightlight and daylighting hold-off disabled
