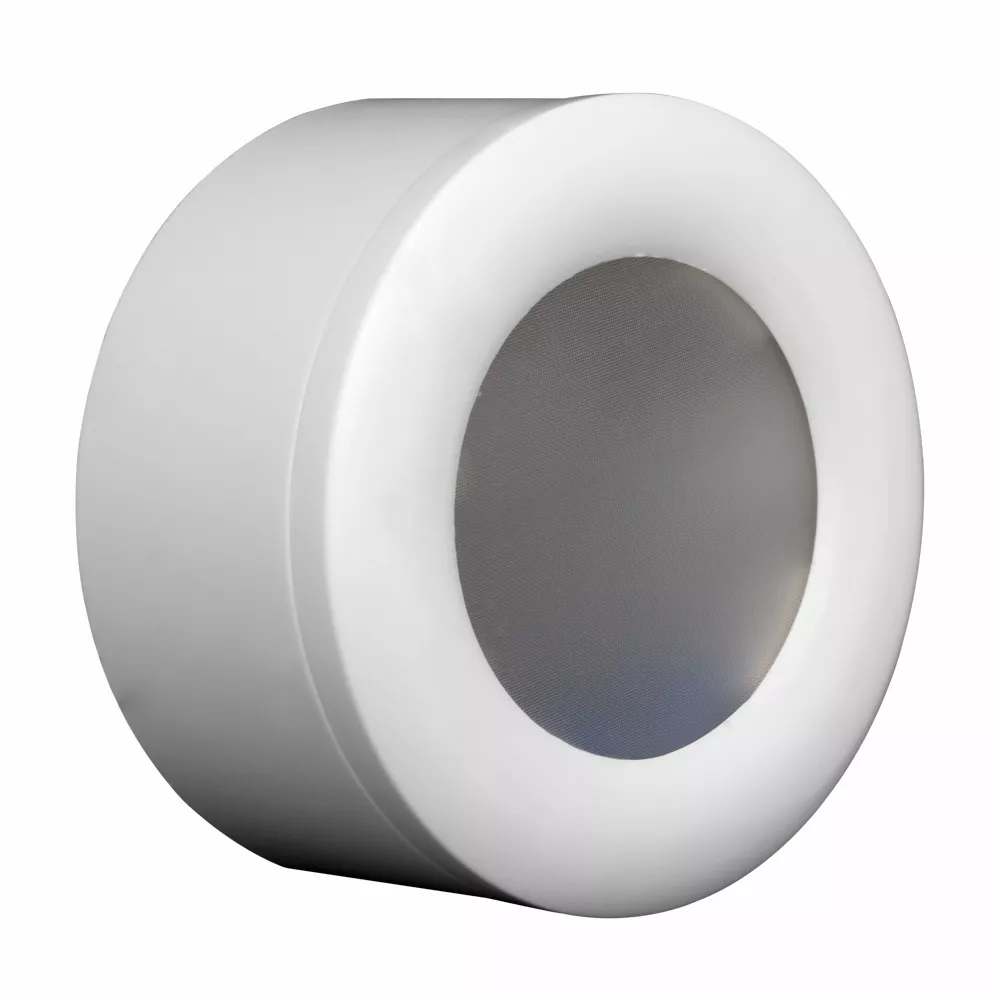

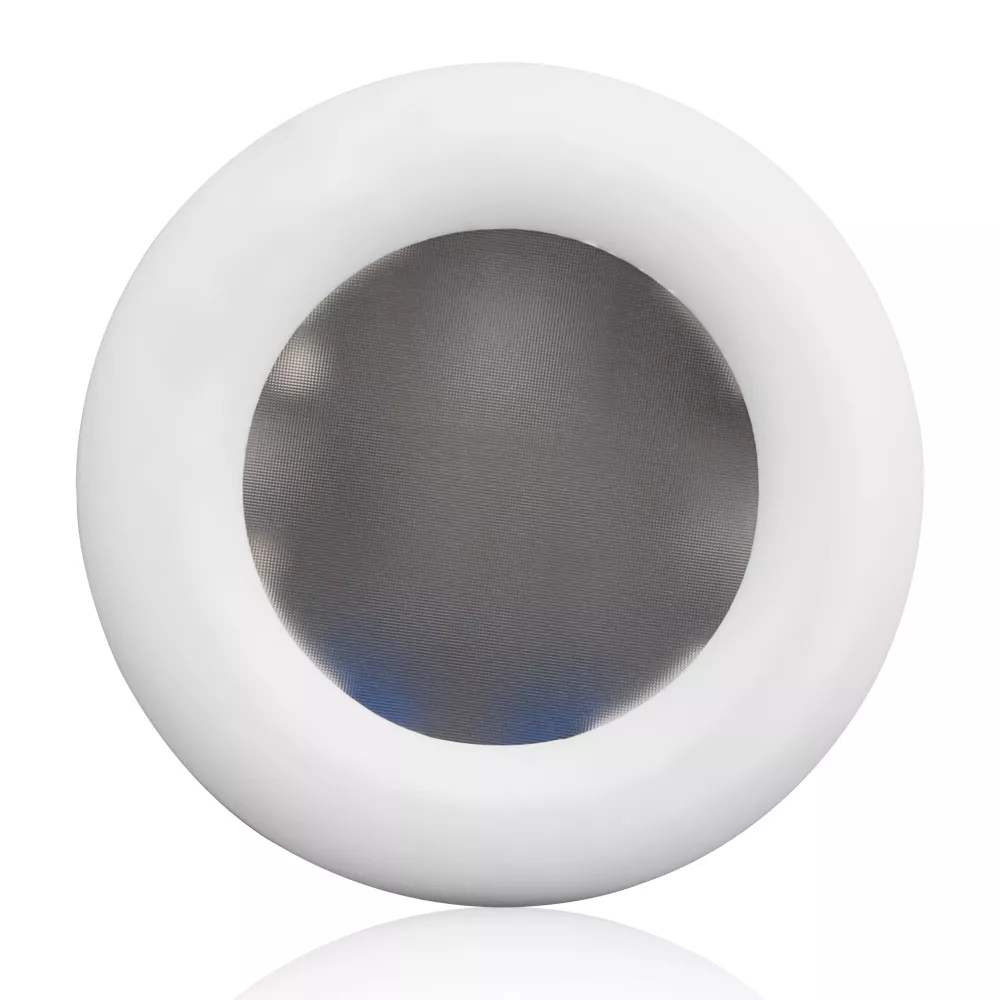

Photocell, Switching
ODC0P-S0W

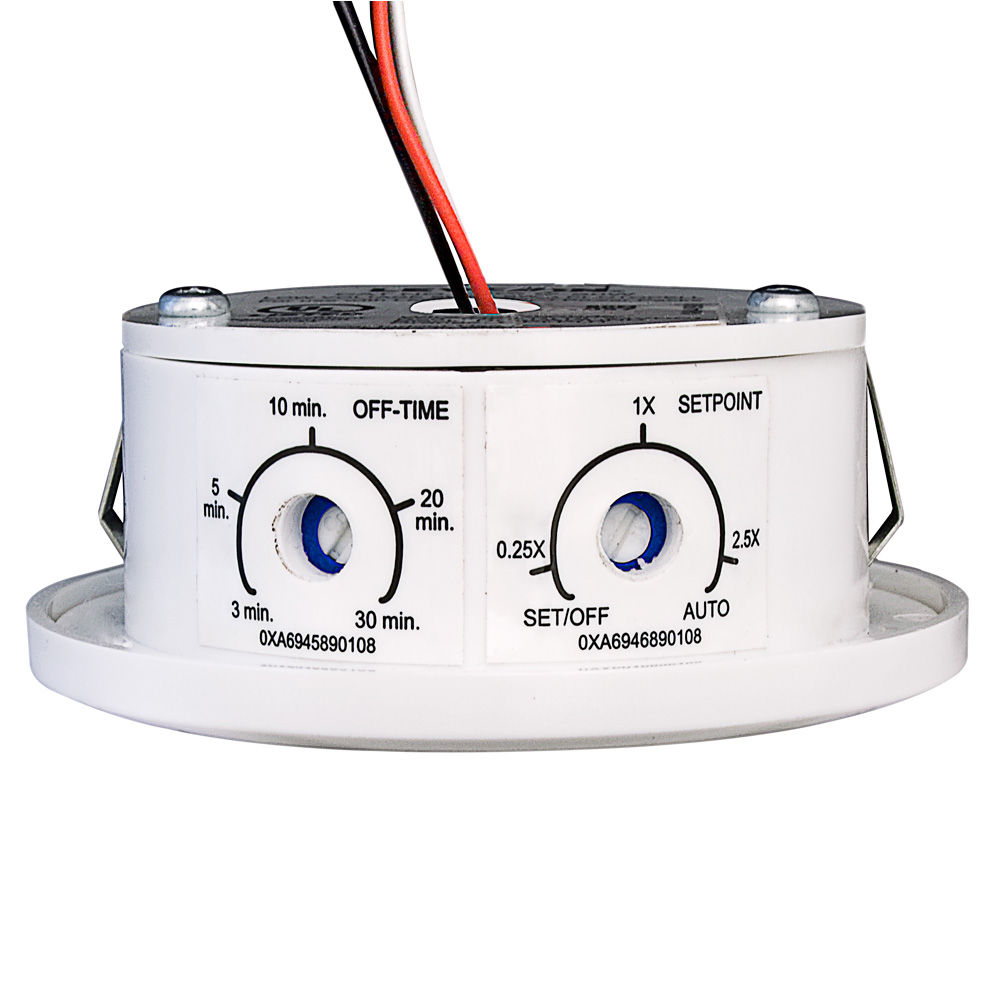

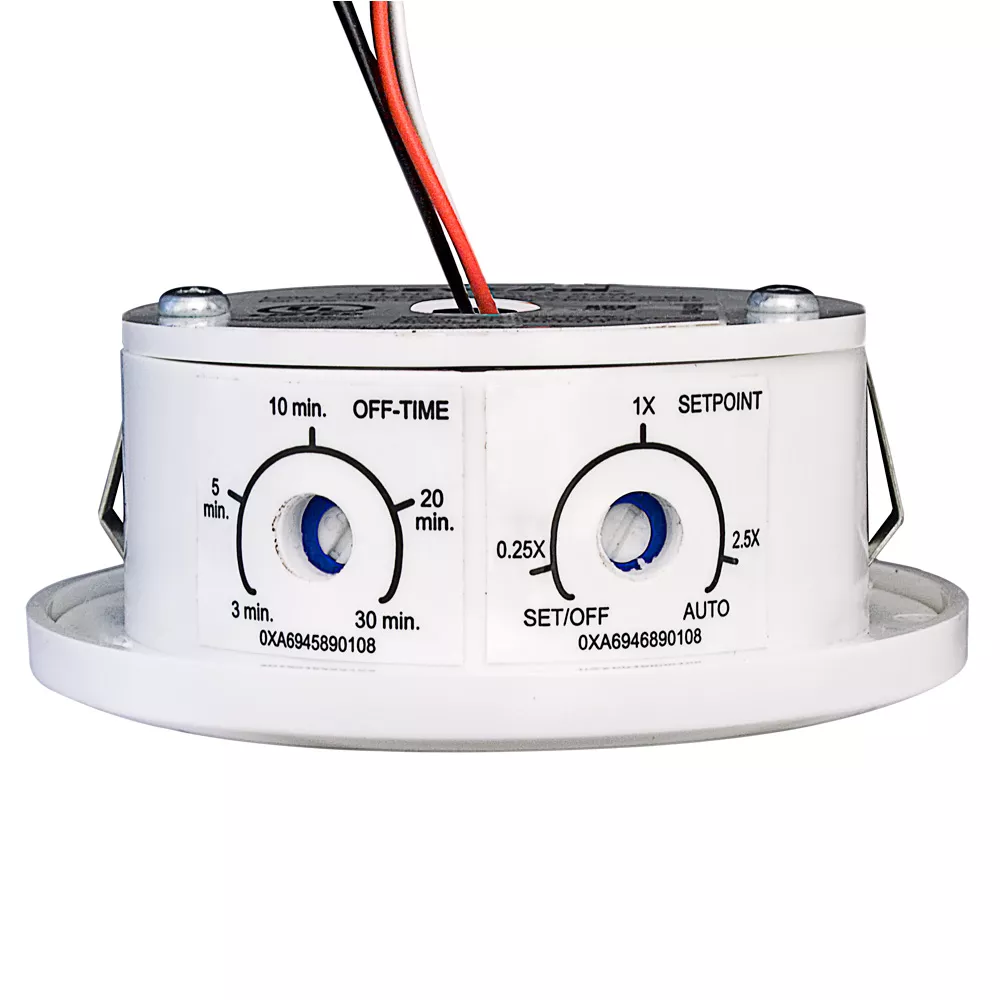

Photocell, Switching, 1x Setpoint, Delayed Off Time: 10 Min (MFG Range 1-1600FC), Title 24 Compliant, ASHRAE 90.1 Compliant
Leviton’s ODC0P-S0W Switching Photocell is a sensor for precisely monitoring either task or ambient light levels. As a part of Leviton’s lighting system, the ODC0P-S0W works with other components to automatically set and adjust target light levels.
Product Information
Electrical Specifications
Input Voltage : 12 - 24VDC
Operating Temperature : 0°C to 55°C
Relative Humidity : 20% to 90% non-condensing
Voltage Type : Low Voltage
Environmental Specifications
Color : White
Foot Candle Level : 1-1,600 FC (10-16,000 LUX)
Operating Temperature : 0°C to 55°C
Relative Humidity : 20% to 90% non-condensing
Product Features
Color : White
Foot Candle Level : 1-1,600 FC (10-16,000 LUX)
Input Voltage : 12 - 24VDC
Product Line : Photocell
Product Type : Indoor Photocell
Standards and Certifications
Listing : NOM
Warranty
Warranty : 5-Year Limited
- Switched lighting at a desired Daylight Design Level offers greater energy savings and comfort while contributing to improved efficiency
- Provides for ultra-convenient, hands-free lighting control
- Lowers electric bills by reducing usage of lighting where ambient and/or artificial lights are also present
- Measures light from any source in the visible spectrum within a 60º cone at 8-12 feet mounting height
- Provides continual measurements and reports back to Switching Power Pack or Controller

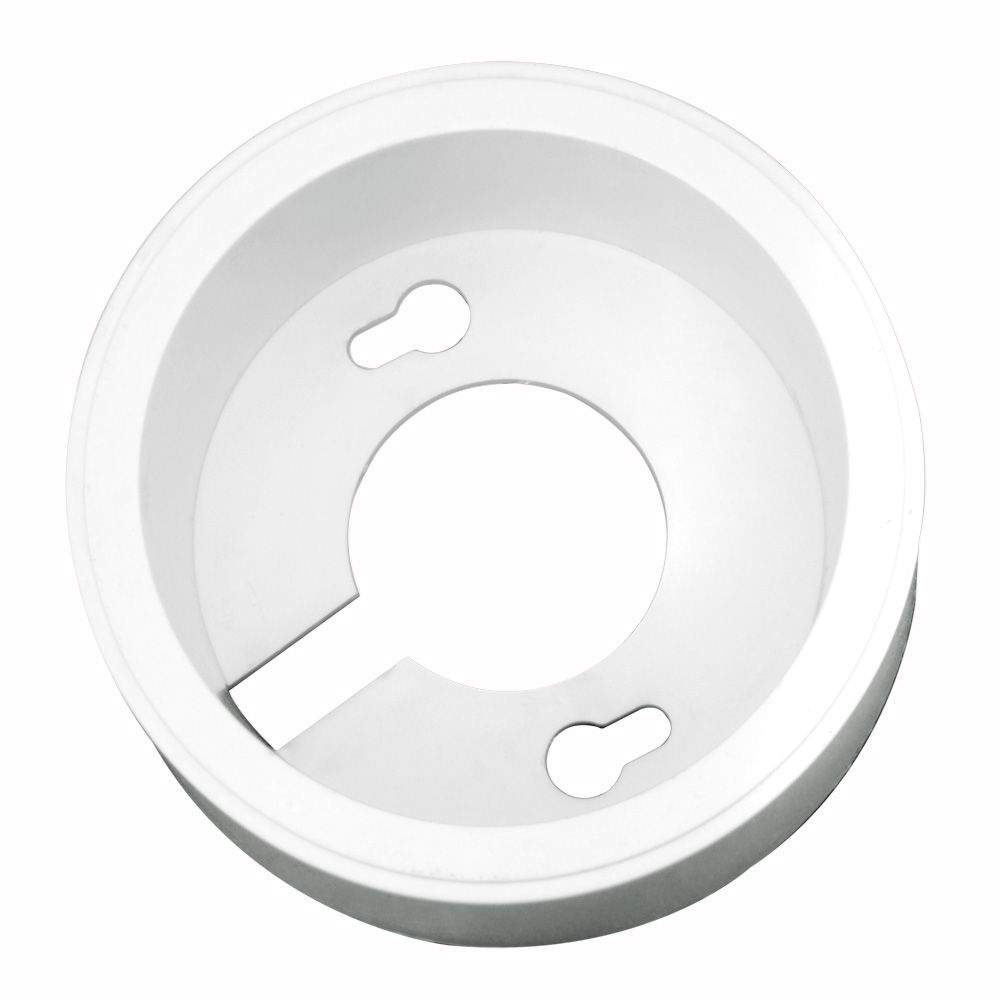

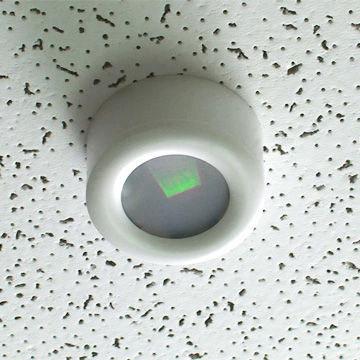

- Mounts on ceiling - surface mount or low profile flush mount
- Auto-calibration for ease of configuration
- LED status indicators for ease of installation
