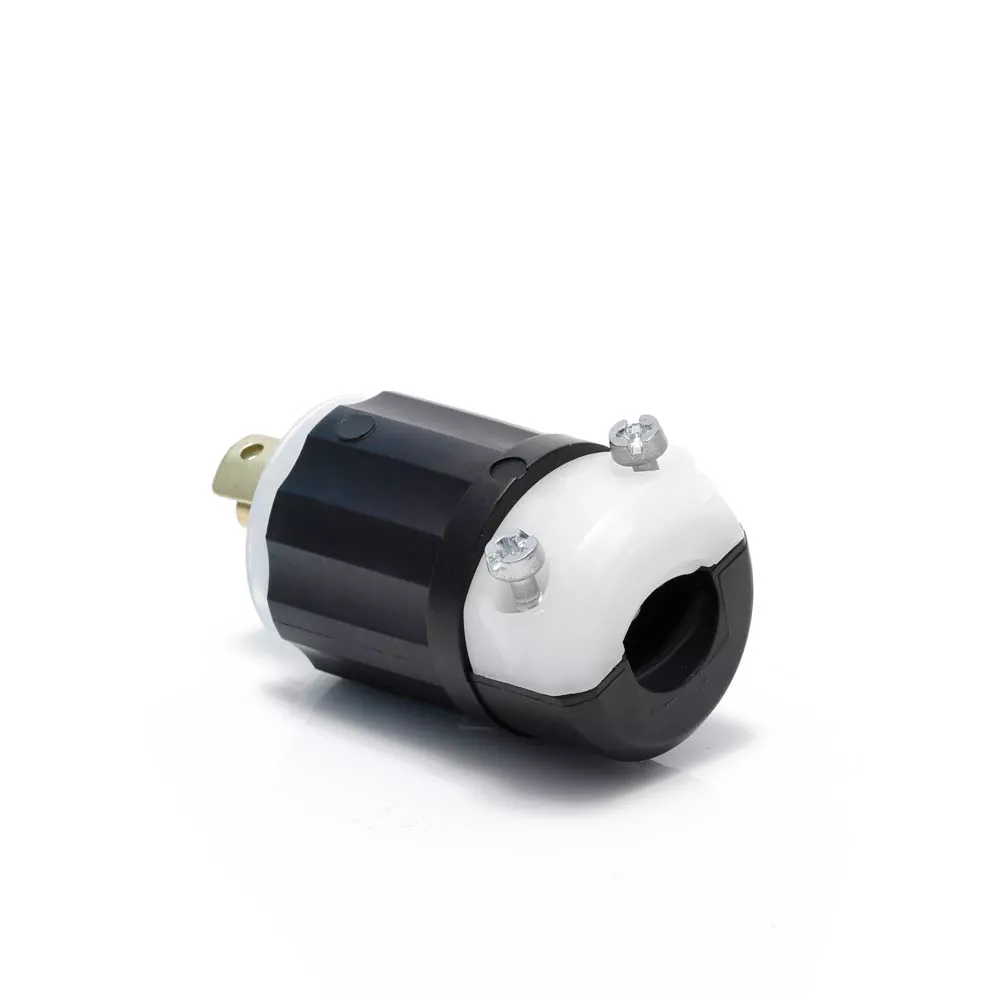

Mini Locking Plug, 15 Amp, 125/250 Volt, Industrial Grade, Black & White

ML3-P

15 Amp, 125/250 Volt, NEMA ML3P, 3P, 3W, Locking Plug, Industrial Grade, Non-Grounding, MiniLock - BLACK-WHITE Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
  • One piece contacts reduce friction and overheating
  • Unique cord clamp accepts wide range of cord sizes
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • Industry exclusive limited lifetime warranty
UPC Code: 078477987216
Country of Origin : Mexico
RoHS Compliant: Yes – Click Here

Product Information

  • Mechanical Specifications

    Amperage : 15 A

    Assembly Screws : Steel, Zinc Plated

    Blades/Contacts : Solid Brass

    Body Material : Impact Modified Nylon

    Brand : Black and White

    Color : Black-White

    Cord Range : .218 - .430

    Device Type : Locking Plug

    Flammability : Rated HB or better UL94

    Grounding : Non-Grounding

    NEMA : ML3P

    Pole : 3

    Screw Terminal Torque : 10-12 in-lbs

    Standards and Certifications : UL/CSA

    Torque Range : 10-12 in-lbs

    Voltage : 125/250 VAC

    Warranty : Limited Lifetime Warranty Warranty

    Wire : 3

    Wire Gauge : 18-14 AWG

  • Environmental Specifications

    Environment : Dry
