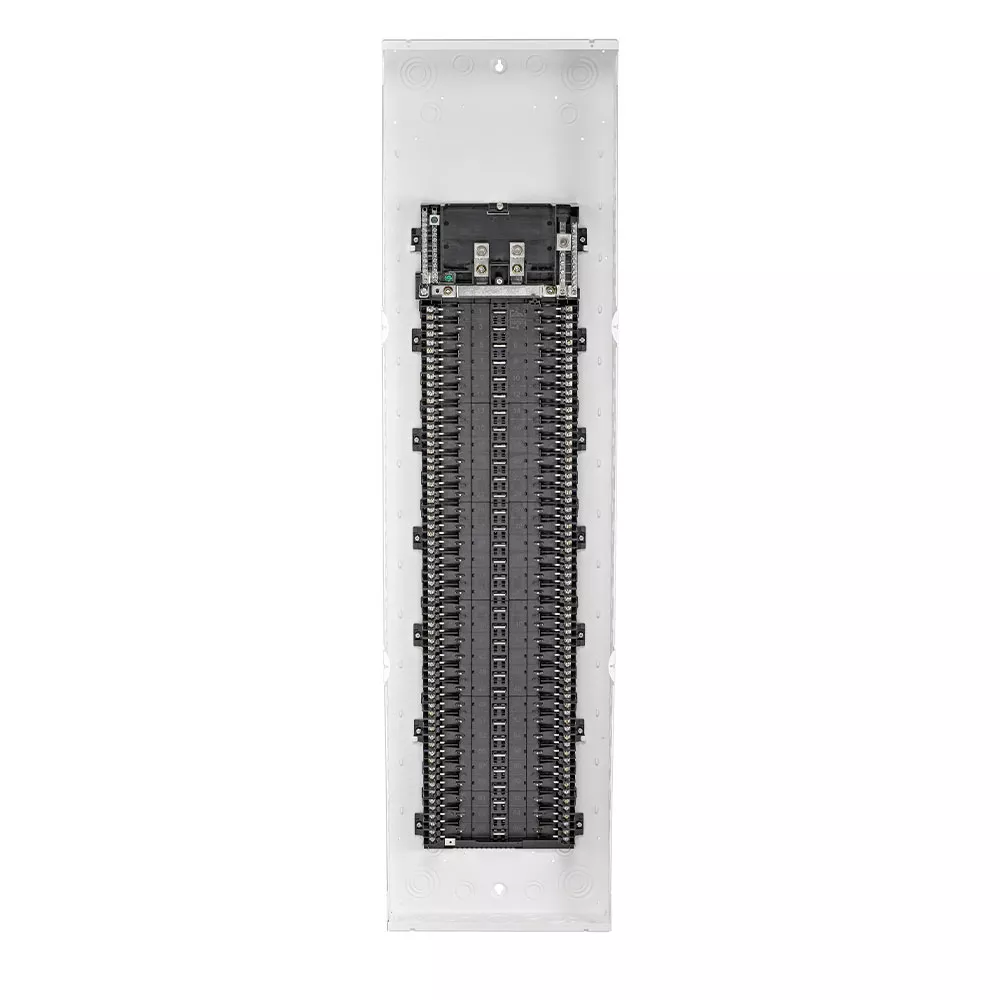

Indoor Load Center with Main Terminal
LP622-1L
Indoor Load Center, NEMA 1 with Lead Terminal, 200A, 66 Spaces, 22kA Interrupting Rating, Box and Indoor Only
Leviton Indoor Load Centers are easy to install and feature a white box enclosure and white circuit breakers to keep the unit looking modern and attractive. All hot and neutral wires are terminated at custom panel terminals, not at the circuit breaker*, so the entire panel can be field-wired without circuit breakers installed. Branch circuit breakers plug in easily during final installation. An optional observation window in the cover provides a quick view of the status of all circuit breakers. *For applications up to 60A when using copper wire; or 50A when using aluminum wire *Designed for Leviton Circuit Breakers
Product Information
Electrical Specifications
Amperage : 225 A
Short Circuit Current Rating : 10kA
Spaces / Circuits : 66/66
Type : Indoor
Type of Load Center : Main Lug
Voltage : 120/240 VAC
Environmental Specifications
NEMA Enclosure Type : NEMA 1 Indoor
Operating Temperature : -40°C to 85°C
Mechanical Specifications
Busbar Material : Copper, Bright Tin-Plated
Busbar Rating : 225A
Dimensions : 55.8" H x 14.3" W x 4" D
Enclosure Material : Galvanized Steel, White Powder Coat
Ground Connection : 4 AWG - 2/0 AWG Cu/Al
Material : Galvanized Steel
Supply Connections : 6 AWG - 300 MCM Cu/Al
Weight : 51 lbs.
Product Features
Color : White
Warranty : 10-Year Limited
Standards & Certifications
UL 50 : Yes
UL 50E : Yes
UL 67 : Yes
UL 869A : Yes
- US11887798
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
