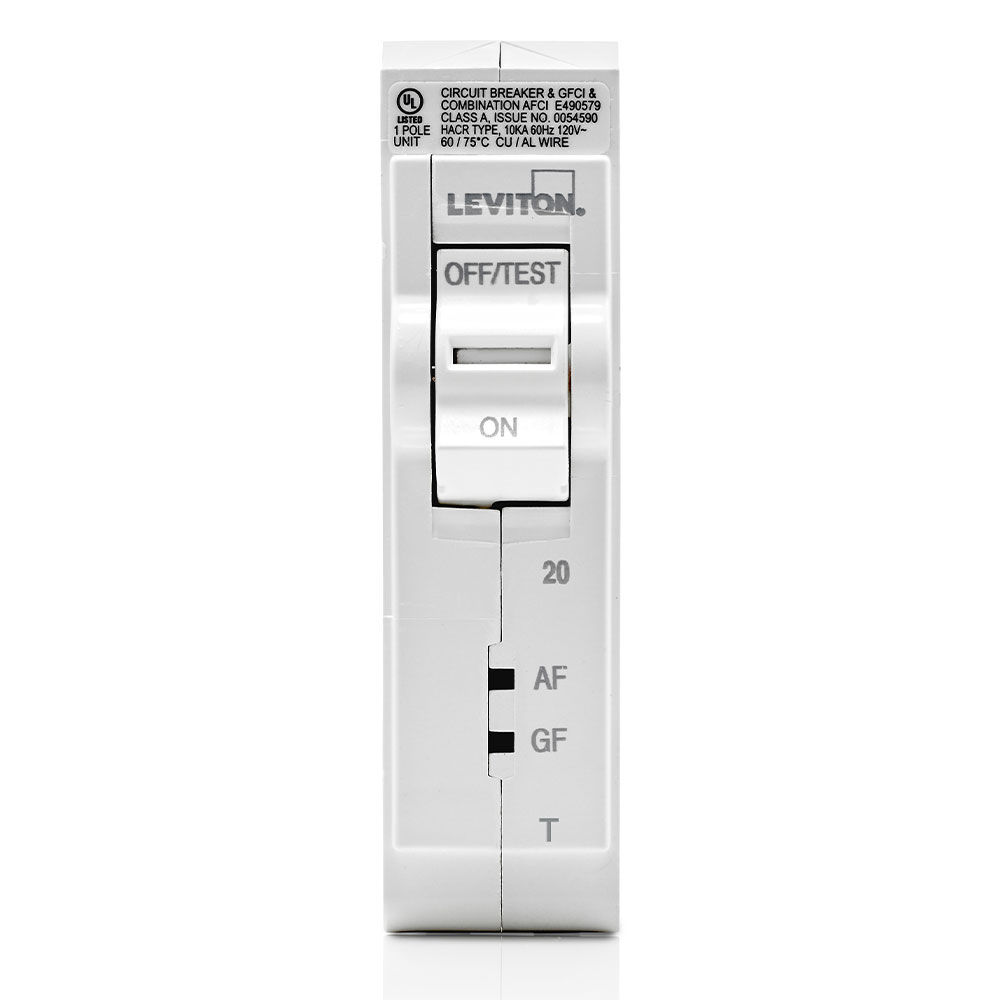

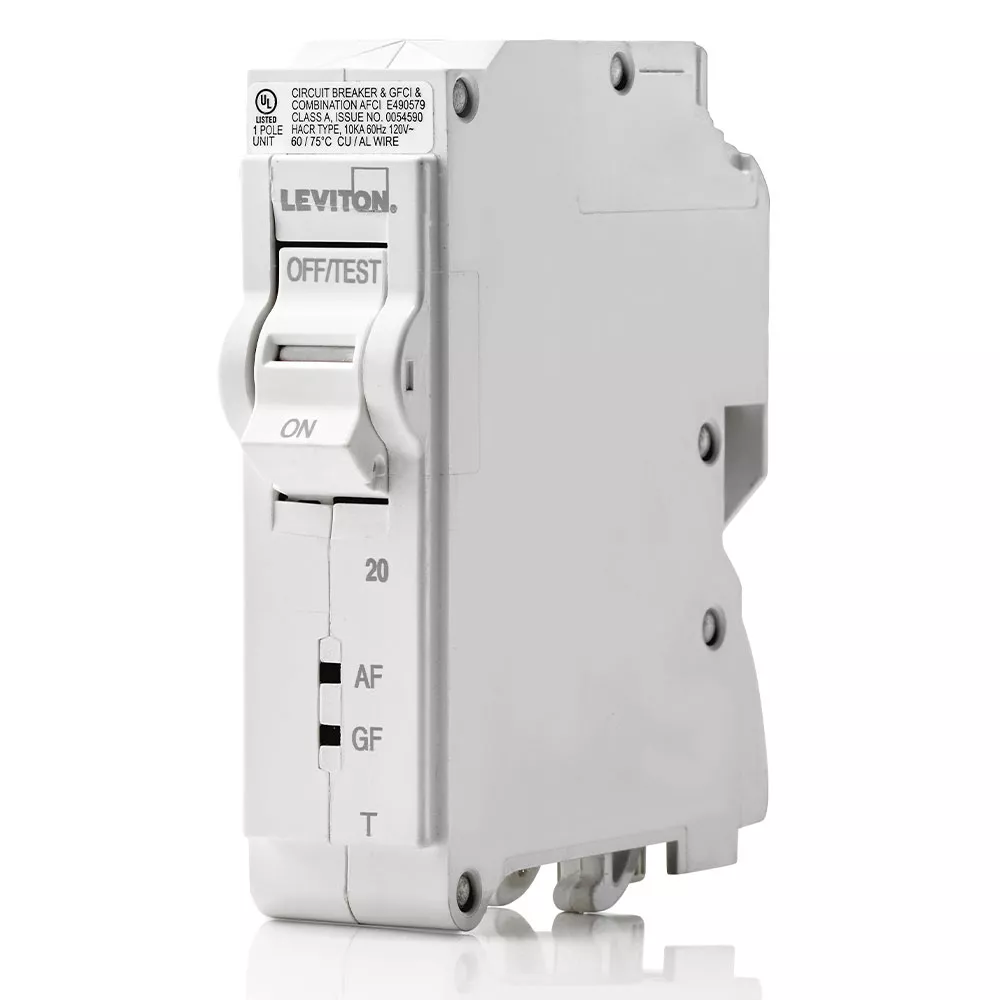

20A 1-Pole AFCI/GFCI Thermal Magnetic Branch Circuit Breaker
LB120-DFT
20A 1-Pole AFCI/GFCI Dual Function Branch Circuit Breaker with Thermal Magnetic Trip Technology and Plug-On Installation. 120V
- EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping
- AFCI - TrueArc™ breaker technology helps reduce nuisance trips by more accurately distinguishing between normal appliance operation and potentially hazardous arc faults
- SAFE – Leviton GFCI, AFCI and dual-function circuit breakers feature patented reset lockout technology, and will not reset if ground or arc fault protection is comprimised
- INTUITIVE – LEDs communicate trip condition and type of fault, and remain illuminated even when tripped
- COMFORTABLE – Rocker-style switches require less activation force than traditional circuit breakers
*Designed for Leviton Load Centers only
Documents
Technical Information
-
General Information
UPC : 078477644836
Electrical Specifications
Amperage : 20 A
Breaker Technology : Thermal Magnetic
Pole : 1
Short Circuit Current Rating : 10 KA
Type : AFCI/GFCI
Voltage : 120 VAC
Product Features
Dimensions : 3.9" H x 1.0" W x 3.1" D
Smart : No
Warranty : Limited 10-Year Warranty (Mechanical), Limited 2-Year Warranty (Electronic)
Weight : 0.42 lbs.
Wiring : All Plug-on
Standards & Certifications
EMC Compatibility : Yes
FCC : Yes
RoHS : Yes
UL 489 : Yes
Patents
- MX344697
- MX325634
- US9759758
- US11105864
- US11901148
- MX397949
- MX361147
- US12237132
- US8599523
- US9577420
- US8599522
- US10401413
- US11349293
- MX391521
- US11545327
- US9276393
- US11610751
- CA2946849
- US10656199
- US9709626
- US11342152
- US10262826
- US10367347
- US11831139
- CN201580021904.5
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
