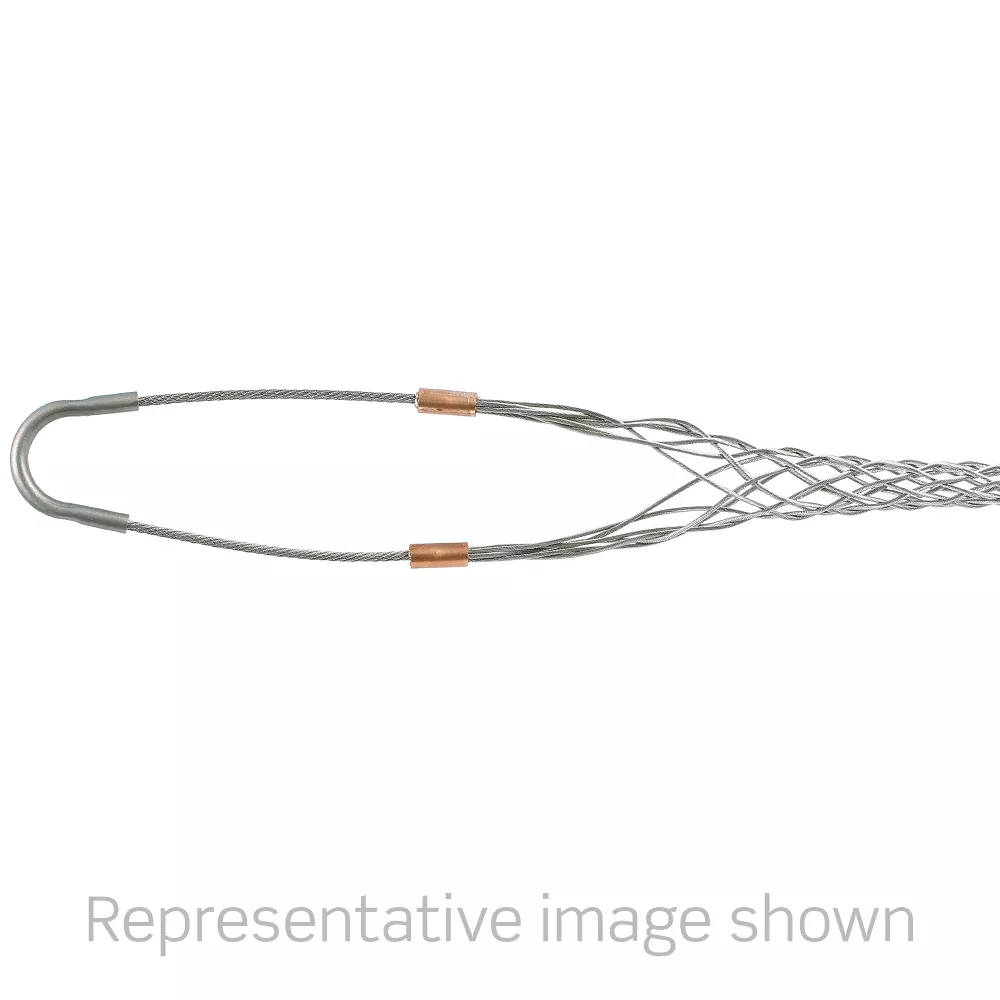

Support Grip, 1.50-1.75"

L9704-100

Support, Single Eye, Heavy Duty, Single Weave, Stainless Steel, 1.50"-1.75" Cable Diameter Range - Breakload is 4490 LBS, 15.0" Eye Length, 19.5"" Mesh Length
  • Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
  • Support grips distribute the weight of the vertical or sloping runs of electrical and fiber optic cable, metal rods, tubing or hose over the entire length of the grip so the cable is not damaged
  • Use of support grips avoids stress on cable connections and provides needed support for vertically hung cables
UPC Code: 078477573303
Country of Origin : India
RoHS Compliant: Yes – Click Here

Product Information

  • Material Specifications

    Mesh Material : 316 SS

  • Mechanical Specifications

    Approx. Break Strength : 4,490 lbs (2,037 kg)

    Bale Length : 8 in (203 mm)

    Cable Range : 1.50 - 1.75 in (38 - 44 mm)

    Duty : Heavy

    Eye Type : Double

    Mesh Length : 27 in (686 mm)

    Mesh Style : Closed

    Standards and Certifications : UL

    Weave : Single Weave

    Workload Safety Factor (lbs) : 449 lbs (204 kg)

  • Product Features

    Device Type : Support Grip

  • Warranty

    Warranty : 1-Year Limited
