Support Grip, 2.00-2.50"
L9593-100

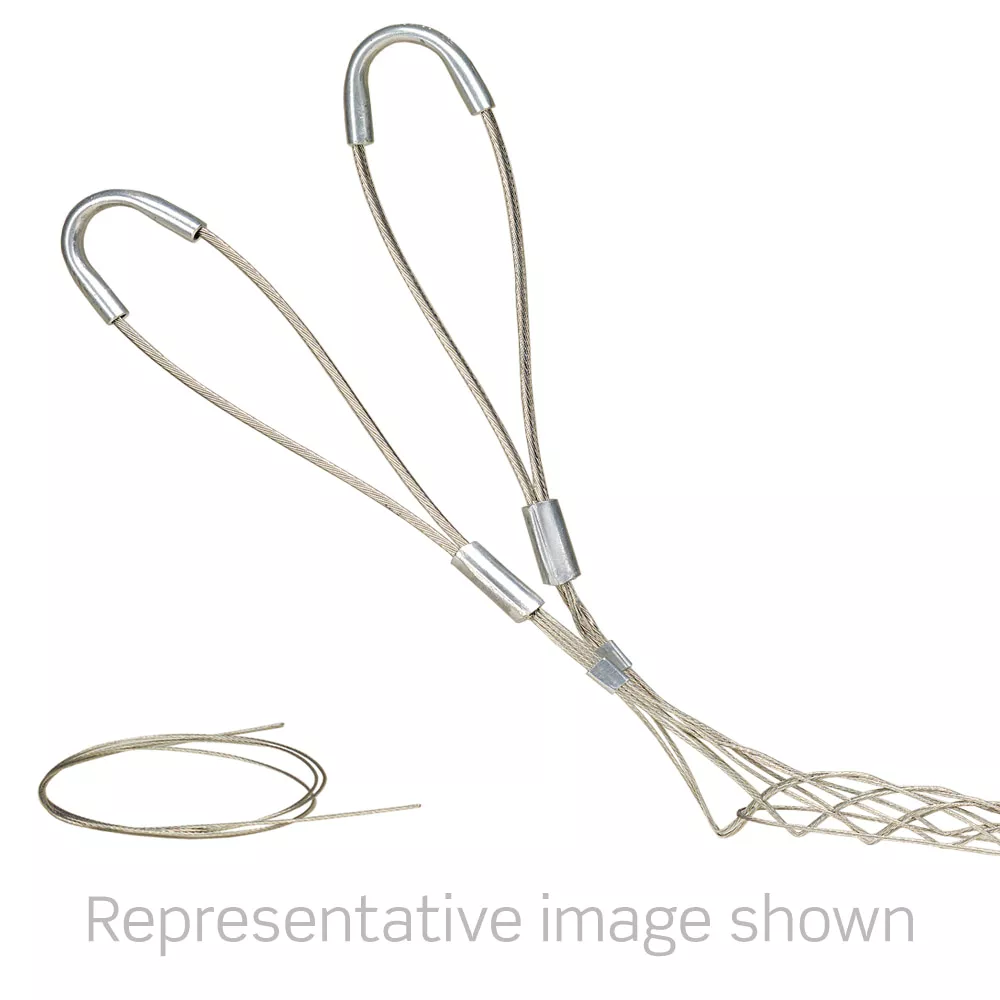

Support, Double Eye, Lace Up, Single Weave, Stainless Steel, 2.00"-2.50" Cable Diameter Range - Breakload is 3260 LBS, 6.0" Eye Length, 21" Mesh Length
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Support grips distribute the weight of the vertical or sloping runs of electrical and fiber optic cable, metal rods, tubing or hose over the entire length of the grip so the cable is not damaged
- Use of support grips avoids stress on cable connections and provides needed support for vertically hung cables
Product Information
Mechanical Specifications
Approx. Break Strength : 3,260LBS
Bale Length : 6 in (152 mm)
Cable Range : 2.00"-2.50"
Duty : Standard
Eye Type : Double
Mesh Length : 21"
Mesh Style : Open - Lace Closing
Standards and Certifications : UL
Weave : Single Weave
Workload Safety Factor (lbs) : 326 lbs (148 kg)
Product Features
Device Type : Support Grip
Material Specifications
Mesh Material : 304 SS
Warranty
Warranty : 1-Year Limited
