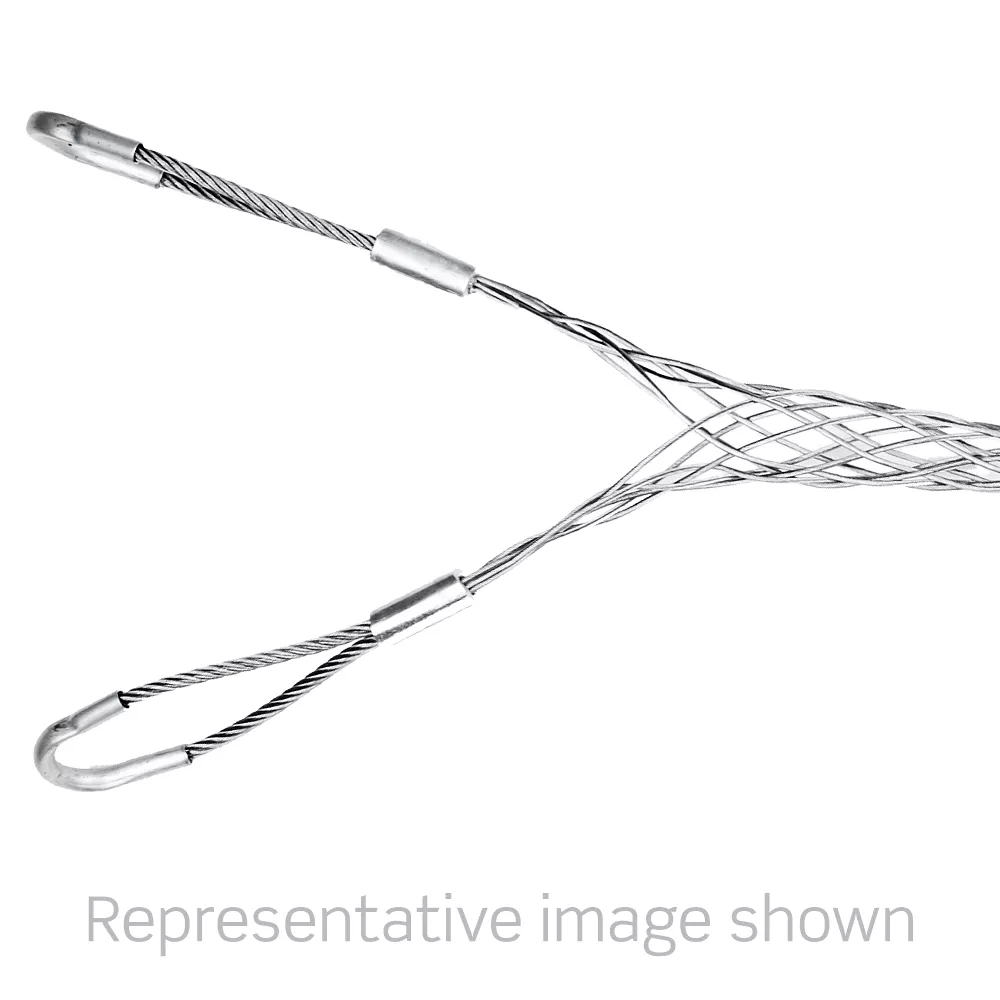

Support Grip, 0.63-0.75"


Support, Double Eye, Single Weave, Stainless Steel, 0.63"-0.75" Cable Diameter Range - Breakload is 740 LBS, 6" Eye Length, 10.5" Mesh Length
  • Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
  • Support grips distribute the weight of the vertical or sloping runs of electrical and fiber optic cable, metal rods, tubing or hose over the entire length of the grip so the cable is not damaged
  • Use of support grips avoids stress on cable connections and provides needed support for vertically hung cables
Country of Origin : India

Product Information

  • Material Specifications

    Mesh Material : 304 SS

  • Product Features

    Device Type : Support Grip

  • Warranty

    Warranty : 1-Year Limited

  • Mechanical Specifications

    Approx. Break Strength : 740LBS

    Bale Length : 4.3 in (155 mm)

    Cable Range : 0.63"-0.75"

    Duty : Standard

    Eye Type : Double

    Mesh Length : 10.5"

    Mesh Style : Closed

    Standards and Certifications : UL

    Weave : Single Weave

    Workload Safety Factor (lbs) : 74 lbs (33.5 kg)
