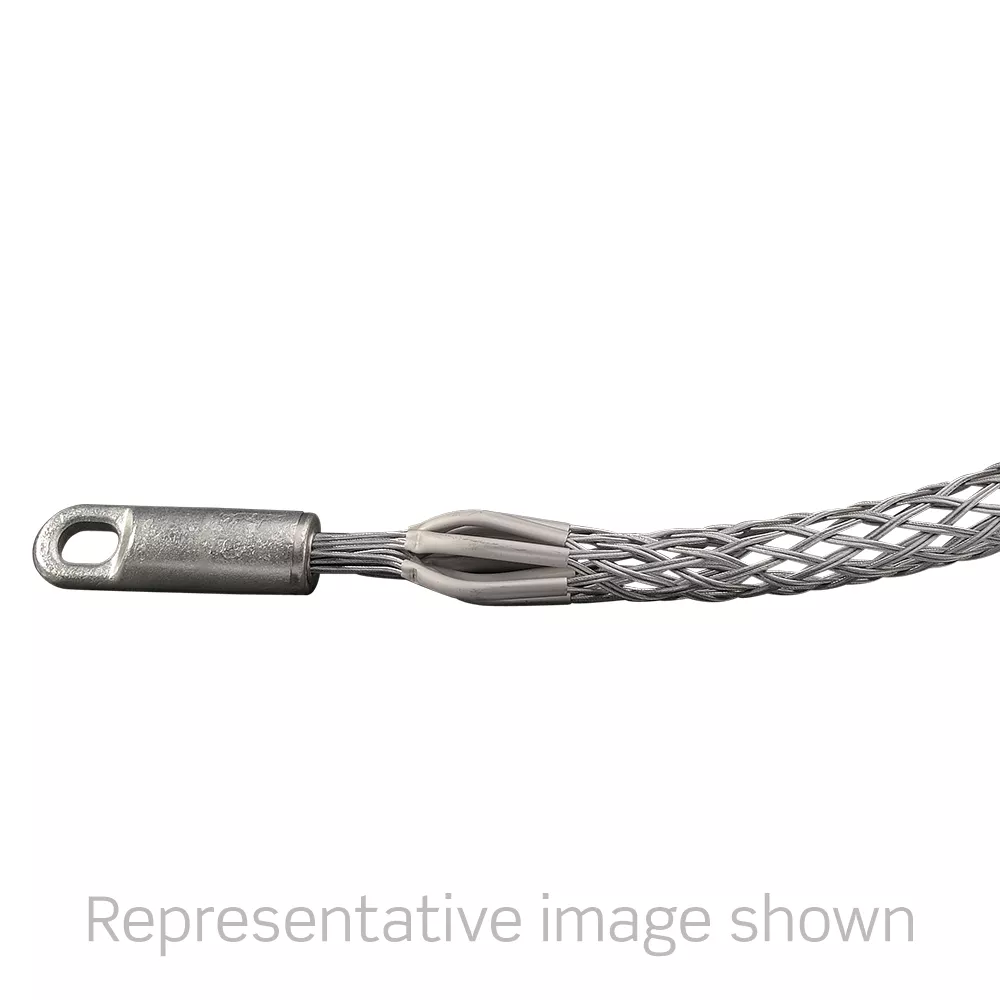

Pulling Grip, 0.75-1.00"
L8583-100
Pulling, Rotating Eye, Double Weave, Short Length, Galvanized Steel, 0.75"-1.0" Cable Diameter Range - Breakload is 6800 LBS
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Pulling grips are reusable devices for pulling bare conductors, insulated wires, synthetic rope, wire rope, and fiber optic cable
- All pulling grip designs are fully tested to meet published break ratings without slipping
Product Information
Mechanical Specifications
Approx. Break Strength : 6800LBS
Bale Length : 6.7 in (170 mm)
Cable Range : 0.75"-1.0"
Duty : Medium
Eye Type : Rotating Barrel Eye
Mesh Length : 18.5"
Mesh Style : Closed
Standards and Certifications : UL
Weave : Double Weave
Workload Safety Factor (lbs) : 2,267 lbs @ 3:1 (1,028 kgs @ 3:1)
Product Features
Device Type : Pulling Grip
Material Specifications
Mesh Material : Galvanized
Warranty
Warranty : 1-Year Limited
