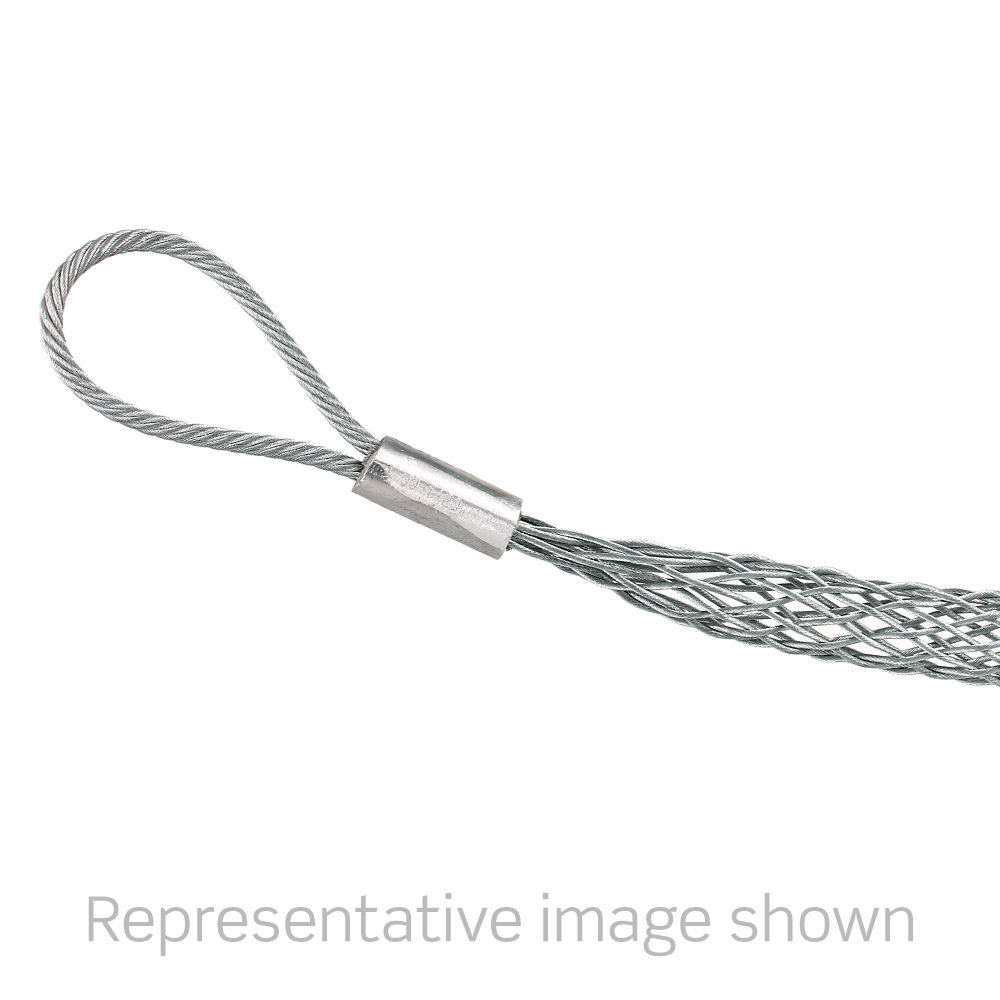

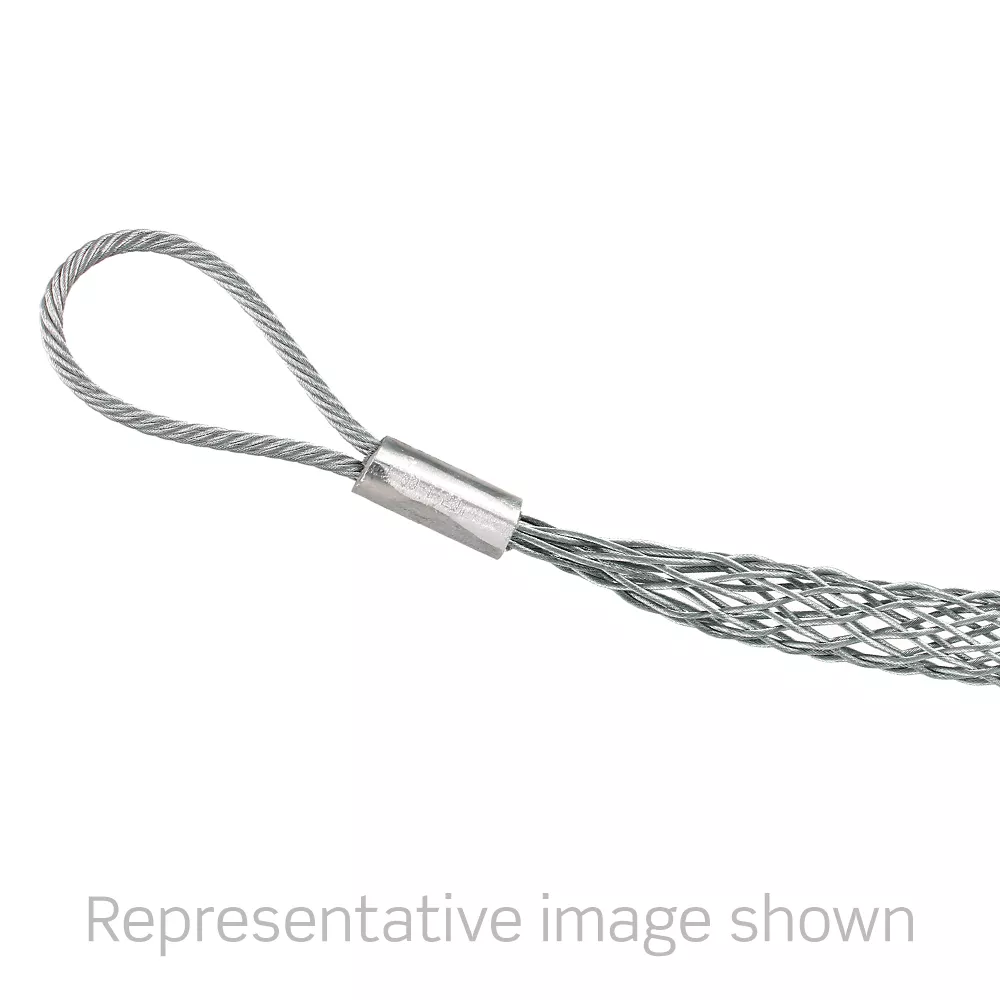

Pulling Grip, 0.75-1.00"
L8513-100
Pulling, Flexible Eye, Single Weave, Closed Mesh, Galvanized Steel, 0.75"-1.0" Cable Diameter Range - Breakload is 5600 LBS
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Pulling grips are reusable devices for pulling bare conductors, insulated wires, synthetic rope, wire rope, and fiber optic cable
- All pulling grip designs are fully tested to meet published break ratings without slipping
Product Information
Mechanical Specifications
Approx. Break Strength : 5600LBS
Bale Length : 3.5 in (88.9 mm)
Cable Range : 0.75"-1.0"
Duty : Light
Eye Type : Flex Eye
Mesh Length : 18.0"
Mesh Style : Closed
Weave : Single Weave
Workload Safety Factor (lbs) : 1866 lbs @ 3:1 (846 kgs @ 3:1)
Product Features
Device Type : Pulling Grip
Material Specifications
Mesh Material : Galvanized
Warranty
Warranty : 1-Year Limited
