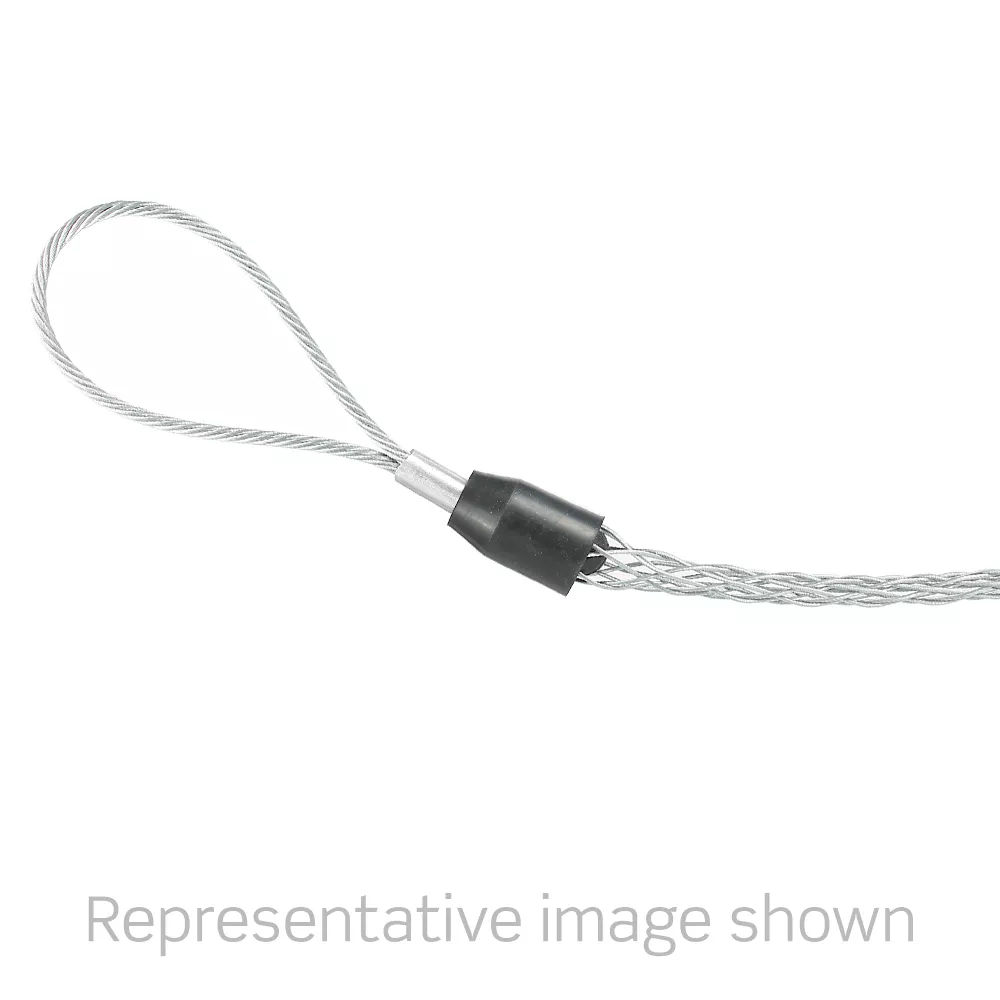

Pulling Grip, 1.00-1.25"

L8505-100

Pulling, Flexible Eye, Junior Pulling Grip, Galvanized Steel, 1.00"-1.25" Cable Diameter Range - Breakload is 3900 LBS
  • Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
  • Pulling grips are reusable devices for pulling bare conductors, insulated wires, synthetic rope, wire rope, and fiber optic cable
  • All pulling grip designs are fully tested to meet published break ratings without slipping
UPC Code: 078477213476
Country of Origin : India
RoHS Compliant: Yes – Click Here

Product Information

  • Mechanical Specifications

    Approx. Break Strength : 3,900lb

    Bale Length : 4.5 in (114.3 mm)

    Cable Range : 1.00"-1.25"

    Duty : Light

    Eye Type : Flex Eye

    Mesh Length : 12.5"

    Mesh Style : Closed

    Standards and Certifications : UL

    Weave : Single Weave

    Workload Safety Factor (lbs) : 1,300 lbs @ 3:1 (590 kgs @ 3:1)

  • Product Features

    Device Type : Pulling Grip

  • Material Specifications

    Mesh Material : Galvanized

  • Warranty

    Warranty : 1-Year Limited
