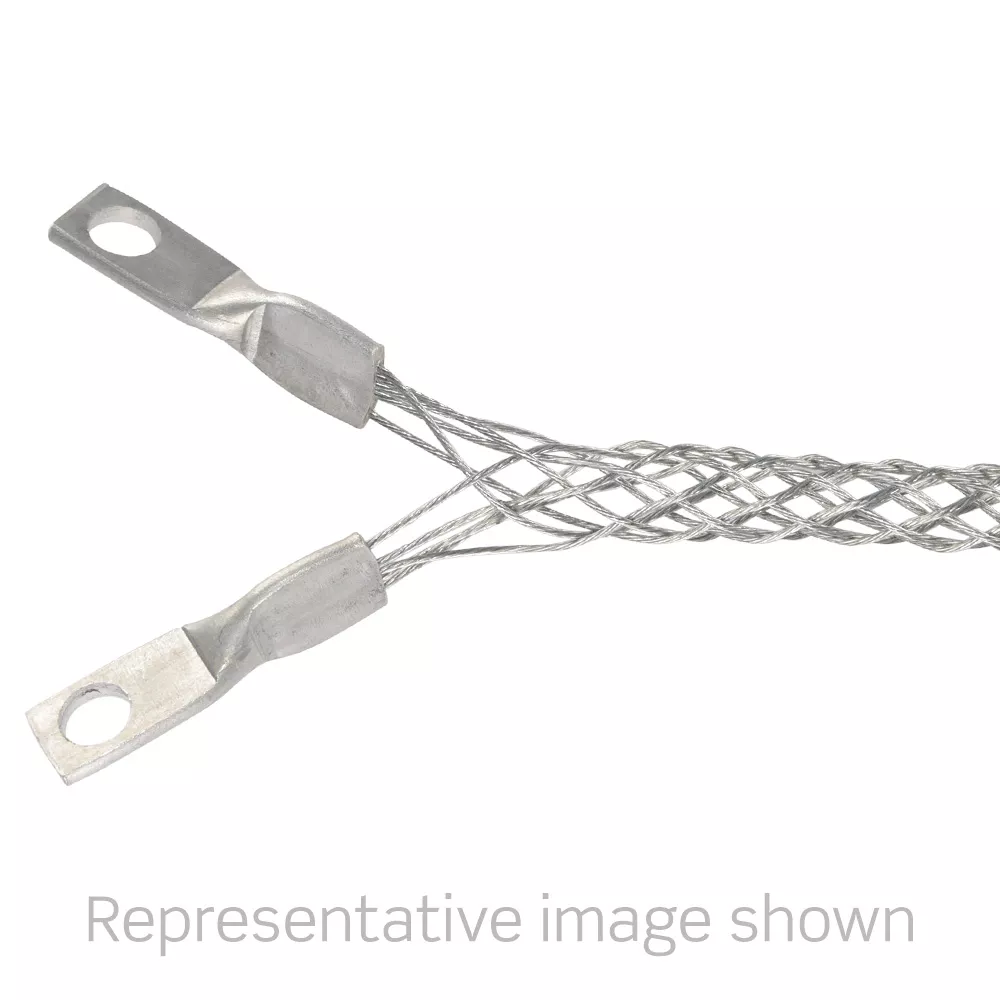

Strain Relief Grip, 0.70–0.85"

L8004-100

Strain Relief, I-Grips, Single Weave, Double Eye, Galvanized Steel Mesh, Aluminum Cord Grips, 0.70"-0.85" Cable Diameter Range, 2" Eye Size, 8.00" Mesh Length
  • Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
  • Strain relief grips are used to connect cable or flexible conduit to electrical enclosures and equipment and resist pull out
  • These grips reduce pulling tension, flexing, twisting, and bending that can cause system damage
UPC Code: 078477213285
Country of Origin : India
RoHS Compliant: Yes – Click Here

Product Information

  • Product Features

    Device Type : I-Grip

  • Mechanical Specifications

    Approx. Break Strength : 600 in (0 mm)

    Cable Range : 0.70-0.85 in (17.78 - 21.59 mm)

    Duty : Light

    Eye Type : I - Grip

    Mesh Length : 8.5 in (0 mm)

    Mesh Style : Closed

    Weave : Single

  • Material Specifications

    Mesh Material : Galvanized Wire

  • Warranty

    Warranty : 1-Year Limited
