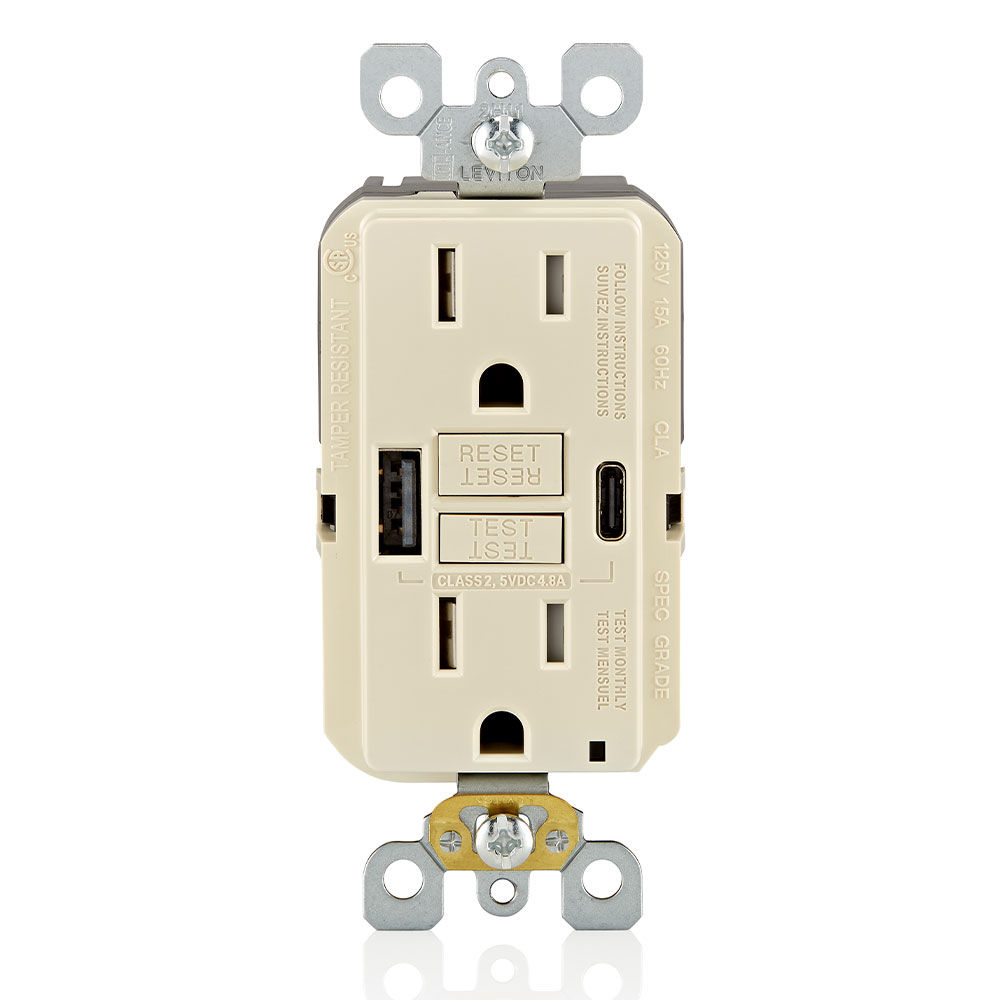

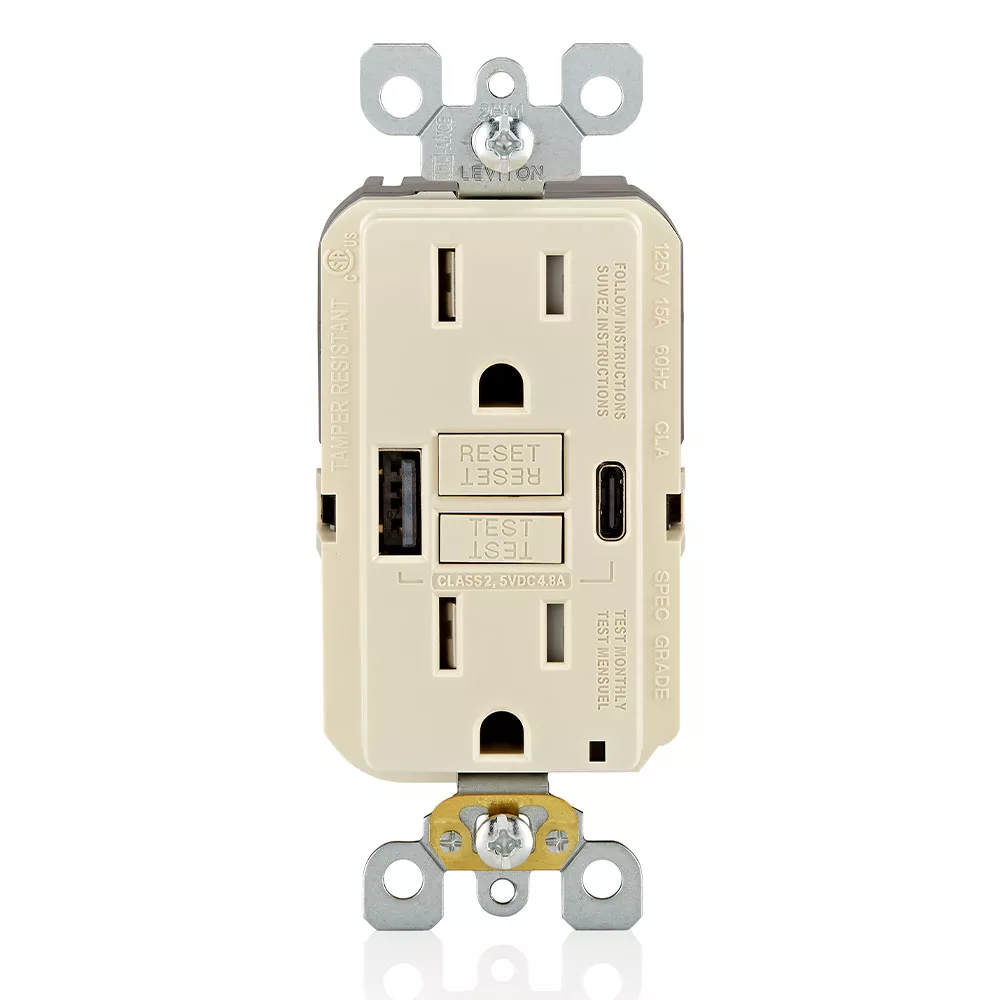

SmartlockPro® GFCI / 24W USB Outlet , Type A / C Charging Ports, 15A Self-Grounding Receptacle - Light Almond
GUAC1-T
- SAFE – Delivers continuous NEC® required GFCI protection that automatically self-tests to ensure it can respond to a ground fault with status indicator light for intuitive feedback
- FAST CHARGING - Smart chip technology provides over 2X the charging power of other GFCI USB outlets for a faster charge
- CONVENIENT – No more searching for charging adapters! Charge electronics while leaving the outlets free for additional power needs, requires extra deep wall box
- ENHANCED SAFETY – Overcurrent protection helps protect electronic devices from over charging / heating, and tamper-resistant shutters prevent unwanted objects from being inserted into the outlets
- SMARTLOCKPRO – Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
Color: Light Almond
Instruction Sheet
Documents
Technical Information
-
General Information
UPC : 78477996102
Nema : 5-15R
Electrical Specifications
Amperage : 15 A
Dielectric Voltage : 1250 VAC
Grounding : Self-Grounding
Horsepower Rating : 1 hp
Pole(s) : 2
Power Supply Input and Frequency : 125V, 60Hz
Temperature Rise : Max 30°C
Trip Level : Class A
Voltage : 125 VAC
Wire(s) : 5
Environmental Specifications
Flammability Rating : UL94, 5VA
Operating Temperature : Maximum Continuous 40°C, Minimum -10°C (w/o impact)
Material Specifications
Body Material : Thermoplastic
Face Material : Thermoplastic
Line Contacts : Brass
Mounting Strap : Galvanized Steel
TR Shutter : Thermoplastic
Mechanical Specifications
Product ID : Ratings are marked on device
Screw Terminal Torque : No Terminal Screws

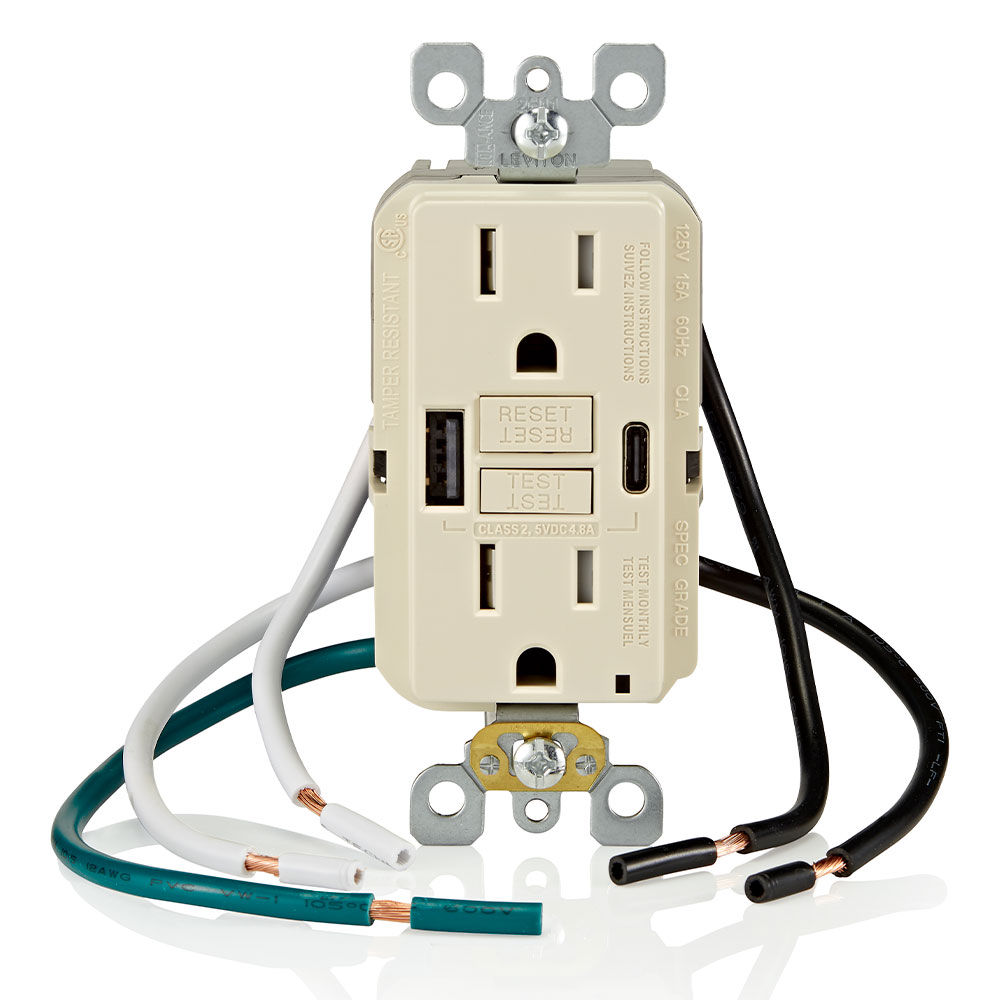

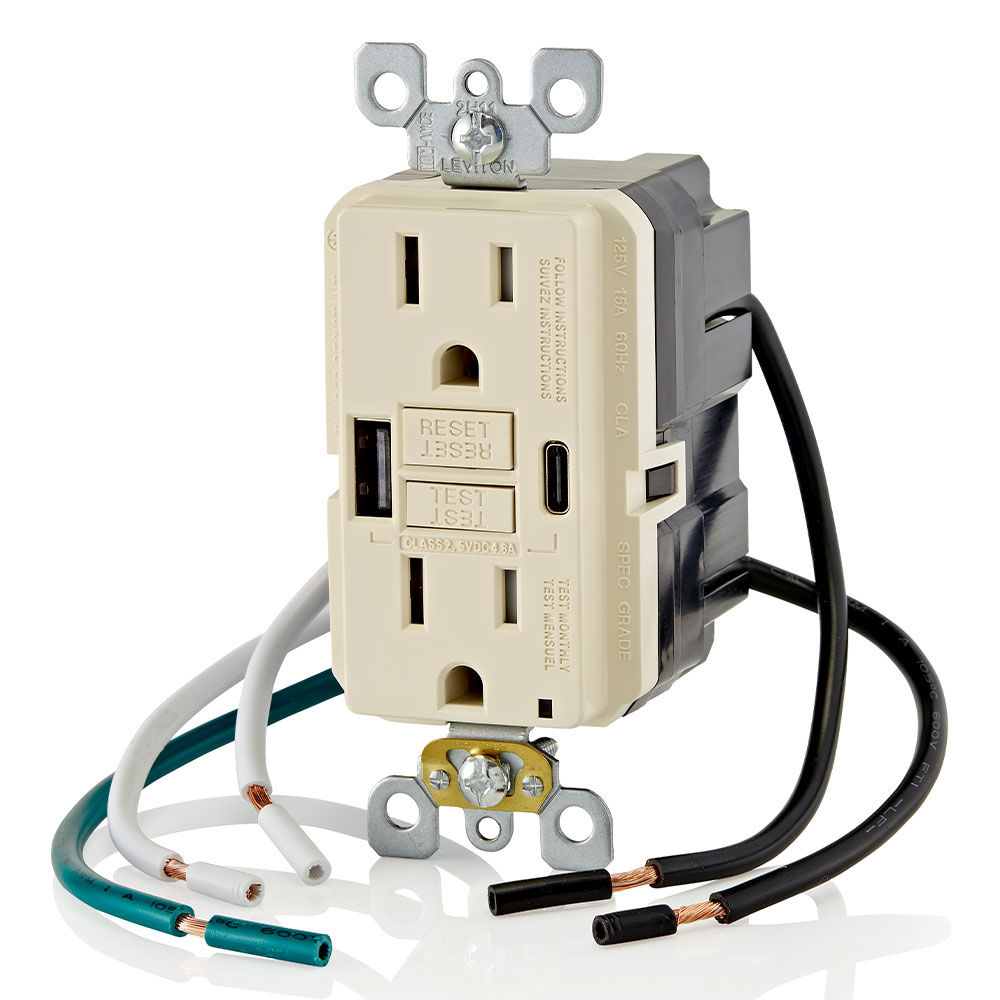

Termination : Leaded
Wire Accomodation : Leaded
Product Features
Brand : SmartlockPro
Color : Light Almond
Feature(s) : Indicator Light, Self-Test, Tamper Resistant
Grade : Residential/Commercial Specification Grade
NEMA Configuration : 5-15R
Product Type : GFCI / USB Receptacle Outlet
USB Power Delivery : No
USB Type : Type A / C
USB Wattage : 24 W
Standards and Certifications
Applicable Standards & Certifications : ANSI C-73, CSA C22.2 No. 42, CSA C22.2 No. 144, FCC Part 15 Class B, Fed Spec WC-596, cCSAus Listed, NOM, UL 1310, UL 498
NEMA : WD-1 and WD-6
Warranty
Warranty : 1-Year Limited
Features & Benefits
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Smart chip technology recognizes and optimizes the charging requirements of individual devices including Apple, Samsung, Nexus, Pixel and more
- One Type A Port and one Type-C Port with combined total of 5.1A of charging power
- Tamper-Resistant improves child safety – built-in shutter prevents access by most non-rated/foreign objects
- USB Ports tested to withstand over 10,000 insertions
- Charges most Type A and Type-C USB powered devices
- Type-C Port permits the cables to be inserted easily in either direction
- Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device
- Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
- No data transfer capability

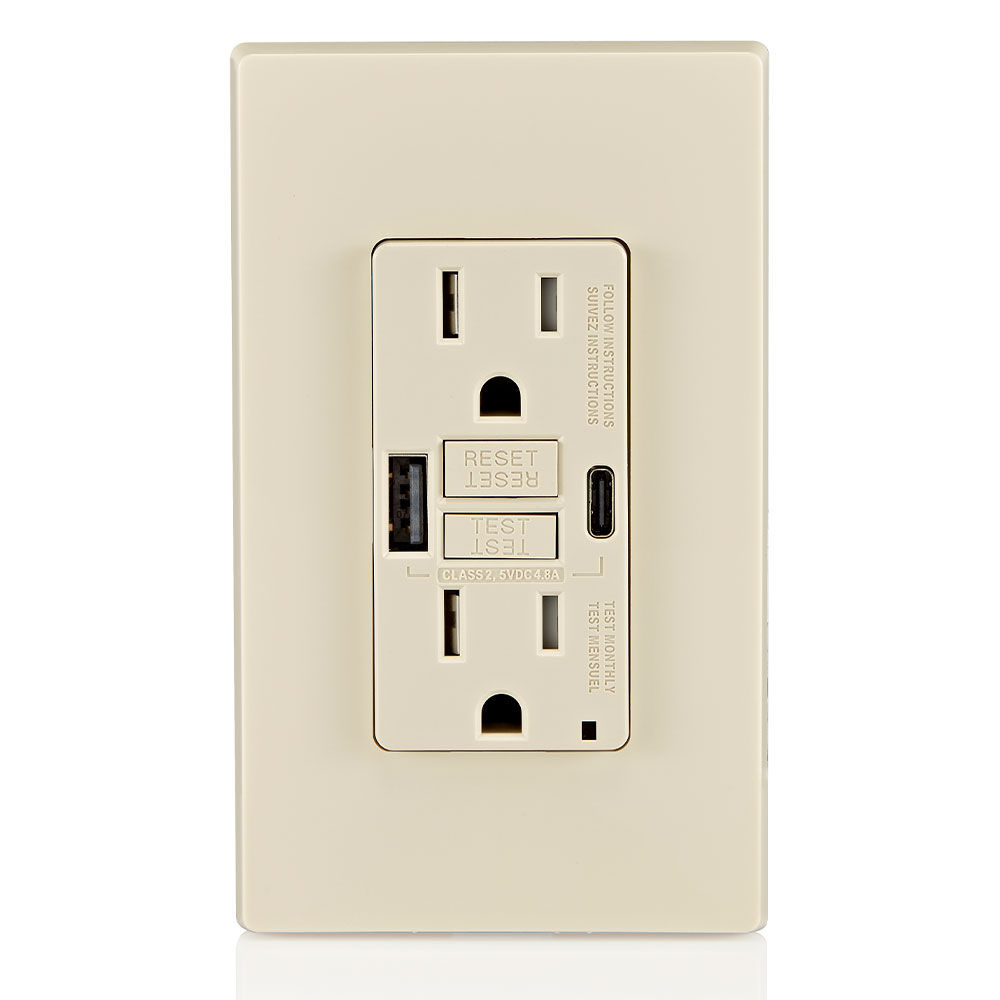

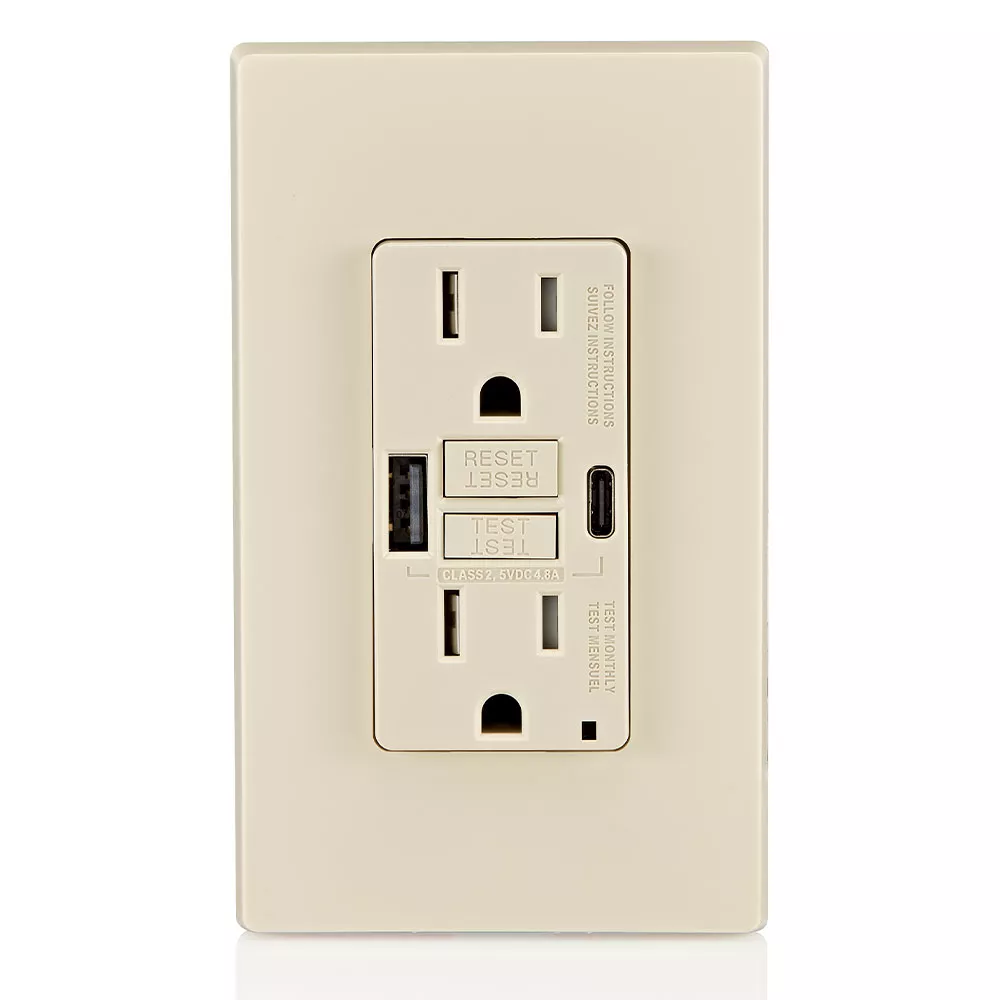

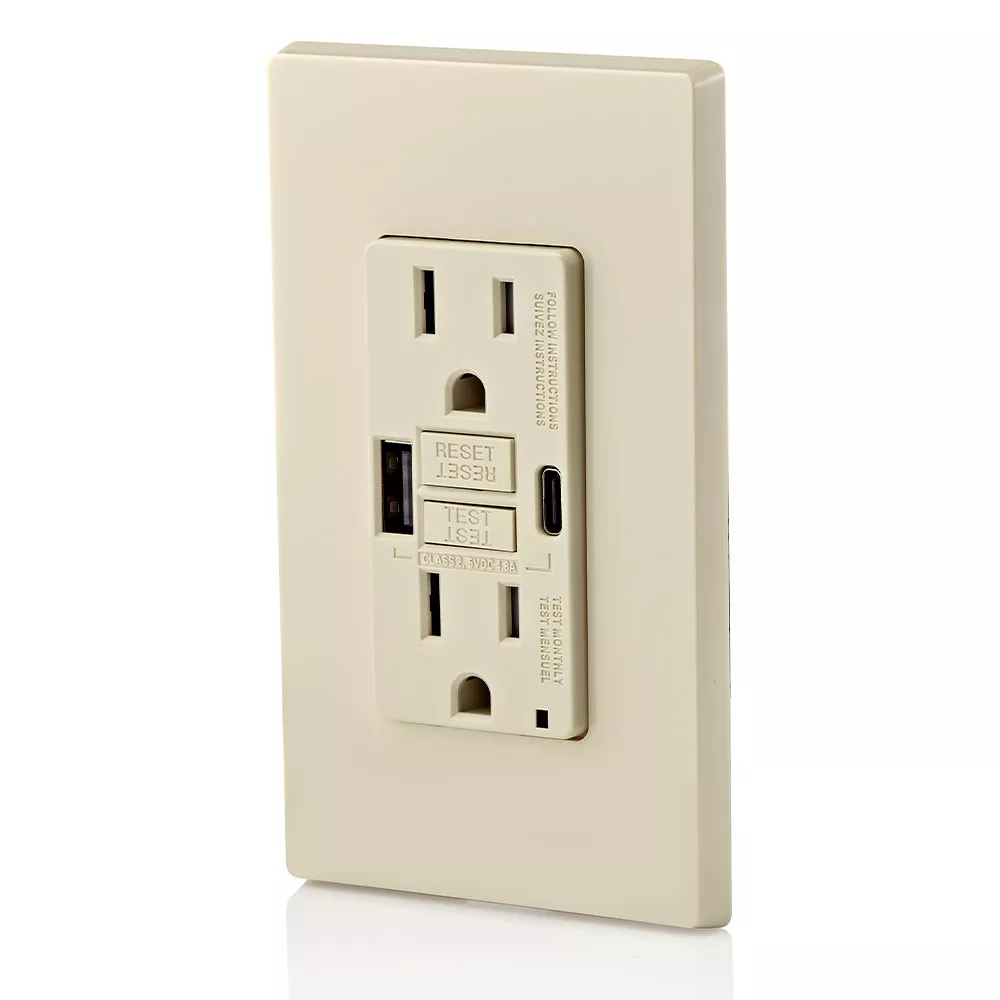

- Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
Patents
- CA2621644
- US11831139
- MX308495
- US9053886
- US10483066
- US11349293
- US9276393
- MX338817
- US9368982
- US8587914
- US9496726
- US8242362
- US7355117
- MX302458
- US8599522
- CA2624409
- MX344697
- CA2730014
- US7820909
- US11456138
- US7697252
- CA2857863
- CA2677283
- US7868719
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
